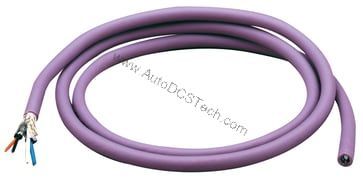

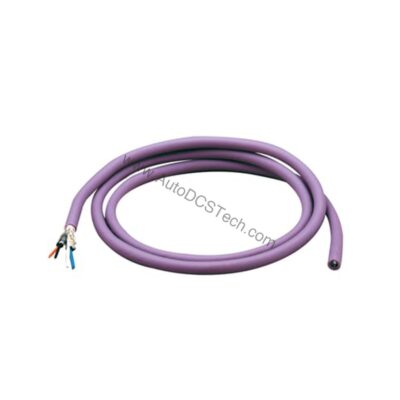

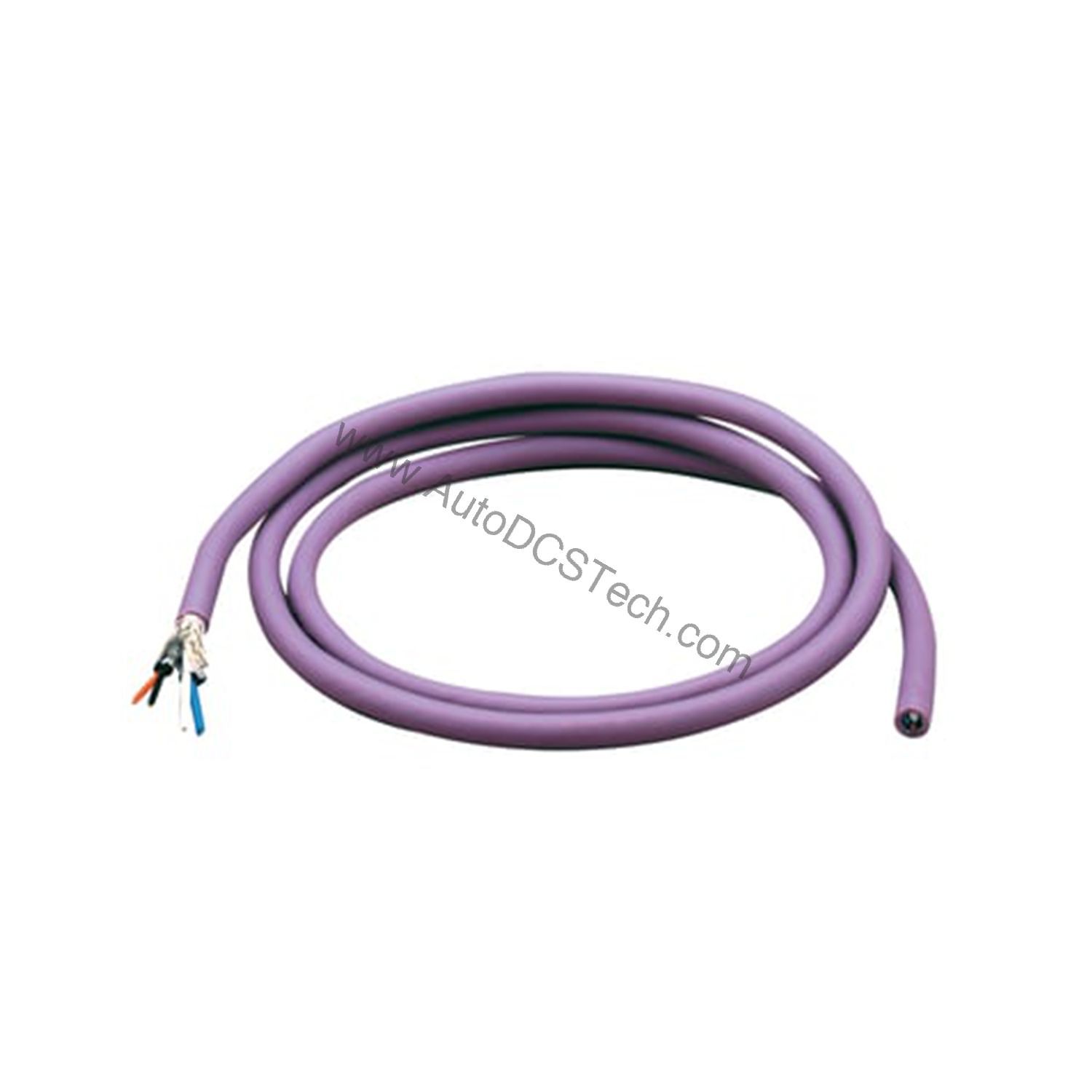

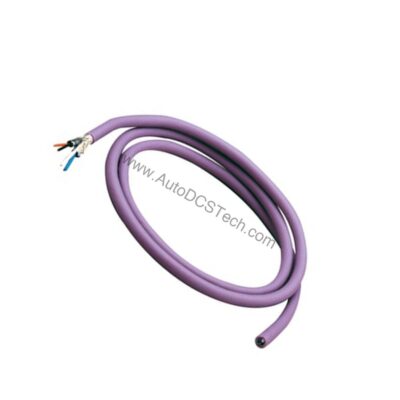

Schneider TSXCANCB100 CANopen Standard Cable 100m IP20 UL

Technical Specifications Breakdown

Key parameters for the TSXCANCB100 are listed below for quick reference:

Industry Applications for the CANopen Cable

The IP20 rating makes it suitable for use in control cabinets and protected indoor areas where dust ingress is limited. Maintenance teams benefit from the standardized CANopen interface, which simplifies troubleshooting and reduces spare part complexity.

Installation and Setup Guidance

When installing the TSXCANCB100, ensure the cable is routed away from high-voltage power lines to avoid electromagnetic interference. Secure the cable with appropriate clips or cable trays to prevent mechanical stress on the connectors. For best signal quality, keep the total bus length within CANopen specifications and terminate both ends of the network with the correct resistors.

Maintenance and Reliability

Periodically inspect the cable for cuts, abrasions, or loose connectors. The robust construction meets IEC 60332-2 for flame retardance, adding a layer of safety in case of electrical faults. For long-term reliability, avoid sharp bends and maintain a minimum bend radius consistent with standard CANopen cabling practices.

Reliable CANopen Bus Communication with Schneider TSXCANCB100

For maintenance engineers seeking a dependable connection solution for CANopen networks, the Schneider TSXCANCB100 offers a robust, pre-terminated cable designed for industrial environments. This CANopen standard cable simplifies installation and ensures consistent signal integrity across long distances, reducing common fieldbus issues like signal degradation or intermittent faults.

Compatibility and Integration

As a dedicated CANopen bus cable, this accessory is compatible with Schneider Electric CANopen devices and most third-party CANopen equipment. It supports standard CANopen communication protocols, enabling seamless integration into existing automation architectures.

Selection Guide and Purchasing Advice

For replacement or new installations, the TSXCANCB100 provides a ready-to-use solution. AutoDCSTech stocks this cable to support your maintenance and upgrade projects. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
