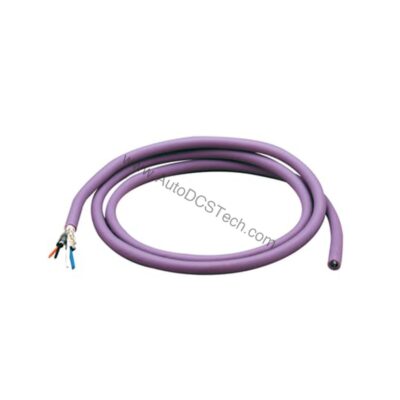

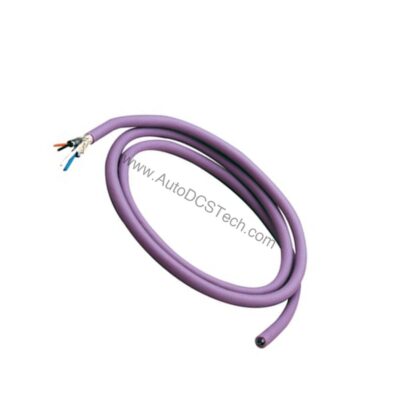

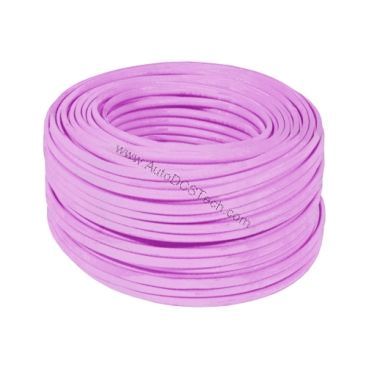

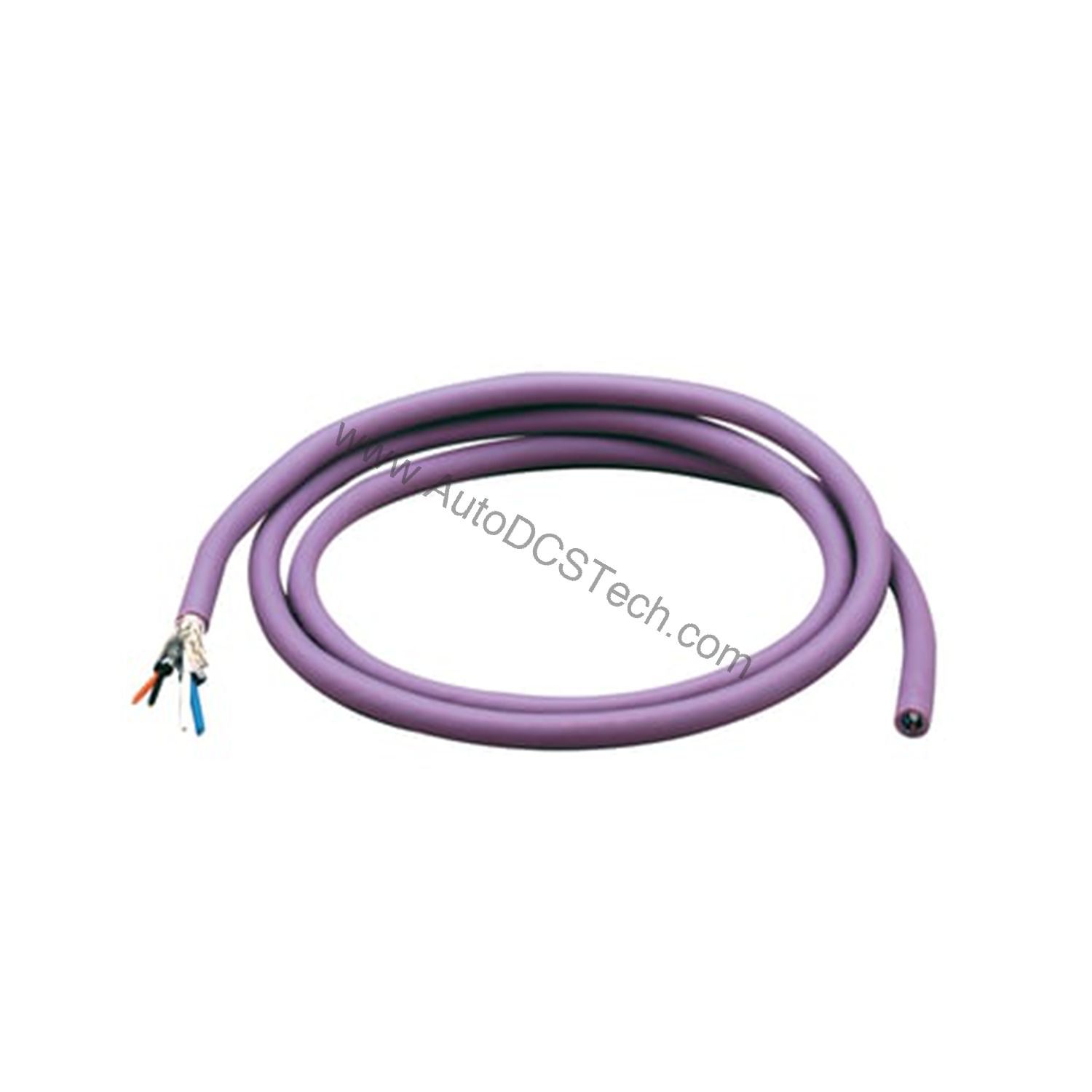

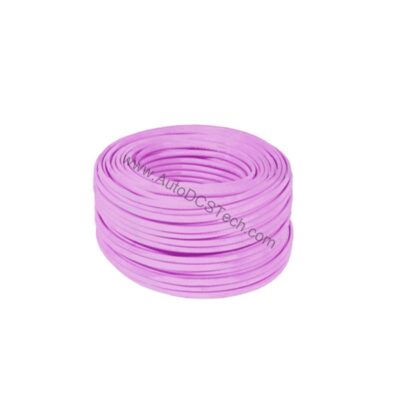

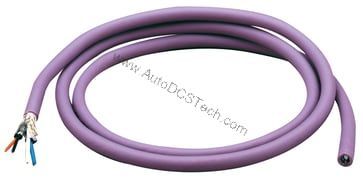

Schneider TSXCANCB50 CANopen Standard Cable 50m IP20 UL

Technical Specifications Breakdown

Key parameters for the TSXCANCB50 are listed below for quick reference:

Industry Applications for the CANopen Cable

This cable is well-suited for discrete manufacturing and process control environments where CANopen is the chosen fieldbus. Typical applications include connecting remote I/O stations to a main controller in packaging lines, material handling systems, and assembly cells. The 50-meter length provides flexibility for routing between cabinets or across machinery without requiring intermediate junction boxes.

Engineers often face signal degradation in long cable runs. The TSXCANCB50 is built to maintain signal quality over its full length, reducing the risk of communication errors that can cause production downtime. When you choose this cable, you are investing in predictable network performance.

Installation and Setup Guidance

For optimal performance, route the TSXCANCB50 away from high-voltage power cables and sources of electromagnetic interference. Maintain the recommended minimum bend radius for standard CANopen cables to avoid internal conductor damage. Secure the cable at regular intervals using appropriate cable ties or clamps to prevent stress on connectors.

Terminate both ends of the CANopen bus with the required 120-ohm resistors. Verify that the total bus length, including all drop lines, does not exceed the maximum specified for your network's baud rate. The IP20 rating means this cable is suitable for use inside enclosures or in dry, indoor locations.

Maintenance and Reliability

Periodically inspect the cable for physical damage, especially near connection points and where it passes through cable glands. Check that connectors are firmly seated and free of corrosion. The UL certification confirms the cable meets rigorous safety standards, while IEC 60332-2 compliance ensures limited flame propagation in case of fire.

Reliable CANopen Bus Connectivity with the Schneider TSXCANCB50

When building or maintaining a CANopen network, the quality of the physical layer directly impacts system reliability. The Schneider TSXCANCB50 is a purpose-built CANopen standard cable designed to deliver consistent signal integrity over a 50-meter run. This accessory is engineered for industrial environments where robust connections and predictable performance are non-negotiable.

As part of Schneider's extensive CANopen range, this cable simplifies bus wiring by providing a pre-terminated or field-terminable solution that meets the demanding requirements of automation systems. Whether you are connecting drives, I/O blocks, or controllers, the TSXCANCB50 ensures a stable communication backbone.

Compatibility and Integration

It is compatible with any device that adheres to the CANopen communication profile, including drives, sensors, and actuators from various manufacturers. Before ordering, verify that your system's connectors match the cable termination type.

Selection Guide and Purchasing Advice

When selecting a CANopen cable, consider the required length, environmental protection, and certification needs. The TSXCANCB50 offers a 50-meter length with IP20 protection and UL certification, making it a solid choice for many industrial applications. AutoDCSTech stocks this cable and can assist with availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
