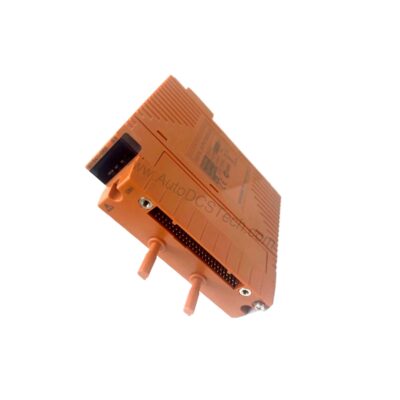

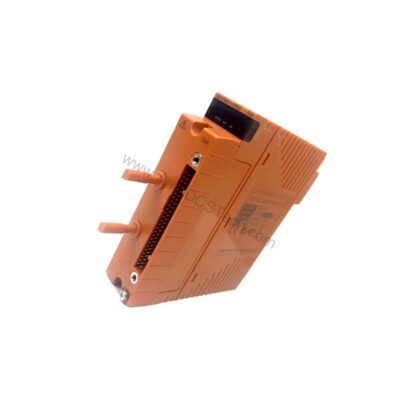

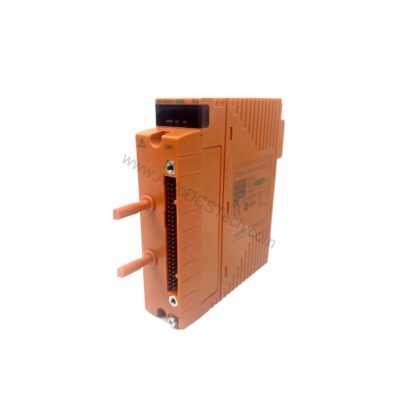

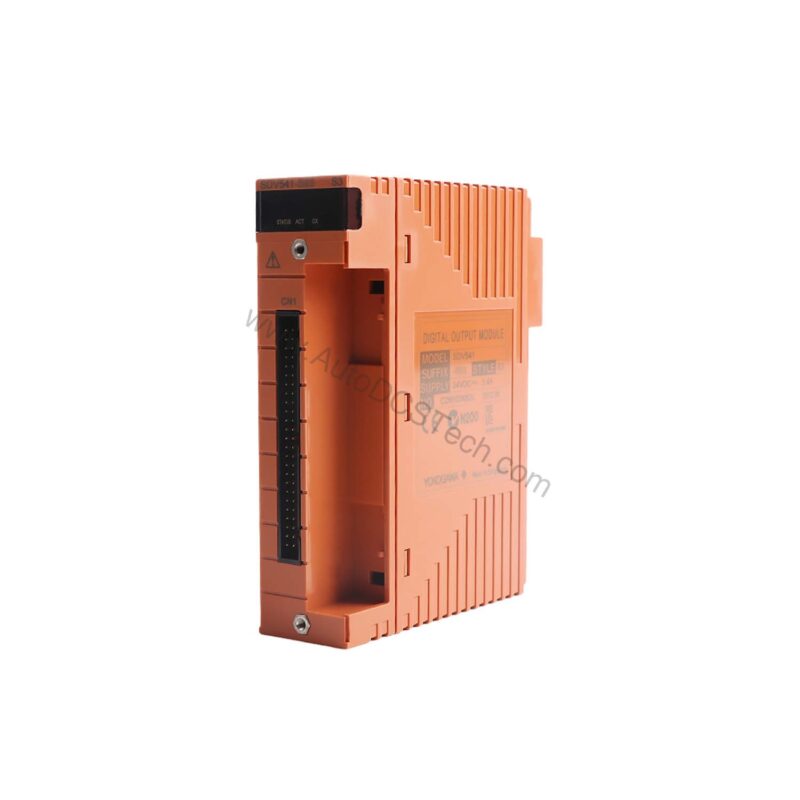

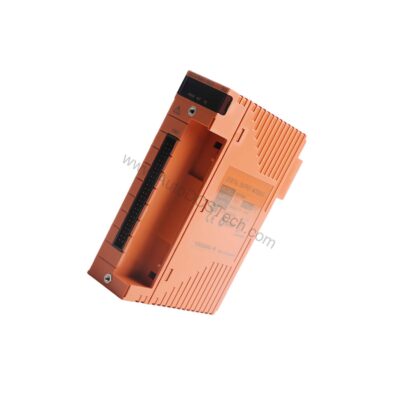

SDV541-S63/PRP: 16 Channel 24V DC Digital Output Module
The SDV541-S63/PRP is the 16 Channel 24V DC Digital Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 24 V DC.
The reason to specify this exact variant is 16 channel 24v dc digital output module. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. 16 channel 24v dc digital output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 24 V DC against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | SDV541-S63/PRP |
| Model | SDV541 Digital Output Module |
| Output channels | 16-channel, module isolation |
| Output voltage | 24 V DC |
| External power supply | 24 V DC +20%/-10%, 3.4 A minimum |
| Maximum load current | 0.2 A/output line (3.2 A total) |
| Minimum load current | 35 mA |
| Load resistance range | 120 to 685 Ω |
| Output response time | 30 ms maximum |
| Withstand voltage | 2 kV AC for 1 minute |
| Weight | Approx. 0.29 kg (pressure clamp or MIL cable) |
Availability & Condition at AutoDCSTech
| Part Number | SDV541-S63/PRP |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
