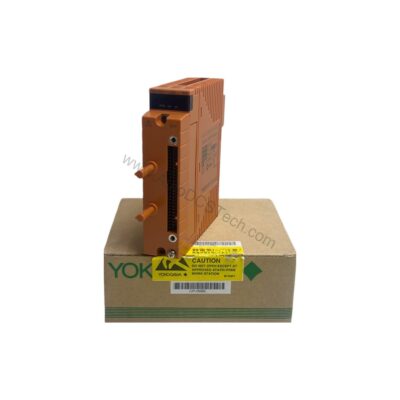

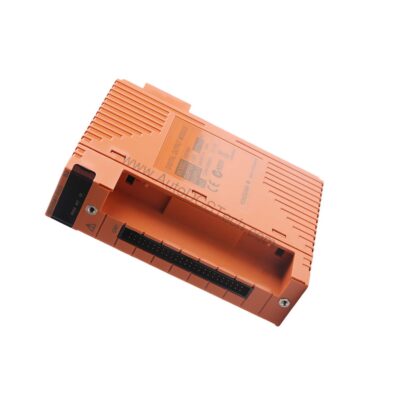

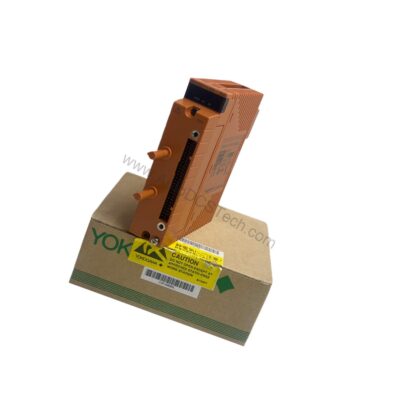

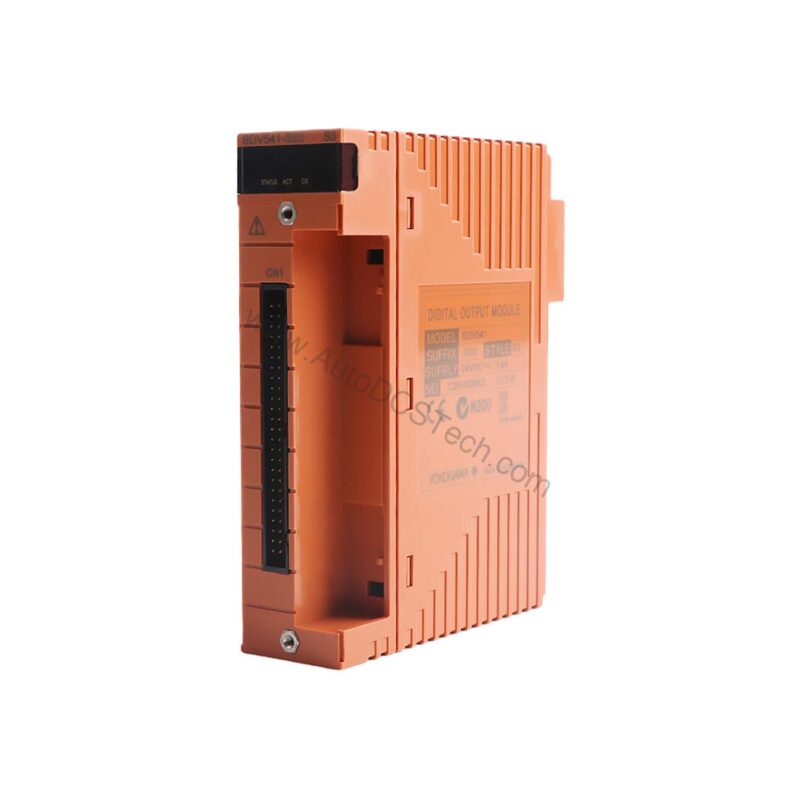

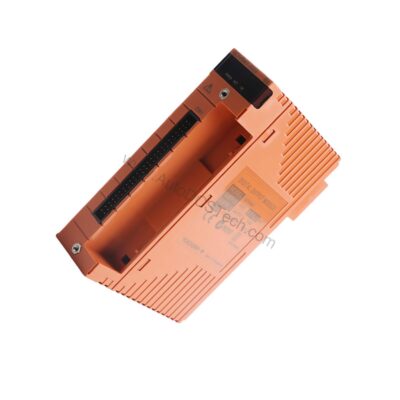

SDV531-L63: 8 Channel 24 V DC Digital Output Module
The SDV531-L63 is the 8 Channel 24 V DC Digital Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 24 V DC.
On this unit 8 channel 24 v dc digital output module is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. 8 channel 24 v dc digital output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 24 V DC against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | SDV531-L63 |
| Model | SDV531-L63 |
| Output channels | 8, module isolation |
| Output voltage | 24 V DC |
| Maximum load current | 0.6 A per output line (4.8 A total) |
| External power supply | 24 V DC +20%/-10%, 5 A minimum |
| Output response time | 30 ms max |
| Withstand voltage | 2 kV AC for 1 minute |
| Current consumption | 280 mA max (5 V DC), 140 mA max (24 V DC) |
| Weight | approx. 0.28 kg (terminal/MIL) or 0.34 kg (with adapter) |
Availability & Condition at AutoDCSTech
| Part Number | SDV531-L63 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
