Technical Specifications Breakdown
Key parameters for the 280D-F23Z-25D-RRW-3 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Horsepower Range | 0.5…10 Hp (0.37…7.5 kW) |
| Enclosure Rating | IP67/NEMA Type 4 / 4X |
| Communications | DeviceNet |
| Short Circuit Protection | 25 A Rated Device |
| Overload Selection Current Range | 3.2…16 A |
| Control Voltage | 24V DC |
| Input On-State Voltage Range | 10…26V DC |
| Input Off-State Voltage Range | 0…5V DC |
| Input Filter (Off-to-On) | 0…64 ms in 1 ms increments |
| Input Filter (On-to-Off) | 0…64 ms in 1 ms increments |
| Sensor Source Voltage | 11…25V DC from DeviceNet |
| Outputs | 2 relay outputs, N.O., 240V AC/30V DC, 2A total |
| Standards | UL 508, CSA C22.2 No. 14, CE, CCC |
Flexible Options for Your Application
Factory-installed options include a Hand/Off/Auto (HOA) keypad and a safety monitor. The HOA keypad allows local manual control, useful during setup or maintenance. The safety monitor can be integrated into your safety circuit, adding a layer of protection.
Simplified Installation with Plug-and-Play Connectivity
Modular plug-and-play design means you can connect I/O, communications, motor, and power quickly. Quick-disconnect connectors eliminate hardwiring errors and speed up commissioning. A 3-meter unshielded 4-conductor cordset is included with the unit for motor connection. This approach reduces downtime during setup and makes maintenance swaps faster.
Maintenance and Reliability Tips
Periodically inspect the enclosure seals and gland plate entries to maintain the IP67 rating. Check LED status indicators for any fault conditions. Keep the DeviceNet network healthy by verifying proper termination and power. For any technical questions or to verify lifecycle status, contact AutoDCSTech.
On-Machine Motor Control That Keeps Production Moving

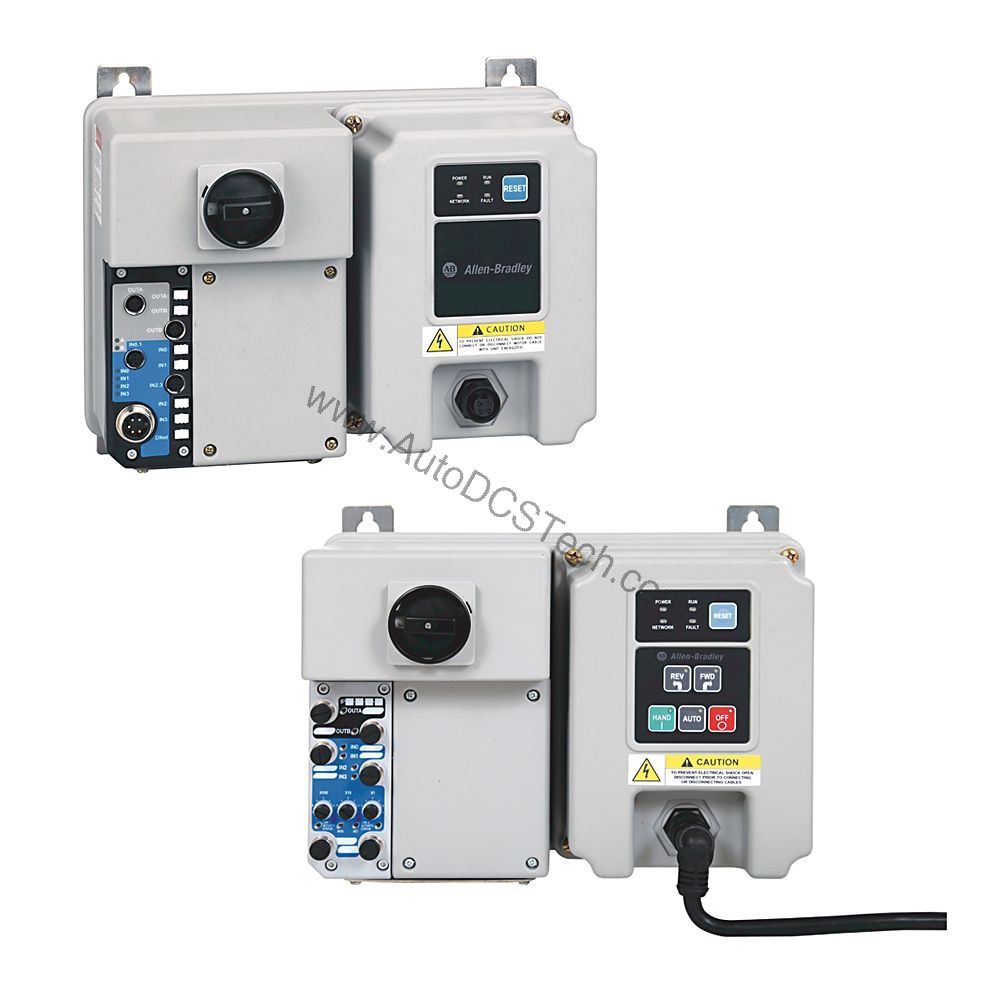

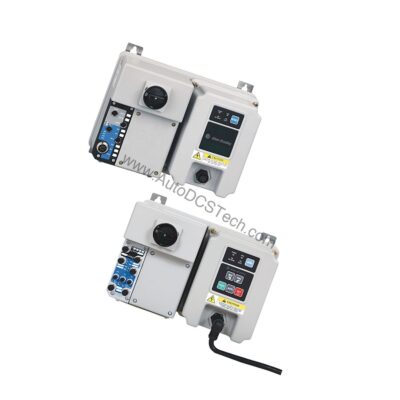

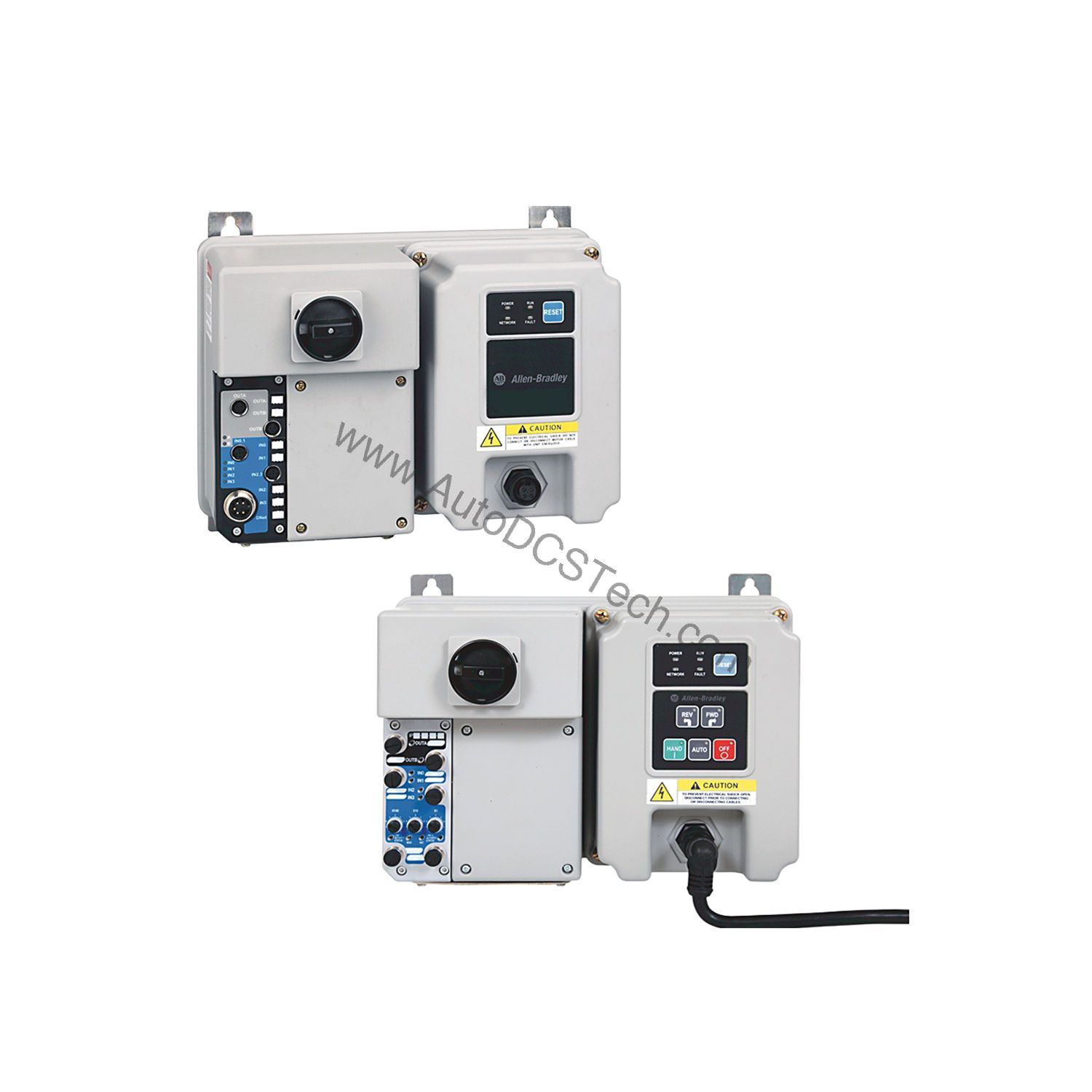

The Allen-Bradley 280D-F23Z-25D-RRW-3 ArmorStart distributed motor controller is engineered to minimize that risk. This full-voltage, reversing starter brings robust protection and communication directly to the machine, eliminating long control wiring runs and simplifying installation.
Built for Harsh Environments
The gland plate entry accepts either traditional conduit (3/4 and 1 in. openings) or ArmorConnect power media, giving you flexibility in how you route power. This rugged design reduces the need for separate control cabinets and shortens wire runs, cutting installation costs.
DeviceNet Integration and Peer-to-Peer Control
DeviceLogix component technology allows local logic execution, reducing reliance on a central PLC. Peer-to-peer communication (ZIP) enables interlocking between multiple ArmorStart units without a master controller. For expanded I/O, you can connect ArmorPoint distributed I/O products, and even bridge to ControlNet or EtherNet via ArmorPoint.
Comprehensive Diagnostics and Status Indication
Four LED indicators (POWER, RUN, NETWORK, FAULT) plus a reset button give you immediate visual feedback. Built-in fault diagnostics cover short circuit, overload, phase loss, control power loss, I/O faults, overtemperature, phase imbalance, DeviceNet power loss, and more. These features help you pinpoint issues quickly, reducing troubleshooting time.
Availability & Condition at AutoDCSTech
| Part Number | 280D-F23Z-25D-RRW-3 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
