Introduction to the Siemens 6AV2123-2JB03-0AX0

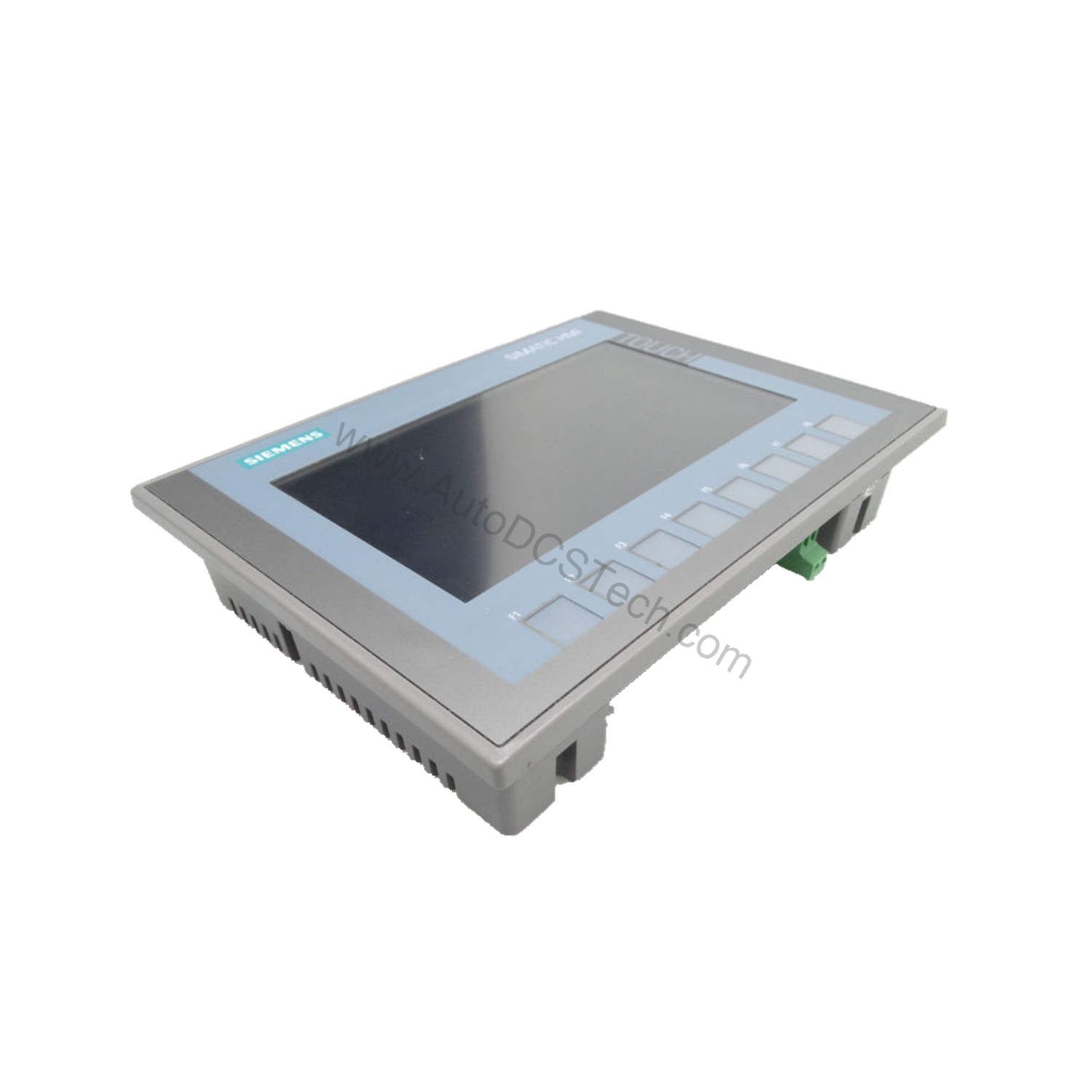

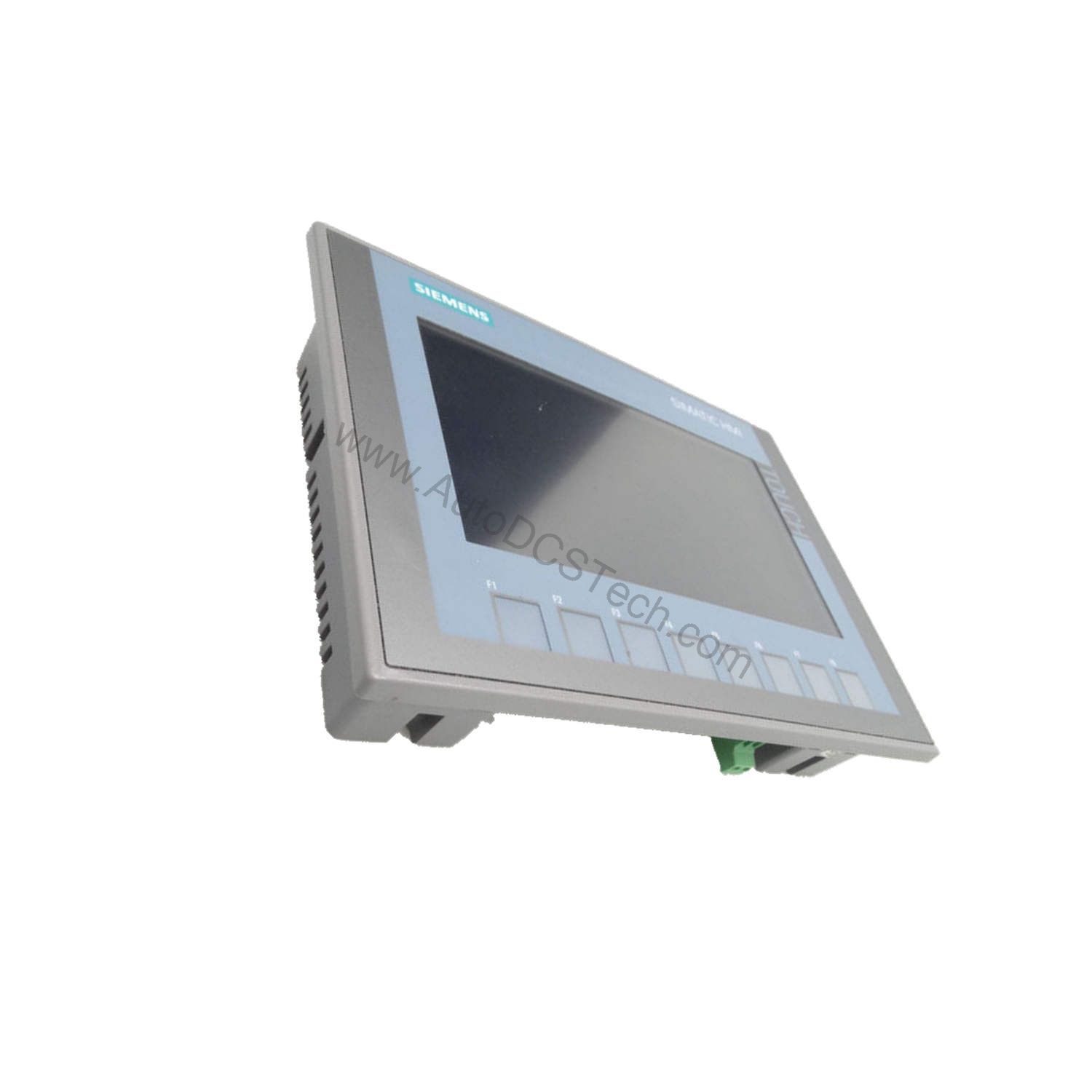

When you need a reliable operator interface for your machinery, the 6AV2123-2JB03-0AX0 from Siemens delivers a balanced combination of performance and practicality. This SIMATIC HMI KTP900 Basic panel features a 9-inch TFT widescreen display with LED backlighting, offering 65,536 colors for clear process visualization. It supports both key and touch operation, giving operators flexibility in how they interact with the system. With a PROFINET interface, this panel integrates seamlessly into modern industrial networks, making it a solid choice for new installations or upgrades.
Key Features and Technical Specifications
The 6AV2123-2JB03-0AX0 is engineered for demanding environments, as evidenced by its robust specifications. Below are the critical parameters you should consider:
- Display: 9-inch TFT widescreen, 800 x 480 pixels, 65,536 colors.
- Input Voltage: 24 V DC (range 19.2 V to 28.8 V DC).
- Power Consumption: Typically 5.5 W.
- Processor: ARM-based for efficient operation.
- Memory: 10 Mbytes available for user data.
- Interfaces: 1 x Industrial Ethernet (PROFINET), 1 x USB (up to 16 GB).
- Protocols: PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MODBUS TCP/IP, EtherNet/IP.
- Protection: IP65 front, IP20 rear.
- Operating Temperature: 0 °C to 50 °C (vertical installation).
- Dimensions (WxHxD): 267 mm x 182 mm x 39.4 mm (front panel).
- Weight: 1,130 g (without packaging).
One standout feature is the 8 function keys, which provide quick access to frequently used commands, reducing operator fatigue and improving efficiency. The analog resistive touchscreen is responsive and durable, suited for gloved hands in industrial settings.
Applications and Use Cases
The 6AV2123-2JB03-0AX0 is ideal for machine-level HMI applications across various industries. In packaging lines, it can display real-time production data and alarm messages, helping operators respond quickly to issues. In material handling systems, the panel can control conveyors and monitor sensor status, thanks to its support for PROFINET and MODBUS TCP/IP. Additionally, its compatibility with SIMATIC S7-1200 and S7-1500 controllers makes it a natural fit for modern Siemens-based automation solutions. The panel's ability to handle up to 800 variables and 250 screens allows for comprehensive process visualization without overwhelming the operator.
Installation and Setup
Mounting the 6AV2123-2JB03-0AX0 is straightforward. It supports both landscape and portrait orientations, with a maximum tilt angle of 35° without external ventilation. The panel is designed for vertical installation, and you should ensure adequate clearance for ventilation and cable connections. The unit connects via PROFINET, so you'll need a standard Ethernet cable. For initial configuration, use WinCC Basic (TIA Portal) V13 or higher, as specified by Siemens. The USB port allows for data transfer or connection of a USB drive for firmware updates or data logging.
Maintenance and Reliability
To ensure long-term reliability, periodic inspection of the unit is recommended. The LED backlight has an MTBF of 20,000 hours at 25 °C, which means years of trouble-free operation under normal conditions. The panel's IP65 front protection guards against dust and water ingress, making it suitable for washdown environments. For maintenance, simply wipe the front with a soft, dry cloth; avoid harsh solvents. The hardware clock with a buffer of about 6 weeks ensures that time-sensitive data is retained even during power outages. Regular firmware updates, as provided by Siemens, can also enhance performance and security.
Compatibility and Integration
The 6AV2123-2JB03-0AX0 is designed to work seamlessly with a wide range of Siemens controllers, including S7-1200, S7-1500, S7-200, S7-300/400, LOGO!, and SIMOTION. It also supports Allen Bradley (EtherNet/IP) and Mitsubishi (MC TCP/IP) via the Ethernet interface, making it a versatile choice for mixed-vendor environments. The panel supports MODBUS TCP/IP, allowing integration with Modicon PLCs. For project engineering, it works with WinCC Basic, Comfort, Advanced, and Professional (TIA Portal), as well as STEP 7 Basic and Professional. This broad compatibility simplifies system design and reduces integration effort.
Troubleshooting and Common Issues
While the 6AV2123-2JB03-0AX0 is reliable, you may encounter common issues such as communication errors or display problems. If the panel cannot connect to the PLC, verify the PROFINET cable and IP settings. The panel supports DHCP, so ensure your network assigns an IP address correctly. If the touchscreen becomes unresponsive, check for any protective film or debris on the surface. For alarm messages, the panel can display up to 1,000 bit messages and 25 analog messages, helping you diagnose process issues quickly. If you experience persistent problems, consult the official Siemens documentation or contact AutoDCSTech for support.
Product Support and Availability
The 6AV2123-2JB03-0AX0 is available from AutoDCSTech, a trusted supplier of industrial automation parts. We keep this model in stock and ready to ship. For detailed technical support or to verify lifecycle status, please contact our team. We are here to help you integrate this HMI into your system with confidence.
Availability & Condition at AutoDCSTech
| Part Number | 6AV2123-2JB03-0AX0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
