TCSESM083F2CU0 | Schneider Electric Managed Ethernet Switch

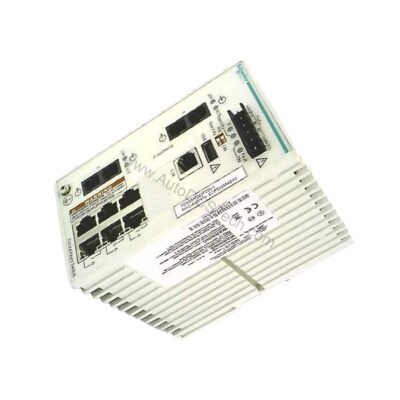

What Makes the TCSESM083F2CU0 a Reliable Network Backbone?

How often does an industrial network fail because a switch cannot handle the load? The TCSESM083F2CU0 from Schneider Electric answers this with engineering-grade precision. As a managed Ethernet switch in the ConneXium series, it combines six copper ports with two multimode fiber ports. This design ensures deterministic data flow in demanding automation environments.

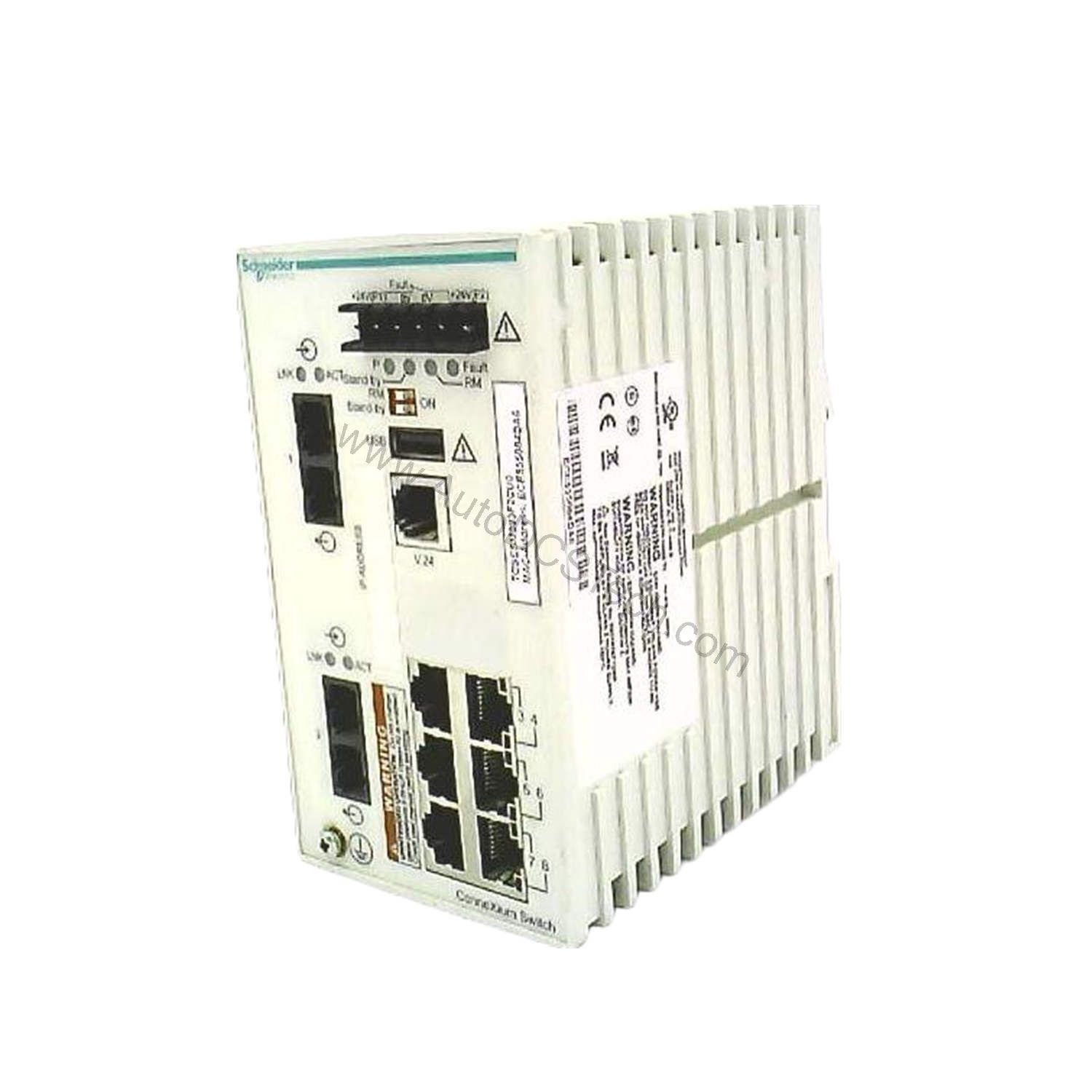

Key Features and Verified Specifications

• Port configuration: 6 x RJ45 10/100BASE-TX copper plus 2 x 100BASE-FX multimode fiber (SC duplex).
• Switching capacity: 5.6 Gbps for high-throughput applications.
• MAC table size: 8K entries to support dense network topologies.
• Jumbo frame support: 9216 bytes for efficient large-packet transmission.
• Redundancy: HiPER ring and RSTP with up to 50 ring nodes.
• Supply voltage: 9.6-32V DC or 18-30V AC, accommodating various power systems.
• Mounting: 35 mm symmetrical DIN rail for quick installation.
• Protection rating: IP20 for controlled cabinet environments.

Each specification is verified, ensuring exact electrical and network performance. The fiber distance reaches 4 km with 62.5/125 µm fiber and 5 km with 50/125 µm fiber, enabling long-distance connectivity without signal degradation.

Applications and Use Cases

Manufacturing plants often require robust network infrastructure. The TCSESM083F2CU0 excels in such settings. For instance, it can serve as a central switch in a production line, connecting PLCs, drives, and HMIs. Additionally, its fiber ports allow for noise-immune links between distant control cabinets. Consequently, engineers deploy it in automotive assembly, food processing, and water treatment facilities. The managed functionality supports network segmentation and monitoring, which reduces downtime. Therefore, this switch is ideal for critical automation networks.

Integration and Compatibility

Integrating the TCSESM083F2CU0 into existing systems is straightforward. It supports Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, RS232, LLDP, Telnet, SNTP, and MRP. These protocols enable remote management and diagnostics. For fieldbus networks, an external gateway or connection module may be required. Always confirm cable and gateway compatibility with the supplier. The switch's Transparent Ready concept ensures seamless integration with Schneider Electric automation platforms.

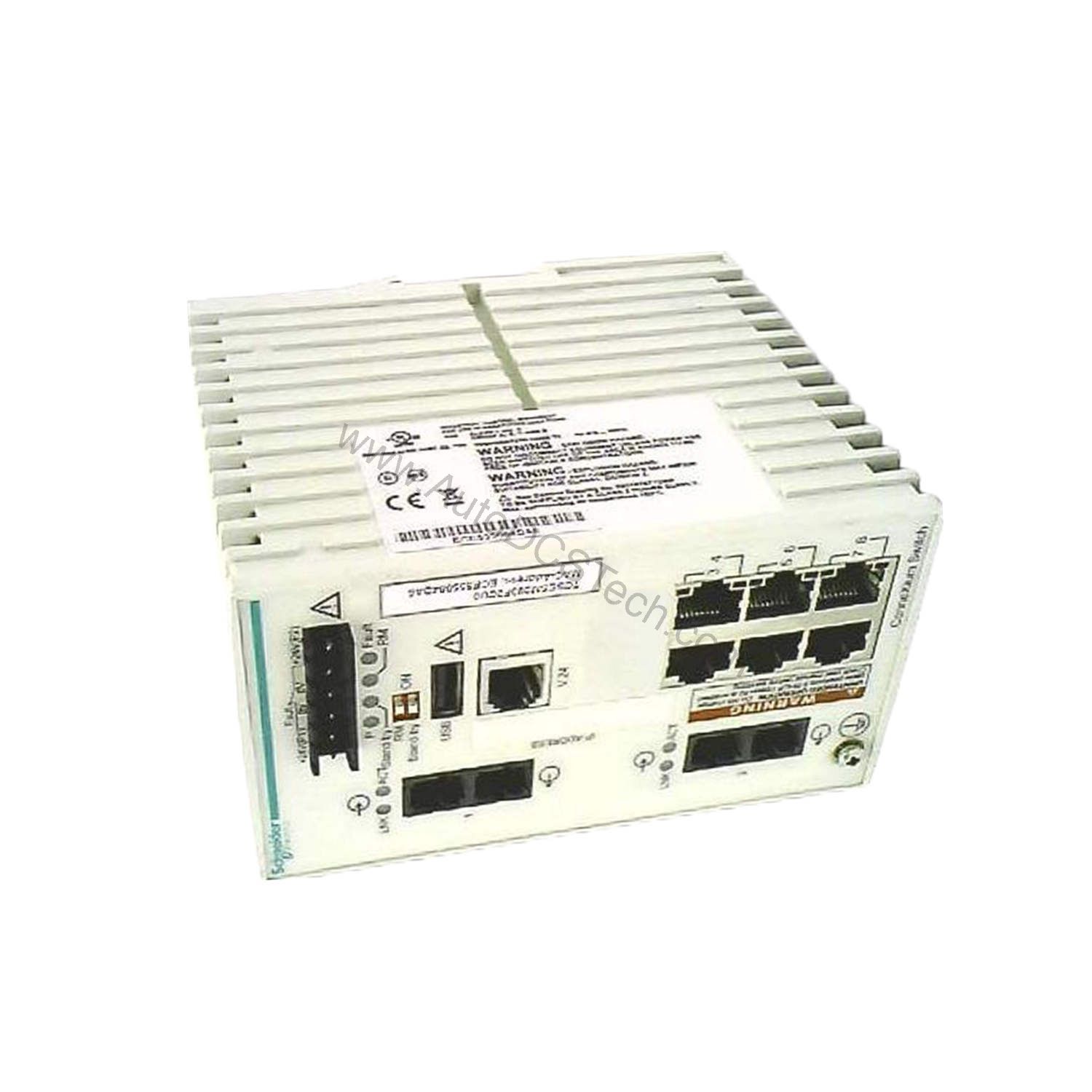

Installation and Setup

Mount the switch on a 35 mm DIN rail within an IP20 enclosure. Connect the power supply according to the voltage range: 9.6-32V DC or 18-30V AC. Use standard RJ45 cables for copper ports and SC duplex connectors for fiber. Configure network settings via the web interface or CLI. For redundancy, enable HiPER ring or RSTP with up to 50 nodes. Always follow local wiring codes and manufacturer guidelines.

Maintenance and Reliability

Regular inspection ensures long-term reliability. Check for dust accumulation and secure connections. The IP20 rating requires a clean, dry environment. Monitor network performance through SNMP or LLDP. Since the switch is actively managed, firmware updates may be available. However, verify lifecycle status with AutoDCSTech before ordering. The TCSESM083F2CU0 is in production as of 2026-09, but availability can change.
