Introduction

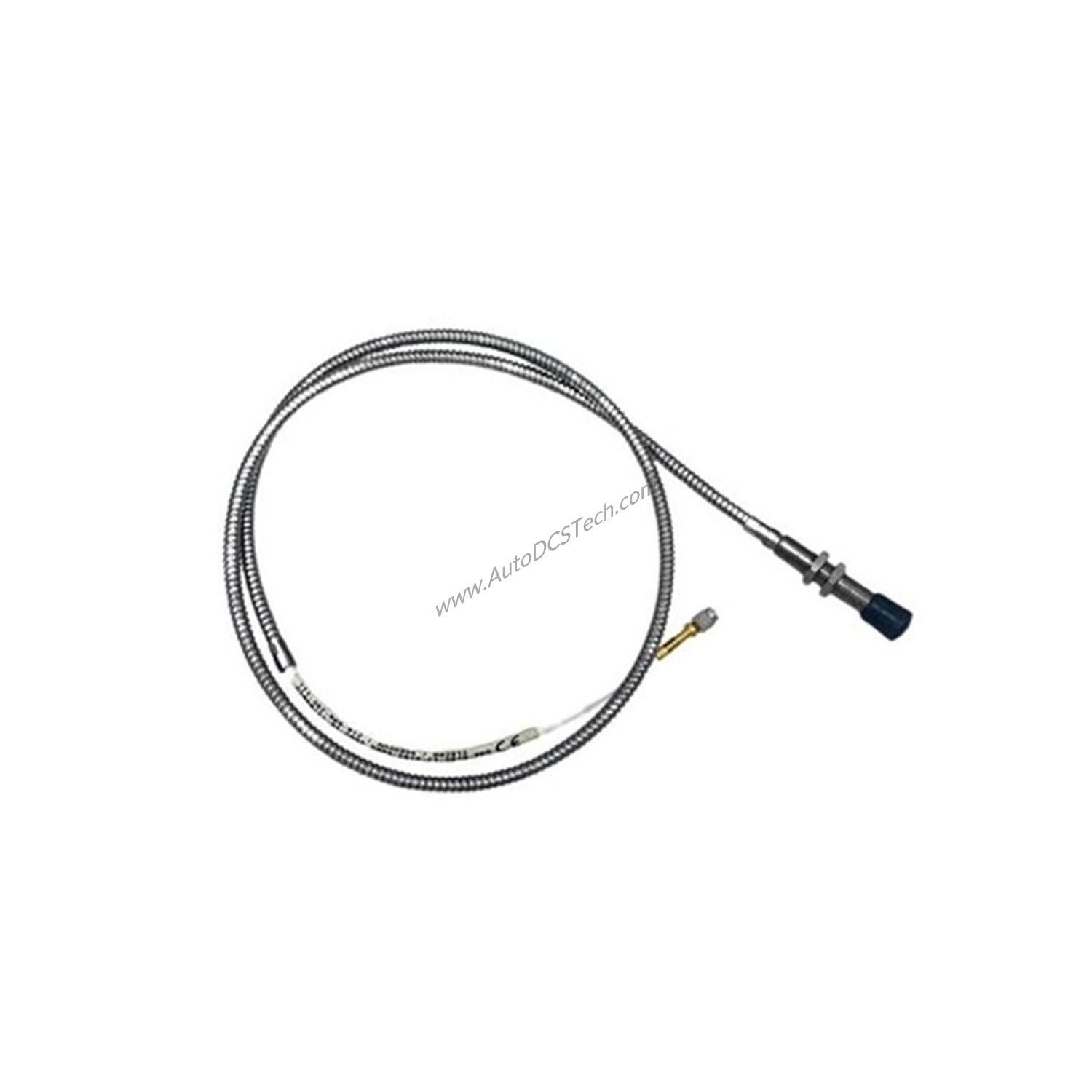

When machinery protection demands precise, non-contact measurement of shaft vibration and position, the Vibro Meter 111-412-000-013-A1-B1-E010-F1-G010-H10 Proximity Measuring System delivers reliable performance. This eddy-current-based system from Meggitt (Vibro-Meter) is engineered for harsh industrial environments, offering temperature compensation and compliance with API 670 recommendations.
Technical Specifications Breakdown
Measurement and Frequency Response
- Measurement range: 2 or 4 mm, suitable for both vibration and gap/position monitoring.
- Frequency response: DC to 20 kHz (−3 dB), capturing static position and dynamic vibration signals.
Environmental Resilience
- Temperature range (transducer): −40 to +180°C with drift 5%.
- Protection rating: The transducer head (tip and integral cable) is rated IP68 per IEC 60529, ensuring reliable operation in wet or dusty conditions.
- Vibration and shock: Withstands 5 g peak (10–500 Hz) and 15 g peak shock (half sine-wave, 11 ms), per IEC 60068-2-26 and IEC 60068-2-27.
Physical Configuration
- Weight: 0.22 kg.
- Body thread: M10 × 1.
- Integral cable length: 1.0 m ±100 mm.
- Total system length: 10 m.
- Optional protection: Flexible stainless steel hose (1.0 m) for mechanical protection.
Industry Applications
Turbomachinery Vibration Monitoring
In steam turbines, gas turbines, and compressors, the system measures shaft relative vibration and axial position. Its DC-to-20 kHz bandwidth captures both slow drift and high-frequency vibrations, enabling early fault detection.
API 670 Machinery Protection
For API 670-compliant installations, this proximity system integrates seamlessly with VM600Mk2/VM600 and VibroSmart® monitoring systems. The temperature-compensated design ensures accuracy across varying thermal conditions, reducing false trips.
Installation & Setup Guidance
Mounting and Cable Routing
- Ensure the transducer tip is perpendicular to the target shaft surface within ±1°.
- Use the M10 × 1 thread for secure mounting in standard probe holders.
- Route the integral cable (1.0 m) and extension cable (total 10 m) away from high-voltage sources to avoid interference.
- Hand-tighten the self-locking miniature coaxial connectors until locked — do not use tools.
Environmental Considerations
- For Ex Zone installations, the transducer and cable can operate up to +195°C.
- The flexible stainless steel hose provides mechanical protection but is not leak-tight; use the FEP sheath option for chemical resistance.
Maintenance & Reliability
Inspection Intervals
- Periodically inspect the cable and connectors for damage, especially in high-vibration areas.
- Verify the transducer tip is free from debris or buildup that could affect measurement accuracy.
- Check the optional protection hose for kinks or abrasion.
Reliability Features
- The stainless steel body (AISI 316L) and Torlon tip resist corrosion and wear.
- Short-circuit protection on voltage or current output ensures safe operation during faults.
- The system is designed for long-term continuous use in machinery protection applications.
Compatibility & Integration
This proximity measuring system works with the IQS900 signal conditioner, which provides the high-frequency power source required for eddy-current operation. It is ideal for use with:
- VM600Mk2 and VM600 machinery monitoring systems
- VibroSmart® distributed monitoring systems
- Any API 670-compliant protection rack
Selection Guide & Purchasing Advice
Before ordering the 111-412-000-013-A1-B1-E010-F1-G010-H10, verify:
- System length: The total length is 10 m (1.0 m integral + 9.0 m extension).
- Optional protection: Choose flexible hose (F1) or FEP sheath based on environmental exposure.
- Ex certification: If required for hazardous areas, confirm the specific Ex version.
At SpareTechPLC, we stock genuine Vibro Meter proximity systems and can help you select the correct configuration. Please verify current lifecycle status and availability before ordering.
Frequently Asked Questions
What is the measurement range of the 111-412-000-013-A1-B1-E010-F1-G010-H10?
The system offers a measurement range of 2 or 4 mm, depending on the target material and calibration.
Can this probe be used in high-temperature environments?
Yes, the transducer operates from −40 to +180°C with drift <5%, and can survive short-term exposure up to +220°C.
What is the frequency response of this proximity system?
The frequency response is DC to 20 kHz (−3 dB), covering both static gap and dynamic vibration measurements.
Is the probe suitable for Ex (hazardous area) installations?
Yes, Ex certified versions are available for use in potentially explosive atmospheres. The transducer and cable can operate up to +195°C in an Ex Zone.
What protection rating does the transducer head have?
The head of the proximity transducer (tip and integral cable) is rated IP68 according to IEC 60529.
