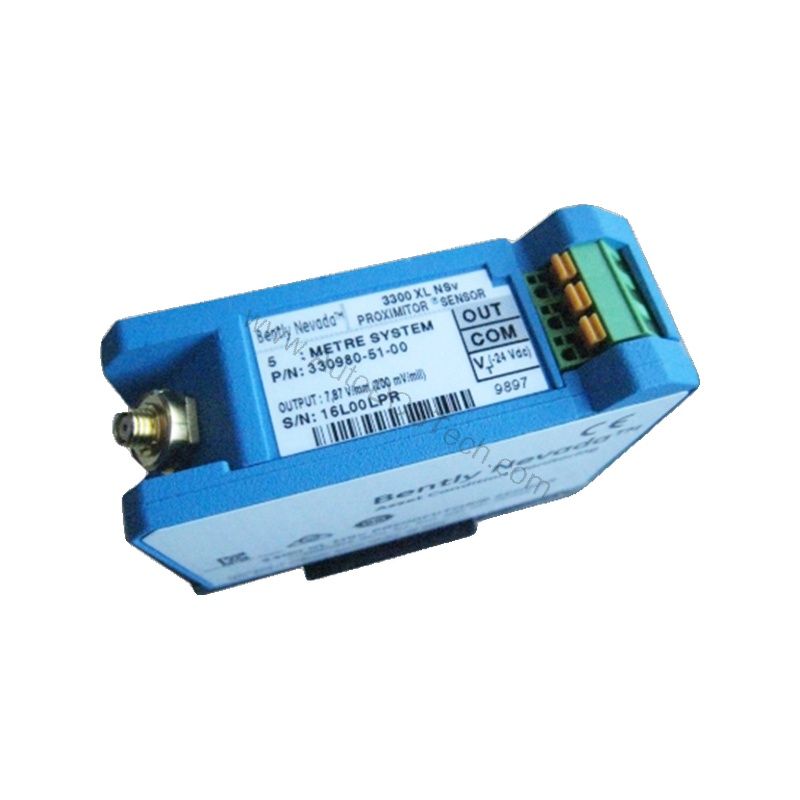

330980-51-00 5m DIN Mount NSv Proximitor Sensor

Introduction to the 330980-51-00 NSv Proximitor Sensor

When a rotating machinery train suffers from unplanned vibration, the resulting downtime can cost thousands per hour. The 330980-51-00 from Bently Nevada addresses this challenge directly. This NSv Proximitor Sensor converts probe gap changes into a proportional voltage signal, enabling continuous condition monitoring. With a 5.0-meter (16.4 feet) system length and DIN-rail mounting, it fits neatly into high-density control panels. Its thin profile supports both DIN-rail and traditional panel mount configurations, giving engineers flexibility during installation.

Part of the 3300 XL family, the 330980-51-00 shares design traits with the 3300 XL 8 mm Proximitor Sensor. However, its slim form factor and enhanced RFI/EMI immunity set it apart. This sensor is engineered for precision and reliability, making it a solid choice for vibration monitoring in turbines, compressors, and pumps.

Key Features and Technical Specifications

The 330980-51-00 is built around a set of robust specifications that ensure accurate, stable performance. Below are the core parameters extracted from the official datasheet:

• Model: 330980 - NSv Proximitor Sensor
• System Length: 5.0 meters (16.4 feet), DIN mount
• Agency Approval: Option 00 - Not required
• Input: Accepts one noncontacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable
• Power Supply: Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption; -23 Vdc to -26 Vdc with barriers
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Output Resistance: 50 Ω
• Proximitor Sensor Material: A380 aluminum
• Weight: 255 g (9 oz)
• Operating Temperature: -52°C to +100°C (-62°F to +212°F)
• Storage Temperature: -52°C to +105°C (-62°F to +221°F)
• Relative Humidity: 100% condensing, non-submersible when connectors are protected; tested to IEC 68-2-3 damp heat

One distinctive feature is the improved RFI/EMI immunity. This allows the sensor to achieve European CE mark approvals without special mounting considerations. It also prevents nearby high-frequency radio signals from adversely affecting the transducer system, ensuring signal integrity in electrically noisy environments.

Real-World Applications

The 330980-51-00 excels in applications where precise vibration measurement is critical. In petrochemical plants, it monitors centrifugal compressors, detecting early signs of shaft misalignment or bearing wear. In power generation, it tracks turbine shaft vibration, helping operators avoid catastrophic failures. The sensor's DIN-rail mounting simplifies installation in existing panels, reducing retrofit time. Its wide operating temperature range (-52°C to +100°C) makes it suitable for harsh outdoor or high-heat environments. Additionally, the 100% condensing humidity rating ensures reliable operation in damp, coastal facilities.

Installation and Setup

Mounting the 330980-51-00 is straightforward. The DIN-rail option allows quick snap-on installation without special tools. For panel mounting, the thin design fits into compact spaces. The SpringLoc terminal strips require no special installation tools and facilitate faster, highly robust field wiring connections. When wiring, ensure the power supply meets the -17.5 Vdc to -26 Vdc requirement (or -23 Vdc to -26 Vdc with barriers). Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range, so verify your supply voltage carefully. The sensor accepts one noncontacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable; confirm compatibility before installation.

Maintenance and Reliability

Routine maintenance for the 330980-51-00 is minimal but essential. Periodically inspect the sensor and cabling for physical damage, especially in high-vibration areas. Check that connectors remain clean and dry, as the sensor is non-submersible. The A380 aluminum housing provides durability while keeping weight low. Because the sensor operates over a wide temperature range, thermal cycling should not affect its performance. However, always follow the manufacturer's manual for detailed inspection procedures. Regular verification of output voltage against a known target gap can help detect drift early, preventing false readings.

Compatibility and Integration

The 330980-51-00 is designed to work with Bently Nevada monitoring systems. It accepts 3300 RAM or 3300 NSv Proximity Probes and extension cables, ensuring seamless integration with existing Bently Nevada transducer setups. The output resistance of 50 Ω allows direct connection to most monitoring modules. For systems requiring intrinsic safety barriers, the sensor supports operation with barriers at -23 Vdc to -26 Vdc. Always consult the system manual to confirm compatibility with your specific monitor model.

Troubleshooting Common Issues

If the output voltage seems unstable, first check the power supply. Ensure it is within the specified range and free of ripple. A common issue is operating at a voltage more positive than -23.5 Vdc, which reduces linear range. Verify the probe gap is set to the recommended 1.0 mm (40 mils) for optimal accuracy. If readings are noisy, inspect the cabling for damage or loose connections. The improved RFI/EMI immunity minimizes interference, but routing cables away from high-frequency sources is still advisable. For persistent issues, consult the Bently Nevada manual or contact AutoDCSTech for support.

Product Support and Availability

The 330980-51-00 is available through AutoDCSTech, a trusted supplier of industrial automation parts. Our team can assist with technical questions and ensure you receive the correct components for your monitoring system. Contact us for current availability and lead times. Please verify the lifecycle status of this product with AutoDCSTech before ordering, as Bently Nevada may have updates or replacements.
