330980-71-05 7.0m DIN Mount NSv Proximitor Sensor

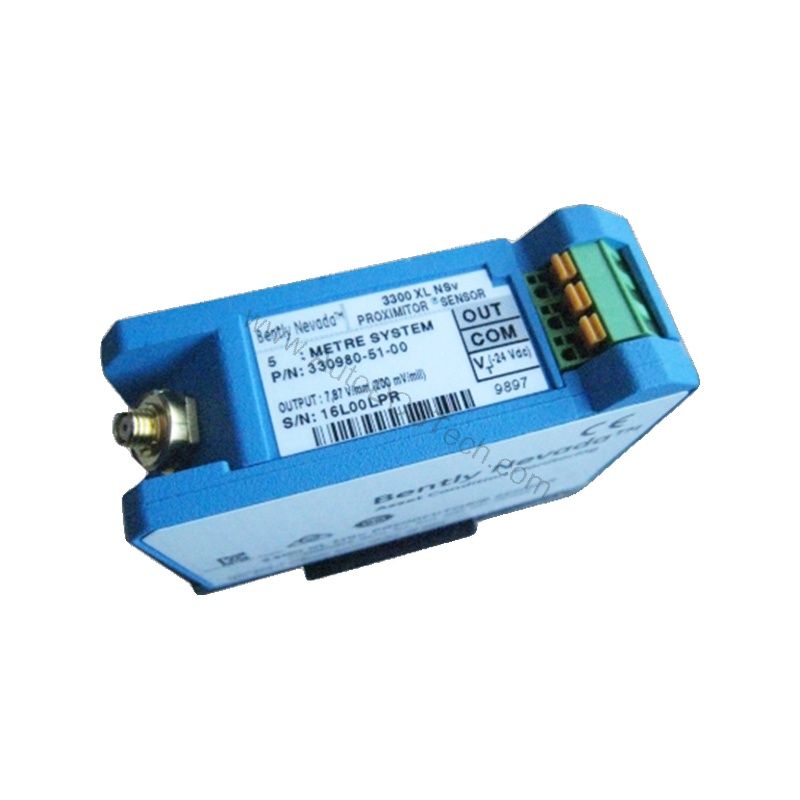

Introduction to the 330980-71-05 NSv Proximitor Sensor

When you need precise, reliable vibration and position monitoring in industrial rotating machinery, the 330980-71-05 from Bently Nevada delivers. This NSv Proximitor Sensor is engineered for high-density installations where space is tight and performance cannot be compromised. With a 7.0-meter (23.0 feet) system length and DIN-rail mounting option, it fits seamlessly into modern control panels.

The 330980-71-05 is part of the 3300 XL family, known for its robust design and advanced RFI/EMI immunity. This immunity ensures stable operation even in electrically noisy environments, a common challenge in industrial plants. The sensor accepts a single noncontacting 3300 RAM or 3300 NSv proximity probe and extension cable, making it a versatile choice for many monitoring applications.

Key Features and Technical Specifications

The 330980-71-05 stands out with its thin, space-saving design. It mounts easily on a standard DIN rail or in a traditional panel configuration, giving you flexibility during installation. The SpringLoc terminal strips simplify field wiring—no special tools are required, which speeds up installation and reduces the risk of loose connections.

• System Length: 7.0 meters (23.0 feet) total, including probe and extension cable.
• Mounting: DIN-rail mount, compatible with high-density layouts.
• Agency Approvals: Multiple approvals (suffix 05), including CE mark compliance.
• Power Requirement: -17.5 Vdc to -26 Vdc without barriers, -23 Vdc to -26 Vdc with barriers; 12 mA maximum consumption.
• Output Resistance: 50 Ω.
• Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.
• Proximitor Sensor Material: A380 aluminum housing.
• Weight: 255 g (9 oz).
• Operating Temperature: -52°C to +100°C (-62°F to +212°F).
• Storage Temperature: -52°C to +105°C (-62°F to +221°F).
• Relative Humidity: 100% condensing, non-submersible (tested to IEC 68-2-3 damp heat).

One distinctive aspect of the 330980-71-05 is its improved RFI/EMI immunity. This feature allows the sensor to achieve European CE mark approvals without special mounting considerations, and it prevents nearby high-frequency radio signals from adversely affecting the transducer system. For engineers working in plants with variable frequency drives or radio transmitters, this is a critical advantage.

Real-World Applications

The 330980-71-05 is ideal for monitoring shaft vibration, axial position, and eccentricity in turbines, compressors, pumps, and motors. Its compact DIN-rail design makes it particularly suitable for retrofit projects where panel space is limited. Because it accepts both 3300 RAM and 3300 NSv probes, you can standardize on one proximitor for multiple machine types, simplifying spare parts inventory.

In high-vibration environments, the sensor's robust construction and wide temperature range ensure consistent performance. The multiple agency approvals mean the 330980-71-05 can be deployed in international projects without additional certification hurdles.

Installation and Setup

Mounting the 330980-71-05 is straightforward. The DIN-rail clip allows quick snap-on installation, while the SpringLoc terminals accept solid or stranded wire without screwdrivers. Ensure the power supply is within the specified range: -17.5 Vdc to -26 Vdc without barriers, or -23 Vdc to -26 Vdc with barriers. Operating at a more positive voltage than -23.5 Vdc can reduce the linear range, so verify your supply voltage carefully.

When connecting the probe and extension cable, follow the manufacturer's guidelines for gap setting and target material. The system is calibrated for a Bently Nevada AISI 4140 steel target that is 31 mm (1.2 in) diameter or larger, with a probe gap of 1.0 mm (40 mils). Using a different target material will affect accuracy and interchangeability.

Maintenance and Reliability

Routine inspection is essential to maintain the 330980-71-05's accuracy. Periodically check that all connections are secure and that the sensor is free from contamination. The A380 aluminum housing resists corrosion, but in condensing humidity environments, ensure connectors are protected to prevent moisture ingress.

Because the sensor has no moving parts, its primary wear point is the probe tip. Inspect the probe face for damage or buildup, and verify the gap setting during scheduled maintenance. With proper care, the 330980-71-05 provides years of reliable service, reducing downtime and maintenance costs.

Compatibility and Integration

The 330980-71-05 is designed to work with Bently Nevada monitoring systems, including the 3500 series and older 3300 systems. It accepts a single noncontacting 3300 RAM or 3300 NSv proximity probe and extension cable, ensuring seamless integration with existing Bently Nevada transducers. The sensor outputs a voltage signal proportional to the gap, which can be fed into a monitor for analysis.

For engineers integrating this sensor into a new or existing system, the DIN-rail mounting simplifies panel layout. The SpringLoc terminals accept standard wire gauges, and the low power consumption (12 mA max) reduces the load on your power supply.

Troubleshooting Common Issues

If you encounter erratic readings, first verify the power supply voltage. The 330980-71-05 requires -17.5 Vdc to -26 Vdc without barriers; a voltage outside this range can cause unstable output. Also check that the probe gap is set to the recommended 1.0 mm (40 mils) and that the target is the correct material and size.

RFI/EMI interference can sometimes cause noise in the signal. The improved immunity of this sensor minimizes this, but if you suspect interference, ensure the sensor is properly grounded and that cables are routed away from high-voltage lines. If problems persist, consult the official Bently Nevada documentation or contact AutoDCSTech for technical support.

Product Support and Availability

The 330980-71-05 is available through AutoDCSTech, a trusted supplier of industrial automation parts. For current lifecycle status and availability, contact AutoDCSTech before ordering. Our team can assist with technical questions and ensure you receive the correct part for your application.
