3500/94M-07-12-00 VGA Display Module | Bently Nevada

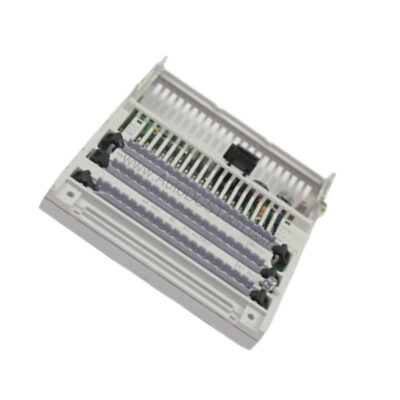

Introduction to the 3500/94M-07-12-00

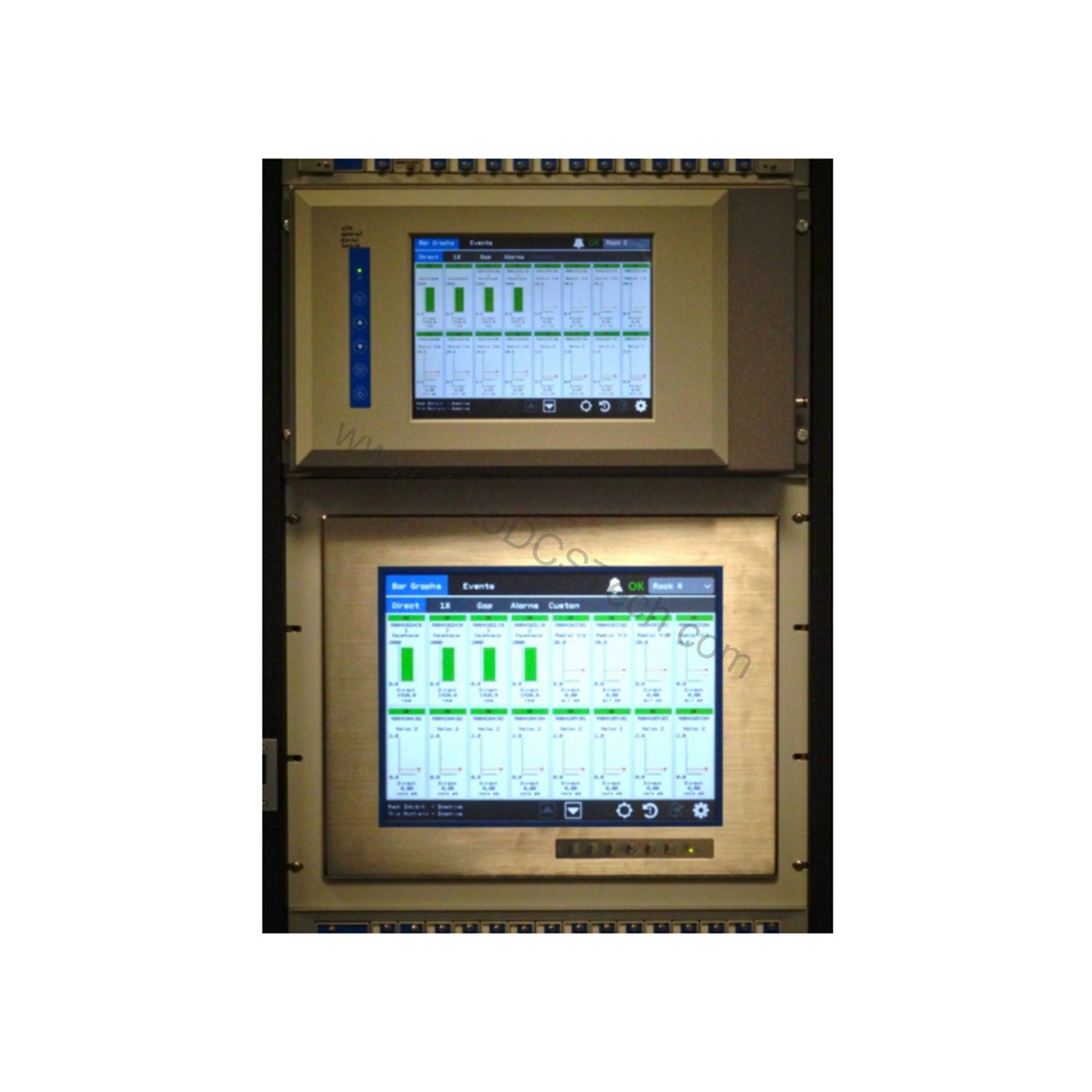

This VGA Display Module is designed to show real-time status, data, and values from your 3500 monitoring system. It helps operators spot trends and anomalies quickly, reducing downtime and improving decision-making.

As part of the 3500 series, this module integrates seamlessly with the 3500/22 Transient Data Interface (TDI). It requires firmware versions 4.06 Rev. C or newer. The module is built for industrial environments, with an operating temperature range of -20°C to 65°C (-22°F to 149°F).

Key Features and Technical Specifications

The 3500/94M-07-12-00 offers several features that make it a robust choice for industrial monitoring:

• Power consumption: 4.6 watts max, ensuring low energy use.
• Display size and mounting: Option 07 means a router box with no display, allowing flexible integration.
• KVM extender cable: 20 ft (6 m) Display Router Box cable, providing installation flexibility.
• RS232 port: For touch controller data, enabling interactive display control.
• VGA port: Outputs analog red, green, blue, and sync signals to the display.
• OK LED: Indicates proper operation of the module.
• TX/RX LED: Shows communication between other system modules.
• Environmental limits: Operating temperature -20°C to 65°C, storage -40°C to 85°C, humidity 95% non-condensing.
• Compliance: FCC Part 15, EMC standards EN 61000-6-2 and EN 61000-6-4, electrical safety CSA C22.2 61010-1 and UL EN 61010-1.

One distinctive spec is the low power consumption of 4.6 watts max. This means the module generates minimal heat, reducing stress on surrounding components and improving overall system reliability in tight rack spaces.

Applications and Use Cases

In rotating machinery monitoring, the 3500/94M-07-12-00 is ideal for control rooms where operators need to view vibration data, axial position, and other critical parameters. For example, in a steam turbine train, this module can display real-time trends, helping engineers detect developing faults before they cause unplanned shutdowns. Similarly, in a compressor station, the display router box allows remote viewing of monitoring data, enhancing situational awareness without requiring physical access to the rack.

Moreover, because it supports a KVM extender, the module can be placed in a safe area while the display is located in a hazardous area (using the approved receiver). This flexibility is valuable in refineries and chemical plants where space and safety constraints exist.

Installation and Setup

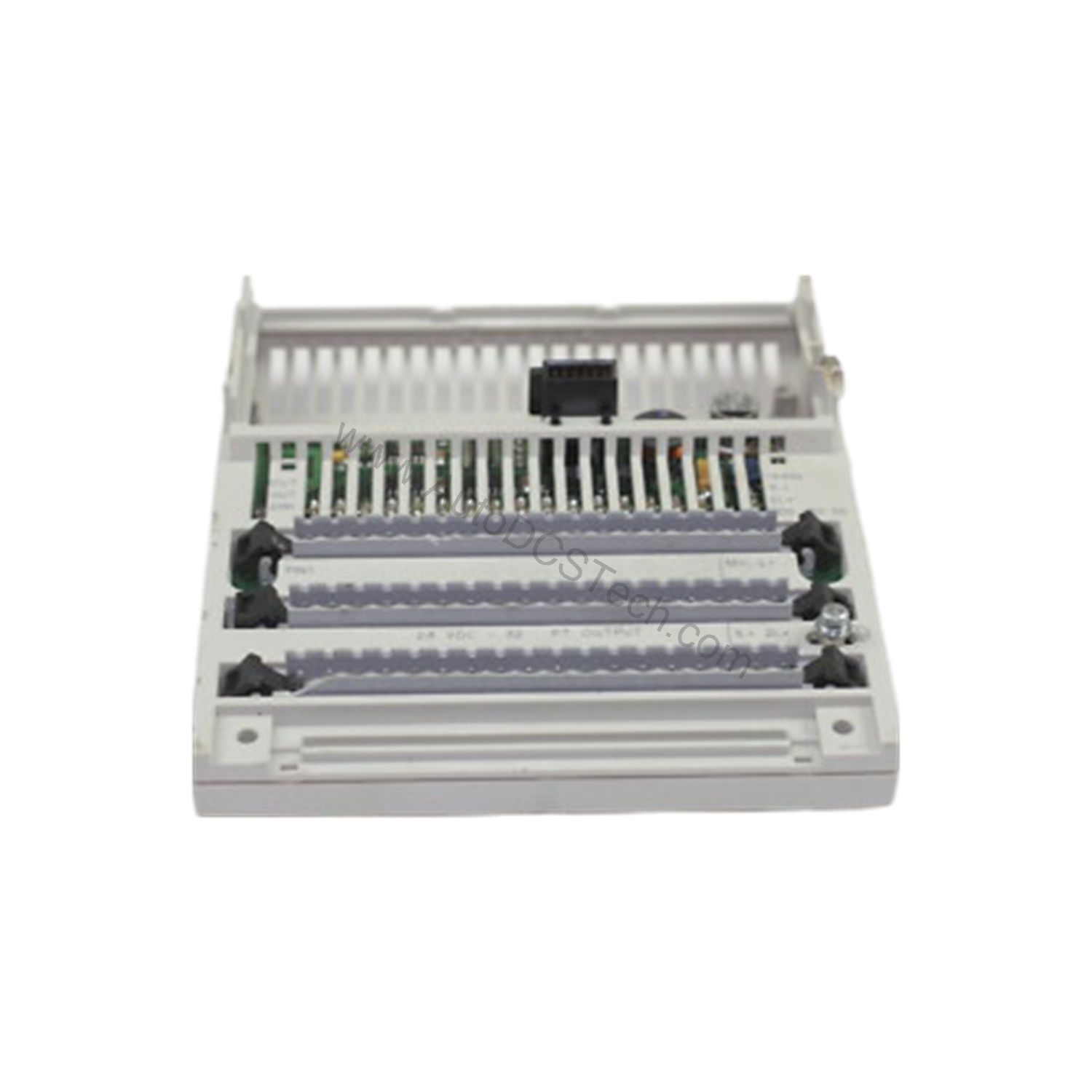

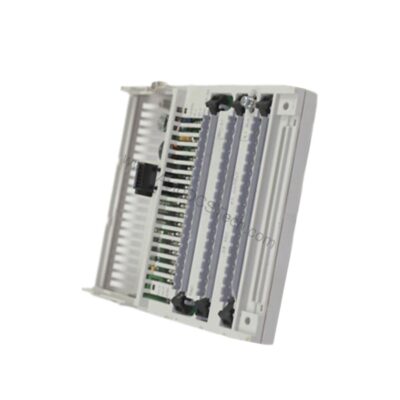

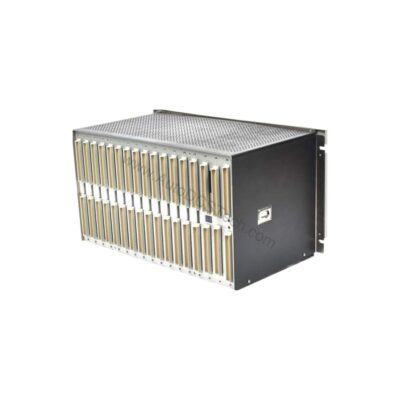

Installing the 3500/94M-07-12-00 is straightforward. The monitor module occupies one full-height front slot in the 3500 rack, while the I/O module uses one full-height rear slot. The KVM extender mounts on the shelf top and requires 12 Vdc and 5 Vdc power inputs. Ensure that the 3500/22 TDI module is present and that firmware versions meet the minimum requirements. For the display router box, connect the VGA and RS232 cables as per the manual. Always follow the manufacturer's installation instructions to avoid errors.

Maintenance and Reliability

To maintain reliable operation, inspect the module periodically for dust accumulation on the front panel and connectors. Verify that the OK LED is lit, indicating proper operation. Check that all cable connections are secure, especially the KVM extender cables. Environmental factors like high humidity (up to 95% non-condensing) are within spec, but avoid condensation. Regular checks help prevent communication failures and ensure long service life.

Compatibility and Integration

The 3500/94M-07-12-00 requires the 3500/22 TDI module and specific firmware versions for the 3500/01 Rack Configuration, 3500/02 Operator Display, and 3500/03 Data Acquisition software. It is designed to work within the 3500 series rack system, which is widely used in industrial machinery protection. The module's RS232 and VGA interfaces are standard, making integration with compatible displays and touchscreens straightforward.

Troubleshooting and Common Issues

If the OK LED is not lit, check power supply and module seating. If the display shows no signal, verify the VGA cable connection and that the display is powered. For touch issues, ensure the RS232 cable is connected and the touch controller is configured correctly. Communication errors may indicate firmware mismatches—confirm that the 3500/94M firmware is Rev. C or newer. Always refer to the Bently Nevada manual for detailed diagnostics.

Product Support and Availability

The 3500/94M-07-12-00 is available through AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with technical questions and ensure you get the right part for your system.
