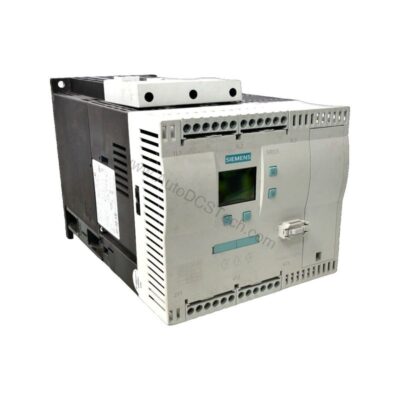

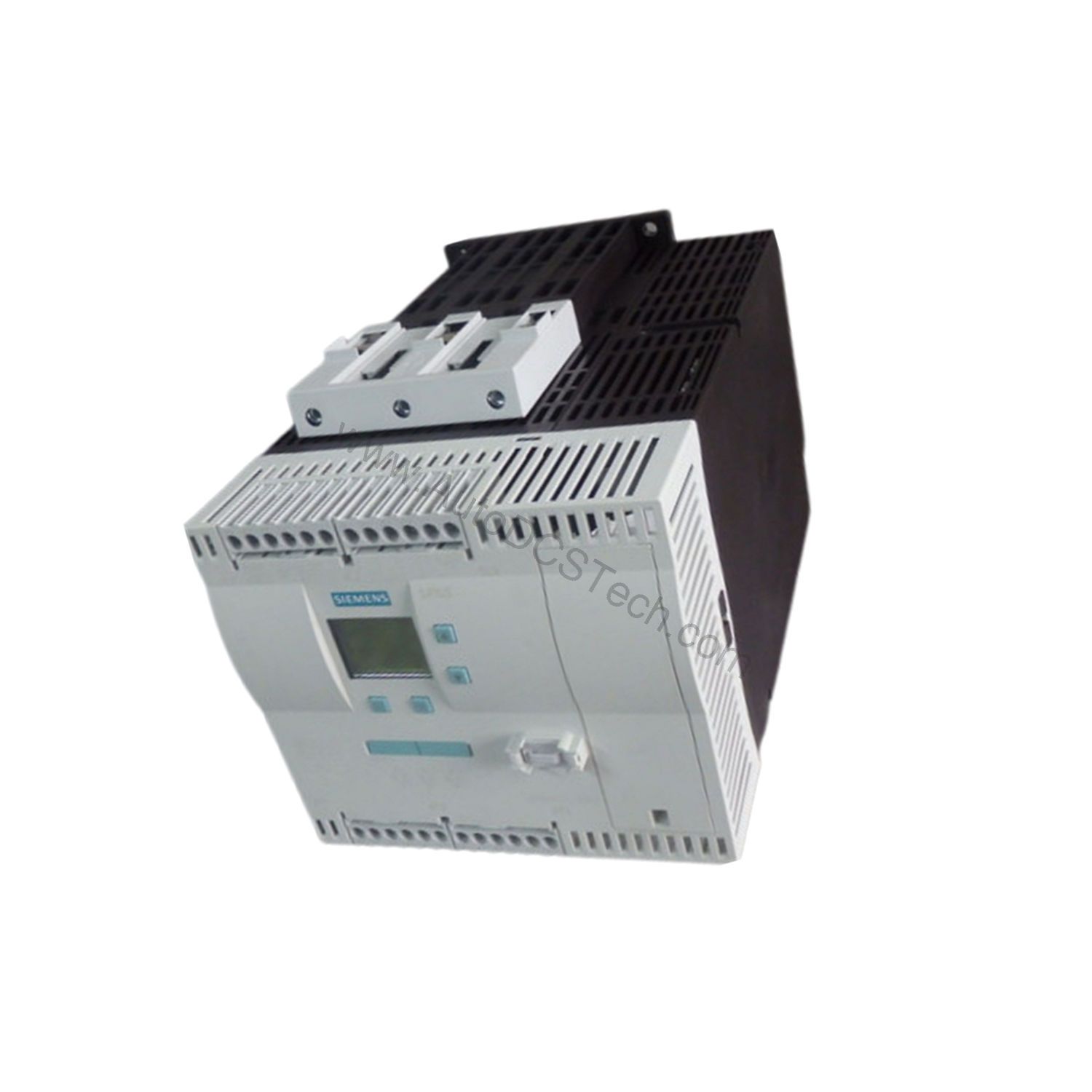

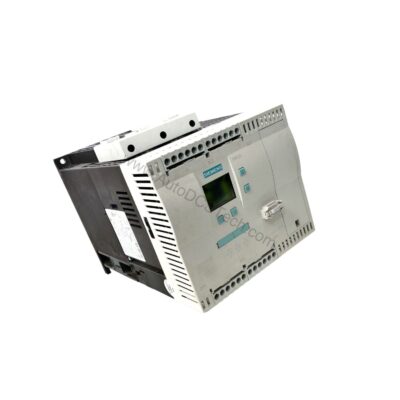

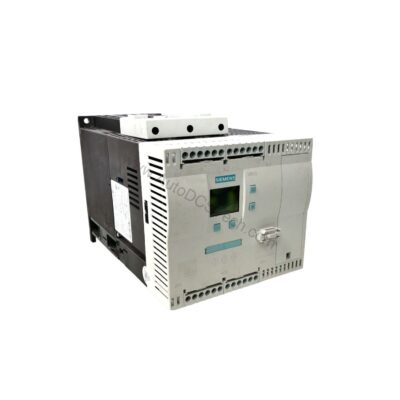

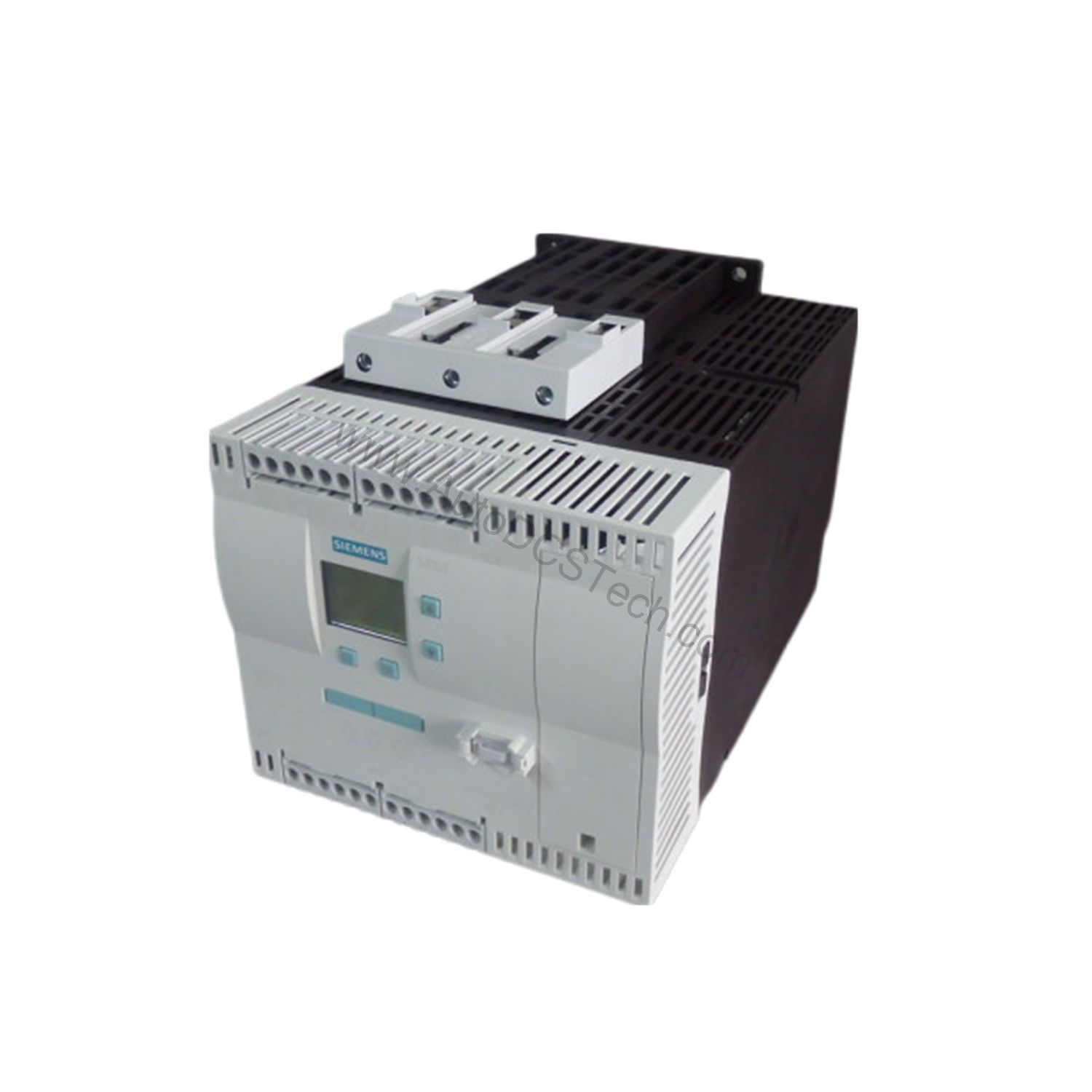

3RW4424-1BC44 47A 22kW Soft Starter

Introduction to the Siemens 3RW4424-1BC44 Soft Starter

When motor starting demands precise control and protection, the 3RW4424-1BC44 from Siemens provides a reliable solution. This SIRIUS soft starter is engineered for high-feature applications, offering adjustable current limitation and integrated motor overload protection. With a rated operating current of 47A at 40°C and an emitted mechanical power of 22kW at 400V in standard circuit, it handles demanding industrial loads efficiently.

The 3RW4424-1BC44 also supports inside-delta circuit configuration, enabling up to 81A and 45kW at 400V. This flexibility makes it suitable for a wide range of three-phase squirrel cage motors. Its compact design and screw terminals simplify installation, while the integrated bridging contact system and thyristors ensure smooth, controlled acceleration.

Key Features and Technical Specifications

• Operating current: 47A at 40°C, 42A at 50°C, 37A at 60°C (standard circuit).
• Inside-delta circuit current: 81A at 40°C, 73A at 50°C, 64A at 60°C.
• Emitted mechanical power: 22kW at 400V standard, 45kW at 400V inside-delta.
• Operating voltage: 200-460V AC (standard and inside-delta).
• Control supply voltage: 230V AC at 50/60Hz.
• Operating frequency: 50-60Hz with ±10% tolerance.
• Adjustable rated current for motor overload protection: minimum 9A.
• Minimum load: 8% of I_M.
• Active power loss: 32W typical at 40°C.
• Protection class: IP00.

These specifications translate into tangible cost benefits. The adjustable current limitation reduces mechanical stress on the motor and driven equipment, lowering maintenance costs. The integrated overload protection eliminates the need for separate relays, saving panel space and wiring time. The wide operating voltage range (200-460V AC) ensures compatibility with global power systems, reducing inventory requirements.

Applications and Use Cases

The 3RW4424-1BC44 is ideal for conveyors, pumps, fans, and compressors where controlled starting is critical. In conveyor systems, the soft starter prevents belt slippage and product damage, reducing downtime. For pumps, it eliminates water hammer, extending pipeline life. In fan applications, it reduces belt wear and mechanical shock, lowering replacement costs.

The inside-delta circuit configuration is particularly beneficial for high-inertia loads, as it allows the soft starter to handle higher currents (81A) and power (45kW) while using a smaller frame size. This reduces capital expenditure and installation footprint.

Installation and Setup

Mount the 3RW4424-1BC44 on a vertical mounting plate with a tilt range of ±90° rotation and ±22.5° forward/backward. Maintain clearances: 100mm above, 5mm sideways, and 75mm below for adequate airflow. The unit can be installed at altitudes up to 5,000 meters above sea level.

Electrical connections use box terminals for the main circuit and screw terminals for auxiliary/control circuits. Connectable conductor cross-sections range from 2.5 to 70 mm² for main contacts, depending on clamping point and conductor type. For auxiliary contacts, solid conductors from 2x (0.5 to 2.5 mm²) are supported. Ensure proper torque settings per the manual to avoid loose connections.

Maintenance and Reliability

Regular inspection of the soft starter ensures long-term reliability. Check for dust accumulation on the heatsink and terminals, as this can impair cooling. Verify that all screw terminals remain tight, especially after thermal cycling. The integrated bridging contact system and thyristors are designed for long life, but periodic functional testing is recommended.

Operating temperature range is up to 60°C, with derating above 40°C. Storage temperature is -25°C to +80°C. The IP00 protection class requires installation in a suitable enclosure to prevent dust and moisture ingress. Following these practices minimizes unplanned downtime and extends equipment life, delivering cost savings over time.

Compatibility and Integration

The 3RW4424-1BC44 is part of the Siemens SIRIUS family, ensuring seamless integration with other SIRIUS components. It features three NO auxiliary contacts and one changeover contact, providing feedback for PLC or control systems. The external reset function allows remote resetting, reducing operator intervention.

The soft starter supports both standard and inside-delta circuits, making it versatile for various motor configurations. Its control supply voltage of 230V AC is common in industrial panels, simplifying wiring. For communication, refer to the official datasheet as no specific protocols are listed.

Troubleshooting and Common Issues

If the motor fails to start, check the control supply voltage (230V AC) and the operating voltage (200-460V AC). Verify that the current setting is above the motor's minimum load (8% of I_M). If the soft starter trips on overload, inspect the motor for mechanical jams or excessive load.

Thermal issues may arise if ambient temperature exceeds 40°C, causing derating. Ensure adequate ventilation and maintain the specified clearances. For persistent faults, use the display for fault signals to diagnose the issue. Refer to the Siemens manual for detailed error codes.

Product Support and Availability

The Siemens 3RW4424-1BC44 is available from AutoDCSTech. Please verify current lifecycle status and availability before ordering. Our team can assist with technical inquiries and provide documentation. Contact us for a quote and delivery options.
