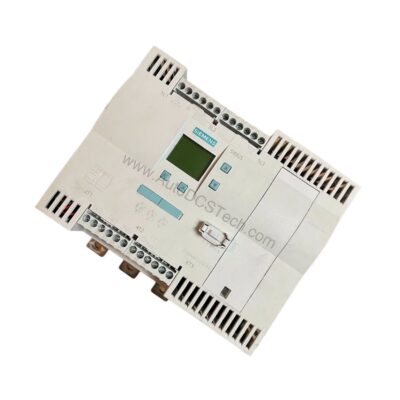

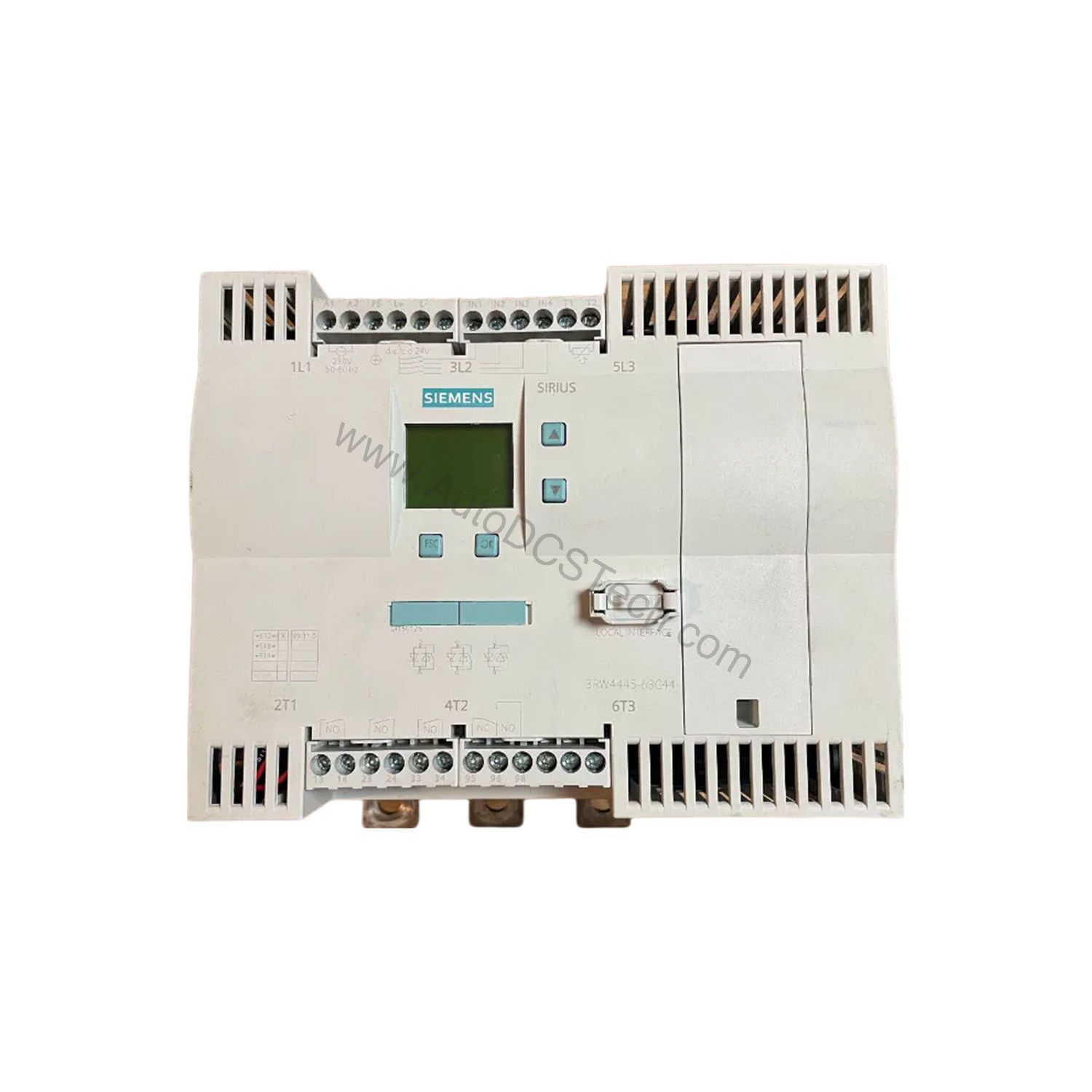

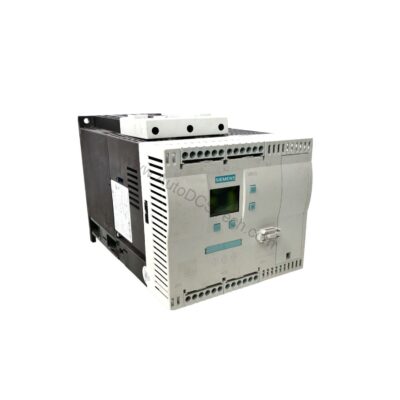

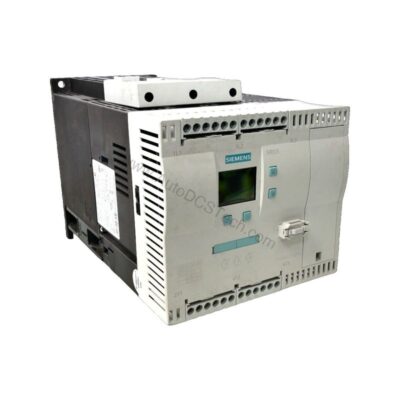

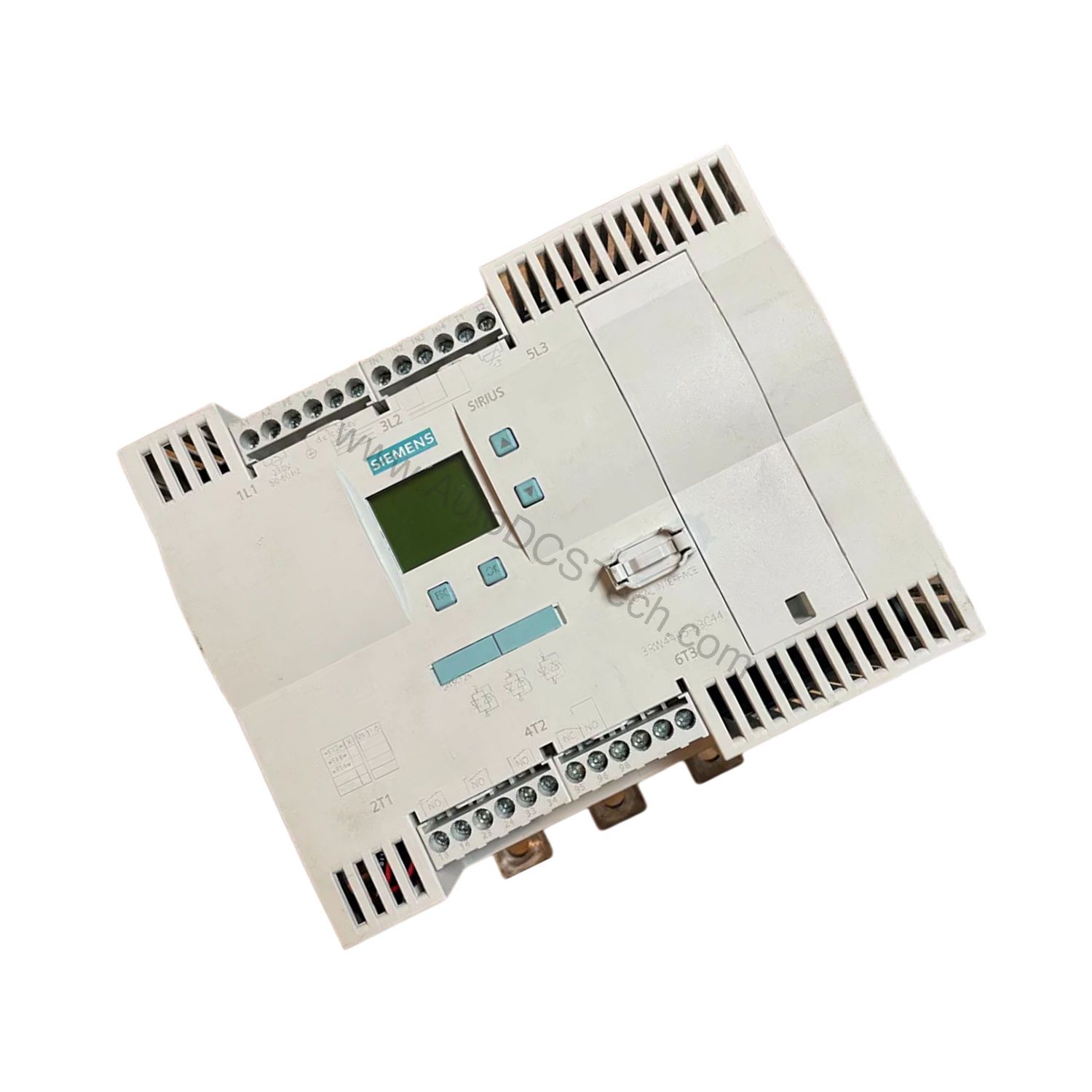

Introduction to the 3RW4446-6BC44
When motor starting demands precise control and high reliability, the 3RW4446-6BC44 from Siemens delivers. This SIRIUS soft starter is engineered for three-phase motors in standard and inside-delta circuits. With a rated operational current of 617 A at 40 °C in inside-delta configuration, it suits heavy industrial applications. The device integrates a bypass contact system and thyristors to optimize performance and energy efficiency.
Key Features and Technical Specifications
The 3RW4446-6BC44 offers a robust set of features for motor protection and control. Its integrated bypass reduces heat dissipation and power loss during continuous operation. The thyristor-based design provides smooth acceleration and deceleration, minimizing mechanical stress.
- Operational current: 617 A at 40 °C (inside-delta circuit)
- Supply voltage: 230 V AC (control supply)
- Operating voltage: 200 ... 460 V AC (standard and inside-delta circuits)
- Operating frequency: 50 ... 60 Hz
- Integrated bypass contact system: Yes
- Motor overload protection: Yes
- Thermistor motor protection evaluation: Yes
- Adjustable current limitation: Yes
- Inside-delta circuit support: Yes
- Insulation voltage: 690 V
Performance Metrics
At 40 °C, the standard circuit delivers 110,000 W of mechanical power at 230 V and 200,000 W at 400 V. In inside-delta mode, these figures rise to 200,000 W and 355,000 W respectively. The device maintains performance across ambient temperatures up to 60 °C, with derating above 40 °C.
Applications and Use Cases
The 3RW4446-6BC44 is ideal for conveyors, pumps, fans, and compressors where controlled starting reduces wear and extends equipment life. Its inside-delta capability allows higher current handling for large motors, making it suitable for heavy machinery. The adjustable current limitation helps match starting torque to load requirements, protecting both motor and driven equipment.
Installation and Mounting
Mounting is straightforward with screw fixing and a vertical orientation that can be rotated ±90° or tilted ±22.5° front and back. Required clearances are 100 mm upward, 5 mm sideways, and 75 mm downward. Main circuit connections use busbar terminals, while auxiliary and control circuits use screw-type terminals. Connectable conductor cross-sections range from 70 to 240 mm² for front clamping and 120 to 185 mm² for back clamping.
Maintenance and Reliability
Regular inspection ensures long-term reliability. Check terminal connections periodically for tightness, as vibration can loosen them. Verify that ambient temperature stays within the rated range to prevent derating. The integrated bypass reduces thermal stress on thyristors, extending service life. Follow the manufacturer's manual for detailed maintenance procedures.
Comparison with Similar Products
Compared to smaller soft starters, the 3RW4446-6BC44 offers higher current handling and inside-delta capability. While a 100 A starter suits light loads, this unit manages 617 A, making it suitable for large motors. Its integrated bypass and overload protection add value over basic models that require external protection devices.
Troubleshooting and Common Issues
If the motor fails to start, check the control supply voltage (230 V AC) and frequency (50/60 Hz). Verify that the operating voltage matches the motor rating within the allowed tolerances. Overload trips may indicate incorrect current settings; adjust the motor overload protection within the adjustable range (minimum 71 A). If the device shows a fault signal, consult the display and refer to the manual.
Support and Availability
The 3RW4446-6BC44 is available from AutoDCSTech. Contact us for current lifecycle status and availability before ordering. Our team can assist with technical questions and replacement needs.
Availability & Condition at AutoDCSTech
| Part Number | 3RW4446-6BC44 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
