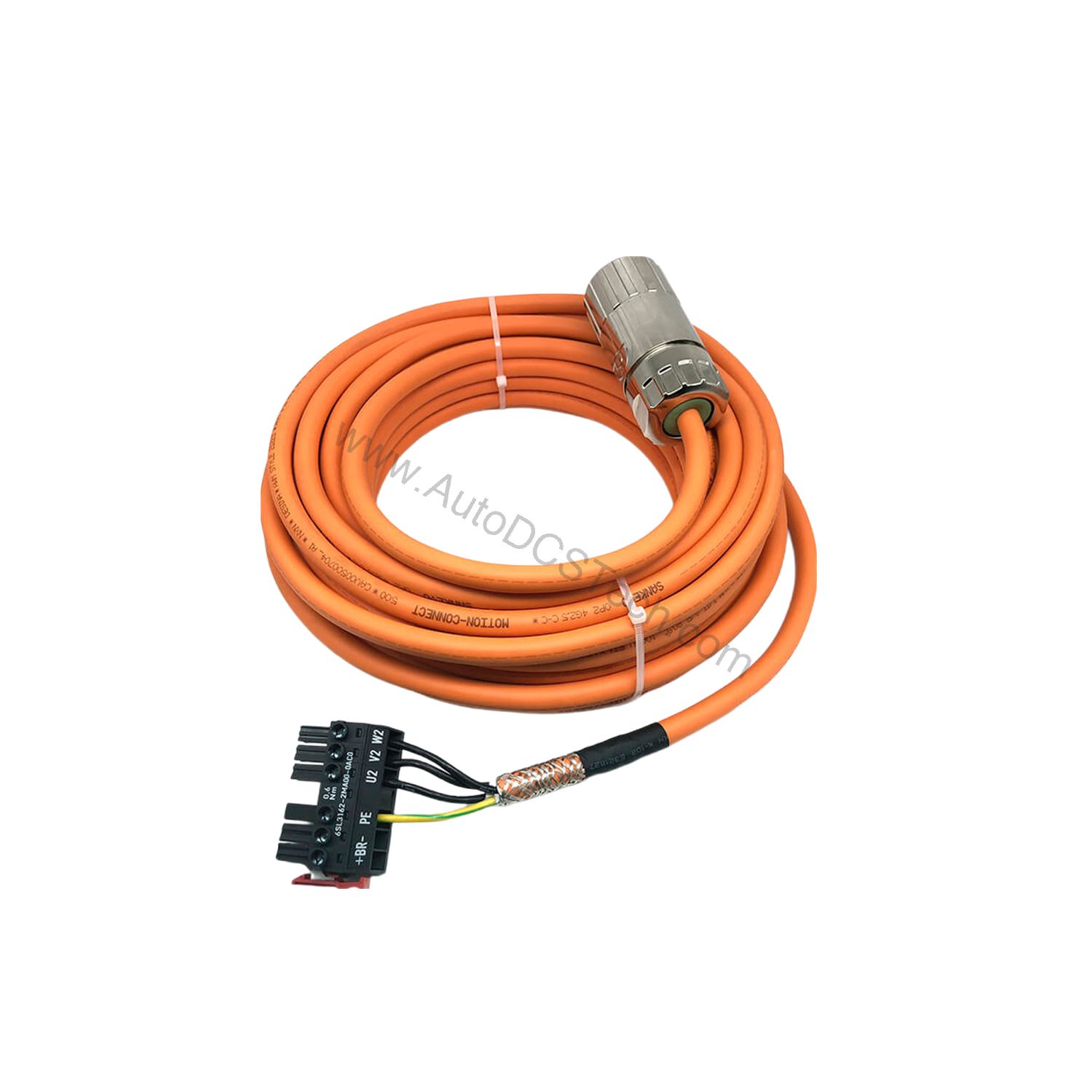

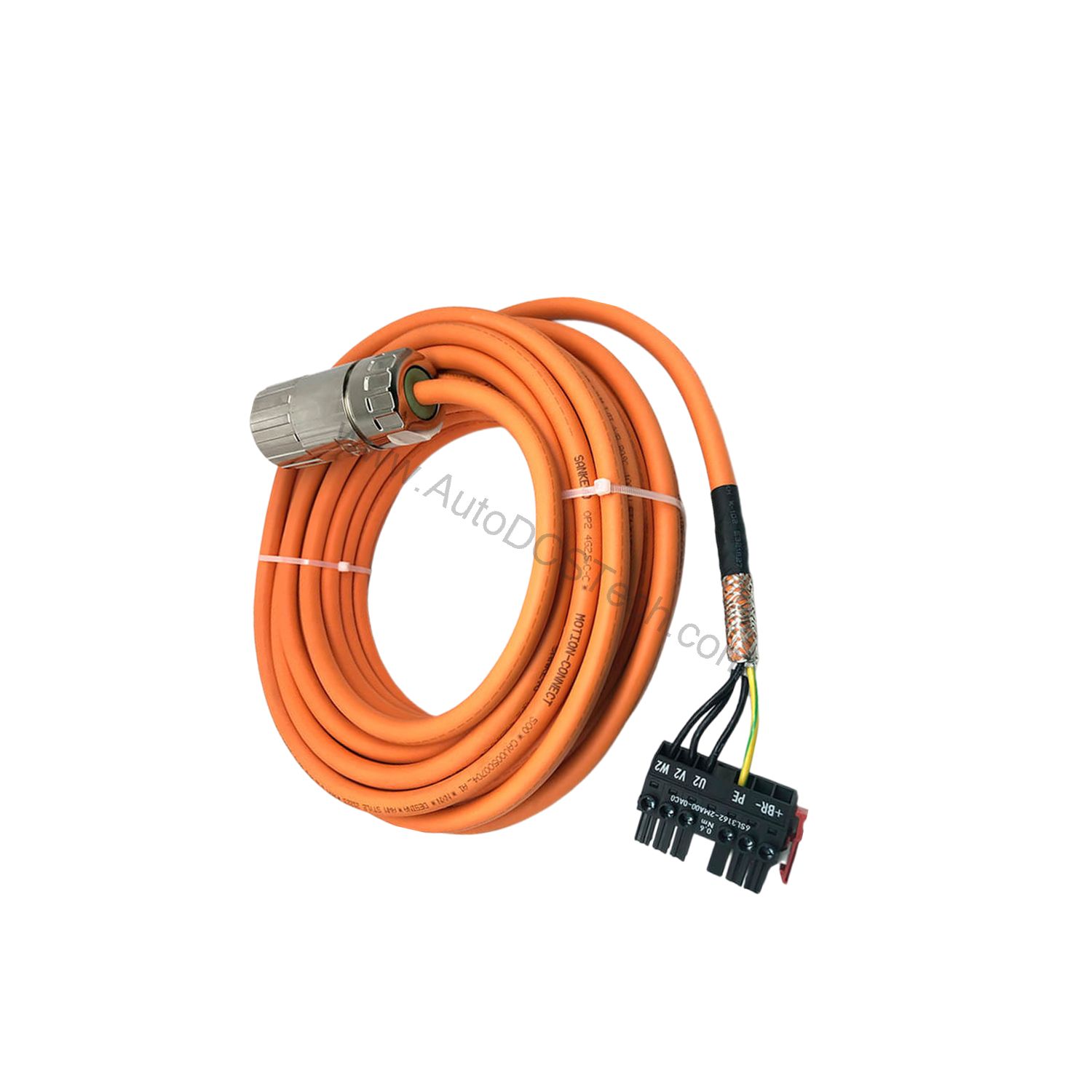

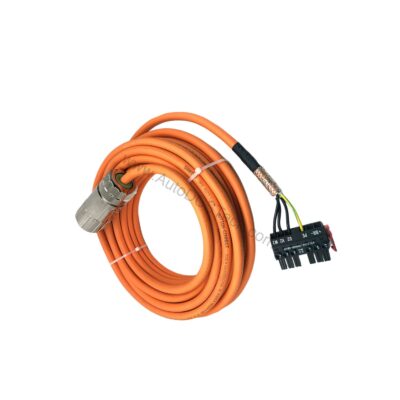

6FX5002-5DQ58-1AF0 Power Cable Overview
The 6FX5002-5DQ58-1AF0 is a pre-assembled power cable from Siemens, designed for SIMODRIVE drive systems. This cable features a Speed-CONNECT connector size 1.5 and is part of the MOTION-CONNECT 500 series. With a length of 5 meters and a maximum diameter of 17.6 mm, it provides a reliable connection for power transmission in industrial automation environments.
This cable is UL/CSA certified and meets DESINA standards, ensuring compatibility and safety in various applications. Its pre-assembled design simplifies installation, reducing downtime and labor costs.
Key Features and Technical Specifications
- Part Number: 6FX5002-5DQ58-1AF0
- Brand: Siemens
- Cable Type: Power cable, pre-assembled
- Extension: 4x 6+(2x1.5) C
- Connector: Speed-CONNECT connector size 1.5
- Series: MOTION-CONNECT 500
- Maximum Diameter: 17.6 mm
- Length: 5 meters
- Certifications: UL/CSA, DESINA
- Net Weight: 3.040 kg
These specifications ensure that the cable meets the rigorous demands of industrial applications, providing both durability and performance.
Applications and Use Cases
The 6FX5002-5DQ58-1AF0 is commonly used in CNC machines, robotics, and automated production lines where reliable power delivery is critical. Its robust construction and certification make it suitable for harsh environments, including those with high vibration or temperature variations.
Installation and Setup
Installation of the 6FX5002-5DQ58-1AF0 is straightforward due to its pre-assembled nature. The Speed-CONNECT connector allows for quick and secure connections, minimizing setup time. Ensure that the cable is routed with adequate bend radius to prevent stress on the connector and maintain signal integrity. Always follow Siemens' guidelines for proper torque and strain relief to maximize cable life.
Maintenance and Reliability
Regular inspection of the cable and connector is recommended to detect any signs of wear or damage. Check for cuts, abrasions, or loose connections, especially in high-motion applications. The MOTION-CONNECT 500 series is designed for long service life, but periodic maintenance can prevent unexpected failures. Keep the cable away from sharp edges and excessive heat sources to preserve its performance.
Compatibility and Integration
This cable is specifically designed for SIMODRIVE systems, ensuring compatibility with Siemens drives and motors. It is also part of the broader MOTION-CONNECT family, which supports various Siemens automation components. For integration with other systems, verify the connector size and cable specifications against your equipment's requirements.
Troubleshooting and Common Issues
If you encounter connectivity issues, first check the connector seating and torque. Loose connections can cause intermittent power loss. Inspect the cable for any visible damage, especially near the connector ends. If the cable is exposed to frequent flexing, consider using a cable carrier or drag chain to reduce stress. For persistent problems, consult the Siemens documentation or contact AutoDCSTech for support.
Product Support and Availability
The 6FX5002-5DQ58-1AF0 is available from AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with any technical questions and ensure you receive the right component for your application.
Availability & Condition at AutoDCSTech
| Part Number | 6FX5002-5DQ58-1AF0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
