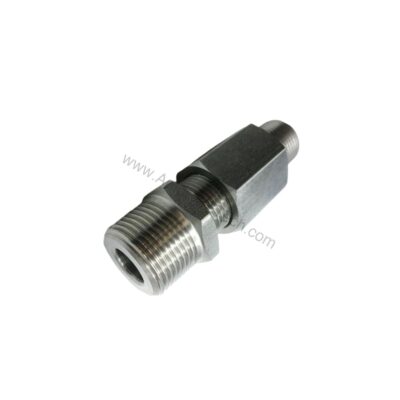

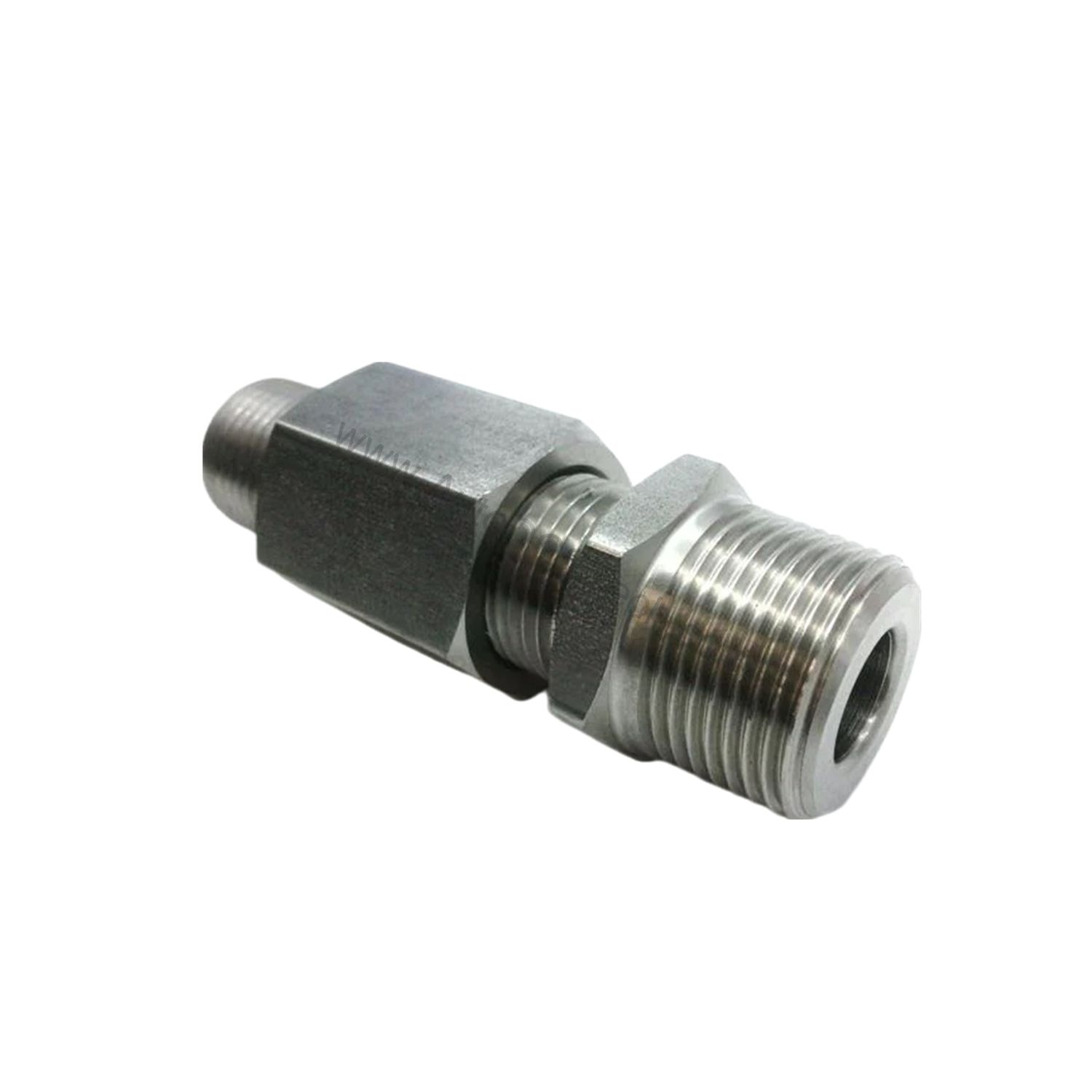

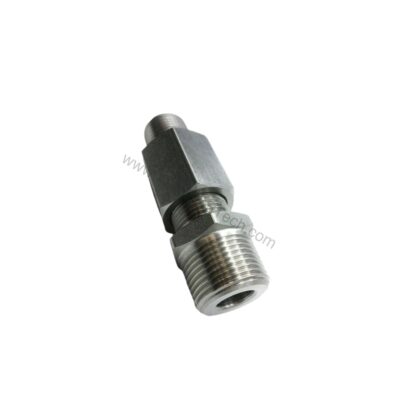

43501-01-04-02 Bently Nevada Low Pressure Cable Seal

Introduction to the 43501-01-04-02 Low Pressure Cable Seal

When machine case penetrations compromise fluid containment, the 43501-01-04-02 from Bently Nevada provides a reliable sealing solution. This low pressure cable seal is engineered to pass one to four 95-ohm transducer cables, or one to two 25mm DE and 50mm DE transducer cables, through a single hole in a machine case or barrier. Its molded silicone rubber grommet prevents leakage of fluids along the cable outer jacket, protecting bearing housings and machine cases from lube oil loss.

The seal mounts in a hole tapped with either ½-NPT or ¾-NPT pipe threads, offering flexibility for various installation requirements. With external pipe threads on both ends, it mates securely to the tapped hole and to conduit or housings. Rated to 345 kPa (50 psi) across the grommet from high to low pressure, this seal is designed for demanding industrial environments.

Key Features and Technical Specifications

The 43501-01-04-02 delivers robust performance through precise engineering. Below are the critical specifications that define its capabilities:

• Manufacturer: Bently Nevada
• Product No.: 43501-01-04-02
• Product Type: Low Pressure Cable Seal
• High Pressure Side Thread Size: 1/2-14 NPT
• Low Pressure Side Thread Size: 3/4-14 NPT
• Fitting Options: 1/2-14 NPT, 3/4-14 NPT
• Pressure Rating: 345 kPa (50 psi) across grommet
• Cable Capacity: Up to 4 cables (one hole punched, three partially predrilled)
• Overall Length (assembled): 35mm (1.4 inches) in tightened condition

These specs translate directly into cost savings: the seal’s ability to handle multiple cables through one penetration reduces the number of required holes, lowering installation labor and material costs. The dual thread options (1/2-14 NPT and 3/4-14 NPT) eliminate the need for adapters, further reducing procurement complexity and expense.

Applications and Use Cases

In turbomachinery and rotating equipment, the 43501-01-04-02 is primarily used to seal lube oil exits from bearing housings and machine cases. By preventing oil leakage, it minimizes fluid replacement costs and reduces environmental cleanup expenses. The seal is rated only on the cable outer jacket and seal body; it does not seal leaks through the cable braid or center conductor due to pinholes or cuts in the jacket, so users must inspect cables for damage to avoid costly failures.

Typical applications include gas turbines, compressors, and pumps where transducer cables must pass through pressurized casings. The seal’s pressure rating of 345 kPa (50 psi) ensures reliable operation in moderate-pressure environments, while its compact 35mm assembled length fits tight spaces, reducing the need for extensive modifications.

Installation and Setup

Proper installation is critical to achieving a leak-free seal. First, tap the machine case hole to either ½-NPT or ¾-NPT pipe threads, matching the fitting option chosen. Insert the cable(s) through the molded silicone grommet, ensuring the grommet accommodates the number of cables (up to four, with one hole punched and three partially predrilled). Tighten the seal to its assembled length of 35mm (1.4 inches) to compress the grommet and create a secure seal.

For best results, verify that the cable outer jacket is free of cuts or pinholes before installation, as the seal cannot compensate for jacket damage. Also ensure the mating conduit or housing threads are clean to avoid cross-threading, which could lead to leaks and increased maintenance costs.

Maintenance and Reliability

Routine inspection of the 43501-01-04-02 is essential to maintain its sealing integrity. Periodically check the grommet for signs of wear, cracking, or hardening, which can occur due to exposure to high temperatures or aggressive fluids. Replace the grommet if any deterioration is observed to prevent fluid leakage that could lead to costly downtime.

The seal’s design supports long service life, reducing replacement frequency and associated labor costs. However, because the seal does not protect against leaks through the cable braid or center conductor, regular cable inspection is recommended to avoid unexpected failures that could halt production.

Compatibility and Integration

The 43501-01-04-02 is compatible with Bently Nevada transducer cables, specifically 95-ohm cables and 25mm DE/50mm DE cables. Its dual thread options (1/2-14 NPT and 3/4-14 NPT) allow integration with standard industrial piping and conduit systems, simplifying installation across different machine configurations. This versatility reduces the need for custom adapters, lowering overall system cost.

When integrating with existing monitoring systems, ensure that the cable routing through the seal does not introduce sharp bends that could damage the cable jacket, as this would compromise the seal’s effectiveness and lead to potential fluid leaks.

Troubleshooting and Common Issues

If leakage occurs around the 43501-01-04-02, first verify that the seal is tightened to the correct assembled length (35mm). An overtightened or undertightened seal can compromise the grommet’s sealing action. Next, inspect the grommet for damage or deformation; replace it if necessary. Also check the cable jacket for cuts or pinholes, as the seal cannot seal through such defects.

Another common issue is thread mismatch. Ensure that the high pressure side uses 1/2-14 NPT and the low pressure side uses 3/4-14 NPT, as specified. Using incorrect threads can cause poor mating and leaks, leading to increased maintenance costs.

Product Support and Availability

The 43501-01-04-02 is available through AutoDCSTech, an industrial automation parts supplier. Please verify current lifecycle status and availability with AutoDCSTech before ordering. For technical support, consult the official Bently Nevada documentation or contact AutoDCSTech for assistance.
