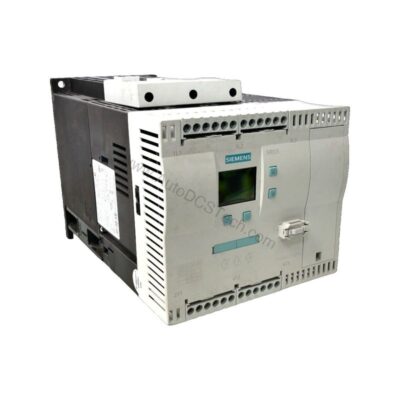

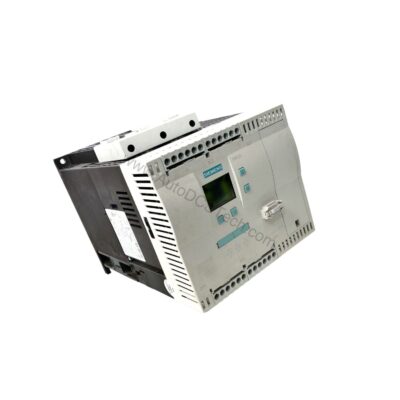

Introduction to the 3RW4454-6BC44 Soft Starter
When motor starting demands precise control and high reliability, the 3RW4454-6BC44 from Siemens SIRIUS delivers. This soft starter is engineered for high-feature applications, providing smooth acceleration and deceleration while protecting your equipment. With a robust design and integrated protection functions, it reduces mechanical stress and extends motor life.
Key Features & Technical Specifications
The 3RW4454-6BC44 offers a comprehensive set of features that make it a versatile choice for industrial motor control.
- Rated operating current at 40°C: 615 A (standard circuit)
- Rated operating current at 40°C: 1,065 A (inside-delta circuit)
- Emitted mechanical power at 400V standard circuit: 355 kW
- Emitted mechanical power at 400V inside-delta circuit: 630 kW
- Operating voltage: 200-460 V AC
- Control supply voltage: 230 V AC at 50/60 Hz
- Integrated bridging contact system and thyristors
- Motor overload protection and intrinsic device protection
- Adjustable current limitation and inside-delta circuit support
- Protection class IP00
These specifications highlight the 3RW4454-6BC44's capability to handle demanding applications while maintaining precise control.
Applications & Use Cases
The 3RW4454-6BC44 is ideal for industries such as pumping, ventilation, and conveyor systems where controlled starting is critical. For example, in a water treatment plant, this soft starter ensures smooth pump starts, reducing water hammer and mechanical wear. Similarly, in material handling, it provides gentle acceleration for conveyors, protecting both the motor and the load. Its wide voltage range and high current ratings make it suitable for heavy-duty machinery.
Installation & Setup
Proper installation is essential for optimal performance. The 3RW4454-6BC44 features screw fixing for mounting and can be rotated ±90° on a vertical mounting plane, or tilted ±22.5° forward and backward. Maintain minimum clearances to adjacent assemblies: 100 mm upwards, 5 mm sidewards, and 75 mm downwards. The main circuit uses busbar connections, while auxiliary and control circuits use screw-type terminals. Ensure the control supply voltage is 230 V AC at 50/60 Hz, and follow the manufacturer's manual for wiring details.
Maintenance & Reliability
Routine inspection is key to long-term reliability. Check the unit periodically for dust accumulation and ensure ventilation is not obstructed. The 3RW4454-6BC44 operates at ambient temperatures up to 60°C, with derating above 40°C. Verify that the operating frequency remains within 50-60 Hz and the voltage within the specified tolerances. Following the manufacturer's maintenance guidelines will help prevent unexpected downtime.
Compatibility & Integration
The 3RW4454-6BC44 integrates seamlessly into existing motor control systems. It supports both standard and inside-delta circuits, offering flexibility in motor connection. The integrated bridging contact system and thyristors ensure efficient operation. For control, it accepts a 230 V AC supply, and the auxiliary contacts include 3 NO and 1 changeover contact, allowing easy integration with PLCs or other control devices.
Product Support & Availability
The 3RW4454-6BC44 is available from AutoDCSTech. Contact us for current lifecycle status and availability before ordering. We are ready to assist with your industrial automation needs.
Availability & Condition at AutoDCSTech
| Part Number | 3RW4454-6BC44 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
