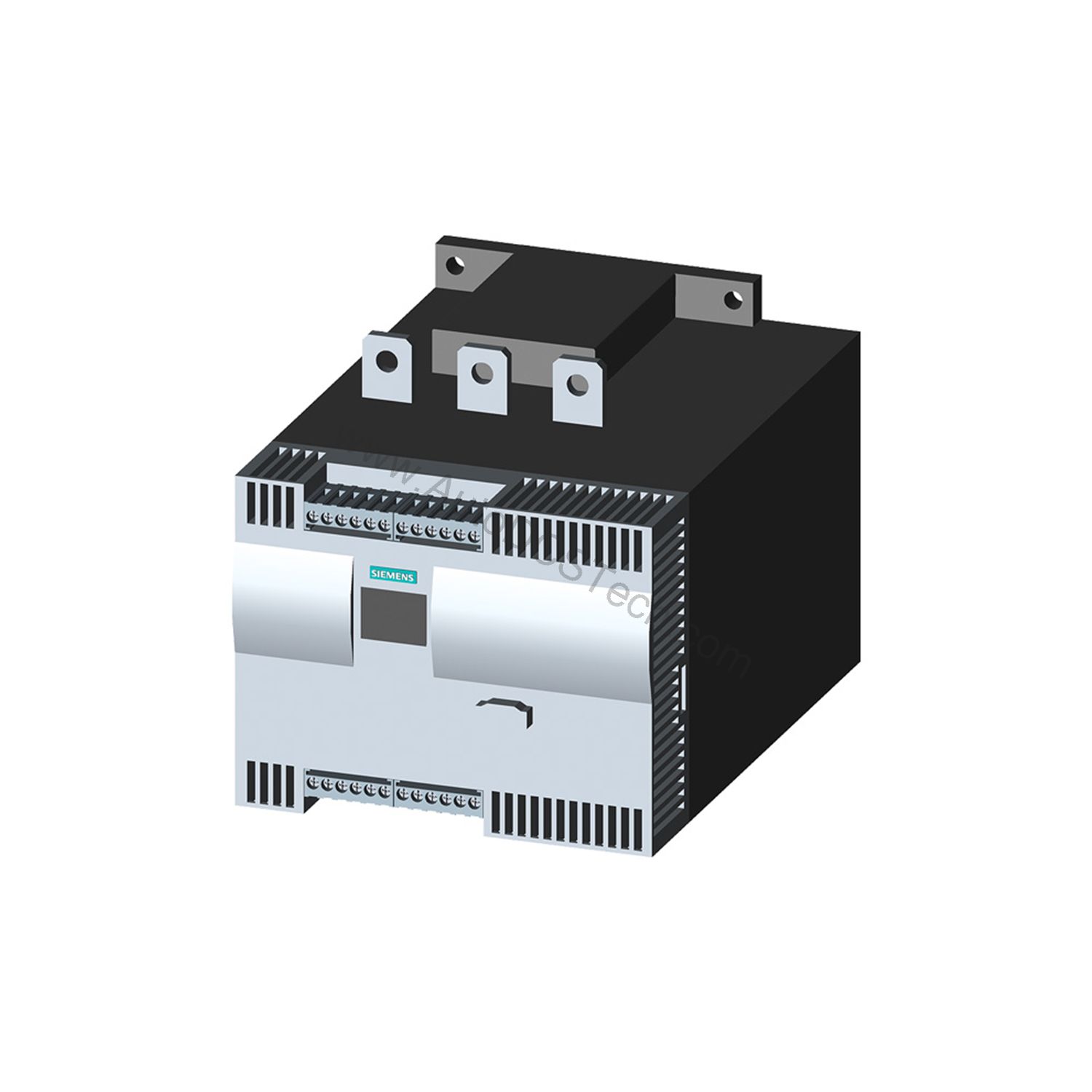

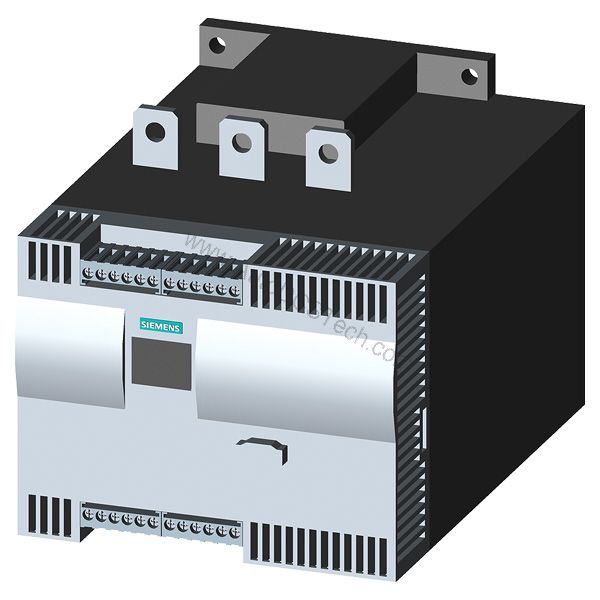

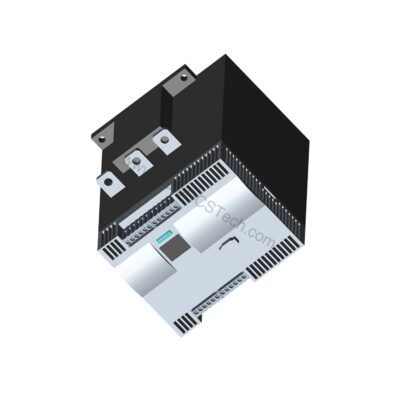

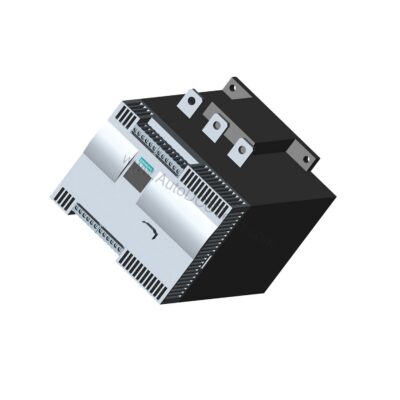

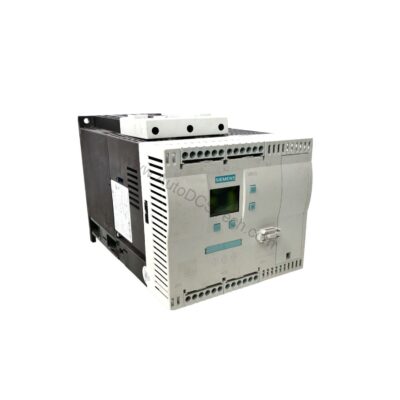

3RW4447-6BC44 432A 250kW Siemens Soft Starter

Introduction to the 3RW4447-6BC44 Soft Starter

When motor starting demands precise control and robust performance, the 3RW4447-6BC44 from Siemens provides a dependable solution. This SIRIUS soft starter is engineered for high-feature applications, offering a rated operating current of 432 A at 400 V and 40 °C. It supports both standard and inside-delta circuit configurations, making it versatile for various motor control setups.

As a phased-out product, the 3RW4447-6BC44 is succeeded by the SIRIUS 3RW5 series, with the preferred successor being the 3RW5547-6HA14. However, this model remains a reliable choice for existing installations and replacement needs.

Key Features and Technical Specifications

The 3RW4447-6BC44 is packed with features that enhance motor protection and operational flexibility. Its integrated bridging contact system and thyristors ensure smooth starting and reduced mechanical stress. The device includes intrinsic device protection, motor overload protection, and evaluation of thermal resistor motor protection, safeguarding your equipment.

• Rated operating current: 432 A at 40 °C (standard circuit)
• Inside-delta circuit current: 748 A at 40 °C
• Operating voltage: 200-460 V AC
• Control supply voltage: 230 V AC at 50/60 Hz
• Adjustable current limitation for precise control
• Integrated bypass contact system reduces energy losses

One distinctive feature is the adjustable rated current for motor overload protection, ranging from a minimum of 86 A. This allows fine-tuning to match specific motor requirements, enhancing protection and extending motor life.

Applications and Use Cases

This soft starter is ideal for three-phase squirrel cage motors in industries such as pumping, ventilation, and material handling. Its ability to handle high currents (up to 748 A in inside-delta) makes it suitable for heavy-duty applications. The device supports inside-delta circuit wiring, which reduces motor current by a factor of √3, enabling the starter to control larger motors than its standard rating suggests.

For example, in a water treatment plant, the 3RW4447-6BC44 can smoothly start large pumps, reducing water hammer and mechanical wear. Its adjustable current limitation helps optimize starting torque for different load conditions.

Installation and Setup

Proper installation is crucial for reliable operation. The 3RW4447-6BC44 features screw terminals for auxiliary and control circuits, while the main circuit uses busbar connections. The device can be mounted in any orientation, with a permissible tilt of ±90° on a vertical plane and ±22.5° forward/backward. Maintain minimum clearances: 100 mm upward, 5 mm sideways, and 75 mm downward for adequate ventilation.

Conductor cross-sections for main contacts range from 70 to 240 mm² (finely stranded with or without conductor end processing) and up to 300 mm² for stranded wires. For AWG conductors, sizes from 3/0 to 600 kcmil are supported. Ensure all connections are torqued to manufacturer specifications.

Maintenance and Reliability

Regular inspection is essential to maintain performance. Check for dust accumulation on the heatsink and ensure ventilation paths are clear. The device's integrated bypass contact system reduces heat generation during continuous operation, extending component life. Verify the thermal overload protection settings periodically to match motor specifications.

Given its phased-out status, it's wise to plan for eventual replacement with the 3RW5547-6HA14 successor. However, with proper care, the 3RW4447-6BC44 can continue to provide reliable service.

Compatibility and Integration

The 3RW4447-6BC44 operates with a control supply voltage of 230 V AC at 50 or 60 Hz, making it compatible with standard industrial power systems. It includes three NO contacts and one changeover contact for auxiliary signaling, allowing integration with PLCs and control panels. The device's operating frequency range of 50-60 Hz ensures broad applicability.

For remote monitoring, the device provides a fault signal display. However, it does not include communication protocols like PROFIBUS or Modbus; for networked applications, consider the 3RW5 series with optional communication modules.

Troubleshooting and Common Issues

Common issues with soft starters include overheating due to blocked ventilation or excessive ambient temperature. The 3RW4447-6BC44 has a maximum ambient temperature of 60 °C during operation, but derating is required above 40 °C. If the device trips on overload, check the motor current settings and adjust the adjustable current limitation accordingly.

If the fault signal activates, inspect the thermal resistor motor protection circuit. Ensure the control supply voltage is within the -15%/+10% tolerance. For persistent issues, consult the Siemens manual or contact AutoDCSTech for guidance.

Product Support and Availability

While the 3RW4447-6BC44 is phased out, AutoDCSTech can assist with availability and alternative solutions. Contact us to verify stock and discuss the successor model 3RW5547-6HA14 for new installations.
