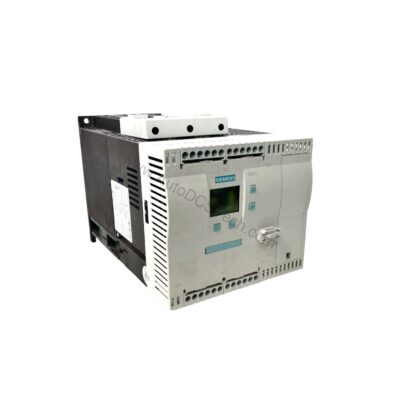

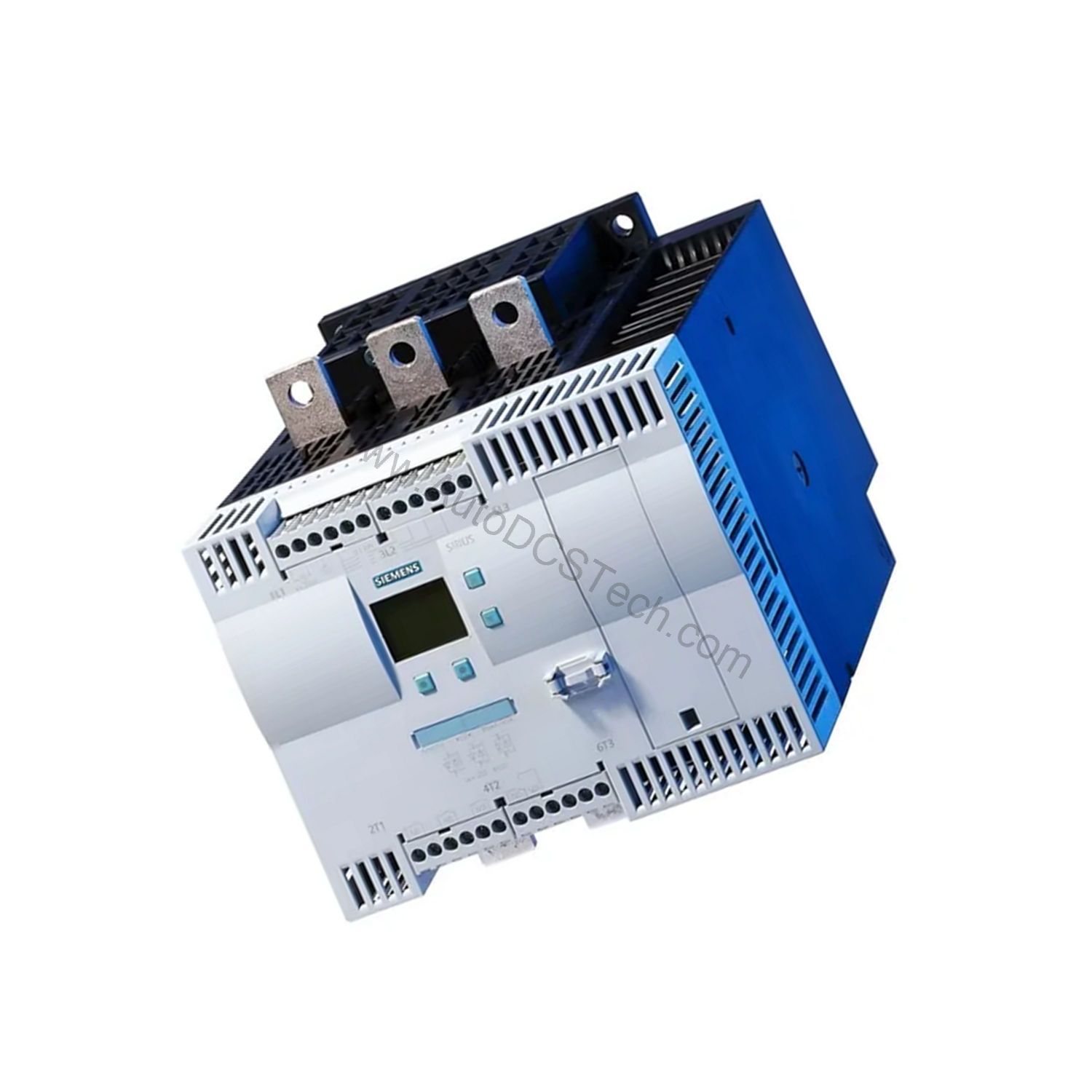

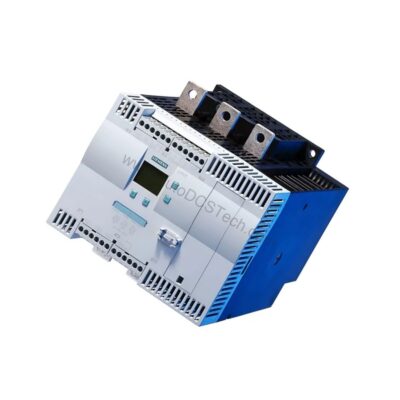

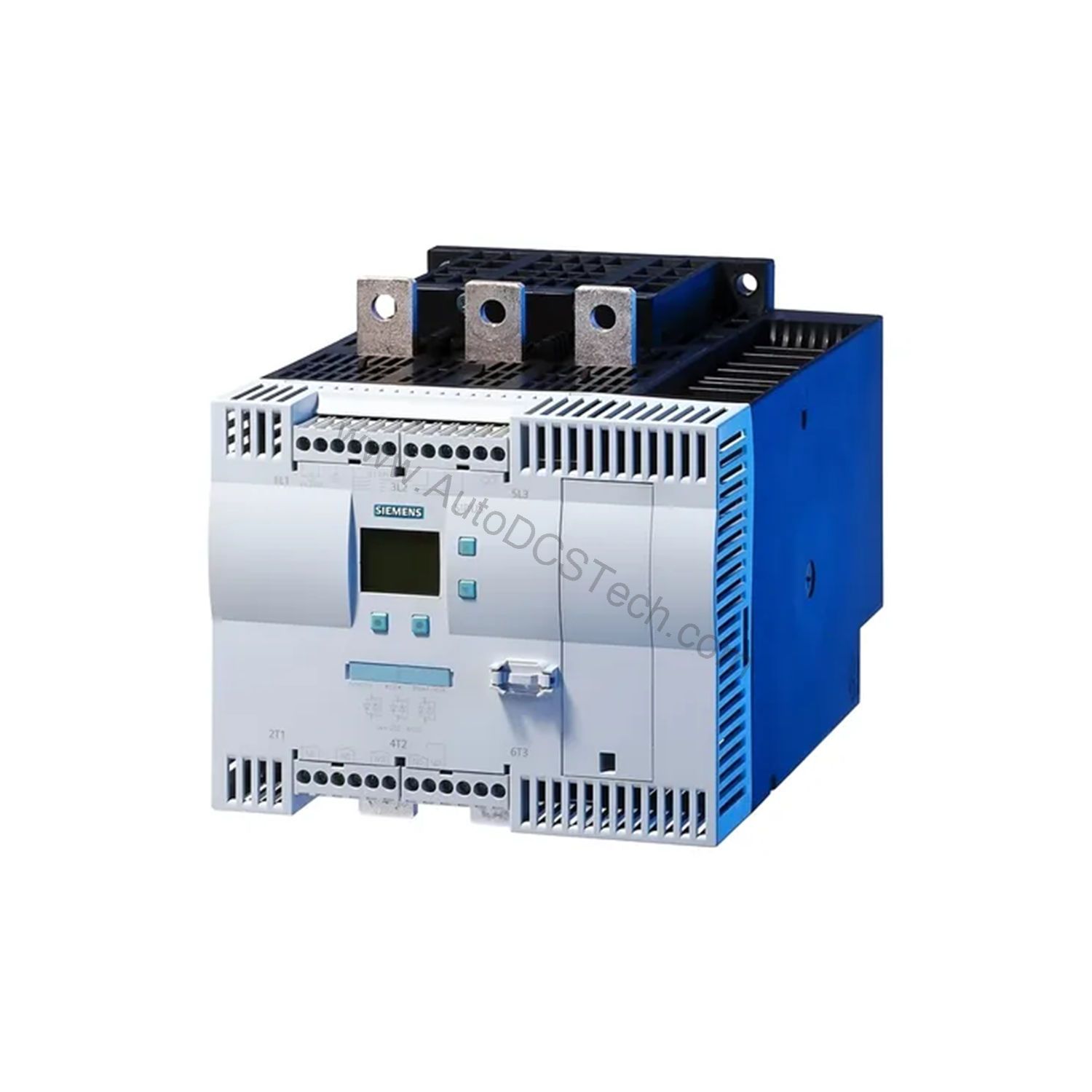

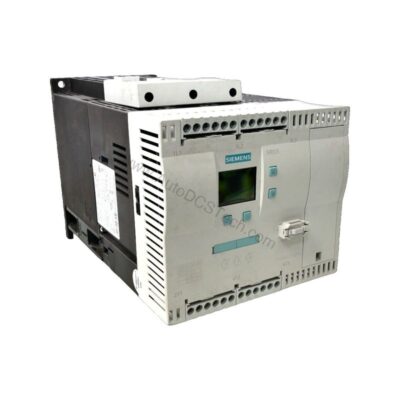

3RW4443-6BC44 200 kW SIRIUS Soft Starter

Introduction to the Siemens 3RW4443-6BC44 Soft Starter

When motor starting demands precise control and reliability, the 3RW4443-6BC44 from Siemens provides a robust solution. This SIRIUS soft starter is engineered for three-phase motors, offering smooth acceleration and deceleration while minimizing mechanical stress and electrical surges. With a rated operating current of 203 A at 40 °C and a mechanical power output of 110 kW in standard circuit at 400 V, it handles demanding industrial applications with ease.

Part of the Siemens SIRIUS family, the 3RW4443-6BC44 integrates advanced features such as an internal bypass contact system and thyristor control. These components work together to reduce energy losses and extend motor life. For engineers seeking cost-effective motor control, this soft starter offers a compelling balance of performance and efficiency.

Key Features and Technical Specifications

• Operating Voltage: 200–460 V AC at standard circuit, with a relative tolerance of -15% to +10%.
• Rated Operating Current: 203 A at 40 °C, 180 A at 50 °C, and 156 A at 60 °C.
• Inside-Delta Circuit Current: 352 A at 40 °C, enabling higher motor power.
• Mechanical Power Output: 110 kW at 400 V standard circuit; 200 kW at 400 V inside-delta circuit.
• Control Supply Voltage: 230 V AC at 50/60 Hz, with ±10% frequency tolerance.
• Integrated Bypass: Yes, reducing heat dissipation and power loss.
• Motor Overload Protection: Yes, with adjustable current range from 40 A.
• Insulation Voltage: 690 V rated, complying with IEC 60947-4-2.

One distinctive spec is the 200 kW capability in inside-delta configuration. This allows the soft starter to control larger motors without upgrading to a higher-rated device, delivering significant cost savings in high-power applications.

Cost-Benefit and ROI Analysis

The 3RW4443-6BC44 reduces total ownership costs through several mechanisms. First, its integrated bypass eliminates continuous power loss after starting, lowering energy bills. Second, the adjustable current limitation prevents overcurrent damage, reducing maintenance and replacement expenses. Third, the wide operating voltage range (200–460 V AC) makes it versatile across global installations, avoiding the need for multiple models.

Additionally, the soft starter’s overload protection extends motor life by preventing thermal stress. This translates to fewer unplanned downtime events and lower repair costs. For operations running multiple motors, the 3RW4443-6BC44 offers a fast payback period through energy and maintenance savings.

Installation and Mounting Guidelines

Proper installation ensures optimal performance. The 3RW4443-6BC44 supports screw fixing and can be mounted on a vertical surface, rotatable ±90° and tiltable ±22.5°. Maintain required clearances: 100 mm above, 75 mm below, and 5 mm at the sides for adequate airflow. The device is IP00 rated, so it should be installed in a suitable enclosure to protect against dust and moisture.

Electrical connections are made via busbar for the main circuit and screw terminals for auxiliary circuits. Conductor cross-sections range from 70 to 240 mm² for finely stranded wires (front clamping) and up to 300 mm² for stranded wires. Ensure proper torque and secure connections to avoid overheating.

Maintenance and Reliability

Routine inspection of the soft starter is essential for long-term reliability. Check for dust accumulation on the heatsink and verify that all terminal connections remain tight. The integrated bypass reduces thermal cycling, which prolongs component life. The device is designed for an ambient temperature up to 60 °C during operation, but derating occurs above 40 °C—so ensure adequate ventilation.

Because the 3RW4443-6BC44 includes motor overload protection and thermistor evaluation, it actively monitors motor health. This proactive approach minimizes unexpected failures and extends equipment service life, contributing to lower lifecycle costs.

Applications and Use Cases

The 3RW4443-6BC44 is ideal for conveyors, pumps, fans, and compressors where controlled starting is critical. In a typical installation, it reduces inrush current by up to 70%, protecting both the motor and the power supply. For high-inertia loads, the inside-delta circuit allows starting currents up to 352 A, enabling the control of larger motors without oversizing the starter.

In cost-sensitive industries, the soft starter’s energy savings and reduced maintenance make it a preferred choice over direct-on-line starters. Its adjustable current limitation also helps in applications with variable load conditions, optimizing performance while safeguarding the motor.

Compatibility and Integration

The 3RW4443-6BC44 is designed for three-phase motors with a rated frequency of 50 to 60 Hz. It supports both standard and inside-delta wiring configurations. The control supply voltage is 230 V AC, which is common in industrial control panels. The device includes three NO contacts and one CO contact for auxiliary signaling, allowing easy integration with PLCs or motor control centers.

For remote monitoring, the soft starter can be connected to higher-level systems via its digital inputs and outputs, though specific protocols are not detailed in the provided data. Refer to the official Siemens manual for detailed wiring diagrams and communication options.

Troubleshooting Common Issues

If the motor fails to start, check the control supply voltage (230 V AC) and ensure the frequency is within ±10% of 50/60 Hz. Verify that the set motor current is above the minimum 40 A and that the overload protection has not tripped. If the device shows a fault, inspect the thermistor circuit for motor overheating.

For erratic operation, confirm that the ambient temperature does not exceed 60 °C and that derating is applied above 40 °C. Also, ensure that the load current does not exceed the rated current at the actual temperature. If problems persist, consult the Siemens troubleshooting guide or contact AutoDCSTech for support.

Product Support and Availability

The Siemens 3RW4443-6BC44 soft starter is available through AutoDCSTech. As a leading supplier of industrial automation parts, AutoDCSTech ensures genuine products and prompt delivery. Contact our team for pricing, availability, and technical support.
