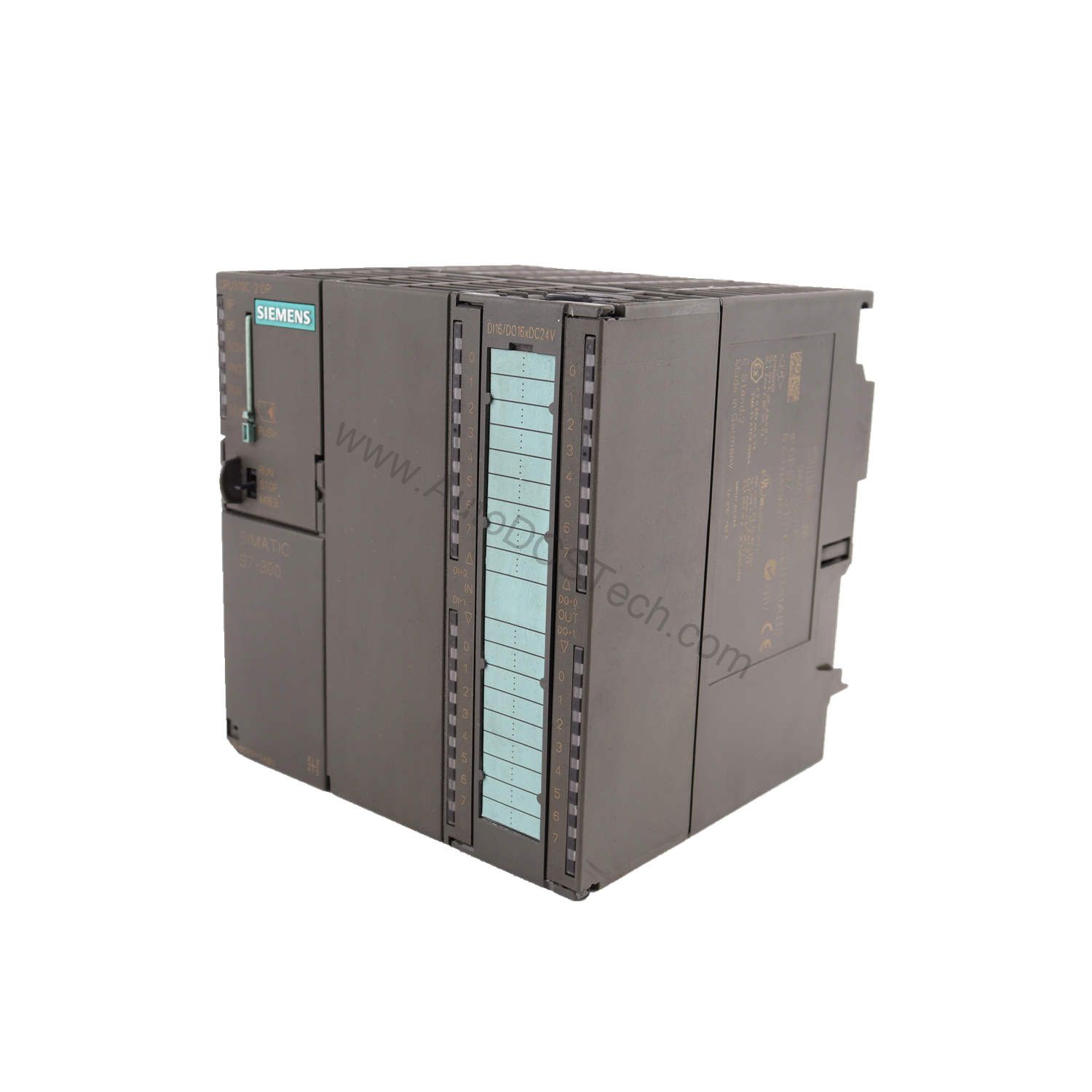

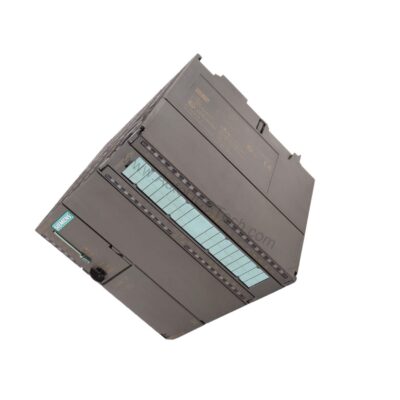

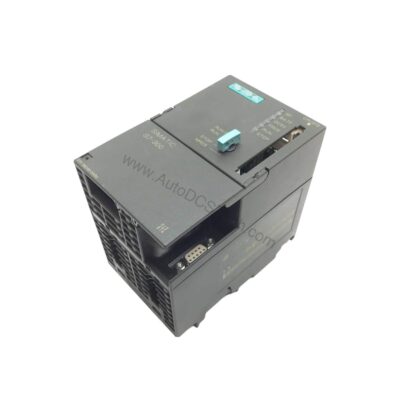

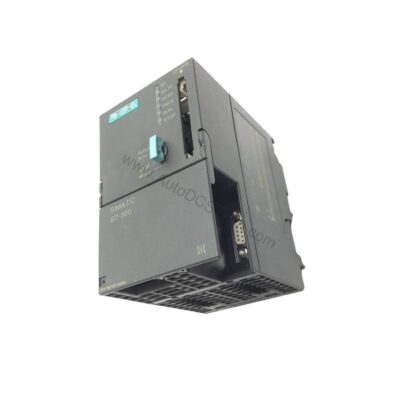

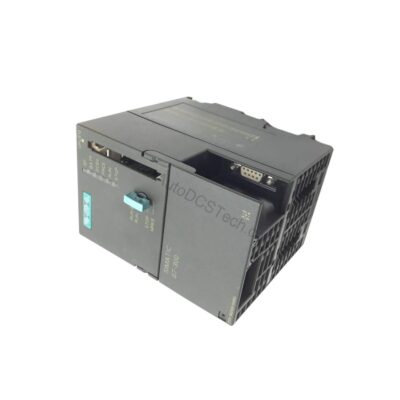

6ES7313-6CE01-0AB0 16DI/16DO Compact PLC CPU

Introduction to the 6ES7313-6CE01-0AB0

When your application demands a compact yet powerful controller, the 6ES7313-6CE01-0AB0 from Siemens delivers. This CPU 313C-2DP is part of the SIMATIC S7-300 family, engineered for machines with medium program sizes. It combines a 24V DC power supply, onboard I/O, and a PROFIBUS DP interface in one unit.

With 32 KB of integrated work memory, this CPU handles logic and data efficiently. The integrated 16 digital inputs and 16 digital outputs reduce the need for separate modules, saving rack space and wiring time. For distributed automation, the built-in DP interface allows direct connection to PROFIBUS networks.

Key Features and Technical Specifications

This CPU is built for performance and reliability. Below are the core specifications you can expect:

• Supply voltage: 24V DC (range 20.4V to 28.8V)
• Digital inputs: 16, rated 24V DC, signal "1" at +15 to +30V
• Digital outputs: 16, max 500mA per output, short-circuit protected
• Work memory: 32 KB, non-expandable
• Load memory: MMC up to 8 MB, with data retention of 10 years
• Processing speed: 0.1 µs per bit operation (typical)
• Integrated counters: 3 high-speed counters at 30 kHz
• PROFIBUS DP: Master/slave, up to 12 Mbit/s
• MPI interface: Isolated RS485, up to 187.5 kbit/s
• Power loss: 10 W typical
• Dimensions: 120 x 125 x 130 mm, weight approx. 566 g

One standout feature is the integrated 24V DC power supply, which simplifies system design. The isolated RS485 interfaces protect against ground loops, enhancing signal integrity in industrial environments.

Applications and Use Cases

In packaging machinery, it coordinates multiple axes with fast counting and precise timing. For material handling systems, the PROFIBUS DP interface enables seamless integration with remote I/O and drives.

Moreover, the CPU supports various programming languages including LAD, FBD, STL, SCL, and GRAPH. This flexibility allows engineers to implement complex control algorithms. The integrated PID controller further expands its use in process control loops, such as temperature or pressure regulation.

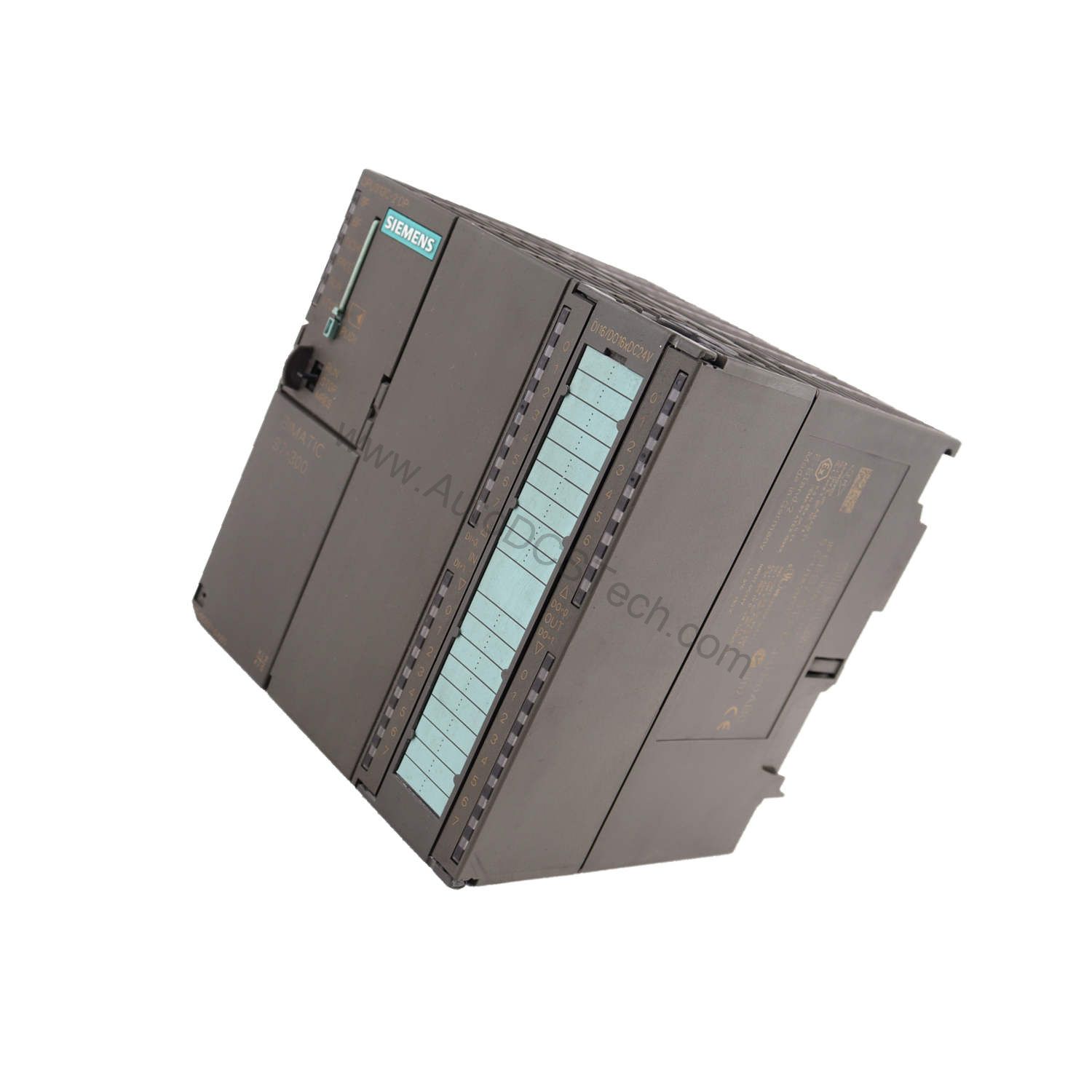

Installation and Configuration

Mounting the CPU on a standard S7-300 rail is straightforward. The front connector (1 x 40-pin) is required for wiring I/O, and a micro memory card (MMC) is necessary for program storage. Ensure the MMC is inserted before power-up to avoid memory errors.

Programming requires STEP 7 V5.2 SP1 or higher. For older versions, use the predecessor CPU. The engineering software allows you to configure the PROFIBUS DP master, set baud rates, and assign slave addresses. The integrated DP interface supports up to 32 DP slaves, making it scalable for distributed systems.

Maintenance and Reliability

Regular inspection of the power supply and I/O connections helps prevent downtime. The CPU's backup is guaranteed by the MMC, which retains data without a battery for at least 10 years. This maintenance-free backup reduces long-term service costs.

For high availability, monitor the operating hours counter and clock deviation (max 10 s/day). The hardware clock is retentive and synchronizable, ensuring accurate timestamps for diagnostics. Following Siemens' guidelines for ambient temperature and ventilation will extend the unit's lifespan.

Compatibility and Integration

This CPU supports multiple communication protocols. The MPI interface allows connection to programming devices and operator panels. The PROFIBUS DP interface supports both master and slave modes, enabling flexible network topologies.

For S7 communication, the CPU acts as a server, and as a client via CP and loadable FB. It also supports S5-compatible communication via CP. With 8 connection resources, you can connect up to 7 PG/OP devices and 4 S7 basic communication partners simultaneously.

Troubleshooting and Common Issues

If the CPU fails to start, check the MMC and power supply. The permissible input voltage range is 20.4V to 28.8V DC; voltages outside this range can cause erratic behavior. For output issues, verify that the load current does not exceed 500mA per channel and that the total current per group stays within limits (8A up to 40°C, 4A up to 60°C).

For PROFIBUS communication errors, confirm that the baud rate matches all devices and that the bus termination is correct. The CPU's diagnostic buffer can be accessed via STEP 7 to identify faults. If problems persist, contact AutoDCSTech for technical support.

Buyer's Guide: Is This CPU Right for You?

Evaluate your application's I/O count and communication needs. This CPU provides 16 DI and 16 DO, which is suitable for small to medium machines. If you require more I/O, you can expand with up to 3 expansion units, but note that the CPU itself supports up to 992 central digital I/O points.

Consider the processing speed: 0.1 µs per bit operation is fast for most logic tasks. For high-speed counting, the 3 counters at 30 kHz handle encoder feedback. If your application demands more counters or analog I/O, you might need a higher-end CPU.

Finally, check the programming environment. STEP 7 V5.2 SP1 or higher is required. If you are using an older version, you must use the predecessor CPU. This ensures compatibility and avoids development delays.

Product Support and Availability

The 6ES7313-6CE01-0AB0 is available at AutoDCSTech. We stock genuine Siemens parts and offer fast shipping. Contact us for current lead times and bulk pricing.
