Introduction: The Evolution of Compact Control
Industrial automation has evolved from centralized mainframes to distributed, compact controllers that fit in the palm of your hand. The Siemens 6ES7214-1AE30-0XB0 represents this shift, packing substantial processing power and I/O into a space-saving enclosure. As factories demand more flexibility and faster response times, this CPU 1214C delivers a balanced mix of digital and analog capabilities for modern machine builders.
Key Features of the 6ES7214-1AE30-0XB0

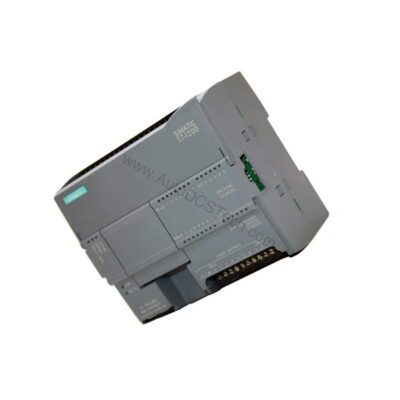

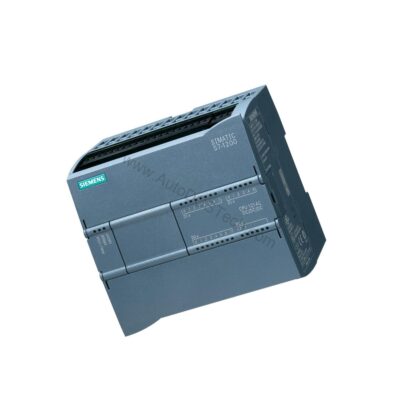

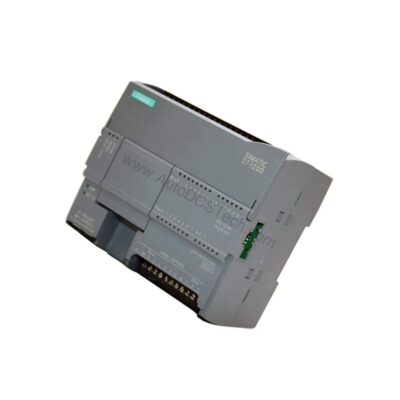

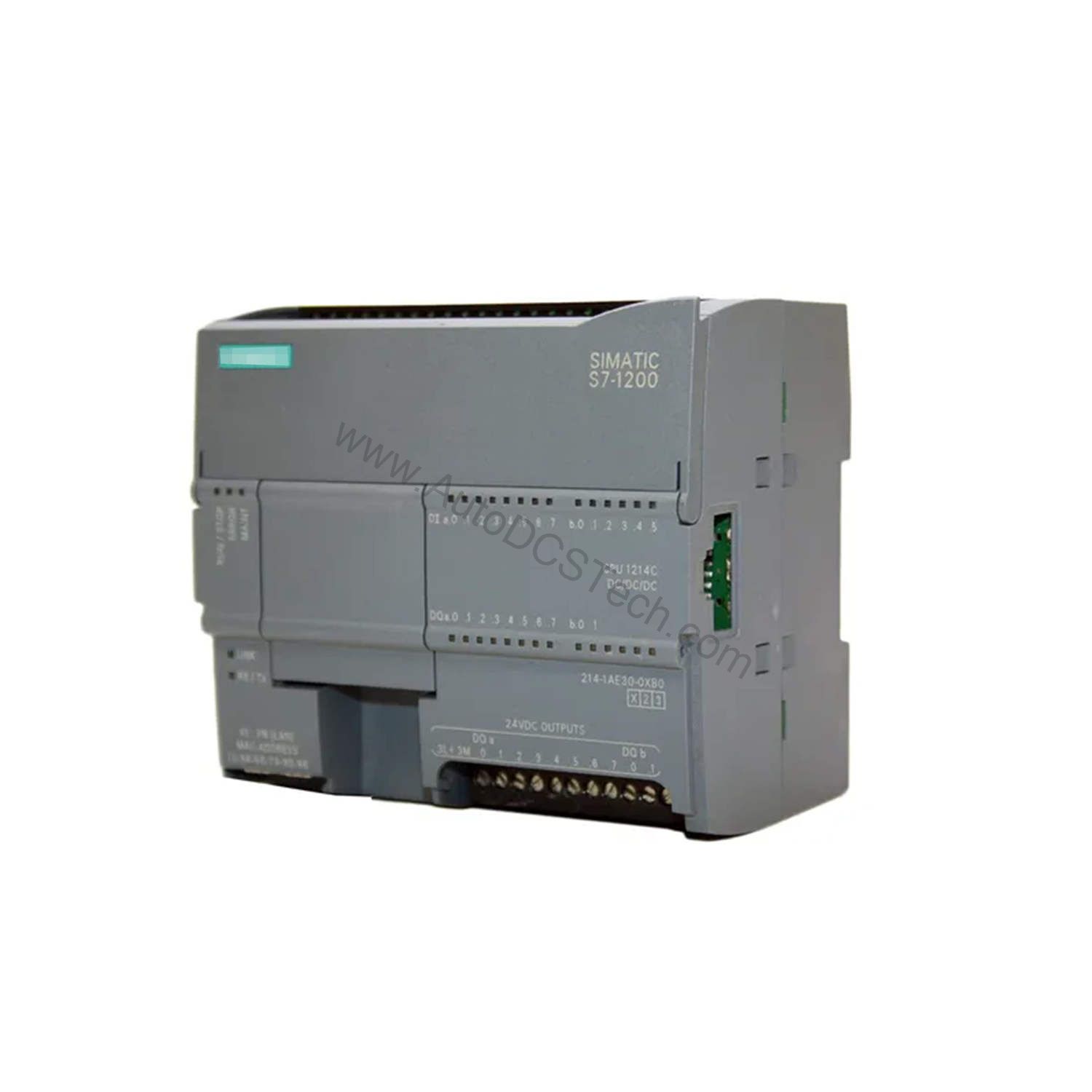

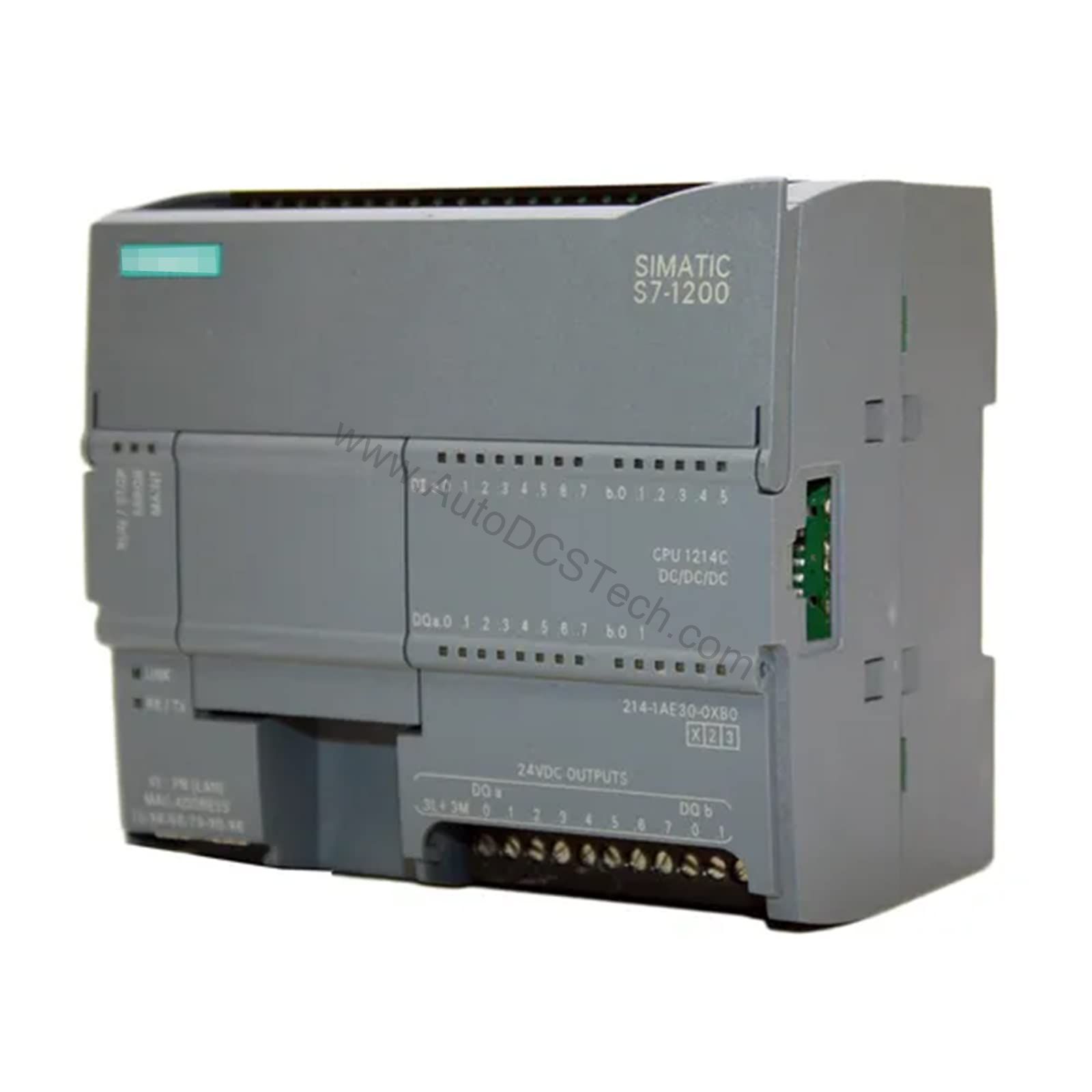

This compact CPU from the SIMATIC S7-1200 family integrates onboard I/O to reduce panel space and simplify wiring. With 14 digital inputs rated at 24 V DC and 10 digital outputs, it handles typical discrete control tasks efficiently. The inclusion of 2 analog inputs (0-10 V DC) allows direct connection of analog sensors without additional modules.
- Supply voltage: DC 20.4 to 28.8 V (rated 24 V DC)
- Program/data memory: 50 KB
- Digital inputs: 14 (6 usable for high-speed counting)
- Digital outputs: 10 (2 high-speed outputs at 100 kHz)
- Analog inputs: 2 (0-10 V DC, 10-bit resolution)
- Power loss: typ. 12 W
- Dimensions: 110 x 100 x 75 mm (W x H x D)
- Weight: approx. 415 g
The CPU supports a maximum of 3 communication modules, 1 signal board, and 8 signal modules, offering scalability for growing applications. Its integrated PROFINET interface enables seamless network integration.
Installation and Setup
Mount the CPU on a standard DIN rail or panel. The DC power supply connects to the L+ and M terminals, accepting 20.4 to 28.8 V DC. Ensure proper isolation: the digital inputs provide 500 VAC isolation for 1 minute, and the outputs are isolated in groups of 2. For analog inputs, use shielded twisted-pair cable up to 100 m to minimize noise. The CPU features a real-time clock with a typical backup time of 240 hours, so time-stamping continues during power loss.
Maintenance and Reliability
Designed for industrial environments, the 6ES7214-1AE30-0XB0 operates from 0 to 55 °C (horizontal) and 0 to 45 °C (vertical). It withstands vibration per IEC 60068-2-6 (2G panel mount, 1G DIN rail) and shock per IEC 60068-2-27 (15 G, 11 ms pulse). With IP20 protection, it suits clean, dry enclosures. Regularly inspect the unit for dust accumulation and ensure adequate airflow to maintain optimal performance.
Performance and Processing Speed
For time-critical logic, the 6ES7214-1AE30-0XB0 executes bit operations in as little as 0.1 µs, word operations in 12 µs, and floating-point arithmetic in 18 µs. This speed ensures responsive control in high-speed sorting, packaging, and material handling systems. The retentive data area of 2048 bytes preserves critical values across power cycles, enhancing reliability.
Compatibility and Integration
The CPU supports S7 communication as a server and open IE communication via TCP/IP and ISO-on-TCP (RFC1006). It offers 15 dynamic connections for flexible networking. Programming is done with STEP 7 Basic V10.5, supporting LAD and FUP languages. The integrated PROFINET interface with autonegotiation simplifies connection to industrial networks.
Troubleshooting Common Issues
If digital inputs fail to respond, verify the input voltage is within 20.4-28.8 V DC and check the signal level: for signal "0", the voltage must be below 5 V DC at 1 mA; for signal "1", above 15 V DC at 2.5 mA. For output issues, ensure the load does not exceed 0.5 A per output and that short-circuit protection is provided externally. If analog readings are noisy, confirm the cable is shielded and grounded correctly.
Product Support and Availability
The Siemens 6ES7214-1AE30-0XB0 is available from AutoDCSTech. Contact our team for current availability and lead times.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7214-1AE30-0XB0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
