6SL3243-0BB30-1PA3 PROFIBUS DP Control Unit | Siemens

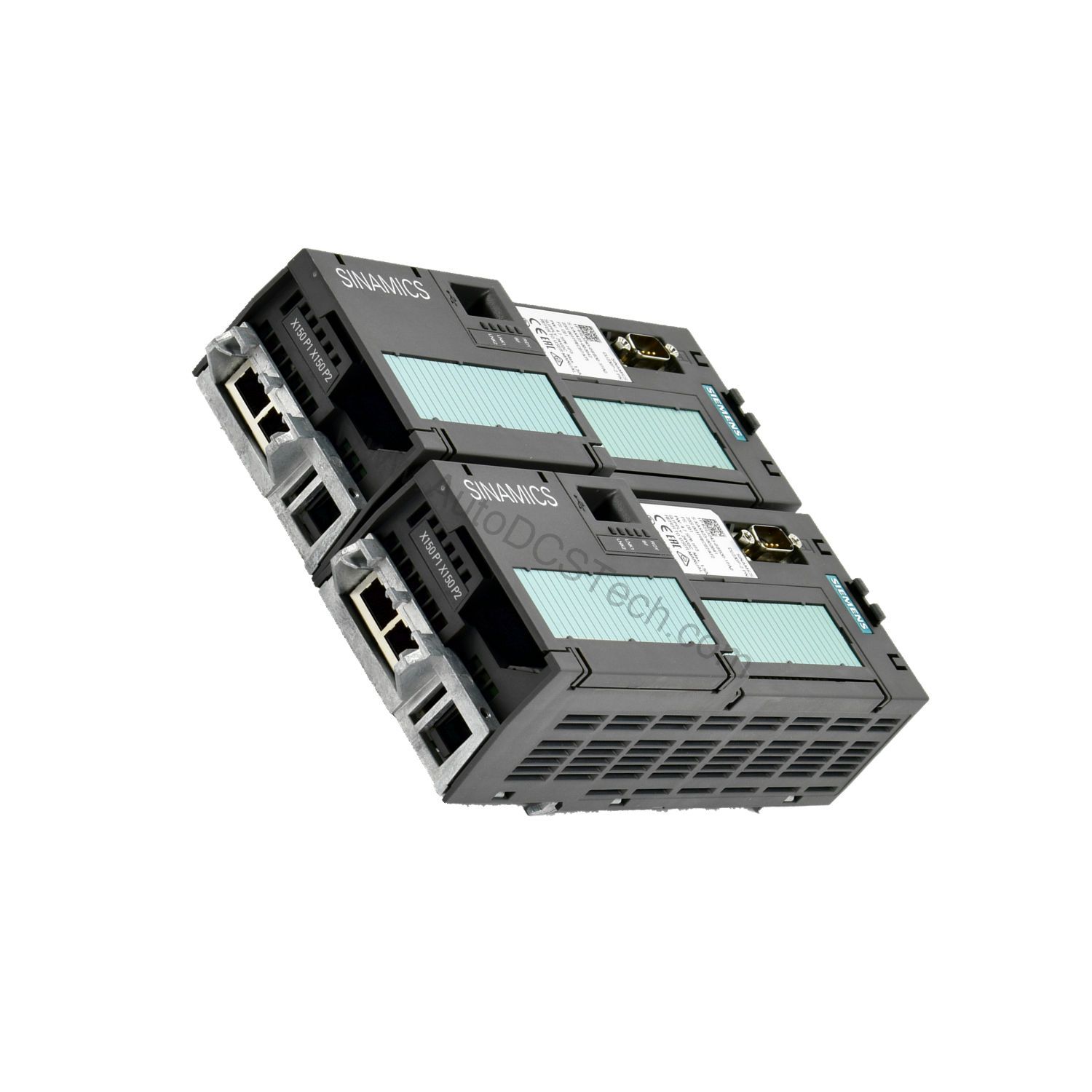

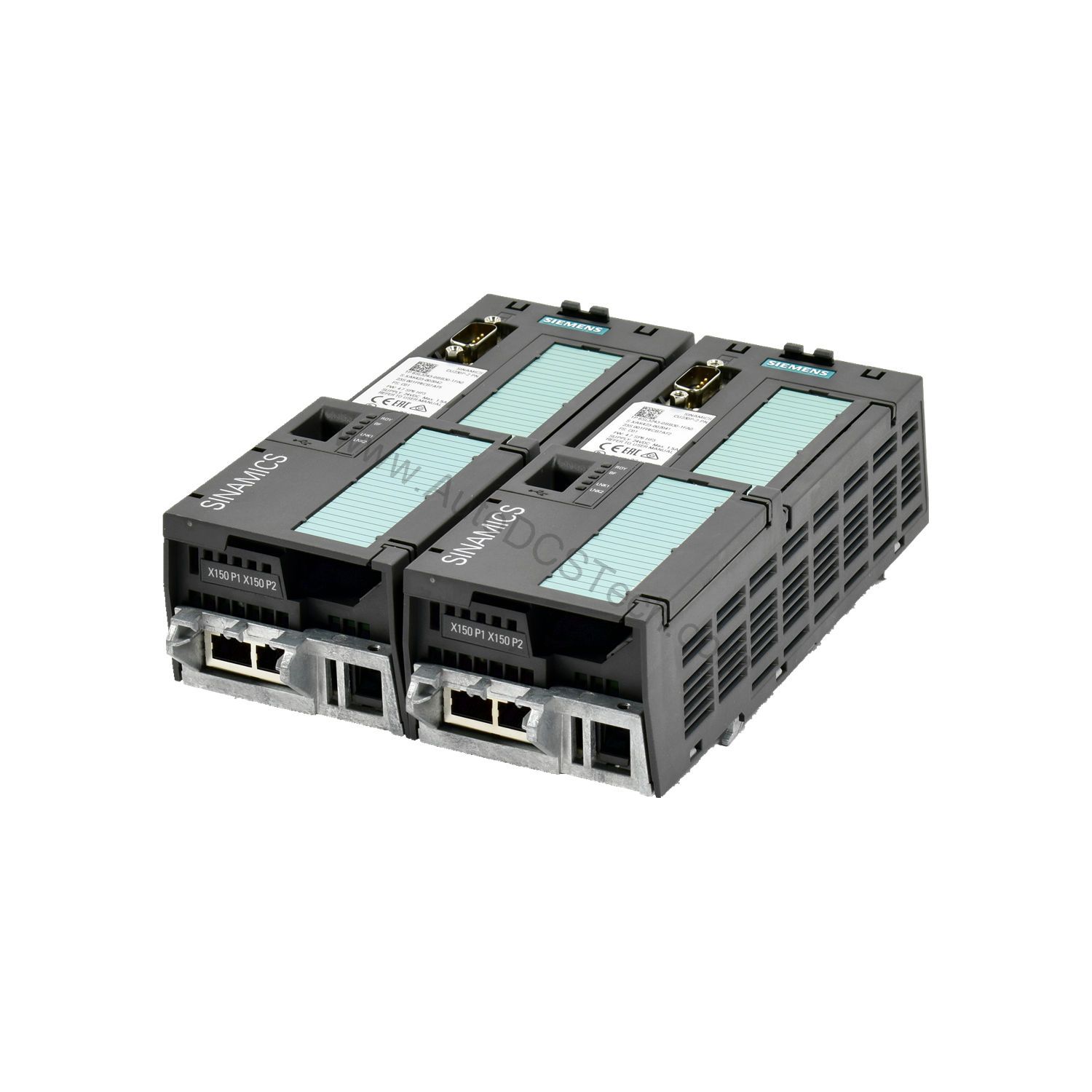

Introduction to the 6SL3243-0BB30-1PA3

When your automation line demands precise motor control and reliable communication, the 6SL3243-0BB30-1PA3 delivers. This Siemens SINAMICS CU230P-2 DP control unit is engineered for demanding industrial environments. It operates via the Power Module at DC 24 V or from an external supply of DC 20...29 V. With a maximum power consumption of 0.50 A and a power loss of only 5.50 W, it keeps energy costs low.

This control unit supports PROFIBUS DP communication, making it easy to integrate into existing networks. It offers multiple closed-loop control techniques, including V/f control, sensorless vector control, and encoderless torque control. Whether you are upgrading an existing system or building a new one, the 6SL3243-0BB30-1PA3 provides the performance and flexibility you need.

Key Features and Technical Specifications

The 6SL3243-0BB30-1PA3 is packed with features that enhance productivity and simplify installation. Below are the core specifications:

• Operating voltage: DC 24 V via Power Module or DC 20...29 V external
• Max power consumption: 0.50 A
• Power loss: 5.50 W
• Communication: PROFIBUS DP
• Standard digital inputs: 6 (switching level 0→1: 11 V, 1→0: 5 V)
• Fail-safe digital inputs: 0 (none)
• Digital outputs (relay changer): 2 (inductive load DC 250 V, 2 A; resistive load DC 30 V, 0.5 A)
• Digital output (relay make contact): 1 (resistive load DC 30 V, 0.5 A)
• Analog/digital inputs: 2 (differential input)
• Analog outputs: 2 (non-isolated)
• Ambient temperature (operation): -10...60 °C
• Storage temperature: -40...70 °C
• Relative humidity (max operation): 95%
• Degree of protection: IP20 / UL open type
• Net weight: 0.61 kg
• Dimensions (W x H x D): 73.0 x 199.0 x 65.5 mm
• Standards: CE, UL, cUL, RCM, SEMI F47

One distinctive feature is the analog/digital inputs configured as differential inputs. This design improves noise immunity, which is critical in electrically noisy industrial environments. Additionally, the relay outputs can switch inductive loads up to DC 250 V at 2 A, making them suitable for driving contactors and small motors directly.

Applications and Use Cases

The 6SL3243-0BB30-1PA3Its V/f control and sensorless vector control make it suitable for variable-speed drives where precise speed regulation is required. For example, in a HVAC system, the control unit can adjust fan speed based on demand, reducing energy consumption. Similarly, in material handling, it ensures smooth acceleration and deceleration of conveyor belts, minimizing mechanical stress.

Furthermore, the PROFIBUS DP interface allows seamless integration into existing automation architectures. This makes the control unit a smart choice for retrofitting older machines or expanding production lines. Its compact size (73 mm width) fits easily into standard control cabinets, saving valuable space.

Installation and Setup

Proper installation is key to reliable operation. Mount the 6SL3243-0BB30-1PA3 on a DIN rail or directly onto a mounting plate, ensuring adequate ventilation. The ambient temperature range of -10...60 °C must be respected; avoid placing it near heat sources. Connect the signal cables with a conductor cross-section of 0.15...1.50 mm² (AWG 24...16). Ensure the external power supply provides a stable DC voltage within 20...29 V. For PROFIBUS DP, use standard shielded twisted-pair cables and terminate the bus correctly. Always follow the wiring diagrams in the official Siemens manual to avoid errors.

Maintenance and Reliability

Routine maintenance is minimal but essential. Periodically inspect the control unit for dust accumulation, especially on the ventilation slots. Check all terminal connections for tightness, as vibration can loosen them over time. The unit's IP20 protection means it should be installed in a clean, dry enclosure. With proper care, the 6SL3243-0BB30-1PA3 offers long service life, reducing downtime and replacement costs. Its compliance with CE and UL standards ensures it meets international safety requirements.

Compatibility and Integration

As a SINAMICS CU230P-2 DP control unit, the 6SL3243-0BB30-1PA3 is designed to work with Siemens Power Modules. It communicates via PROFIBUS DP, allowing connection to Siemens PLCs (e.g., S7-300/400) and other PROFIBUS masters. The control unit supports various closed-loop control techniques, making it compatible with a wide range of motors. For detailed integration guidelines, refer to the SINAMICS documentation.

Troubleshooting and Common Issues

If the control unit does not power up, check the external supply voltage (must be within DC 20...29 V) and the Power Module connection. If PROFIBUS communication fails, verify the bus address, baud rate, and termination resistors. For digital input issues, ensure the switching levels are correct: 11 V for 0→1 transition and 5 V for 1→0. If an output relay fails to switch, check the load type and current rating—inductive loads up to DC 250 V, 2 A are supported. For persistent problems, consult the Siemens troubleshooting guide or contact AutoDCSTech for assistance.

Product Support and Availability

The 6SL3243-0BB30-1PA3 is available from AutoDCSTech. We offer competitive pricing and fast shipping. For technical support or to place an order, contact our team. Please verify current lifecycle status and availability before ordering.
