Introduction: The Evolution of Drive Control
Industrial automation has evolved from simple relay logic to sophisticated, networked control systems. Modern drive systems demand not only precise motor control but also seamless integration with plant-wide communication networks. The 6SL3243-0BB30-1FA0 from Siemens represents this evolution, combining flexible I/O, advanced closed-loop control techniques, and dual-protocol communication in a compact package.
As a member of the SINAMICS family, the CU230P-2 PN control unit is engineered for applications where reliability and adaptability are paramount. Whether you are upgrading an existing line or designing a new system, this control unit offers the performance and connectivity required for today's smart factories.

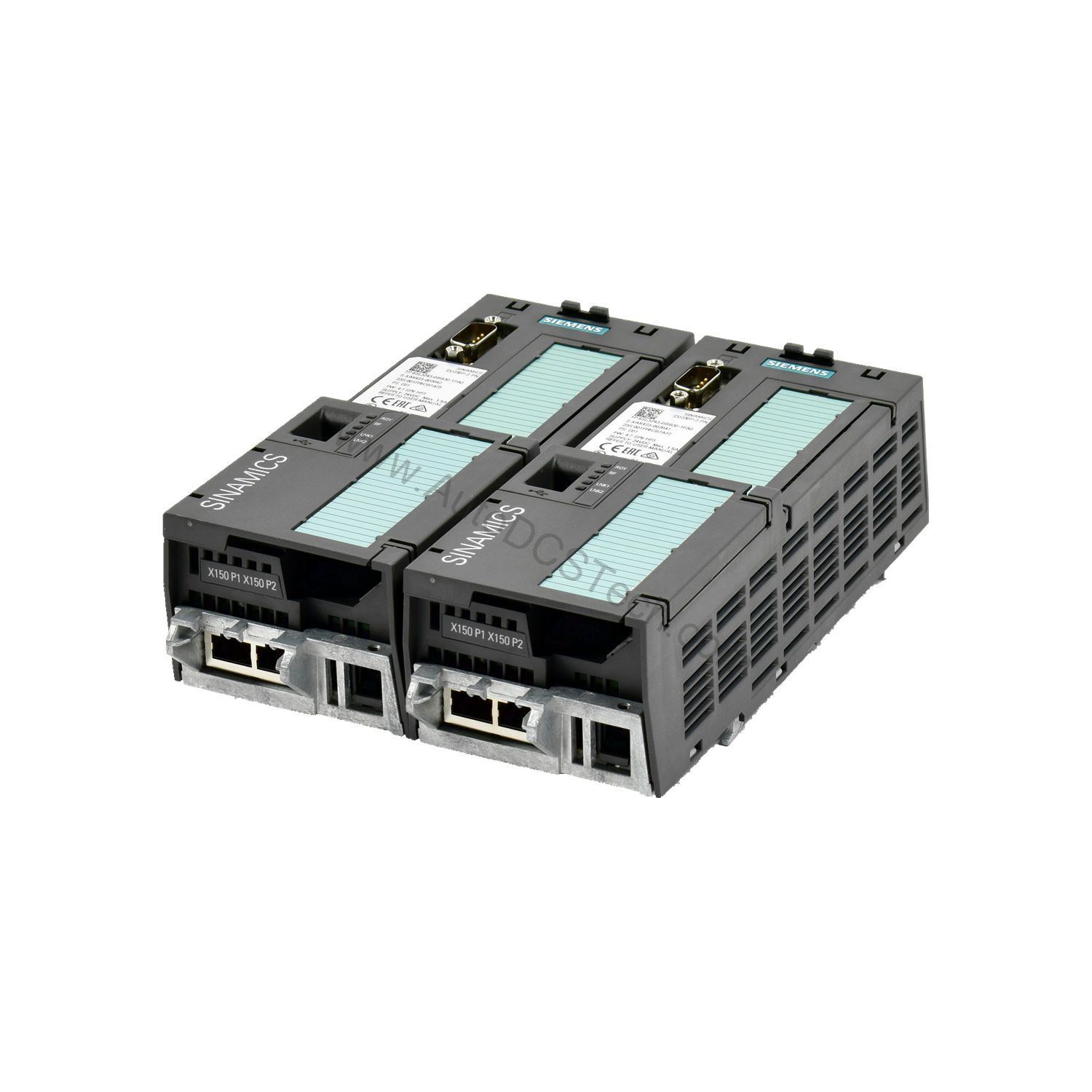

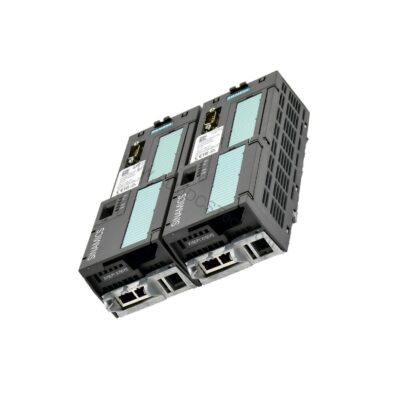

Key Features and Technical Specifications
The 6SL3243-0BB30-1FA0 is a versatile control unit designed to work with compatible Power Modules. Its electrical and communication features are tailored for demanding industrial environments.
- Operating voltage via Power Module: DC 24 V
- External power supply range: DC 20 ... 29 V
- Max power consumption: 0.50 A
- Power loss: 5.50 W
- Communication: PROFINET and EtherNet/IP
- Standard digital inputs: 6 (switching level 0→1: 11 V; 1→0: 5 V)
- Digital outputs as relay changer: 2 (DC 250 V, 2 A inductive; DC 30 V, 0.5 A resistive)
- Digital output as relay make contact: 1 (DC 30 V, 0.5 A resistive)
- Analog/digital inputs: 2 (differential input)
- Analog outputs: 2 (non-isolated output)
- Closed-loop control: V/f linear, V/f with FCC, V/f ECO, sensorless vector control, encoderless torque control
- Ambient temperature: -10 ... 60 °C (operation), -40 ... 70 °C (storage)
- Relative humidity: max 95% (operation)
- Degree of protection: IP20 / UL open type
- Net weight: 0.61 kg (1.34 lb)
- Dimensions: 73.0 x 199.0 x 65.5 mm (2.87 x 7.83 x 2.59 in)
- Standards: CE, UL, cUL, RCM, SEMI F47
One distinctive feature is the dual communication capability. With both PROFINET and EtherNet/IP, the 6SL3243-0BB30-1FA0 can integrate into either Siemens-based or Rockwell-based networks without additional gateways. This flexibility simplifies system design and reduces inventory requirements.

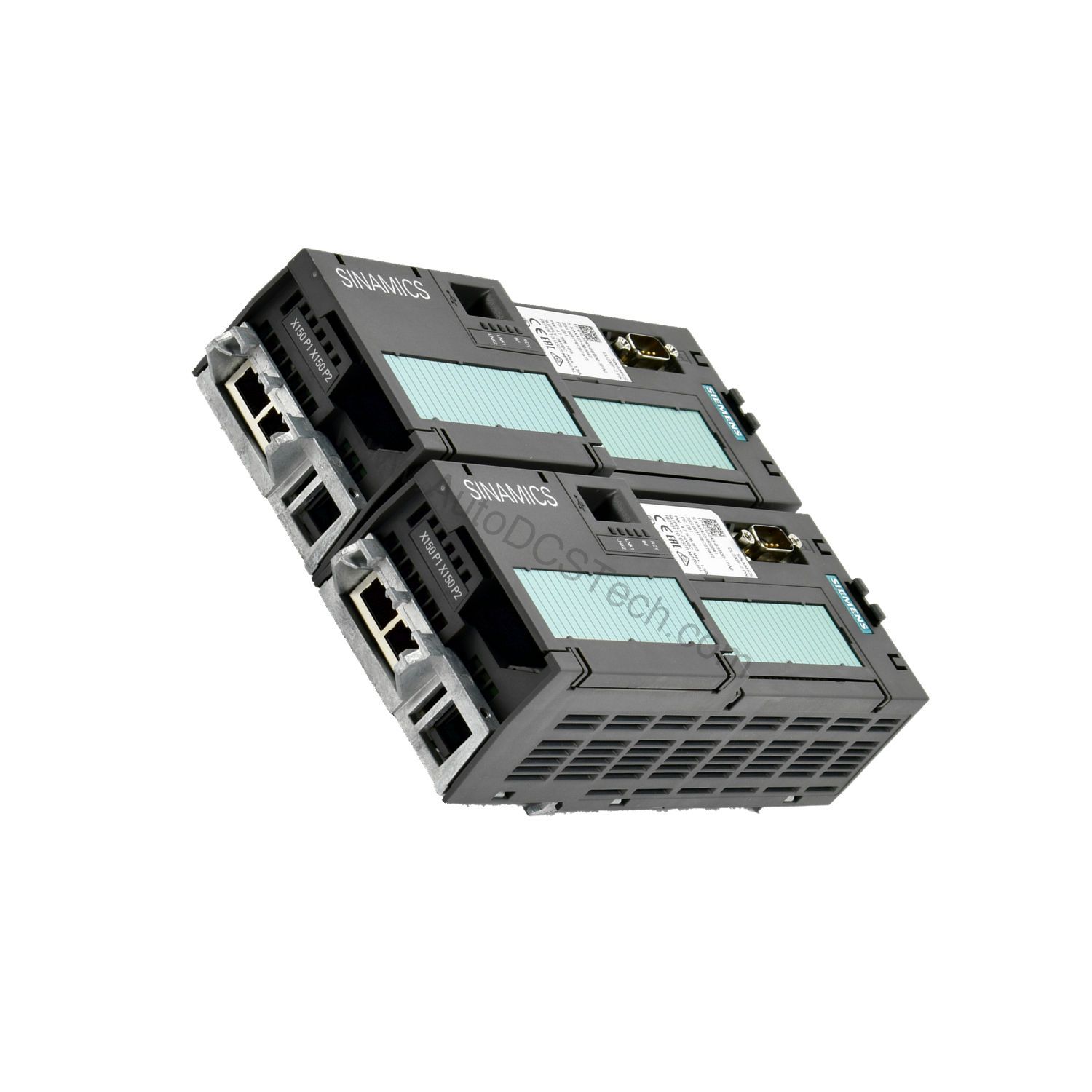

Installation and Setup
Mounting the 6SL3243-0BB30-1FA0 is straightforward. The unit is designed for panel mounting with an IP20 rating, suitable for enclosed control cabinets. When installing, ensure adequate ventilation to maintain the operating temperature range of -10 to 60 °C.
For signal wiring, the conductor cross-section should be between 0.15 and 1.50 mm² (AWG 24 to AWG 16). Always follow the wiring diagram provided in the official Siemens documentation to avoid connection errors.
Before powering up, verify that the external power supply (if used) is within the DC 20 to 29 V range. The control unit can also be powered directly from the Power Module at DC 24 V, simplifying installation in drive systems.
Maintenance and Reliability
Routine maintenance for the 6SL3243-0BB30-1FA0 is minimal, but periodic inspection is recommended. Check all connections for tightness and signs of corrosion, especially in humid environments (up to 95% relative humidity). Ensure that air vents are free from dust and debris to prevent overheating.
The control unit's solid-state design and relay outputs are rated for long service life. However, relay contacts may wear over time, especially when switching inductive loads. Regular verification of output switching functionality can prevent unexpected downtime.
Following the manufacturer's guidelines for inspection intervals and environmental conditions will maximize the reliability of your drive system.
Compatibility and Integration
The 6SL3243-0BB30-1FA0 is designed to work with SINAMICS Power Modules. It supports multiple closed-loop control techniques, including V/f control and sensorless vector control, making it suitable for a wide range of motor types and applications.
With PROFINET and EtherNet/IP, the control unit can be integrated into existing industrial networks. This dual-protocol support allows for easy connection to PLCs from various manufacturers, enhancing system flexibility.
Troubleshooting Common Issues
If the control unit does not power up, check the external power supply voltage (DC 20 to 29 V) and the connection to the Power Module. Verify that the input voltage is within the specified range.
For communication issues, confirm that the PROFINET or EtherNet/IP settings match the network configuration. Ensure that the IP address and device name are correctly assigned.
If digital inputs are not responding, verify the switching levels: the input should see at least 11 V to transition from 0 to 1, and drop below 5 V to transition from 1 to 0. Check the wiring and sensor supply accordingly.
Product Support and Availability
The 6SL3243-0BB30-1FA0 is available from AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with technical questions and provide documentation to support your installation.
Availability & Condition at AutoDCSTech
| Part Number | 6SL3243-0BB30-1FA0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
