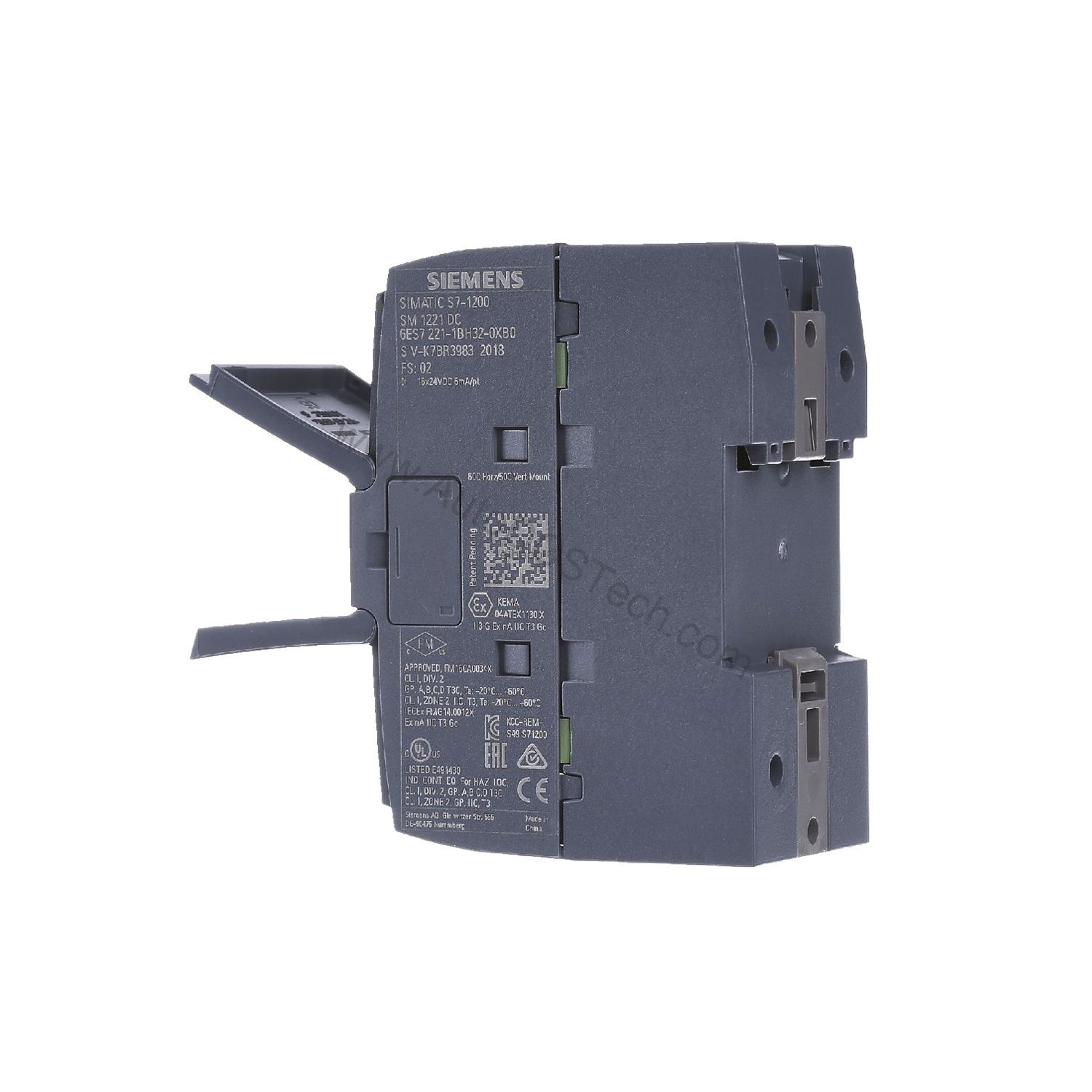

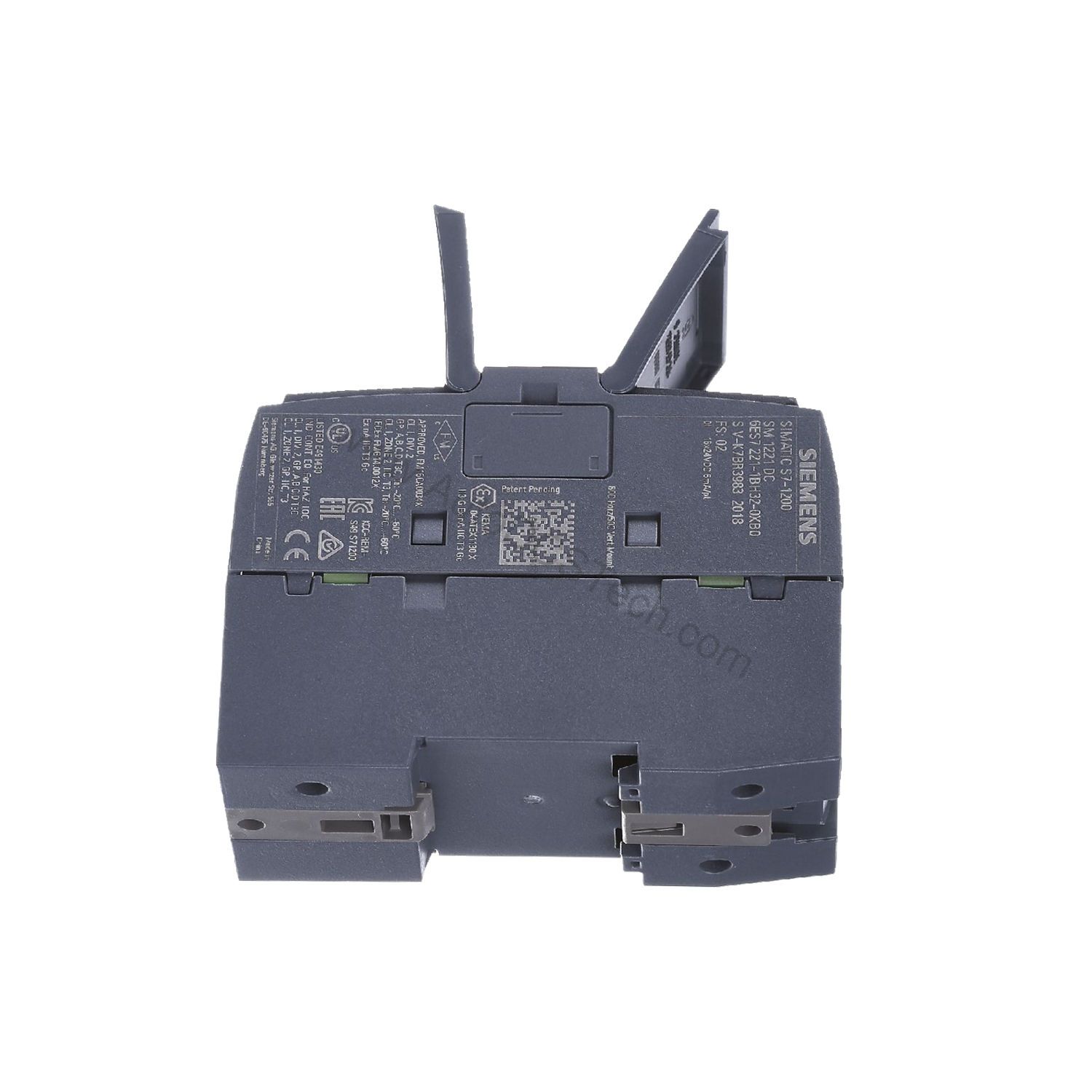

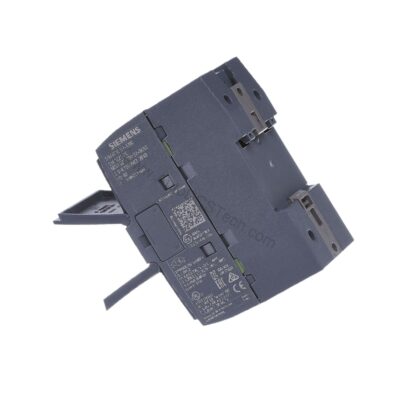

6ES7221-1BH32-0XB0 16 DI 24V DC Sink/Source Input Module

Key Features and Technical Specifications

The 6ES7221-1BH32-0XB0 is engineered for dependable operation. Here are the core specs you can rely on:

• 16 digital inputs arranged in groups of four, simplifying wiring and diagnostics.
• Rated input voltage: 24V DC, with a permissible range of 20.4V to 28.8V.
• Input current: typical 4mA per channel at signal "1", minimum 2.5mA.
• Signal detection: signal "0" at 5V DC (1mA), signal "1" at 15V DC (2.5mA).
• Parameterizable input delays: 0.2ms, 0.4ms, 0.8ms, 1.6ms, 3.2ms, 6.4ms, and 12.8ms, selectable in groups of four.
• Power loss: typical 2.5W, keeping energy consumption low.
• Backplane bus current: 130mA at 5V DC.
• Ambient temperature: -20°C to 60°C during operation.
• Dimensions: 45mm width, 100mm height, 75mm depth; weight approx. 210g.

One standout feature is the parameterizable input delay. You can adjust the filter time to match your application, reducing false triggers from electrical noise. This is especially useful in industrial environments where signal integrity is critical.

Applications and Use Cases

The 6ES7221-1BH32-0XB0For example, in a packaging line, you can connect limit switches and proximity sensors to monitor product flow. The module's fast response and reliable signal detection help maintain throughput. Additionally, its ability to handle up to 16 inputs simultaneously at 40°C ensures consistent performance even in warm cabinets.

Installation and Setup

Mounting the 6ES7221-1BH32-0XB0 is straightforward. It snaps onto the S7-1200 DIN rail and connects to the backplane bus automatically. The required front connector (not included) simplifies wiring. Ensure the supply voltage stays within 20.4V to 28.8V DC to avoid input errors. For shielded cables, you can run up to 500 meters; unshielded up to 300 meters, giving you flexibility in field wiring.

Maintenance and Reliability

Regular inspection is key to long-term reliability. Check the module's LED status indicators periodically to verify input states. Keep the enclosure clean and ensure proper ventilation to stay within the -20°C to 60°C operating range. The module's IP20 rating means it should be protected from dust and moisture; install it in a suitable cabinet. Following Siemens' manual for periodic checks will help prevent unexpected downtime.

Reliable Digital Input Expansion for S7-1200

This Siemens SM 1221 module adds 16 digital inputs to your SIMATIC S7-1200 PLC, accepting 24V DC signals. It supports both sink and source wiring, giving you flexibility in connecting sensors and switches. With its compact design and IP20 protection, it fits neatly into your control cabinet.

Compatibility and Integration

This module is designed exclusively for the SIMATIC S7-1200 PLC family. It communicates via the backplane bus, so no additional network configuration is needed. The 6ES7221-1BH32-0XB0 works with all S7-1200 CPUs, making it a versatile addition to your automation system. Its CE, UL, CSA, and FM approvals ensure compliance with international standards.

Troubleshooting Common Issues

If inputs are not reading correctly, first verify the supply voltage. A drop below 20.4V can cause false signals. Check the wiring for loose connections or shorts. The module's diagnostic alarm can help identify faults. If you experience noise issues, increase the input delay setting to filter out transients. Always refer to the Siemens manual for detailed troubleshooting steps.

Product Support and Availability

The 6ES7221-1BH32-0XB0 is available from AutoDCSTech. Contact us for current stock and delivery options. We are here to help you integrate this module into your automation project.
