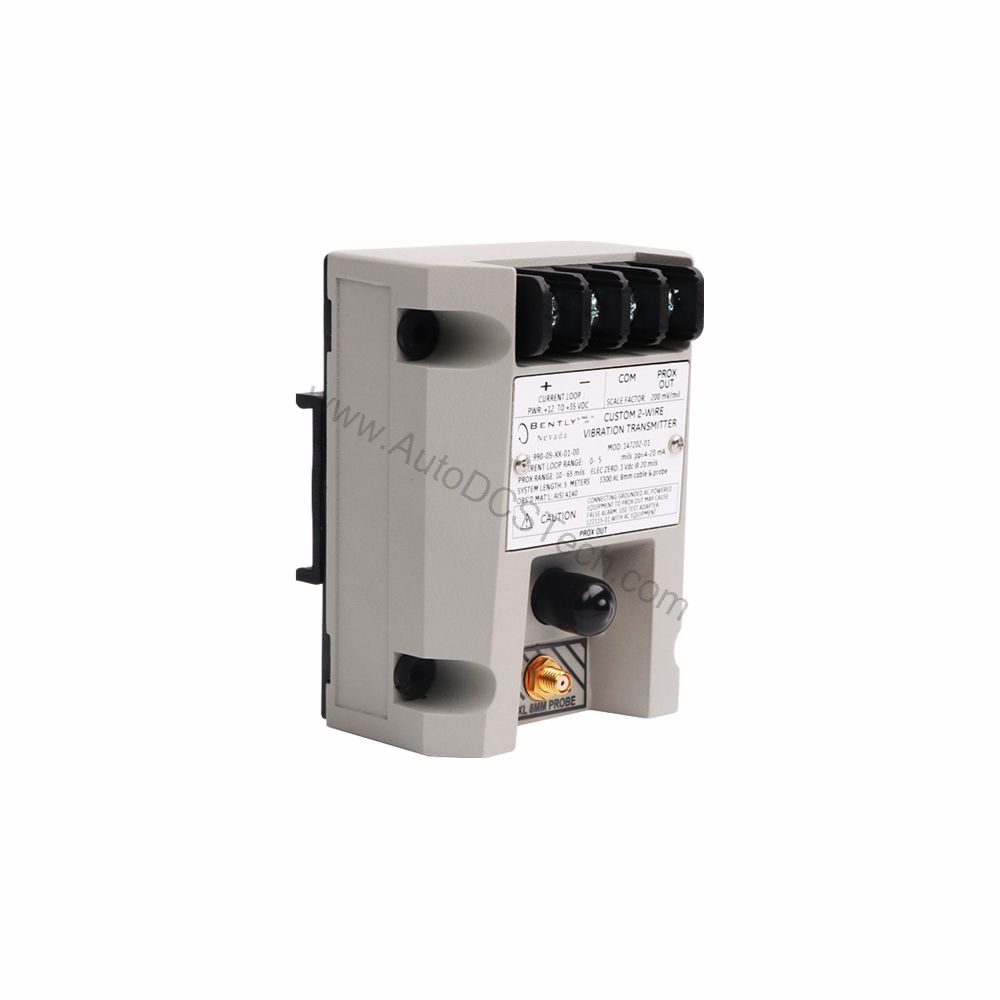

990-04-70-01-01 Vibration Transmitter Overview
When rotating machinery experiences vibration, unplanned downtime and equipment damage can follow. The 990-04-70-01-01 Bently Nevada 990 Vibration Transmitter provides a continuous, loop-powered solution for monitoring shaft vibration. It accepts one non-contacting 3300 NSv Proximity Probe and extension cable, converting the dynamic motion into a standard 4-20 mA signal. This makes it straightforward to integrate with PLCs, DCSs, and standalone indicators.
As part of the Bently Nevada 990 series, this transmitter is engineered for industrial environments. Its compact design and DIN rail mounting simplify installation in existing cabinets. With a full-scale range of 0-4 mils pp (0-100 μm pp), it suits applications where precise vibration measurement is critical.
Key Features and Technical Specifications
The 990-04-70-01-01 offers several features that support accurate and reliable operation. Below is a summary of its core specifications:
- Input: Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
- Power: Requires +12 to +35 Vdc input at the transmitter terminal.
- Output: 4 to 20 mAdc over the specified full-scale range in a 2-wire configuration.
- Accuracy: Within ±1.5% over the full-scale range, measured from TEST signal input to voltage across a 250 Ω loop resistance.
- Maximum Loop Resistance: 1,000 Ω including cable at 35 Vdc.
- Current Limiting: 23 mA typical.
- Frequency Response: 5 Hz to 6,000 Hz +0, 3 dB.
- Minimum Target Size: 9.5 mm (0.375 in) diameter.
- Mounting: 35 mm DIN rail clips.
- Agency Approval: CSA Division 2.
One distinctive spec is the fast NOT OK response. The signal output drops to less than 3.6 mA within 100 µs after a Not OK condition occurs. This rapid response helps alert operators to potential probe or system faults quickly, reducing the risk of undetected issues. The output is restored within 2-3 seconds after the condition is removed.
Applications and Use Cases
The 990-04-70-01-01 is well suited for machinery protection in industries such as oil and gas, power generation, and manufacturing. It monitors shaft vibration in pumps, motors, compressors, and turbines. Because it provides a 4-20 mA output, it easily interfaces with existing control systems, enabling continuous monitoring without specialized vibration analysis equipment.
For example, in a petrochemical plant, the transmitter can be mounted on a pump to detect excessive vibration early. This allows maintenance teams to address issues before they escalate into costly failures. Similarly, in a power plant, it can monitor turbine shaft vibration to ensure safe operation.
Installation and Setup
Proper installation is essential for accurate vibration measurement. The transmitter mounts on a 35 mm DIN rail, which simplifies installation in standard industrial enclosures. The system length option of 7.0 meters (23.0 feet) provides flexibility in probe placement.
The probe must be gapped between 0.5 and 1.75 mm (20 and 55 mils) from the target to ensure the full-scale range. This gap is critical for correct operation. Additionally, the maximum cable distance for the Proximitor Sensor Output (BNC connector) is 3 meters (10 feet). Follow the manufacturer's guidelines for wiring and grounding to avoid signal interference.
Power is supplied via the transmitter terminal, requiring +12 to +35 Vdc. The loop resistance must not exceed 1,000 Ω at 35 Vdc to maintain proper operation. Ensure the power supply meets these requirements.
Maintenance and Reliability
The 990-04-70-01-01 is designed for long-term reliability in demanding environments. Routine inspection should include verifying the probe gap and checking for any physical damage to the probe or cable. Since the unit is rated for CSA Division 2 hazardous locations, it is suitable for use in areas with potentially flammable atmospheres, provided installation meets all applicable codes.
Periodically test the NOT OK function to ensure the output drops below 3.6 mA when a fault is simulated. This verifies that the protection feature is operational. Also, check the loop resistance and power supply voltage to ensure they remain within specified limits.
Comparison with Similar Vibration Transmitters
When comparing the 990-04-70-01-01 with other vibration transmitters, several factors stand out. The table below highlights key differences:
| Feature | 990-04-70-01-01 | Typical 4-20 mA Loop-Powered Transmitter |
|---|---|---|
| Input | 1 non-contacting 3300 NSv Probe | May accept various sensor types |
| Full-scale range | 0-4 mils pp (0-100 μm pp) | Often fixed or selectable |
| Frequency response | 5 Hz to 6,000 Hz | Varies by model |
| NOT OK response | <3.6 mA within 100 µs | May be slower or absent |
| Mounting | 35 mm DIN rail | May require panel mount |
This comparison shows that the 990-04-70-01-01 offers a fast NOT OK response and a specific full-scale range, making it suitable for precise vibration monitoring in critical machinery.
Troubleshooting and Common Issues
If the output signal is not as expected, check the following:
- Verify the probe gap is within 0.5 to 1.75 mm. An incorrect gap can cause inaccurate readings.
- Ensure the power supply voltage is between +12 and +35 Vdc. Low voltage can affect output.
- Check the loop resistance. If it exceeds 1,000 Ω, the output may be limited.
- Inspect the probe and cable for damage. A faulty probe can cause a Not OK condition.
- Confirm that the target size meets the minimum 9.5 mm diameter requirement.
If the output remains below 3.6 mA, the unit may be in a Not OK state. This could be due to a probe fault, cable break, or power issue. The output should restore within 2-3 seconds after the fault is cleared.
Product Support and Availability
The 990-04-70-01-01 is available through AutoDCSTech. As an industrial automation parts supplier, AutoDCSTech can provide this transmitter and assist with any questions regarding its application. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
