Introduction: Evolution of Vibration Monitoring
Industrial vibration monitoring has evolved from manual data collection to continuous, real-time protection. The 990-04-70-03-05 from Bently Nevada represents this evolution, offering a compact 2-wire transmitter that integrates seamlessly into modern predictive maintenance strategies. As plants demand higher uptime, this transmitter provides the critical link between raw vibration signals and actionable process data.
What Is the 990-04-70-03-05?

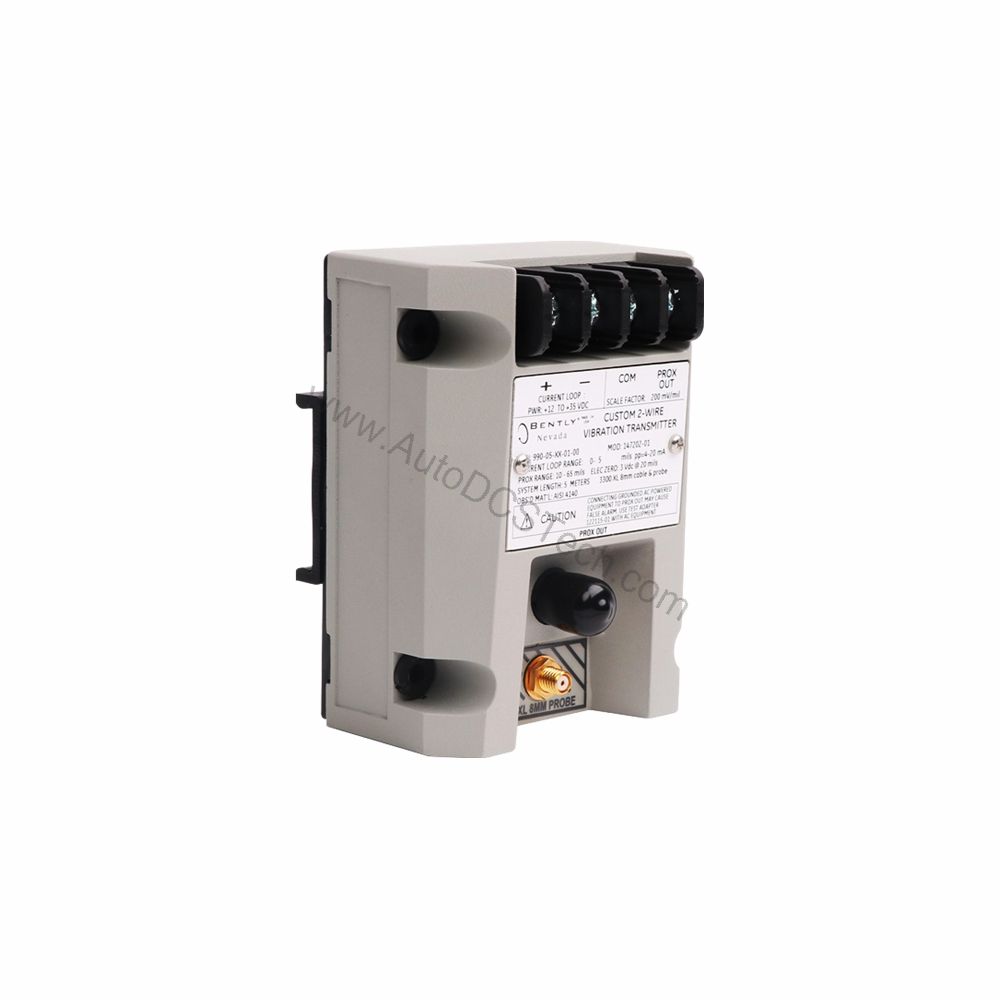

The 990-04-70-03-05 is a 990 Vibration Transmitter designed to accept one non-contacting 3300 NSv Proximity Probe and extension cable. It converts probe signals into a standard 4-20 mA output, enabling direct interface with PLCs, DCS, and SCADA systems. This model is configured with a full-scale option of 0-4 mils pp (0-100 μm pp) and a system length of 7.0 meters (23.0 feet).
Key Features and Technical Specifications
- Input: Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
- Power: Requires +12 to +35 Vdc input at the transmitter terminal.
- Output: 4-20 mAdc over specified full-scale range in 2-wire configuration.
- Accuracy: Within ±1.5% over specified full-scale range, rated from TEST signal to voltage across a 250 Ω loop resistance.
- Maximum Loop Resistance: 1,000 Ω including cable at 35 Vdc.
- Current Limiting: 23 mA typical.
- Frequency Response: 5 Hz to 6,000 Hz +0, 3 dB.
- Minimum Target Size: 9.5 mm (0.375 in) diameter.
- Probe Gap: Must be gapped between 0.5 and 1.75 mm (20 and 55 mils) from target.
- Not OK/Signal Defeat: Output goes to less than 3.6 mA within 100 µs after a Not OK condition; restored within 2-3 seconds after removal.
- Weight: 0.43 kg (0.9 lbm).
One standout feature is the fast Not OK response. When a fault occurs, the output drops below 3.6 mA within 100 µs, ensuring immediate alarm activation. This rapid response is critical for protecting rotating machinery from undetected failures.
Applications and Use Cases
This transmitter is ideal for monitoring vibration on pumps, fans, motors, and other rotating equipment in industries such as oil and gas, power generation, and manufacturing. Its 4-20 mA output simplifies integration with existing control systems, enabling continuous trend analysis and predictive maintenance. For example, a plant can use the 990-04-70-03-05 to detect bearing wear early, avoiding costly unplanned downtime.
Installation and Setup
Mounting is straightforward with DIN clips and screws (Mounting Option 03). The probe must be gapped between 0.5 and 1.75 mm (20 and 55 mils) from the target to ensure full-scale range. The transmitter requires +12 to +35 Vdc power at its terminal, and the maximum loop resistance is 1,000 Ω including cable at 35 Vdc. For hazardous area installations, this model includes CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approvals.
Maintenance and Reliability
Routine inspection is essential to maintain accuracy. Verify the probe gap periodically and check the loop resistance to ensure it remains within 1,000 Ω. The transmitter's non-interacting external zero and span adjustments simplify calibration. Always follow the manufacturer's manual for detailed procedures. With proper care, this unit provides reliable service in demanding environments.
Compatibility and Integration
The 4-20 mA output is universally compatible with most control systems, including PLCs, DCS, and SCADA. The 2-wire configuration reduces wiring complexity. The 7.0-meter system length provides flexibility in probe placement. For extended cable runs, note that the maximum distance for Proximitor Sensor Output (BNC connector) is 3 meters (10 feet).
Troubleshooting Common Issues
If the output is not scaling correctly, check the probe gap and ensure it is within 0.5-1.75 mm. If the output goes below 3.6 mA, a Not OK condition exists; verify the probe and cable connections. For loop resistance issues, measure the total resistance and ensure it is less than 1,000 Ω at 35 Vdc. Always refer to the official Bently Nevada documentation for detailed diagnostics.
Product Support and Availability
The 990-04-70-03-05 is available from AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with technical questions and ensure you receive the right part for your application.
