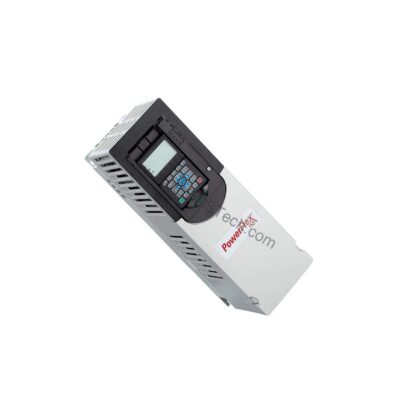

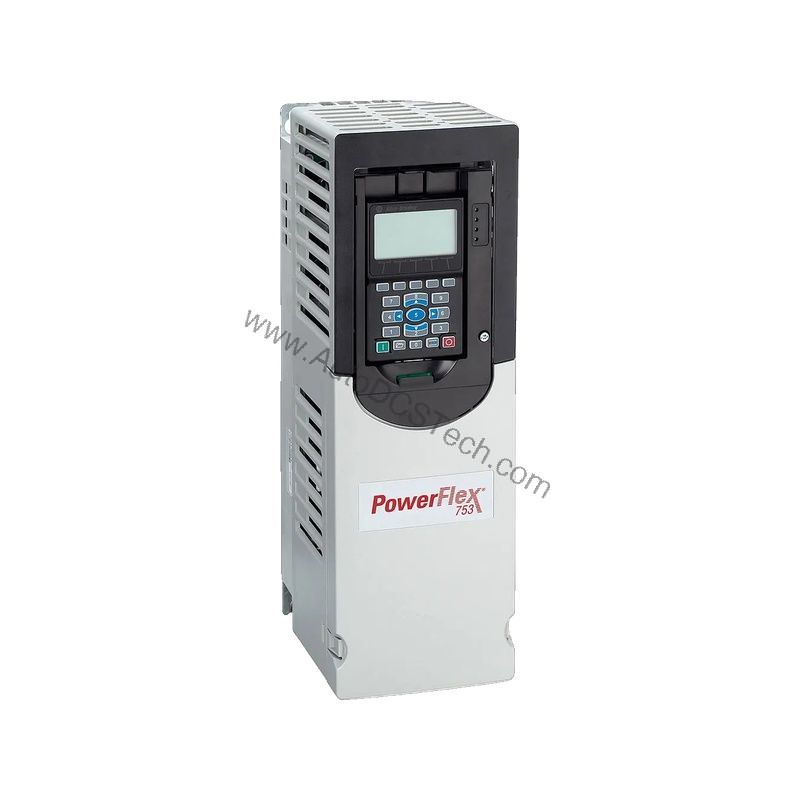

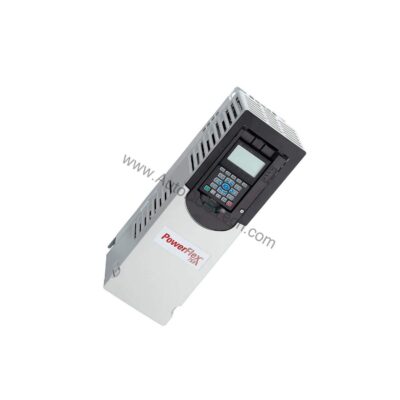

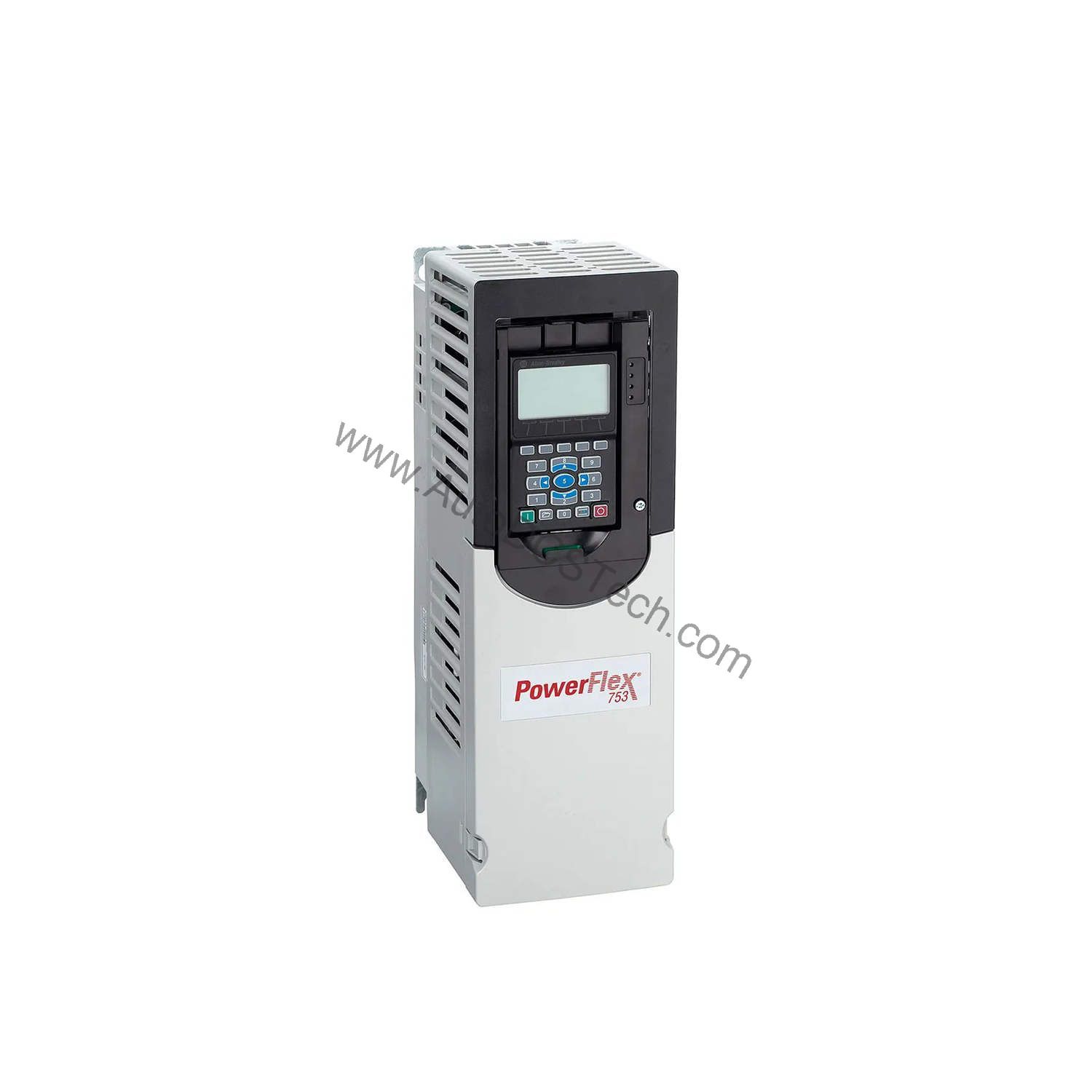

Allen-Bradley 20F11ND052AA0NNNNN PowerFlex 753 Adjustable Frequency Drive

Product Overview

This adjustable frequency drive is part of the Allen-Bradley PowerFlex 753 series, designed for three-phase input at 480 VAC or 650 VDC. It delivers an output current of 52 A and supports normal duty output power of 30 kW (40 HP) and heavy duty output of 22 kW (30 HP). The drive includes an internal brake transistor and uses air cooling for thermal management, making it suitable for panel-mounted installations in ambient temperatures from 0°C to 50°C.

Technical Specifications Breakdown

Key parameters for the 20F11ND052AA0NNNNN are listed below for quick reference:

Industry Applications

Conveyor Systems: The drive’s 0 to 599 Hz frequency range allows precise speed control for conveyor belts in material handling, reducing mechanical stress and energy consumption.

Pump and Fan Control: With 52 A output and 40 HP capacity, it efficiently manages variable torque loads in water treatment and HVAC systems, improving process consistency.

Machine Tool Spindles: The internal brake transistor enables rapid deceleration, enhancing safety in machining operations where quick stops are critical.

Installation and Setup Guidance

Mount the drive in a panel with adequate airflow to maintain ambient temperature within 0°C to 50°C. Ensure the input supply matches 480 VAC three-phase or 650 VDC. The common mode jumper is pre-installed for typical applications; verify grounding per local codes. Use shielded cables for motor leads to minimize electromagnetic interference. The IP20/IP00 rating means the drive is not sealed against liquids, so avoid wet environments.

Maintenance and Reliability

Inspect the air cooling vents periodically for dust buildup, which can reduce thermal performance. Check the internal brake transistor operation during routine maintenance. The drive’s robust design supports continuous operation in industrial settings, but regular inspection of connections and cooling system ensures long-term reliability.

Industry Evolution and the Need for Precision Motor Control

Modern industrial automation has evolved from simple on/off motor control to sophisticated variable speed systems that optimize energy use and process accuracy. The Allen-Bradley 20F11ND052AA0NNNNN adjustable frequency drive from the PowerFlex 753 series addresses this need with robust performance and flexible integration.

Compatibility and Integration

As a PowerFlex 753 series drive, it integrates with Allen-Bradley control systems using standard communication protocols. The AC with precharge input type allows smooth startup, reducing stress on upstream components. Verify compatibility with your motor’s voltage and current ratings before installation.

Selection Guide and Purchasing Advice

When selecting this drive, confirm that your application requires 52 A output and 40 HP normal duty capacity. For lifecycle status and availability, contact AutoDCSTech to ensure the unit meets your project timeline. AutoDCSTech offers genuine Allen-Bradley parts with expert support.

Troubleshooting and Common Issues

If the drive fails to start, check input voltage and phase sequence. Overheating may indicate blocked cooling vents or excessive ambient temperature. An overcurrent fault suggests motor or wiring issues. Always refer to the PowerFlex 753 manual for detailed diagnostics and parameter settings. Do not attempt internal repairs without proper training.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
