Introduction to the 6AV6642-0BA01-1AX1

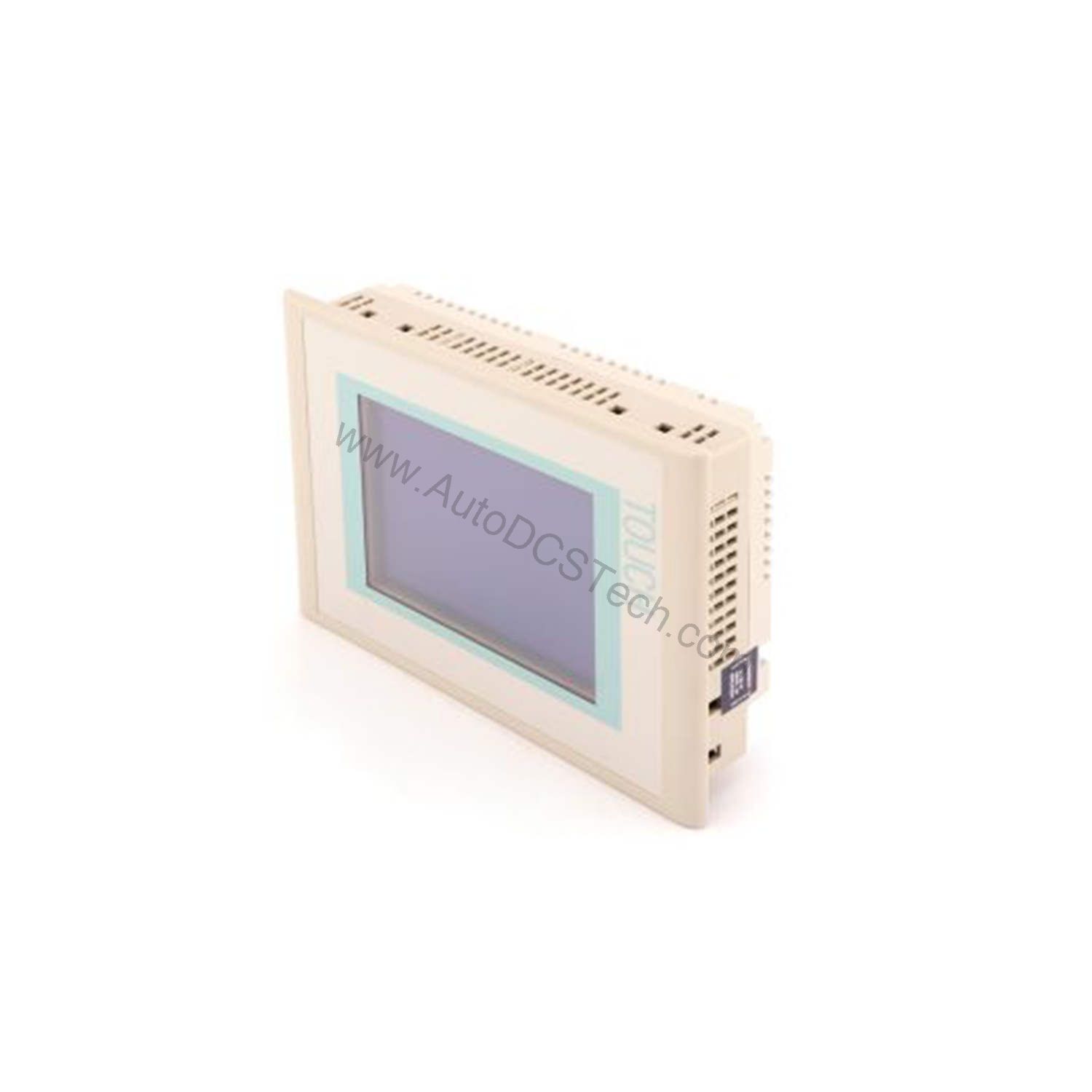

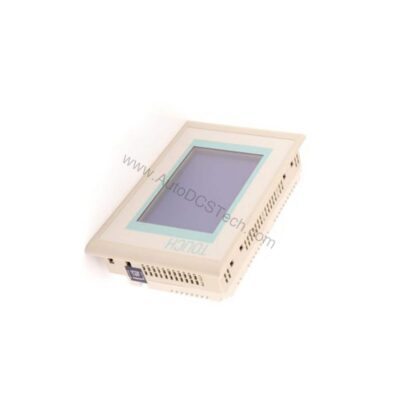

When production uptime is critical, the 6AV6642-0BA01-1AX1 from Siemens delivers reliable operator control and monitoring. This SIMATIC TP 177B 6" PN/DP touchscreen HMI combines a 5.7-inch STN color display with 256 colors and a resolution of 320 x 240 pixels. It operates on 24 VDC and draws a rated current of 0.24 A, making it energy-efficient for continuous use. The analog resistive touch screen supports gloved operation, reducing downtime in harsh environments.

Key Features and Technical Specifications

• Display: 5.7-inch STN color screen with 256 colors and 320 x 240 pixel resolution.
• Backlight MTBF: 50,000 hours at 25 °C, minimizing maintenance intervals.
• Processor: ARM, 200 MHz for responsive interaction.
• Memory: 2,048 kbyte user data memory (Flash/RAM).
• Interfaces: 1x RS 422, 1x RS 485, 1x Ethernet (RJ45, max. 12 Mbit/s), 1x USB (up to 1 GB).
• Protocols: PROFIBUS, PROFINET IO, TCP/IP, Sm@rtServer, EtherNet/IP, MODBUS.
• Protection: IP65 front, IP20 rear; NEMA 4x/12 (when installed).
• Certifications: CE, GL, ABS, BV, DNV, LRS, FM Class I Div. 2, UL, CSA, cULus, EX Zone 2/22, C-TICK.
• Ambient temperature: 0 °C to 50 °C operation; -20 °C to 60 °C storage.

These specifications directly impact cost efficiency. The long backlight life reduces replacement frequency, while the low power draw lowers energy bills. The rugged design minimizes downtime, translating to higher overall equipment effectiveness.

Applications and Use Cases

In packaging lines, the 6AV6642-0BA01-1AX1 provides intuitive machine control, reducing operator training time. For material handling systems, its PROFIBUS and PROFINET connectivity enable seamless integration with existing PLCs. The HMI supports up to 2,000 messages and 1,000 variables, making it suitable for complex processes. Additionally, its marine approvals (GL, ABS, BV, DNV, LRS) allow deployment on ships and offshore platforms, where reliability is paramount. By centralizing monitoring, it reduces wiring and troubleshooting costs.

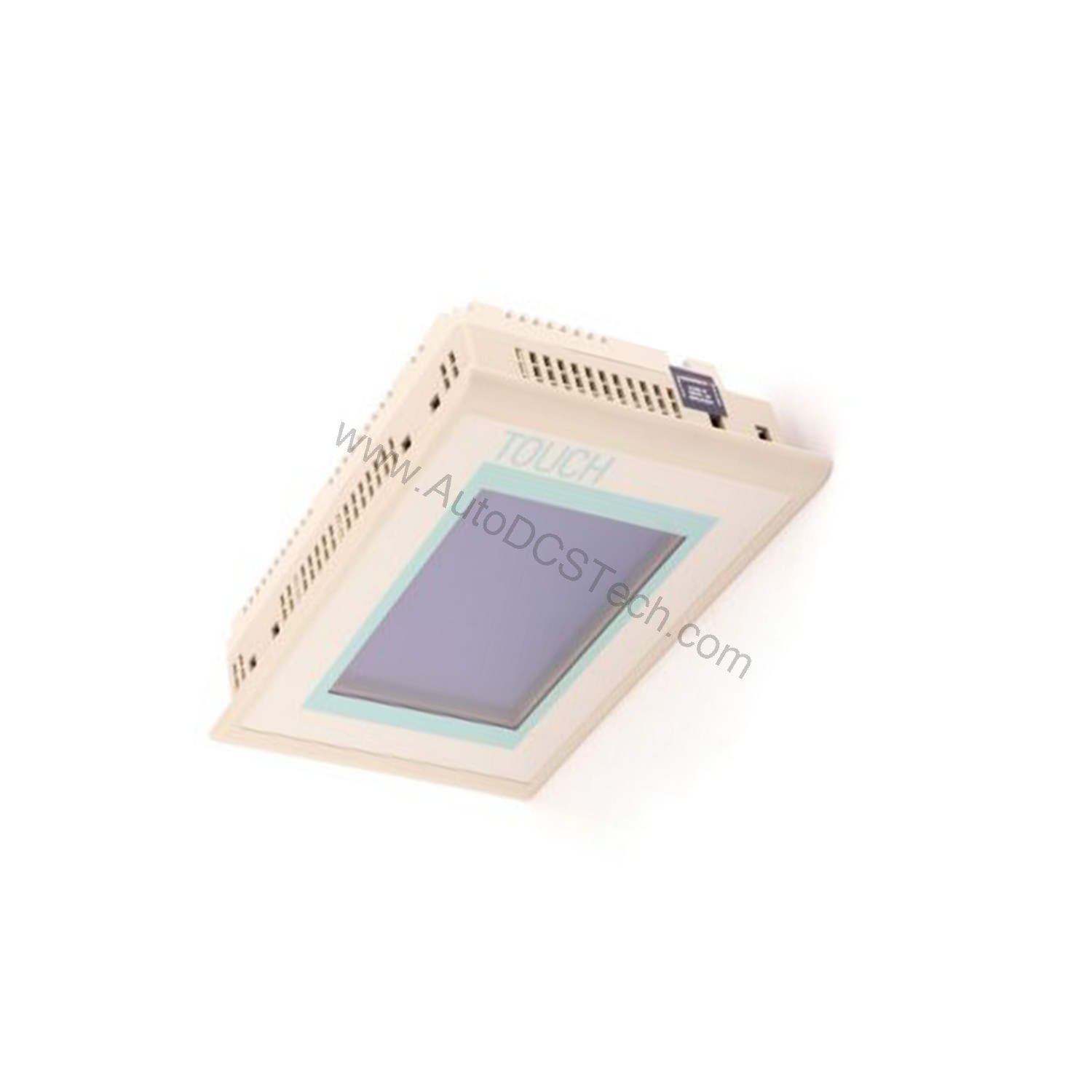

Installation and Setup

Mount the 6AV6642-0BA01-1AX1 vertically with a maximum tilt of 35° to ensure proper ventilation. The mounting cutout is 198 mm x 142 mm, and the unit depth is 44 mm. Use the included clamps for panel mounting. For communication, connect via the RS 485 or Ethernet port; the USB interface allows quick data transfer. Configure the device using WinCC flexible Compact 2005 or higher (ordered separately). Ensure the ambient temperature stays within 0 °C to 50 °C to avoid overheating.

Maintenance and Reliability

Regularly inspect the front bezel and touch screen for damage to maintain IP65 protection. Clean the screen with a soft, dry cloth when needed. Verify that the backlight brightness remains consistent; the 50,000-hour MTBF suggests minimal maintenance. Check cable connections periodically to prevent communication errors. The hardware clock is synchronizable but has no battery backup, so plan for time resynchronization after power loss. Following these steps extends the HMI's service life and avoids unplanned downtime.

Compatibility and Integration

This HMI communicates with S7-200, S7-300/400, and S7-1200 controllers via MPI, PROFIBUS DP, or PROFINET. It also supports Allen Bradley (DF1, DF485), Mitsubishi (FX), Modicon (Modbus), and OMRON (LINK/Multilink). The built-in Ethernet interface enables TCP/IP and Sm@rtServer for remote access. With support for up to 32 project languages and 5 runtime languages, it suits global deployments. This broad compatibility reduces the need for multiple HMI types, cutting inventory costs.

Product Support and Availability

The 6AV6642-0BA01-1AX1 is available through AutoDCSTech. Contact us for current pricing and lead times. Our team can assist with technical questions and configuration guidance. Ensure you verify lifecycle status before ordering.
