Introduction to the 6ES7392-1AM00-0AA0 Front Connector

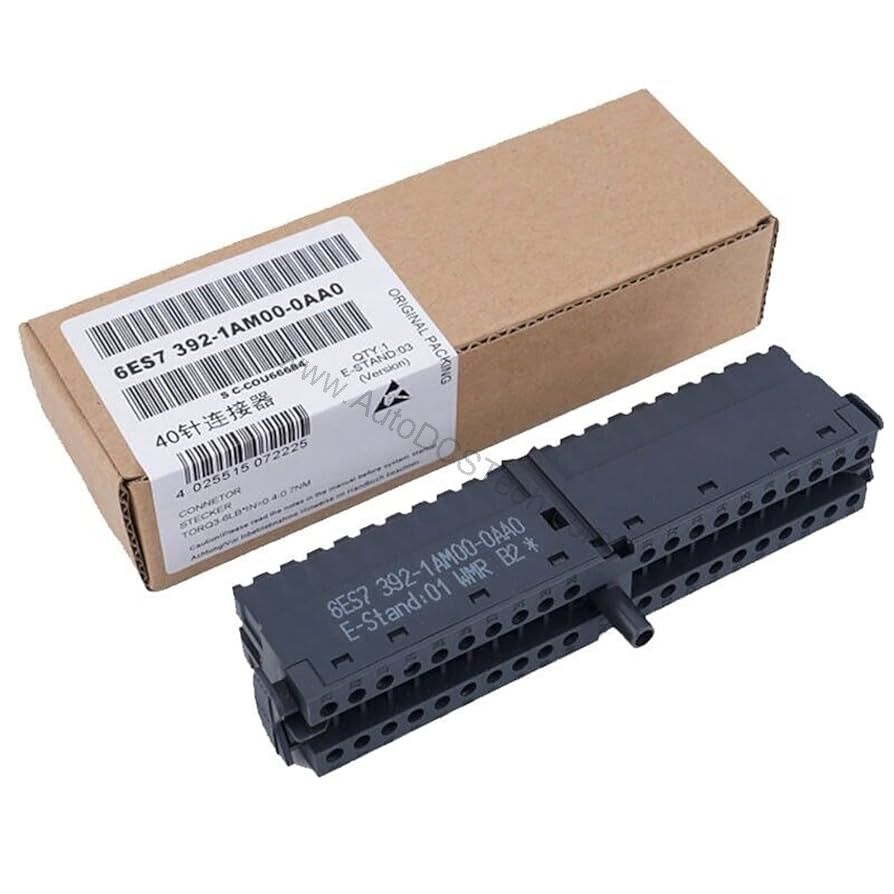

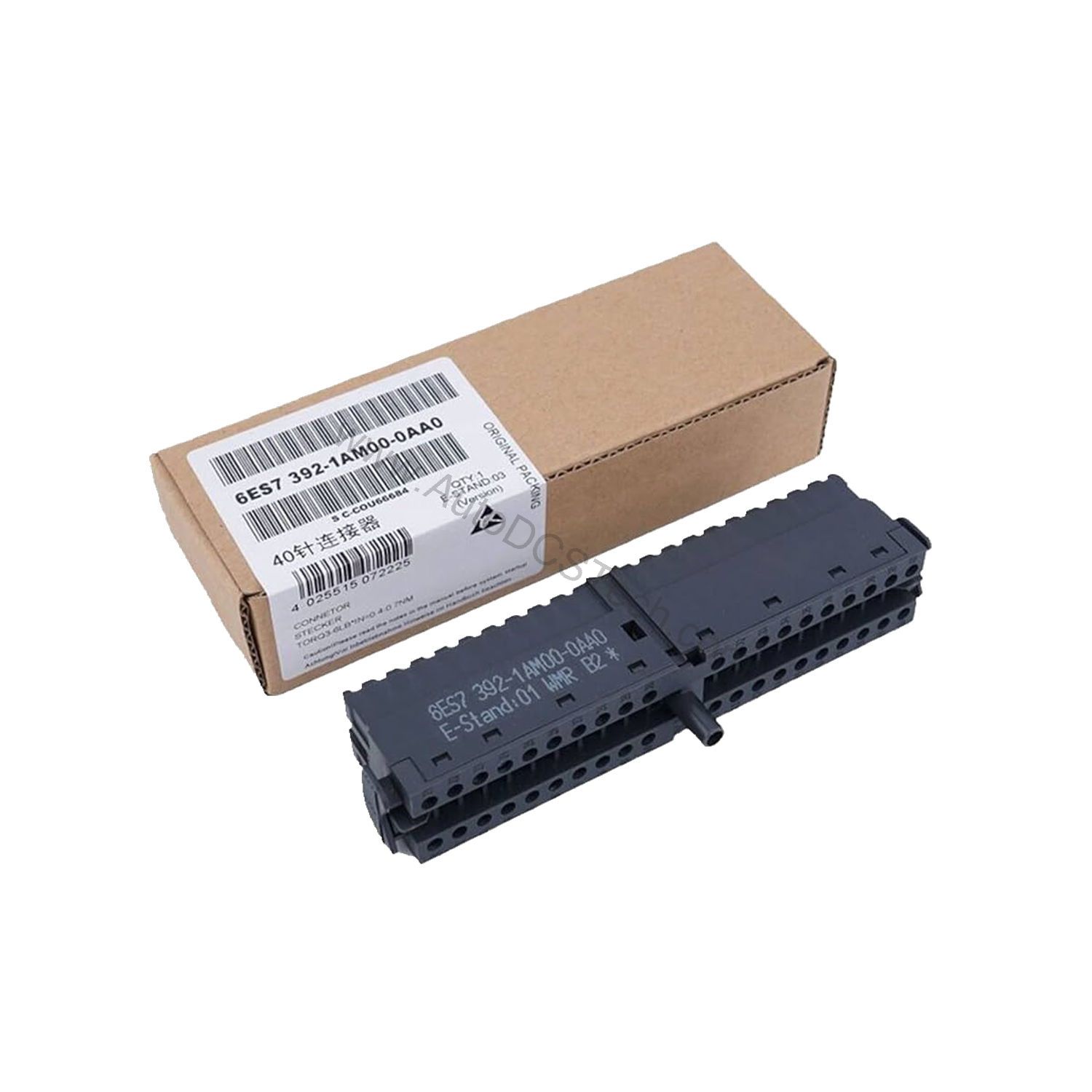

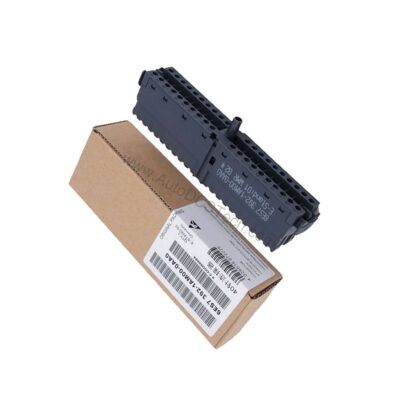

When building or maintaining a SIMATIC S7-300 control system, the choice of front connector directly impacts wiring reliability and long-term uptime. The 6ES7392-1AM00-0AA0 from Siemens is a 40-pole front connector with screw contacts, engineered to provide secure and organized connections for I/O modules. This connector supports a wide range of cable sizes and offers robust mechanical construction, making it a dependable choice for industrial environments.
In this buyer's guide, we will examine the technical specifications, installation considerations, and maintenance practices for the 6ES7392-1AM00-0AA0, helping you determine if it fits your application requirements.
Key Features and Technical Specifications
The 6ES7392-1AM00-0AA0 is designed for simplicity and durability. Its screw terminal connection method ensures a firm, vibration-resistant connection, while the 40-pole configuration accommodates high-density I/O wiring. Below are the core specifications extracted from the official data:
- Connection method: Screw terminals, suitable for one or two cables up to 0.75 mm² total in a shared end sleeve.
- Cable cross-sections: 0.14 mm² to 0.75 mm² for solid, flexible, and flexible with end sleeve cables.
- AWG range: 24 AWG to 19 AWG for all cable types.
- Stripped length: 6 mm for all cables.
- Tightening torque: 0.4 N·m to 0.7 N·m.
- Dimensions: 21.6 mm width, 125 mm height, 40.9 mm depth.
- Weight: Approximately 137 g.
- Ambient temperature: 0 °C to 60 °C during operation; -40 °C to 70 °C during storage/transport.
These specifications ensure compatibility with standard S7-300 wiring practices, providing flexibility for various cable types and simplifying field wiring.
Applications and Use Cases
The 6ES7392-1AM00-0AA0 is primarily used in SIMATIC S7-300 programmable logic controllers (PLCs) to connect field devices such as sensors, actuators, and other I/O signals. Its 40-pole design suits applications requiring multiple discrete or analog signals within a compact footprint. Typical industries include automotive manufacturing, food and beverage processing, and material handling, where reliable signal transmission is critical for process control.
For example, in a packaging line, this connector can link proximity sensors and pneumatic actuators to the PLC, ensuring precise timing and minimal downtime. Its screw terminals allow quick field wiring changes, which is beneficial during commissioning or retrofits.
Installation and Setup
Proper installation of the 6ES7392-1AM00-0AA0 ensures optimal performance. The connector is mounted onto the S7-300 I/O module, and wiring is secured using a conical screwdriver with a 3 mm to 3.5 mm tip. The recommended tightening torque is between 0.4 N·m and 0.7 N·m, which prevents over-tightening that could damage the terminal.
When preparing cables, strip the insulation to a length of 6 mm. For flexible cables, use end sleeves according to DIN 46228, either without plastic sleeve (Design A, 5 mm to 7 mm long) or with plastic sleeve (Design E, up to 6 mm long). This ensures a secure connection and reduces the risk of short circuits.
It is important to verify that the total cross-section of two cables in a shared end sleeve does not exceed 0.75 mm², as specified. Following these guidelines will help maintain signal integrity and mechanical stability.
Maintenance and Reliability
Routine inspection of the front connector is essential for long-term reliability. Periodically check that all screws remain tight, especially in environments with vibration. The operating temperature range of 0 °C to 60 °C should be respected; avoid exposing the connector to temperatures outside this range to prevent material degradation.
Because the connector uses screw terminals, it is less prone to loosening than spring-type connectors, but periodic verification is still recommended. If any signs of corrosion or damage are observed, replace the connector promptly to avoid signal loss. Always follow the manufacturer's guidelines for maintenance and safety.
Compatibility and Integration

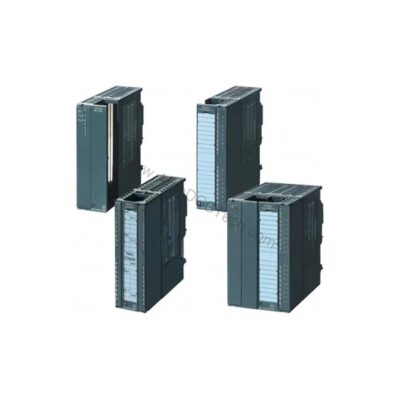

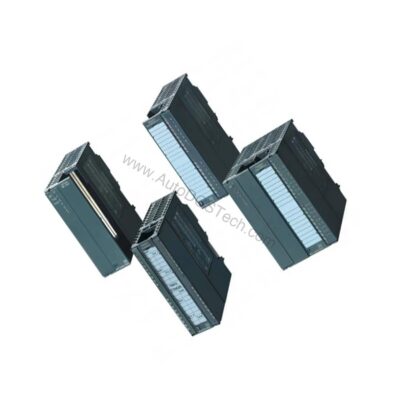

The 6ES7392-1AM00-0AA0 is designed specifically for Siemens SIMATIC S7-300 systems. It belongs to the S7-300 product family, ensuring seamless integration with S7-300 I/O modules. The 40-pole configuration matches standard S7-300 front connectors, making it a direct replacement for existing connectors in many applications.
No special software or configuration is required for the connector itself; it is a passive component that provides the physical interface between field wiring and the module's internal electronics. This simplicity reduces installation complexity and minimizes potential points of failure.
Common Issues and Troubleshooting
One common issue with front connectors is loose connections due to insufficient tightening torque. Always apply the specified torque range (0.4 N·m to 0.7 N·m) to ensure a secure fit. Another issue is using incorrect cable cross-sections; ensure cables are within 0.14 mm² to 0.75 mm² to maintain proper contact.
If signal intermittency occurs, inspect the stripped length (6 mm) and the condition of end sleeves. Damaged or missing end sleeves can cause short circuits or poor contact. Also, verify that ambient temperatures are within the specified limits, as extreme conditions can affect connector performance.
Availability and Support
The 6ES7392-1AM00-0AA0 is available from AutoDCSTech, a leading supplier of industrial automation parts. Contact AutoDCSTech for current pricing and lead times. Our team can assist with product selection and provide technical support to ensure you choose the right connector for your S7-300 system.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7392-1AM00-0AA0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
