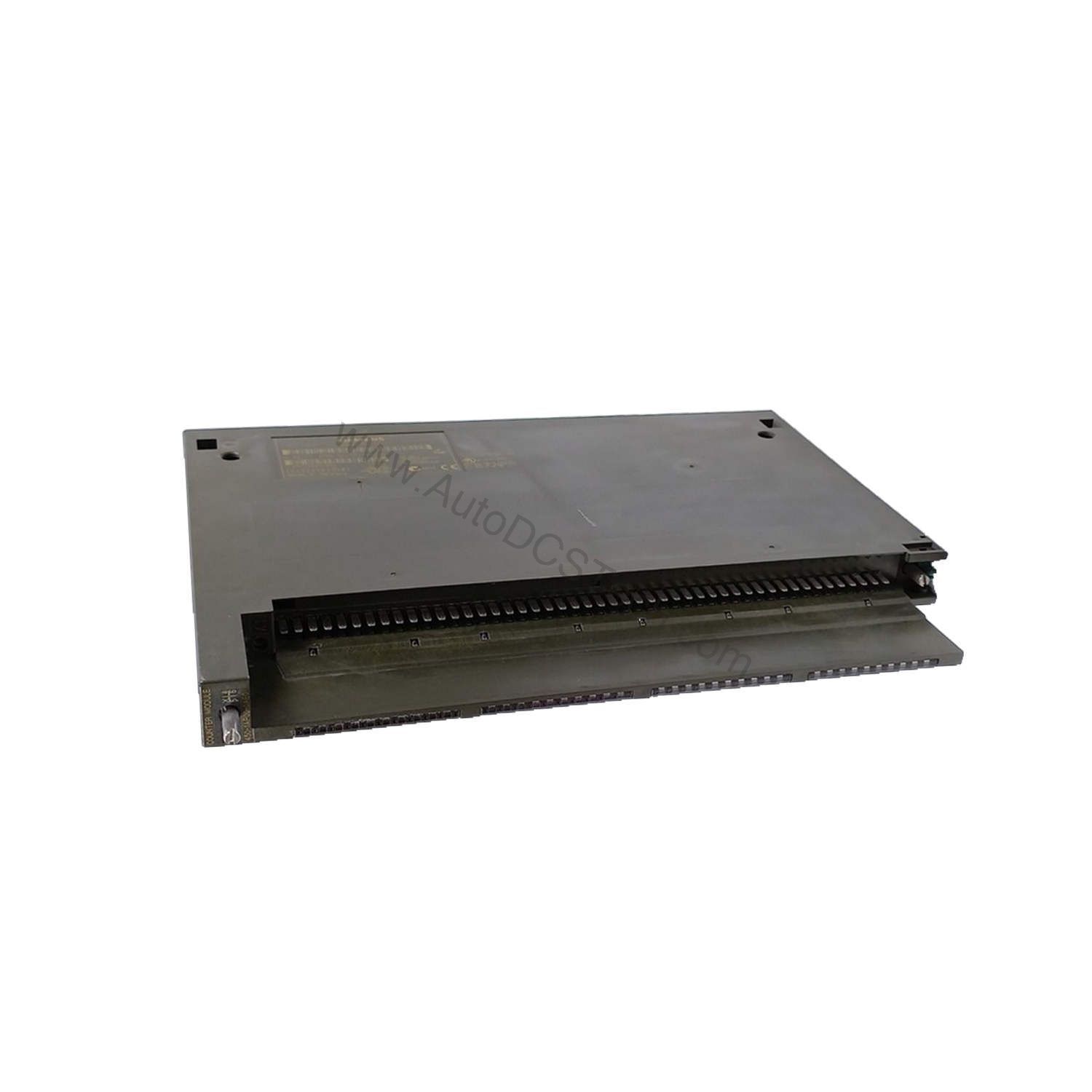

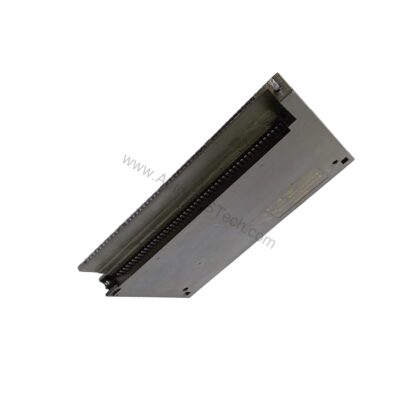

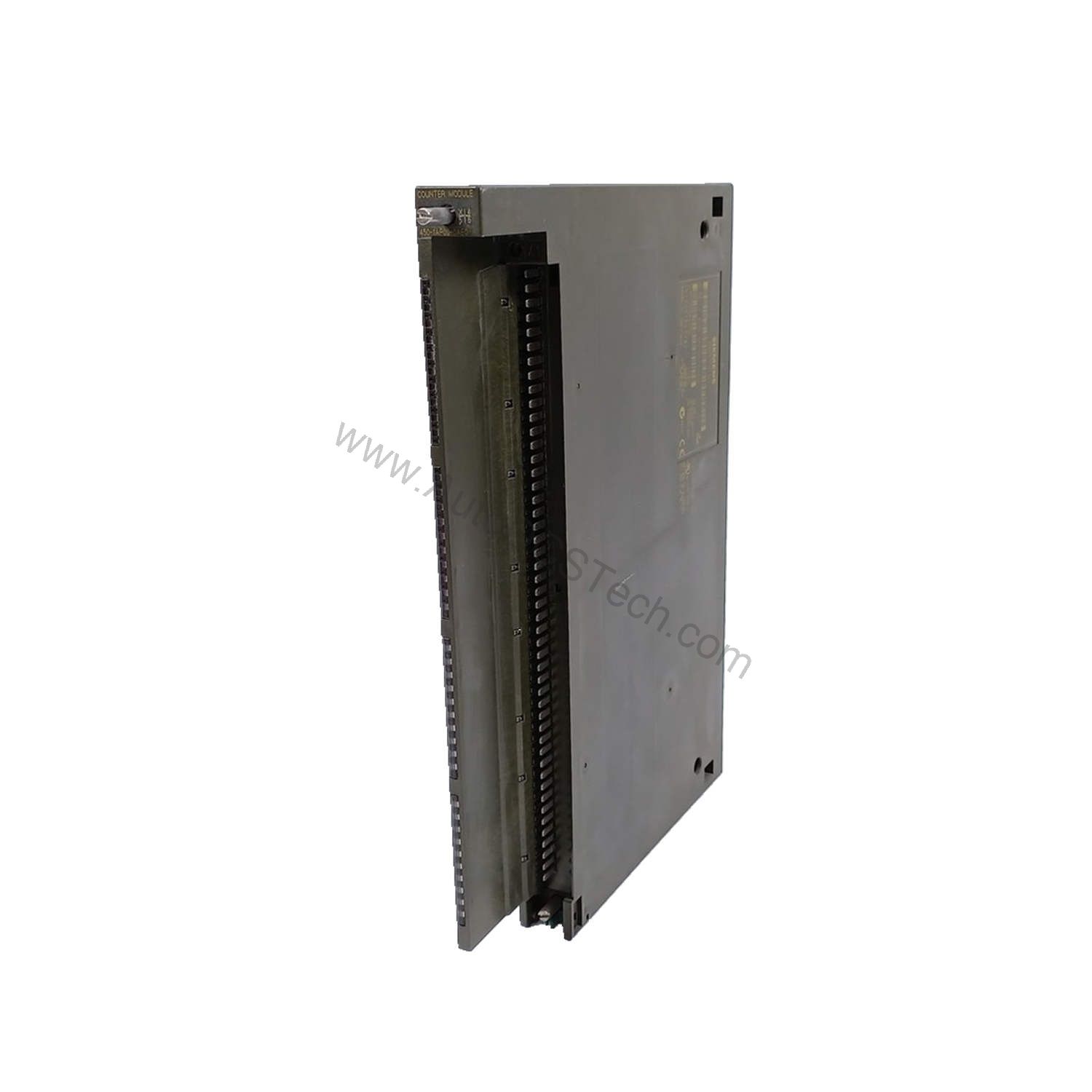

6ES7450-1AP00-0AE0 2-Channel Counter Module

Key Features and Technical Specifications

The 6ES7450-1AP00-0AE0 is packed with features that enhance its versatility. It includes six digital inputs for gate control and counter setting, plus four digital outputs for external control signals. The module operates on a 24 V DC supply with a permissible range of 20.4 V to 28.8 V, and it offers reverse polarity protection on both load voltage inputs. Its power loss is typically 9 W, making it energy-efficient for continuous operation.

• Two counter inputs: 32-bit or ±31-bit resolution
• Maximum counting frequency: 500 kHz (5 V RS 422 input)
• Six digital inputs with parameterizable input delay
• Four digital outputs with short-circuit protection
• Encoder supply: 5 V (5.2 V ±2%) and 24 V (1L+ -3 V), each with 300 mA output current
• Isolation tested with 500 V; potential separation via optocouplers
• Diagnostic alarm and hardware interrupt, parameterizable

One distinctive feature is the module's ability to handle both symmetrical and asymmetrical incremental encoders. This flexibility allows integration with a wide range of encoder types, simplifying system design. Additionally, the 24 V counter input accepts signals from -30 V to +5 V for logic "0" and +11 V to +30 V for logic "1", providing robust noise immunity.

Applications and Use Cases

In packaging machinery, the 6ES7450-1AP00-0AE0 is used for counting products on a conveyor belt. Its high-speed inputs track items moving at rapid rates, while the digital outputs can trigger reject mechanisms. Similarly, in material handling systems, the module counts rotations or linear movements, enabling precise positioning. The parameterizable input delay allows adaptation to different sensor types, ensuring reliable operation in noisy environments. Moreover, the diagnostic functions help identify issues quickly, reducing downtime.

Installation and Setup

Mounting the 6ES7450-1AP00-0AE0 is straightforward. It fits into a standard S7-400 rack and requires a 1x 48-pin front connector. The module's width of 25 mm, height of 290 mm, and depth of 210 mm ensure it occupies minimal space. When wiring, ensure the 24 V DC supply is within the specified range and observe the permissible potential difference of 75 V DC/60 V AC between circuits. The backplane bus provides 5 V DC power, with a maximum current draw of 450 mA. Proper grounding and shielding of encoder cables are recommended to maintain signal integrity.

Maintenance and Reliability

Routine maintenance for the 6ES7450-1AP00-0AE0 is minimal. Periodically inspect the module for dust accumulation and ensure the front connector is secure. The module's diagnostic LEDs provide real-time status, allowing quick identification of internal or external errors. With a typical power loss of only 9 W, the module runs cool, extending its service life. Regular verification of encoder connections and supply voltages helps prevent unexpected failures. Following the manufacturer's manual for periodic checks ensures long-term reliability.

Compatibility and Integration

As part of the SIMATIC S7-400 family, the 6ES7450-1AP00-0AE0It communicates via the backplane bus, requiring 64 bytes of input and output addresses. The module supports incremental encoders with RS 422 interfaces, as well as 24 V initiators and directional elements. This compatibility makes it a versatile choice for upgrading existing systems or building new ones. Always verify firmware compatibility with your CPU before installation.

Troubleshooting Common Issues

If the module fails to count correctly, first check the encoder supply voltage. The 5 V supply should be 5.2 V ±2%, and the 24 V supply should be 1L+ -3 V. Ensure the input signals meet the specified thresholds: for signal "0", -28.8 V to +5 V; for signal "1", +11 V to +28.8 V. If using 24 V inputs, the range is -30 V to +5 V for "0" and +11 V to +30 V for "1". Also, verify that the terminating resistor (220 Ω) is properly set for RS 422 connections. The diagnostic LEDs can indicate external errors; refer to the manual for specific codes.

Product Support and Availability

The 6ES7450-1AP00-0AE0 is available for order through AutoDCSTech. As an industrial automation parts supplier, AutoDCSTech ensures genuine Siemens products and timely delivery. Contact our team for current availability and lead times. We are ready to support your automation projects with reliable components.
