6FC5210-0DF03-0AA0 500 MHz PLC CPU | Siemens

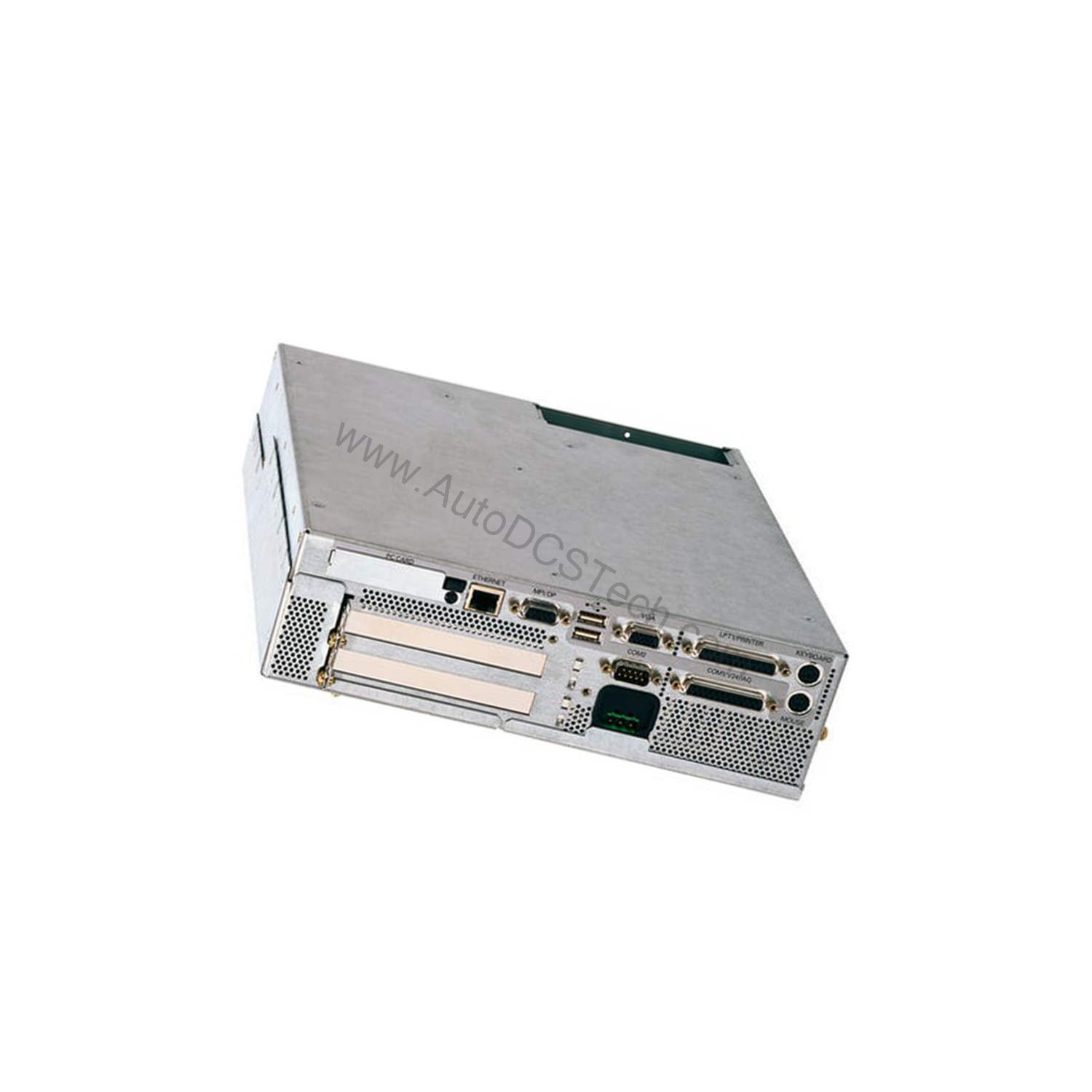

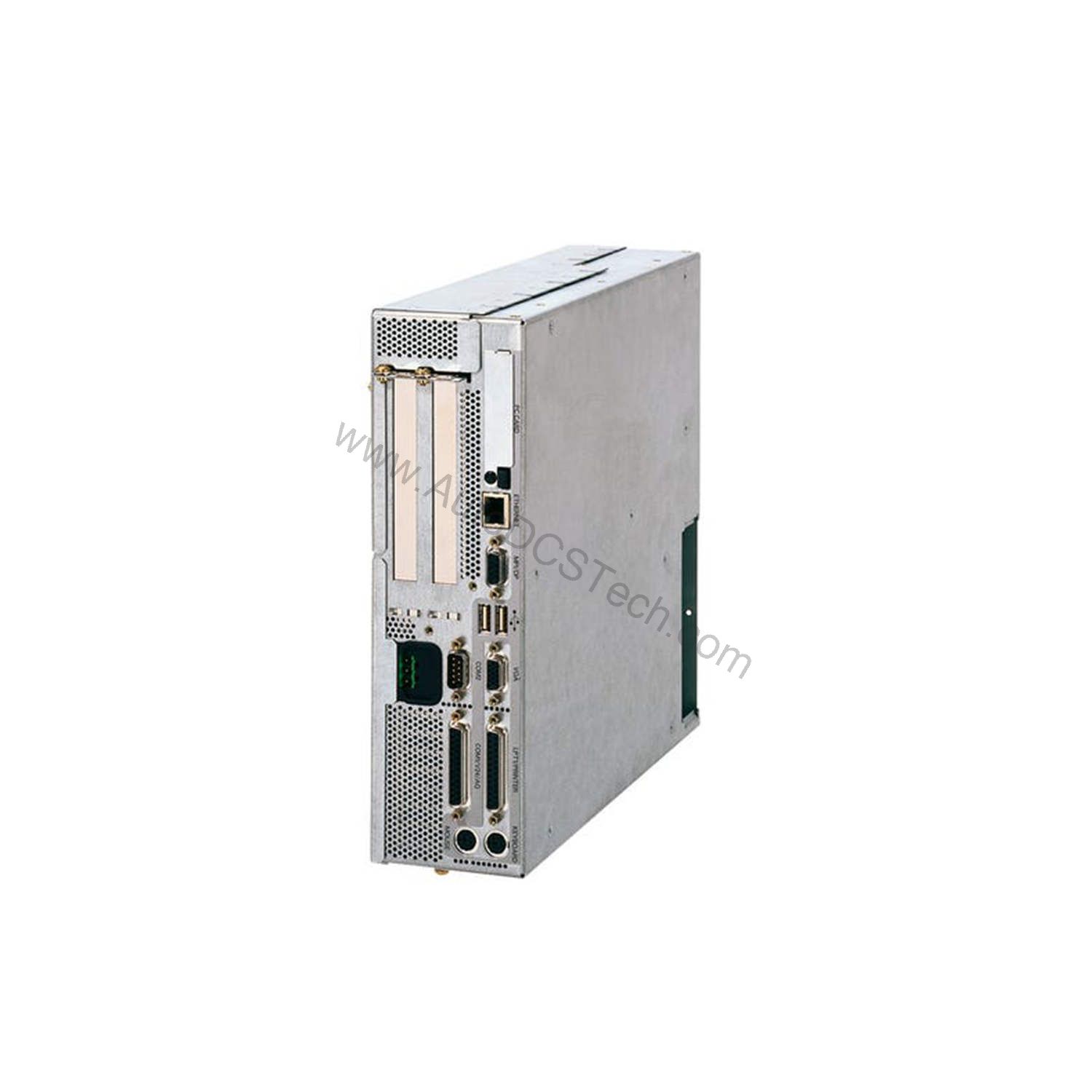

Introduction to the Siemens 6FC5210-0DF03-0AA0 PLC CPU

This PLC CPU operates at a clock speed of 500 MHz, ensuring efficient execution of complex control tasks. With 128 MB of memory, it handles multiple instructions simultaneously, making it suitable for demanding automation applications.

Engineered for a range of industrial settings, this CPU runs on a 24 VDC supply, offering flexibility in system design. Its robust construction is evident in its weight of approximately 6 kg (13.228 lbs), indicating durability for long-term use.

Key Features and Technical Specifications

The 6FC5210-0DF03-0AA0 stands out with its processing power and memory capacity. Here are the core specifications:

• Clock Speed: 500 MHz – ensures rapid execution of control logic.
• Memory: 128 MB – supports complex programs and data handling.
• Operating Voltage: 24 VDC – compatible with standard industrial power supplies.
• Operating Temperature: 0°C to 55°C – reliable in typical factory environments.
• Storage Temperature: -20°C minimum – safe for transport and storage.
• Altitude: Below 2000 meters (6562 feet) – suitable for most installations.
• RoHS Compliance: No – verify regulatory requirements for your region.

Compared to other PLC CPUs in its class, the 500 MHz clock speed provides a significant advantage for time-critical applications. The 128 MB memory allows for extensive program storage, reducing the need for frequent updates or expansions.

Applications and Use Cases

This CPU is designed for various control applications, from manufacturing lines to process automation. For instance, in a packaging system, the 6FC5210-0DF03-0AA0 can coordinate multiple actuators and sensors with precision. Its 24 VDC operation simplifies integration with existing control panels, while the memory capacity supports complex sequencing logic.

Moreover, the operating temperature range of 0°C to 55°C makes it suitable for environments without extreme thermal conditions. The altitude limitation below 2000 meters covers most industrial sites, ensuring consistent performance.

Installation and Setup

When installing the 6FC5210-0DF03-0AA0, ensure the power supply provides a stable 24 VDC. Mount the CPU in a clean, dry enclosure that maintains the operating temperature range. Verify that the ambient temperature stays within 0°C to 55°C during operation. For storage, keep the unit above -20°C to prevent damage.

Proper grounding and shielding are essential to avoid electromagnetic interference. Follow Siemens' guidelines for wiring and mounting to ensure reliable operation. Always consult the official manual for detailed installation procedures.

Maintenance and Reliability

Regular inspection of the CPU and its environment helps maintain reliability. Check for dust accumulation on the enclosure and ensure ventilation is not obstructed. Periodically verify that the operating temperature remains within the specified range. Since the CPU is not RoHS compliant, handle disposal according to local regulations.

By following a routine maintenance schedule, you can extend the service life of the 6FC5210-0DF03-0AA0 and minimize unexpected downtime. Always power down the system before any cleaning or inspection.

Troubleshooting Common Issues

If the CPU fails to start, first check the 24 VDC supply voltage. Ensure the power source is stable and within tolerance. If the system runs slowly, verify that the memory is not overloaded; consider optimizing the program. For communication errors, inspect the connections and grounding.

For persistent issues, refer to the Siemens documentation or contact AutoDCSTech for technical support. Do not attempt to repair internal components; only qualified personnel should service the unit.

Product Support and Availability

The Siemens 6FC5210-0DF03-0AA0 is available through AutoDCSTech. Contact us for current availability and delivery options. Our team can assist with technical questions and order processing.
