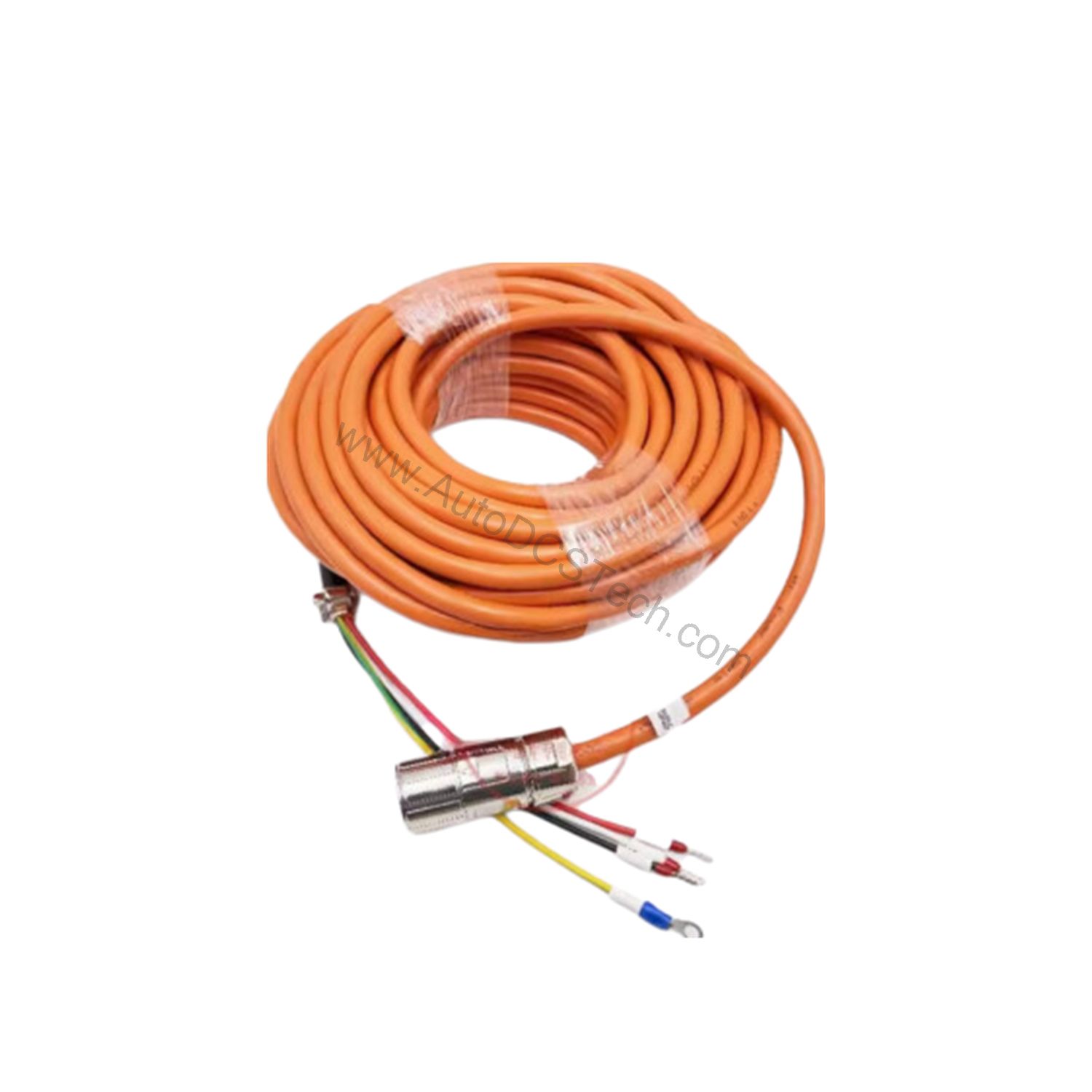

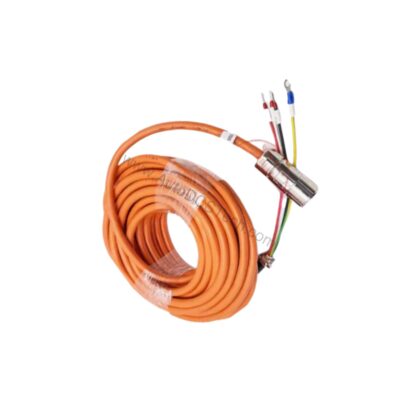

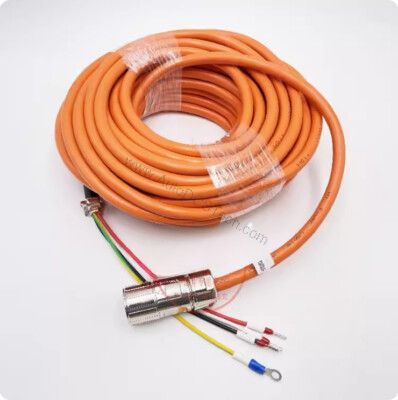

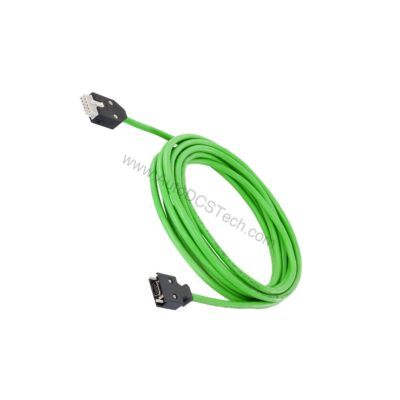

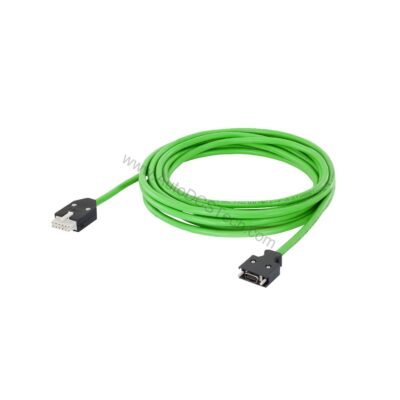

Introduction to the 6FX3002-5CL01-1BF0 Power Cable
This MOTION-CONNECT 300 cable is engineered for S-1FL6 servo motors operating at 400 V, with frame sizes AA and A, commonly paired with V70/V90 drives. It comes ready to install, saving you time and reducing wiring errors.
With a length of 15.0 meters and a 4 x 1.5 mm² conductor configuration, this cable supports applications. Its PVC sheath and insulation provide robust protection, while the IP65 degree of protection ensures resistance to dust and water jets. Whether you are setting up a new machine or replacing a worn cable, the 6FX3002-5CL01-1BF0 is a dependable choice.
Key Features and Technical Specifications
This cable is built to meet demanding industrial requirements. Below are the core specifications extracted from the official datasheet:
- Conductors: 4 x 1.5 mm² (No. of cores x cross-section)
- Rated voltage U0/U: 600 V / 1000 V (per EN 50395)
- Test voltage (power conductors): 4,000 V rms
- Smallest bending radius (fixed): 6 x diameter
- Smallest bending radius (flexible): 155 mm
- Max. number of bends: 1,000,000
- Tensile stress (fixed): 50 N/mm²
- Tensile stress (flexible): 20 N/mm²
- Torsional stress: 30°/m
- Length: 15.0 m
- Ambient temperature (fixed): -25 … 80.0 °C
- Degree of protection: IP65
- Flame resistance: EN 60332-1-1 to 1-3
- Oil resistance: EN 60811-2-1 (mineral oil only)
- CE, UL, RoHS: Yes
The cable features an angular connector with rotatable cable outlet direction (in fixed increments), requiring connector disassembly for adjustment. This design offers flexibility during installation.
Applications and Use Cases
Its flexible installation rating (155 mm bending radius) makes it suitable for moving cable tracks, while the fixed installation rating (6 x diameter) supports stationary routing. The cable's oil resistance (mineral oil) and flame resistance ensure reliable operation in harsh industrial environments.
For example, in a high-speed pick-and-place system, the cable's 1,000,000 bend cycles ensure long service life. Additionally, the IP65 protection guards against coolant splashes, making it a robust choice for machine tools.
Installation and Setup Guide
When installing the 6FX3002-5CL01-1BF0, follow these guidelines to ensure optimal performance:
- For fixed installation, maintain a bending radius of at least 6 times the cable diameter.
- For flexible installation, do not bend the cable tighter than 155 mm.
- When routing the cable, avoid exceeding the maximum tensile stress of 50 N/mm² (fixed) or 20 N/mm² (flexible).
- If you need to adjust the connector outlet direction, disassemble the connector as required, then reassemble securely.
- Always verify the ambient temperature stays within -25 °C to 80 °C for permanent installation.
Proper installation prevents mechanical stress and extends cable life.
Maintenance and Reliability
To maximize the lifespan of your 6FX3002-5CL01-1BF0 cable, perform periodic inspections. Check for visible wear, cuts, or abrasions on the sheath, especially in areas with high flexing. Ensure that the connectors remain tightly seated and free from corrosion. The cable's PVC material resists mineral oil, but avoid exposure to aggressive solvents. Regular maintenance reduces downtime and avoids unexpected failures.
Compatibility and Integration
This cable is specifically designed for Siemens S-1FL6 servo motors with 400 V rating, compatible with V70/V90 drive systems. It is part of the MOTION-CONNECT 300 series, ensuring seamless integration with Siemens automation components. The cable's UL/CSA approval makes it suitable for North American installations, while CE marking confirms compliance with European directives.
Troubleshooting and Common Issues
If you experience motor performance issues, inspect the cable for damage. Common problems include:
- Broken conductors: Caused by excessive bending or tensile stress. Check the bending radius and stress limits.
- Connector loosening: Ensure the angular connector is properly locked after adjustment.
- Insulation damage: Look for cuts or abrasions, especially near cable entry points.
If the cable fails, replace it with the same part number to maintain system integrity.
Product Support and Availability
The 6FX3002-5CL01-1BF0 is available from AutoDCSTech. Contact our team to confirm stock and lead times. We are ready to assist with your industrial automation needs.
Availability & Condition at AutoDCSTech
| Part Number | 6FX3002-5CL01-1BF0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
