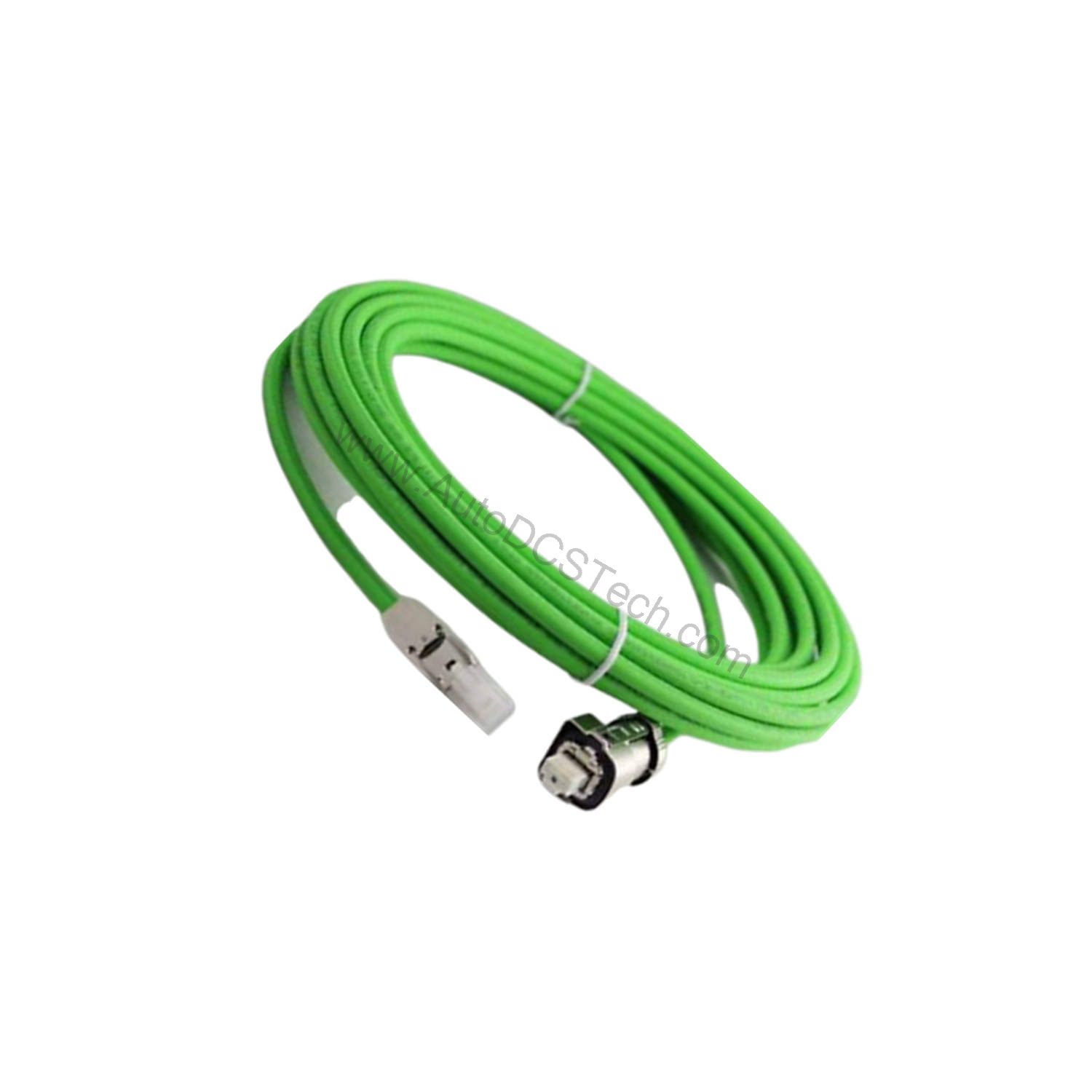

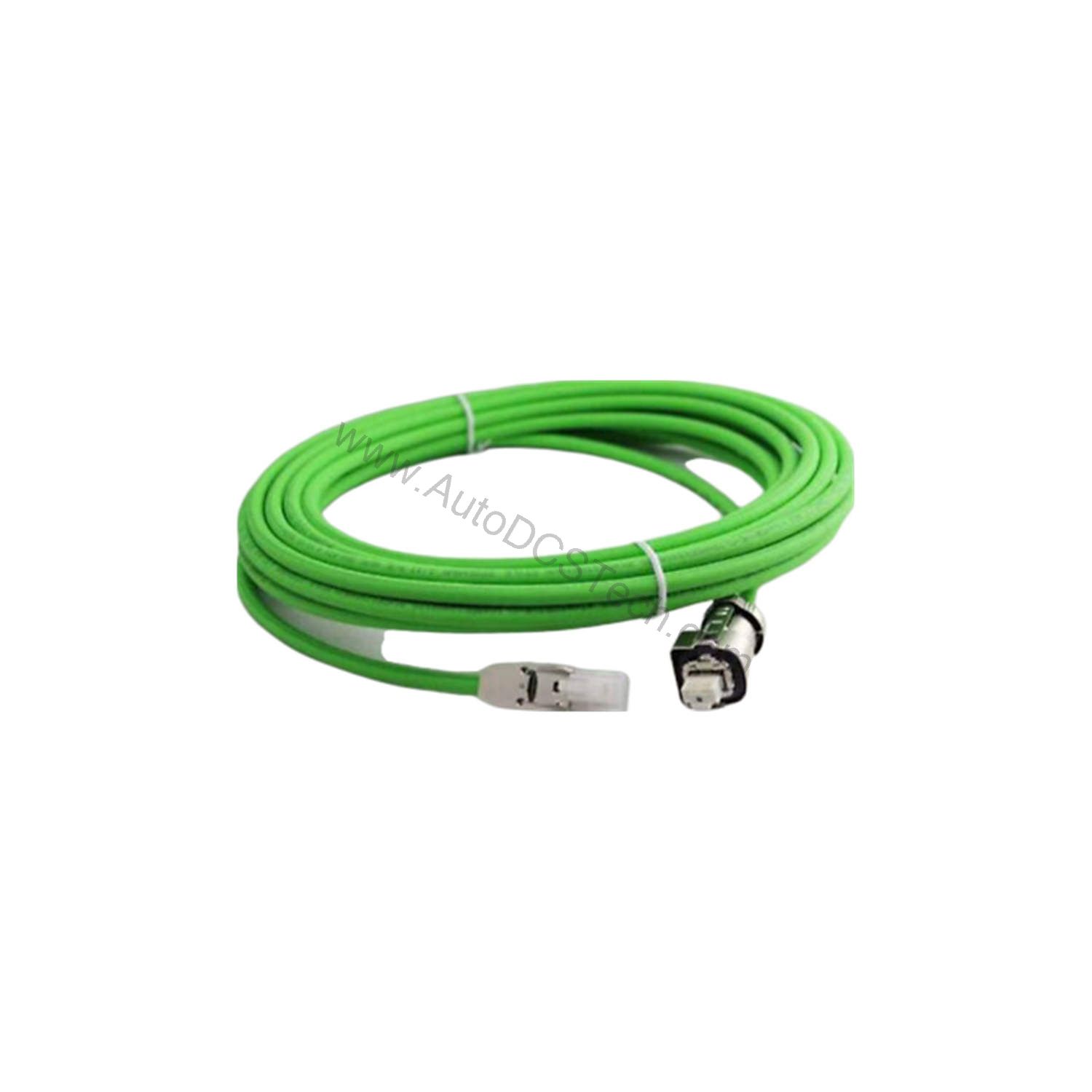

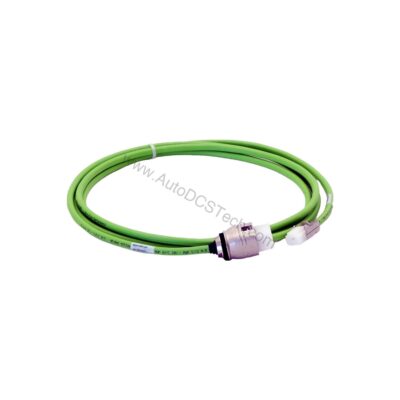

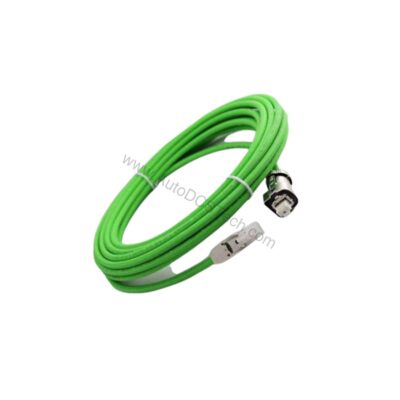

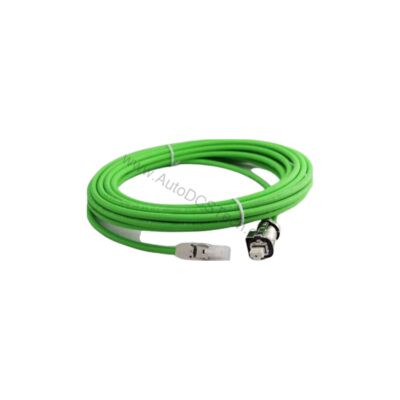

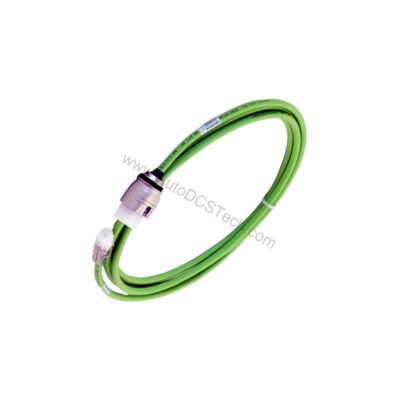

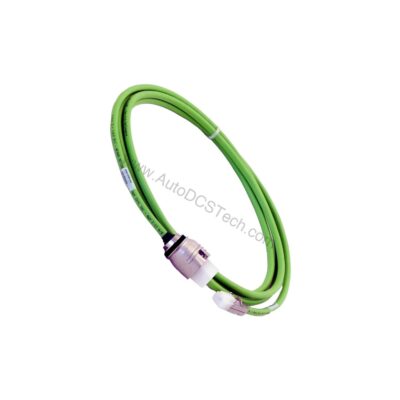

6FX8002-2DC10-1BD0 Drive-CLiQ Signal Cable Overview
When signal integrity matters in a servo drive system, the 6FX8002-2DC10-1BD0 from Siemens delivers a pre-assembled connection solution. This Drive-CLiQ cable is engineered for reliable data transfer between a drive controller and a motor or encoder. Its pre-assembled nature reduces installation time and eliminates wiring errors, which is critical for maintaining uptime in production environments.
This cable is part of the MOTION-CONNECT 800PLUS series, designed for industrial motion control applications. The 6FX8002-2DC10-1BD0 is released for use up to 75 meters in length, making it suitable for large machines and distributed drive layouts. With a maximum diameter of 7.1 mm, it offers flexibility in routing while maintaining robust performance.
Key Features and Technical Specifications
- Connector Type: RJ45 on the module side with IP20 protection.
- Motor Side Connector: IP67-rated connector for harsh environments.
- Length: 75 meters maximum, with tolerance of +0/+10/+3/+0 mm.
- Cable Diameter: Dmax = 7.1 mm.
- Net Weight: 0.913 kg.
- Pre-assembled: Ready to install, reducing setup time.
The 24 V plug on the module side ensures secure power delivery for the Drive-CLiQ interface. This feature is essential for maintaining communication stability in high-noise industrial settings.
Applications and Use Cases
Its IP67 motor-side connector makes it suitable for environments with dust, moisture, or washdown requirements. For example, in a food processing plant, the sealed connector prevents ingress, ensuring reliable operation. Additionally, the 75-meter length supports large-scale installations where drives are placed far from the motor, reducing the need for junction boxes.
Installation and Setup Guide
Before installation, verify that the cable length meets your system requirements, as the 6FX8002-2DC10-1BD0 is pre-assembled and cannot be field-modified. Route the cable away from high-voltage power lines to avoid electromagnetic interference. Secure the cable with appropriate clamps to prevent strain on the connectors. When connecting, align the RJ45 plug correctly and tighten the locking mechanism to ensure a firm connection. For the IP67 motor-side connector, ensure the mating surface is clean and the sealing ring is intact before tightening.
Maintenance and Reliability
Regularly inspect the cable for signs of wear, especially at bend points and near connectors. Check that the IP67 connector remains sealed and free of debris. In high-vibration environments, verify that cable supports are secure. The pre-assembled design minimizes failure points, but periodic checks help extend service life. If the cable is damaged, replace it with the same part number to maintain system integrity.
Compatibility and Integration
The 6FX8002-2DC10-1BD0 is a Drive-CLiQ cable, compatible with Siemens SINAMICS drives and motors that use the Drive-CLiQ interface. It is part of the MOTION-CONNECT 800PLUS series, which is designed for motion control. Ensure your devices support Drive-CLiQ communication before ordering.
Troubleshooting Common Issues
If communication errors occur, first check that both connectors are securely seated. For the module-side RJ45, verify the locking tab clicks into place. On the motor side, confirm the IP67 connector is fully tightened. Inspect the cable for cuts or kinks that could break internal wires. If the cable is longer than 75 meters, it may exceed the recommended length, causing signal degradation. In such cases, use a shorter cable or a repeater.
Product Support and Availability
The 6FX8002-2DC10-1BD0 is available from AutoDCSTech. Contact our team to confirm stock and lead times.
Availability & Condition at AutoDCSTech
| Part Number | 6FX8002-2DC10-1BD0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
