Introduction to the Bently Nevada 84661-16 Interconnect Cable
In the evolution of industrial monitoring, the need for dependable signal integrity has never been greater. As plants expand and machinery becomes more complex, the cables that carry critical vibration and temperature data must perform without fail. The 84661-16 from Bently Nevada meets this demand with a purpose-built interconnect cable designed for harsh environments.

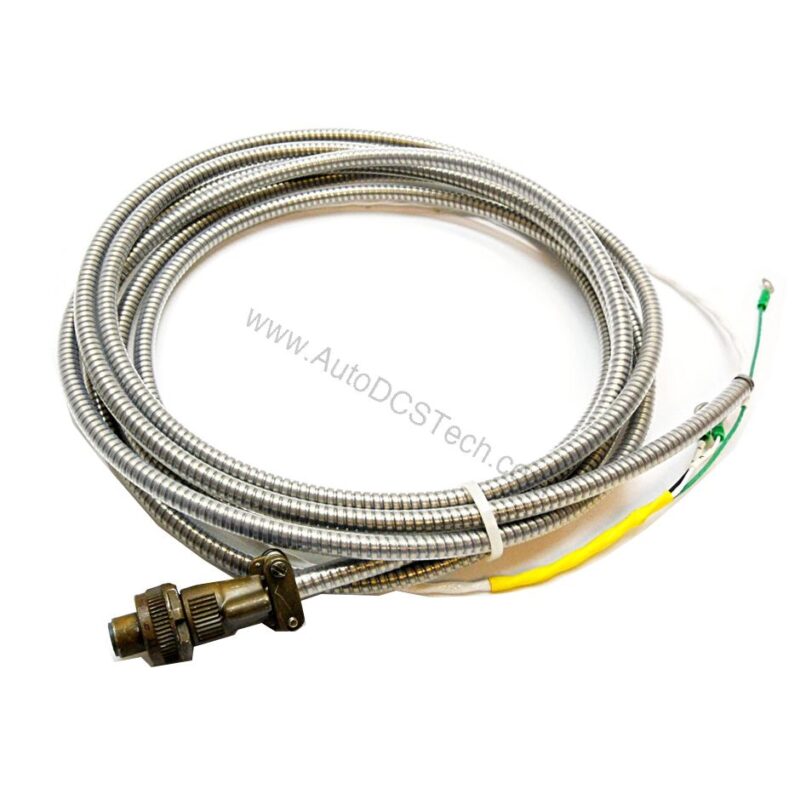

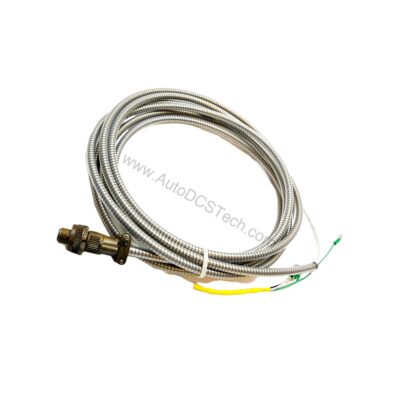

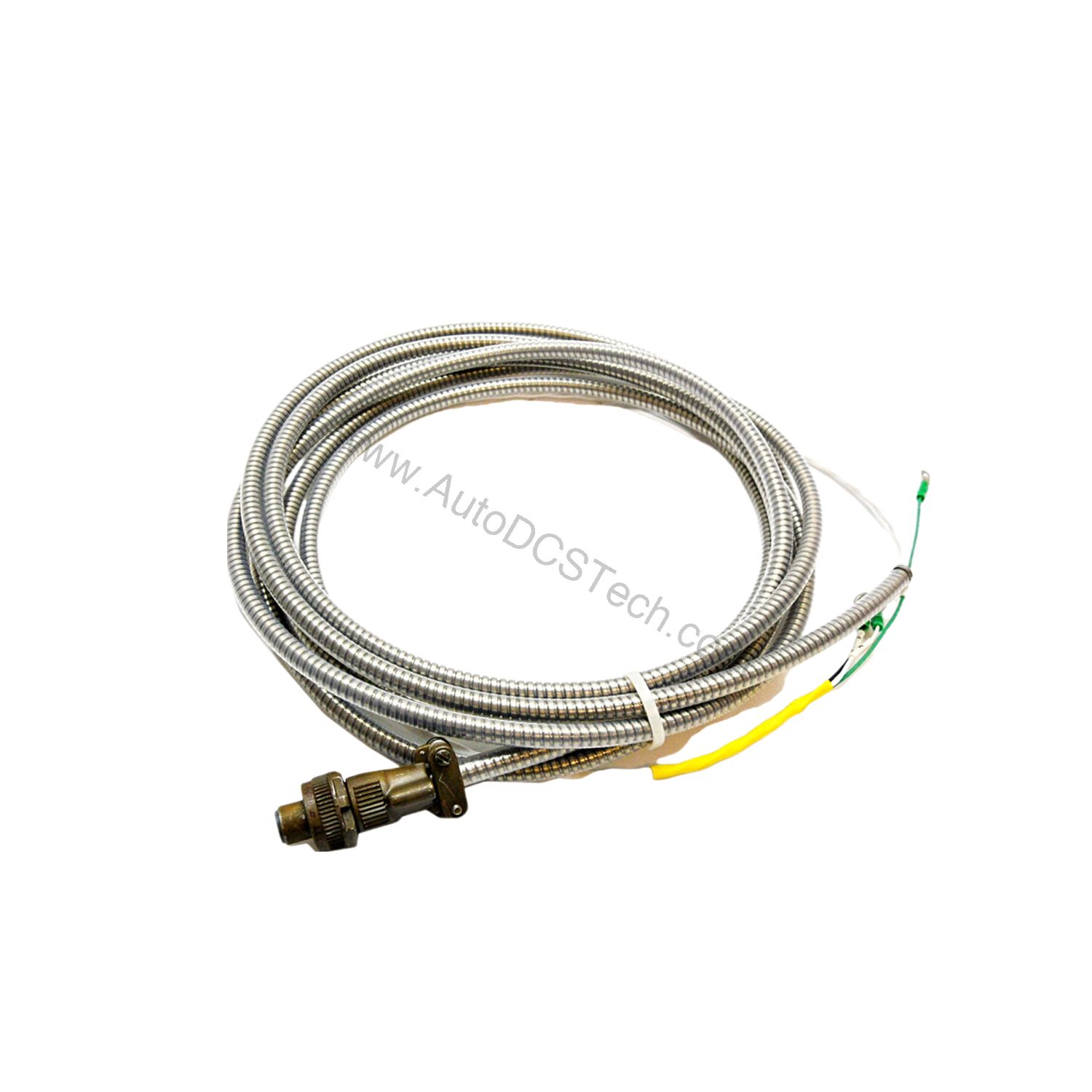

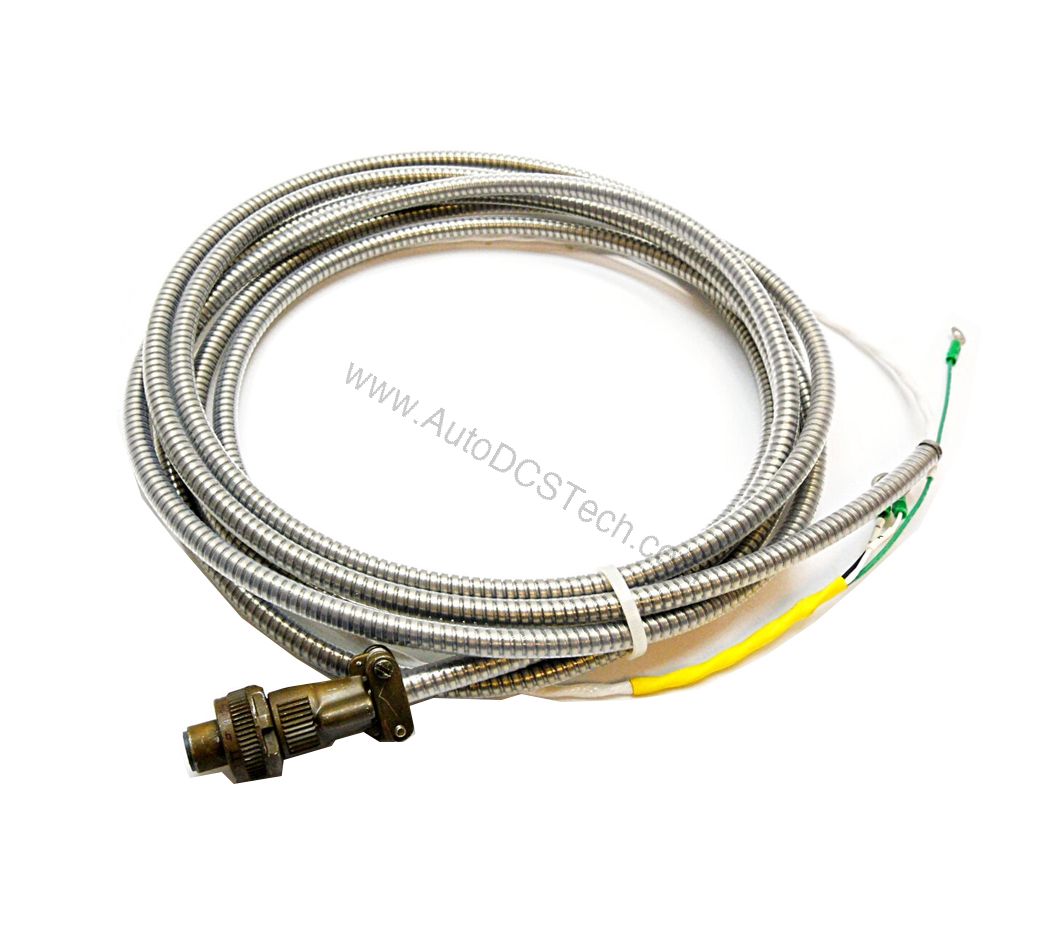

This two-conductor twisted, shielded 22 AWG armored cable ensures that sensor signals reach monitoring systems with minimal interference. Its rugged construction protects against moisture and mechanical stress, making it a trusted choice for continuous operation.
Key Features and Technical Specifications
The 84661-16 is engineered for reliability. Its key specifications include:
- Two-conductor twisted, shielded 22 AWG construction for noise rejection
- Armored jacket for physical protection in industrial settings
- Two-socket moisture-resistant female connector at one end
- Terminal lugs at the other end for secure termination
- Length: 16 feet (4.9 meters)
- Minimum available length: 3.0 ft (0.9 m)
- Maximum available length: 96 ft (29 m)
The twisted pair design minimizes electromagnetic interference, while the shield adds an extra layer of protection. This ensures accurate signal transmission, which is critical for predictive maintenance and machine protection.
Applications and Use Cases
The 84661-16 is commonly used in rotating machinery monitoring, including turbines, compressors, and pumps. It connects proximity probes or accelerometers to monitoring racks, enabling real-time vibration analysis. In petrochemical plants, power generation facilities, and manufacturing lines, this cable helps prevent unplanned downtime by delivering reliable data.
Because of its armored construction, the cable can be routed through conduit trays or direct burial areas where physical damage is a risk. Its moisture-resistant connector makes it suitable for outdoor or washdown environments, ensuring long service life.
Installation and Setup
Proper installation is essential to maintain signal integrity. When routing the 84661-16, avoid sharp bends and excessive tension. Secure the cable with appropriate clamps to prevent movement that could cause wear. The terminal lugs should be tightened to the recommended torque, and the moisture-resistant connector should be fully seated to maintain its seal.
For best results, keep the cable away from high-voltage power lines to avoid induced noise. If the cable must cross power cables, do so at a 90-degree angle to minimize interference. Always follow the manufacturer's guidelines for bending radius and strain relief.
Maintenance and Reliability
Regular inspection of the 84661-16 ensures long-term reliability. Check the cable jacket for cuts, abrasions, or chemical damage. Verify that the connector remains clean and free of corrosion. Periodically test the continuity and insulation resistance to confirm the cable's health.
Because the cable is armored, it resists many common failure modes, but environmental factors like extreme heat or UV exposure can still degrade the jacket over time. Replacing worn cables proactively prevents signal loss and avoids costly downtime.
Compatibility and Integration
The 84661-16 is designed to work with Bently Nevada monitoring systems, including 3500 series racks and other compatible hardware. Its standard connector and terminal lug configuration allow for straightforward integration into existing setups. Always verify compatibility with your specific monitor module before ordering.
For custom lengths, Bently Nevada offers options from 3.0 ft to 96 ft, ensuring you can match the cable to your installation layout.
Troubleshooting Common Issues
If you experience signal loss or noise, first check the cable connections. Loose terminal lugs or a partially seated connector can cause intermittent signals. Inspect the cable for physical damage, especially at stress points near connectors. Use a multimeter to test continuity and check for shorts between conductors.
If the cable has been exposed to moisture, verify that the connector seal is intact. Replace the cable if any damage is found.
Product Support and Availability
The 84661-16 is available from AutoDCSTech. Contact us for current pricing and lead times. Our team can assist with technical questions and ensure you select the right cable for your application.
