Case Study: Reliable Signal Transmission in Harsh Environments
In a rotating machinery monitoring system, signal integrity is critical. A plant engineer faced intermittent false trips due to electrical noise and moisture ingress in the cabling between the vibration monitor and the proximity probe. The 84661-34 from Bently Nevada solved this challenge. Its two-conductor twisted, shielded 22 AWG armored design minimizes electromagnetic interference, while the moisture-resistant female connector prevents condensation from degrading the connection. This cable delivers consistent, accurate signals even in wet or corrosive areas.
Key Features and Technical Specifications
The 84661-34 is an interconnect cable engineered for durability and signal fidelity. Below are the core specifications:
- Manufacturer: Bently Nevada
- Product Number: 84661-34
- Product Type: Interconnect Cables
- Length: 34 feet (10.4 m)
- Minimum Length: 3.0 ft (0.9 m)
- Maximum Length: 96 ft (29 m)

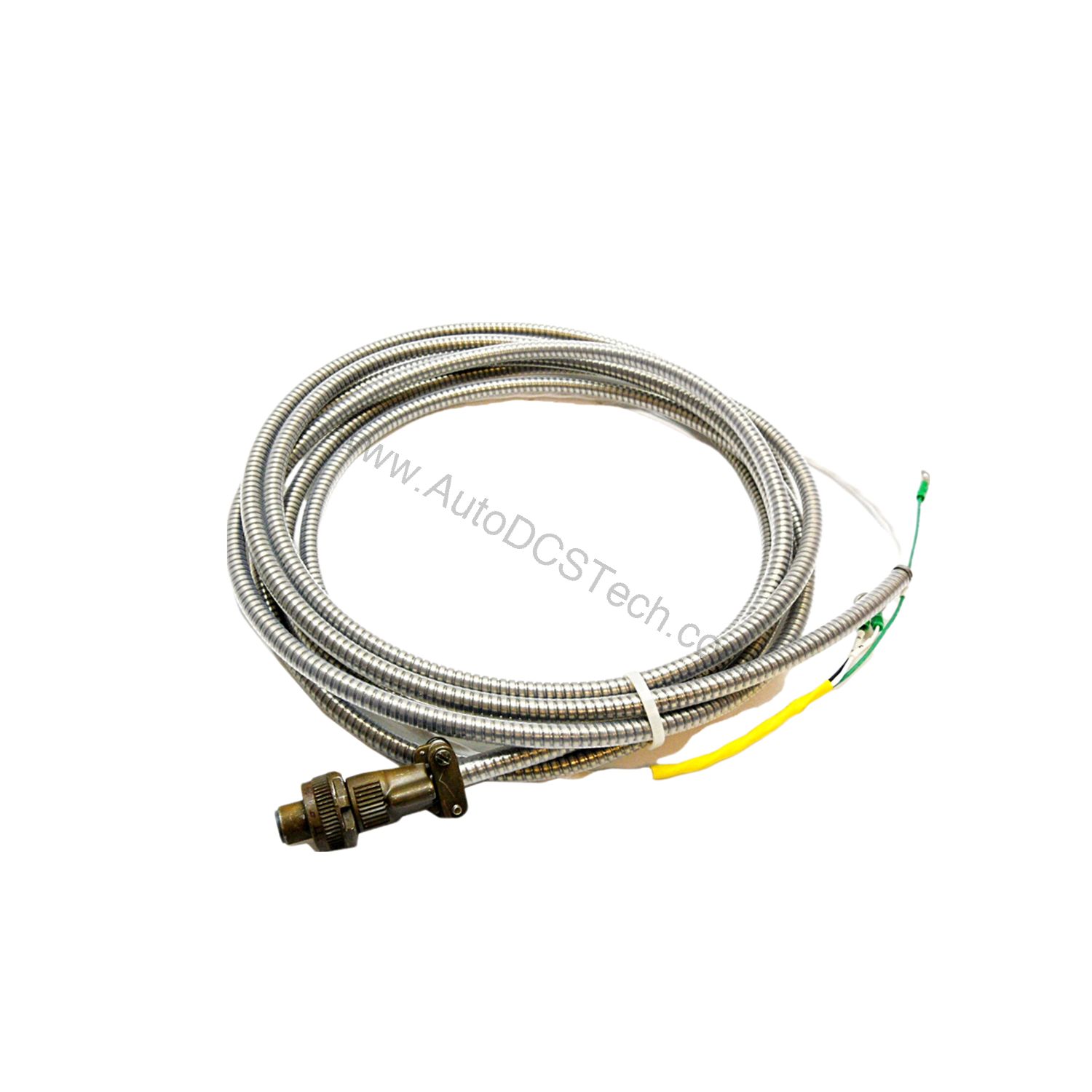

The cable features two conductors twisted together, shielded with 22 AWG wire, and armored for added mechanical protection. One end terminates in a two-socket moisture-resistant female connector, while the other end has terminal lugs for secure wiring. This design reduces noise pickup and prevents moisture-related failures, ensuring reliable operation.
Real-World Applications
The 84661-34 is ideal for connecting vibration sensors, proximity probes, and other monitoring instruments to control systems. In petrochemical plants, where humidity and corrosive gases are common, the moisture-resistant connector and armored jacket extend service life. Similarly, in power generation facilities, the shielding protects against electromagnetic interference from high-voltage equipment. For rotating machinery like turbines and compressors, this cable maintains signal integrity over long runs, reducing false alarms and unplanned downtime.
Installation and Setup
Proper installation is essential for optimal performance. When routing the 84661-34, avoid sharp bends that could damage the armor. Secure the cable using appropriate clamps to prevent vibration-induced wear. Connect the female connector to the sensor or monitor, and terminate the lug end to the terminal block, ensuring tight connections. For best results, follow the manufacturer's guidelines for cable routing and grounding.
Maintenance and Reliability
Regular inspection of the cable and connectors helps maintain reliability. Check for signs of wear, corrosion, or moisture ingress, especially in harsh environments. Periodically verify that the terminal lugs remain tight and free of oxidation. The armored construction reduces the risk of physical damage, but periodic checks are still recommended. By following a simple maintenance routine, you can extend the cable's lifespan and avoid unexpected failures.
Compatibility and Integration
The 84661-34 is designed to work with Bently Nevada monitoring systems and compatible sensors. Its two-conductor configuration suits most proximity probe and vibration monitoring setups. The terminal lugs allow easy integration with standard terminal blocks, while the female connector mates with industry-standard two-socket connectors. Always confirm compatibility with your specific monitor model before installation.
Troubleshooting Common Issues
If you experience signal loss or noise, first check the cable connections for looseness or corrosion. Inspect the cable for cuts or abrasions in the armor. Moisture ingress can cause intermittent faults; ensure the connector is properly seated and the cable is not submerged. If problems persist, test the cable with a multimeter for continuity and insulation resistance. Refer to the official Bently Nevada documentation for detailed troubleshooting steps.
Product Support and Availability
The 84661-34 is available from AutoDCSTech. Contact our team for pricing, availability, and technical support. We are ready to assist with your industrial automation needs.
