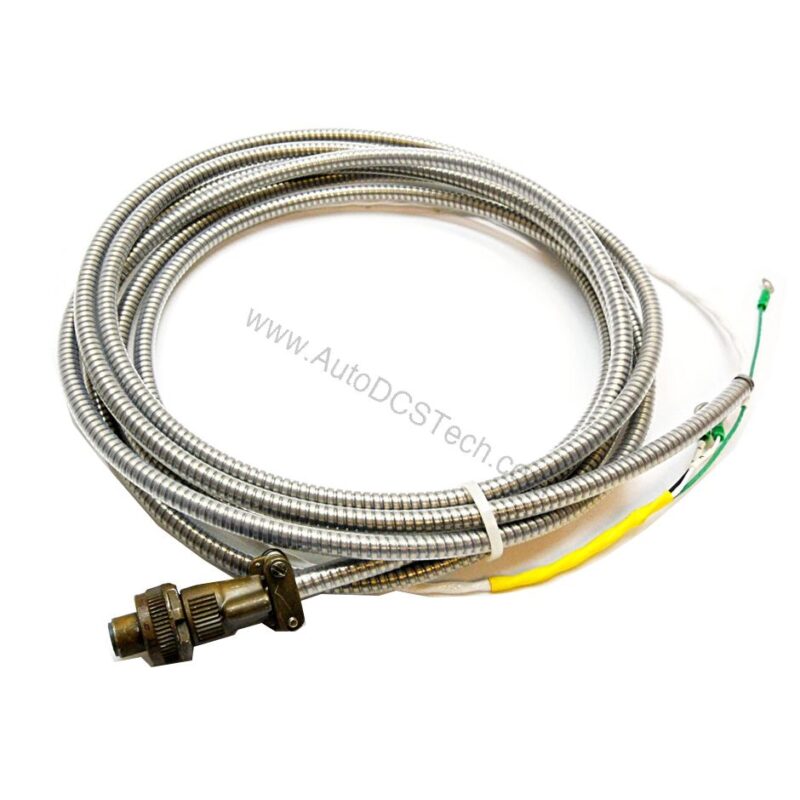

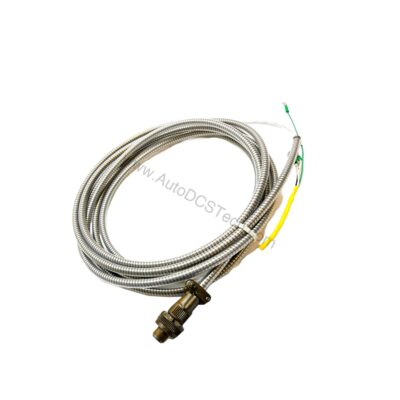

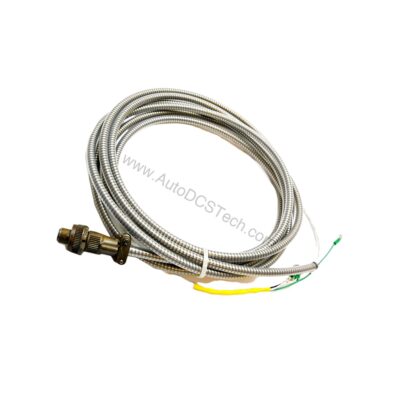

84661-25 25 ft Bently Nevada Interconnect Cable

Introduction: The 84661-25 Interconnect Cable

When a vibration monitoring system suffers intermittent signal loss, the root cause often lies in the interconnect cabling. The 84661-25 from Bently Nevada addresses this challenge with a rugged, shielded design engineered for industrial environments. This 25-foot cable provides a dependable link between sensors and monitoring equipment, minimizing the risk of signal degradation.

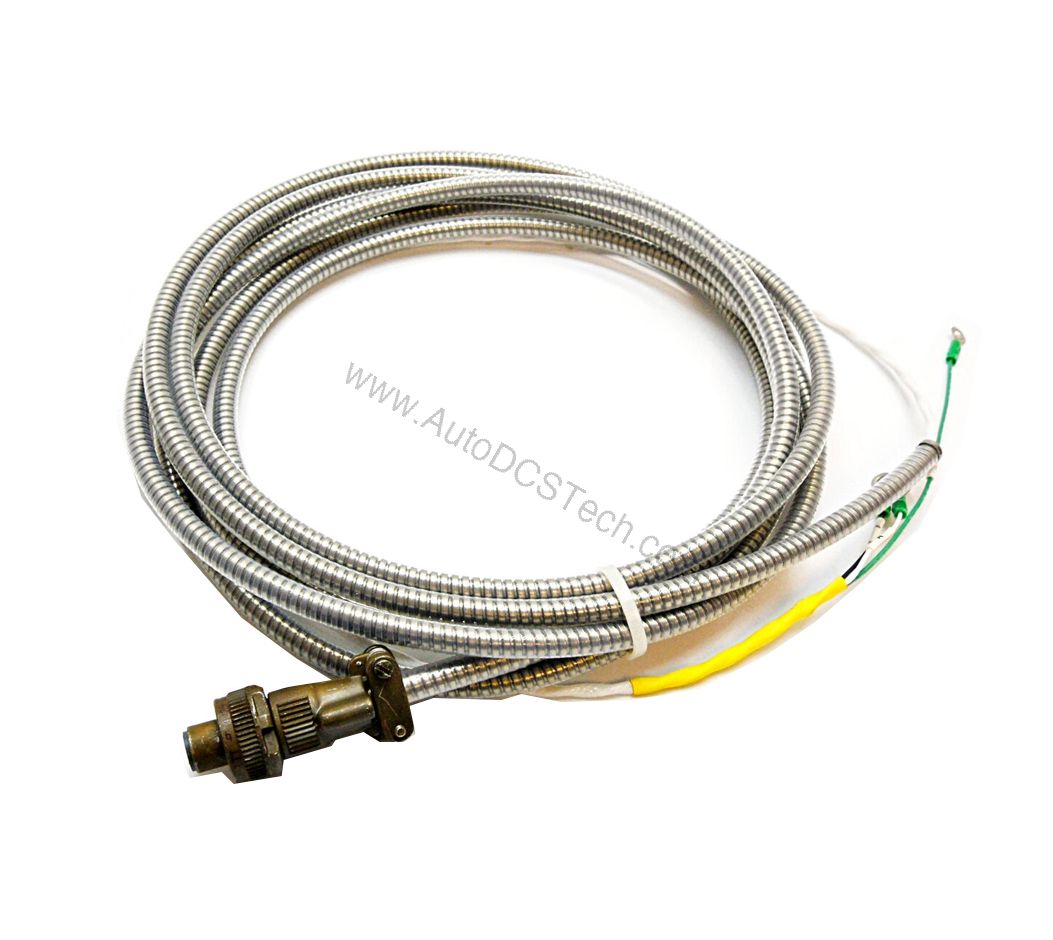

As an interconnect cable, the 84661-25 is built to withstand harsh conditions. Its armored construction protects against physical damage, while the twisted, shielded pair reduces electromagnetic interference. This ensures that the data transmitted remains accurate and reliable, which is critical for condition monitoring and predictive maintenance applications.

Key Features and Technical Specifications

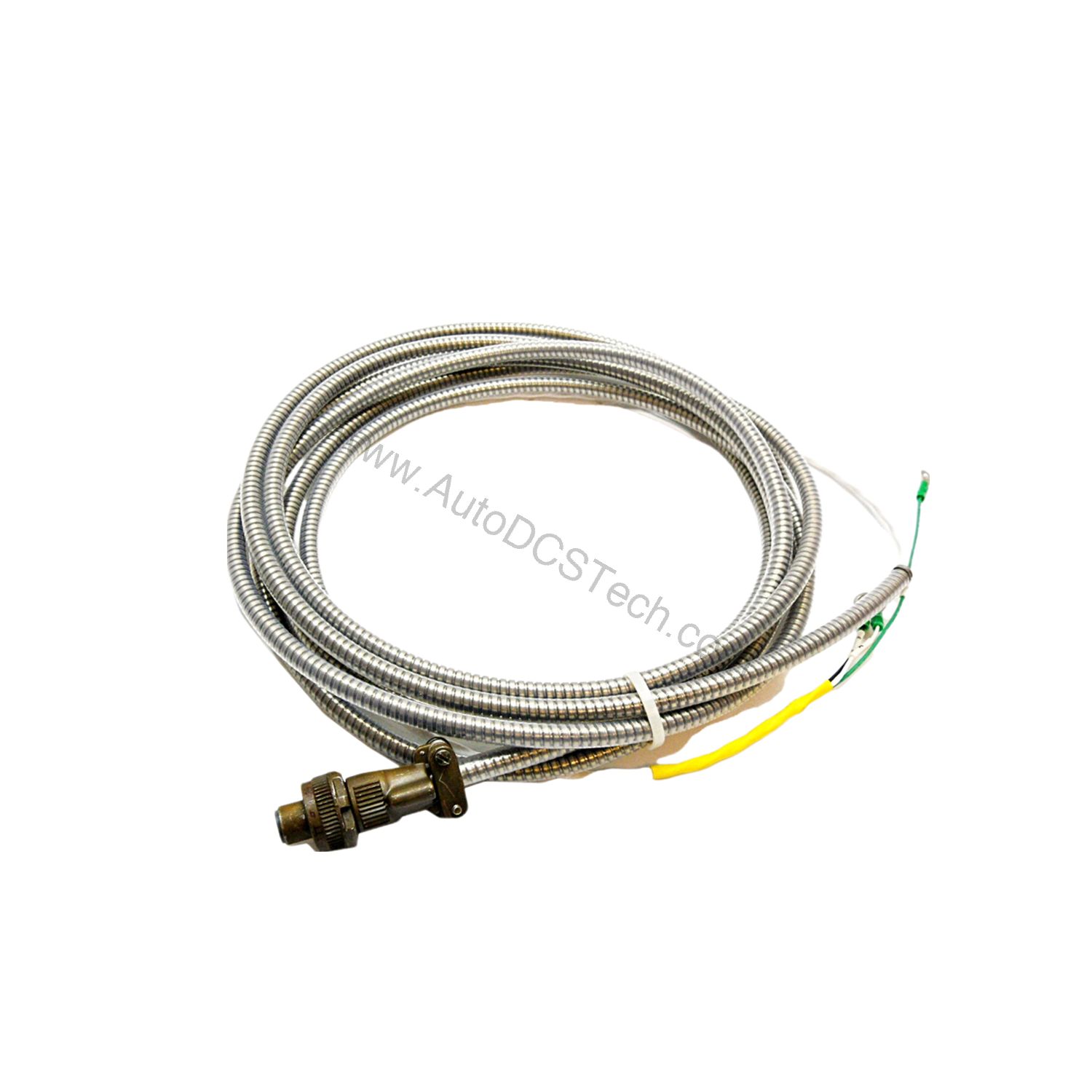

The 84661-25 offers several features that make it a practical choice for industrial installations. Its two-conductor twisted, shielded 22 AWG design is optimized for signal integrity. The cable comes with a two-socket moisture-resistant female connector at one end and terminal lugs at the other, simplifying connections.

• Manufacturer: Bently Nevada
• Product No.: 84661-25
• Product Type: Interconnect Cables
• Length: 25 feet
• Minimum length: 3.0 ft (0.9 m)
• Maximum length: 96 ft (29 m)

The cable's 25-foot length offers flexibility in routing between field devices and control panels. For applications requiring different lengths, Bently Nevada supports a range from 3.0 ft to 96 ft, allowing customization to fit specific installation needs.

Real-World Applications

The 84661-25 is suitable for use in machinery monitoring systems where reliable signal transmission is paramount. In a typical scenario, a plant engineer might use this cable to connect a proximity probe to a vibration monitor. The shielded construction helps prevent false readings caused by electrical noise, which is essential for accurate diagnostics.

This feature reduces the likelihood of corrosion or short circuits, extending the cable's service life and reducing maintenance frequency.

Installation and Setup

Installing the 84661-25 is straightforward. The terminal lugs at one end allow for secure connections to terminal blocks, while the two-socket connector at the other end mates with compatible sensors. Ensure that the cable is routed away from high-voltage lines to minimize interference.

When planning the cable route, consider the minimum bend radius to avoid damaging the armor. The cable's flexibility, combined with its 25-foot length, provides ample slack for most installations. Always follow the manufacturer's guidelines for proper installation and torque specifications for the terminal lugs.

Maintenance and Reliability

Regular inspection of the 84661-25 is recommended to ensure ongoing reliability. Check the connectors for signs of wear or moisture ingress, and verify that the terminal lugs remain tight. The armored jacket should be examined for cuts or abrasions that could expose the inner conductors.

Because the cable is designed for durability, it typically requires minimal maintenance. However, periodic checks can prevent unexpected failures. If the cable is exposed to extreme temperatures or chemicals, consult the Bently Nevada documentation for specific environmental limits.

Compatibility and Integration

The 84661-25 is part of the Bently Nevada family of interconnect cables, designed to work with their monitoring systems. While specific compatible devices are not listed in the provided data, the cable's standard connector types ensure broad compatibility with Bently Nevada equipment.

For integration into existing systems, verify that the sensor and monitor connectors match the cable's two-socket female connector and terminal lugs. If in doubt, contact AutoDCSTech for assistance in selecting the correct cable for your application.

Troubleshooting Common Issues

If signal issues arise, first check the cable connections. Loose terminal lugs or a damaged connector can cause intermittent signals. Also, inspect the cable for any cuts in the armor that might allow moisture to enter, leading to short circuits.

Another common issue is electromagnetic interference. Ensure that the cable is not routed parallel to power cables for long distances. If interference persists, verify that the shield is properly grounded at one end, as per standard practice.

Product Support and Availability

The 84661-25 is available through AutoDCSTech, an industrial automation parts supplier. Please verify current lifecycle status and availability with AutoDCSTech before ordering. For technical support, contact AutoDCSTech for guidance on selection and installation.
