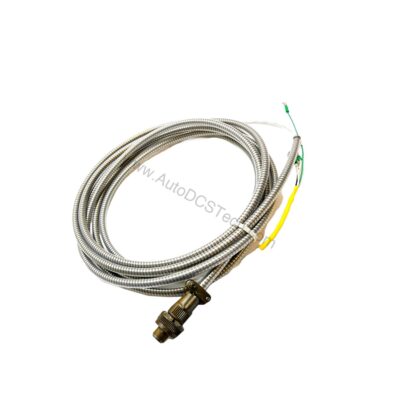

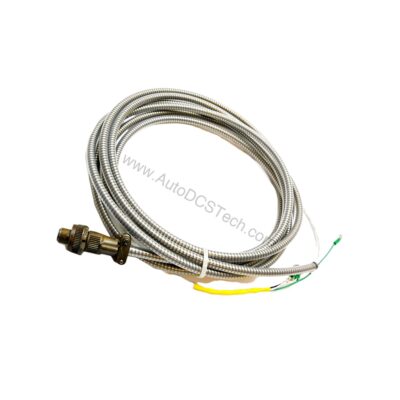

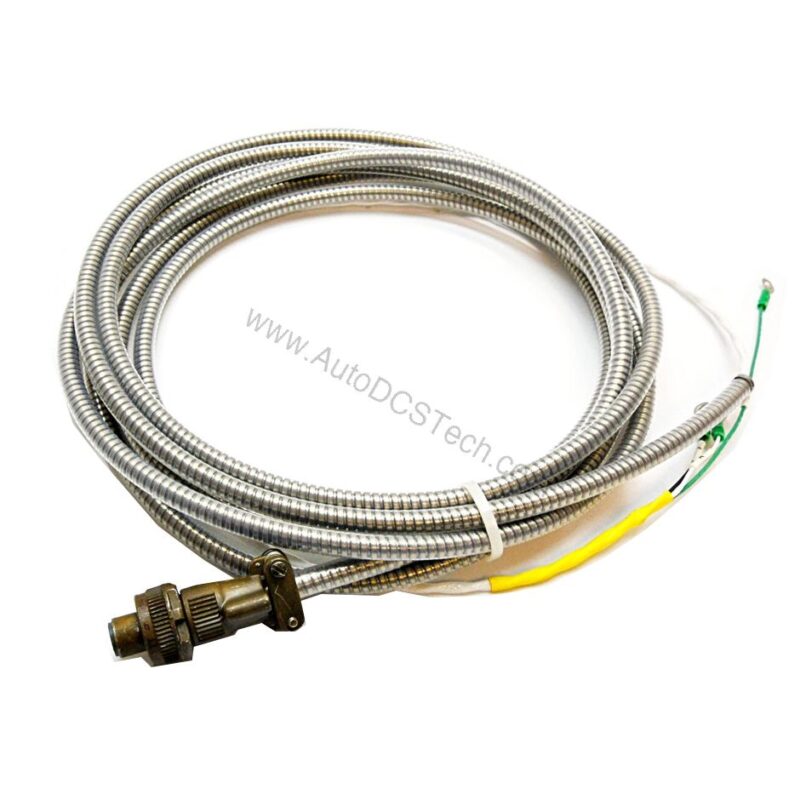

84661-30 30 ft Bently Nevada Interconnect Cable

Introduction to the Bently Nevada 84661-30

When signal integrity matters in harsh industrial environments, the 84661-30 from Bently Nevada provides a dependable interconnect solution. This two-conductor twisted, shielded 22 AWG armored cable is engineered to maintain signal quality over its 30-foot length, reducing the risk of noise interference that can lead to costly downtime.

With a minimum length of 3.0 ft (0.9 m) and a maximum of 96 ft (29 m), the 84661-30 offers flexibility for various installation layouts. Its rugged construction and moisture-resistant connector make it suitable for demanding applications where reliability is non-negotiable.

Key Features and Technical Specifications

• Manufacturer: Bently Nevada
• Product No.: 84661-30
• Product Type: Interconnect Cables
• Length: 30 feet (as specified)
• Min. length: 3.0 ft (0.9 m)
• Max. length: 96 ft (29 m)

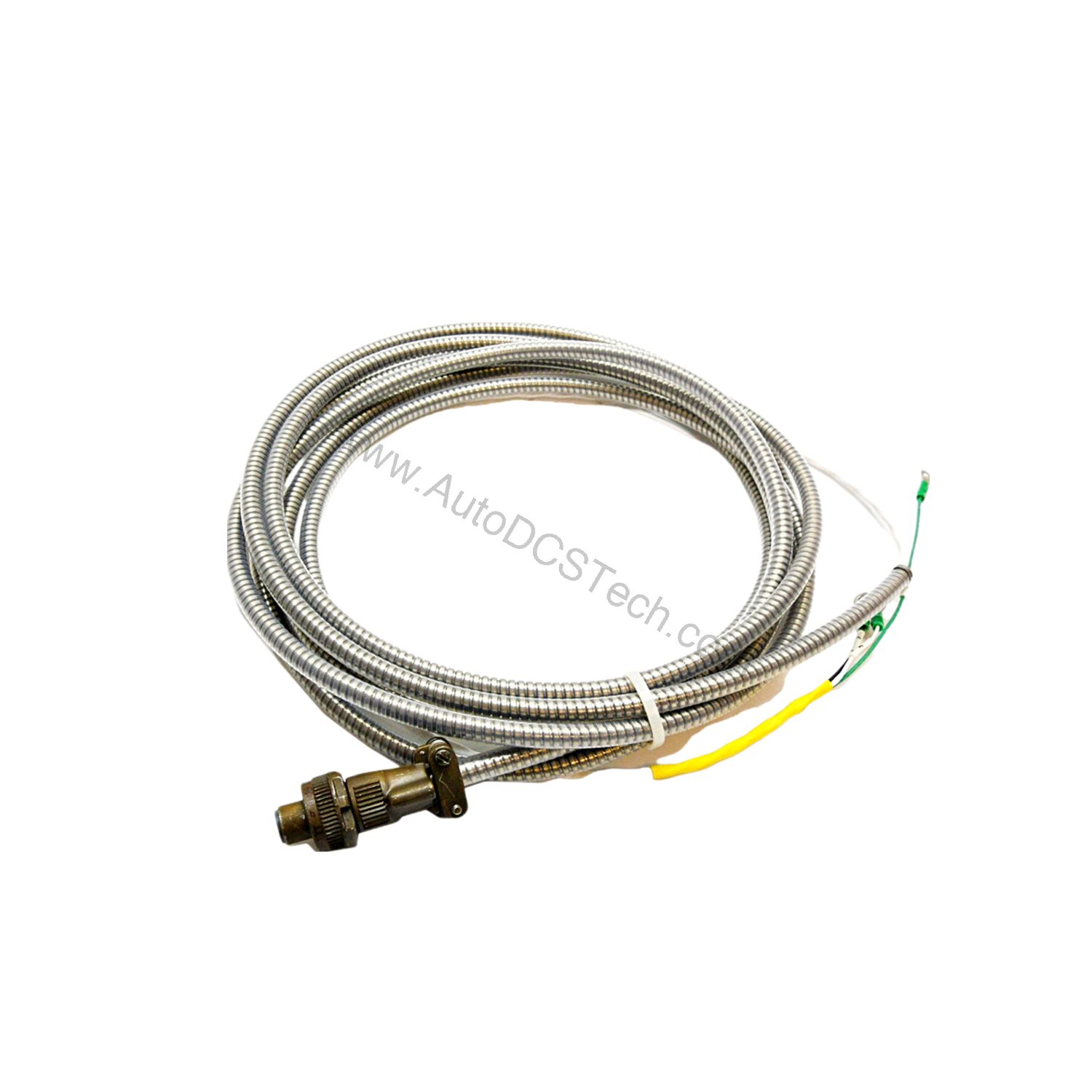

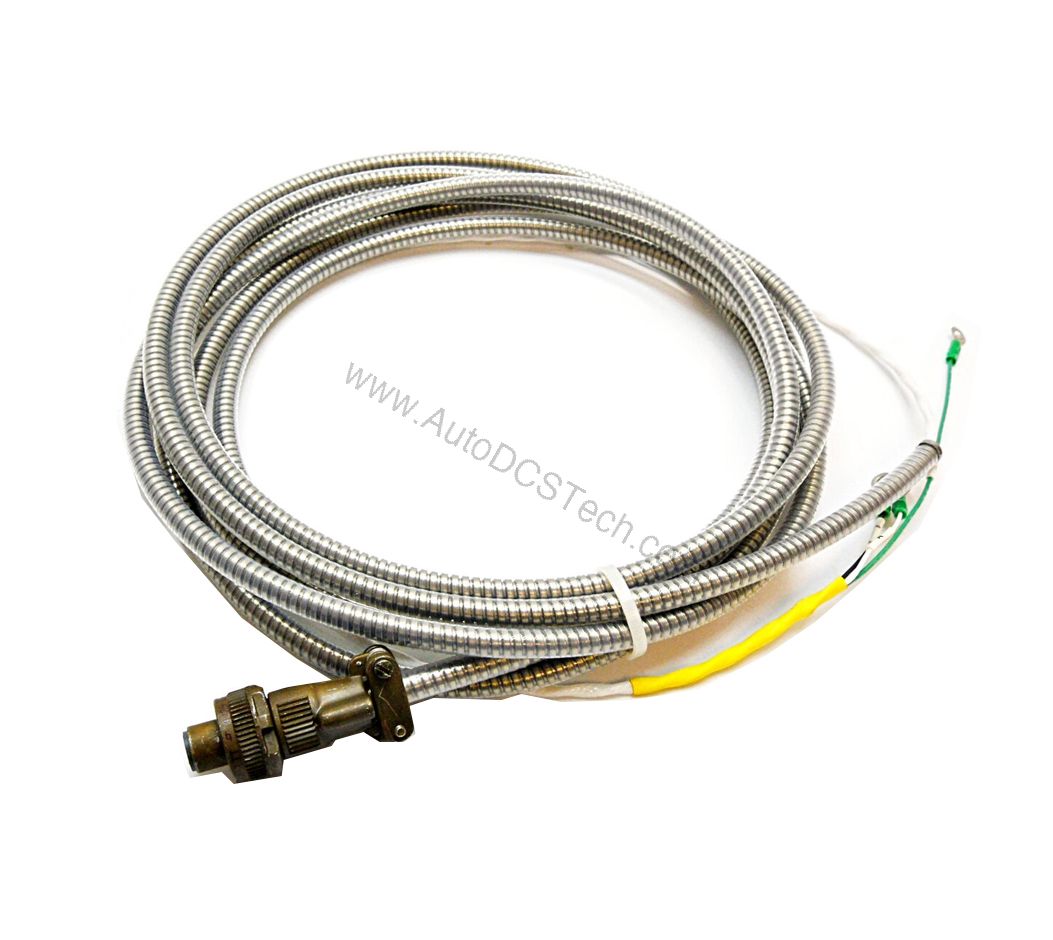

The cable features a two-conductor twisted, shielded 22 AWG design with armored protection. At one end, a two-socket moisture-resistant female connector ensures a secure, weatherproof connection; at the other, terminal lugs allow for straightforward termination. This construction minimizes signal degradation, which is critical for accurate vibration and position monitoring in rotating machinery.

From a cost perspective, the shielded twisted-pair configuration reduces electromagnetic interference, lowering the likelihood of false readings that could trigger unnecessary maintenance or shutdowns. The armored jacket extends service life in abrasive environments, reducing replacement frequency and total cost of ownership.

Applications and Use Cases

The 84661-30 is commonly used to connect proximity probes and sensors to monitoring systems in industries such as oil and gas, power generation, and manufacturing. Its moisture-resistant connector makes it suitable for outdoor or wash-down areas where humidity or condensation is a concern.

For example, in a turbine monitoring application, the cable's shielding helps preserve the integrity of vibration signals over the 30-foot run, ensuring that operators receive accurate data for predictive maintenance. This proactive approach can significantly reduce unplanned downtime and repair costs.

Additionally, the cable's armored construction withstands physical abuse in cable trays or conduit runs, minimizing damage-related failures that could otherwise lead to expensive troubleshooting and replacement labor.

Installation and Setup

When installing the 84661-30, ensure that the moisture-resistant connector is properly seated and tightened to maintain its environmental seal. The terminal lugs should be connected to the appropriate terminals with correct torque, following the manufacturer's guidelines.

For optimal performance, route the cable away from high-voltage power lines and other sources of electromagnetic interference. Although the cable is shielded, maintaining separation reduces the risk of noise coupling. If the cable must cross power cables, do so at a 90-degree angle to minimize interference.

Before commissioning, verify continuity and insulation resistance using standard test equipment. This step helps identify any damage incurred during installation, avoiding unexpected failures after startup.

Maintenance and Reliability

Regular inspection of the 84661-30 is recommended to ensure the connector remains clean and free of corrosion. In harsh environments, periodic checks for cuts or abrasions on the armored jacket can prevent moisture ingress and signal degradation.

Because the cable is passive, it requires no routine calibration. However, verifying the integrity of the connection during scheduled maintenance intervals helps maintain system accuracy. Any signs of wear should be addressed promptly to avoid intermittent faults that are difficult to diagnose.

From a cost perspective, proactive maintenance of interconnect cables is far less expensive than troubleshooting a mysterious sensor failure that halts production. A simple visual inspection can extend the cable's service life and protect your investment.

Compatibility and Integration

The 84661-30 is designed for use with Bently Nevada monitoring systems that accept two-conductor shielded cables with a two-socket female connector. It is commonly paired with proximity transducers and vibration monitors, though specific compatibility should be verified against your system's requirements.

For integration assistance, consult the Bently Nevada documentation or contact AutoDCSTech to confirm that this cable meets your application's needs. Our team can help you select the correct length and configuration for your installation.

Product Support and Availability

The Bently Nevada 84661-30 is available through AutoDCSTech. Contact our team to check current stock and lead times. We are ready to support your industrial automation needs with genuine parts and expert guidance.
