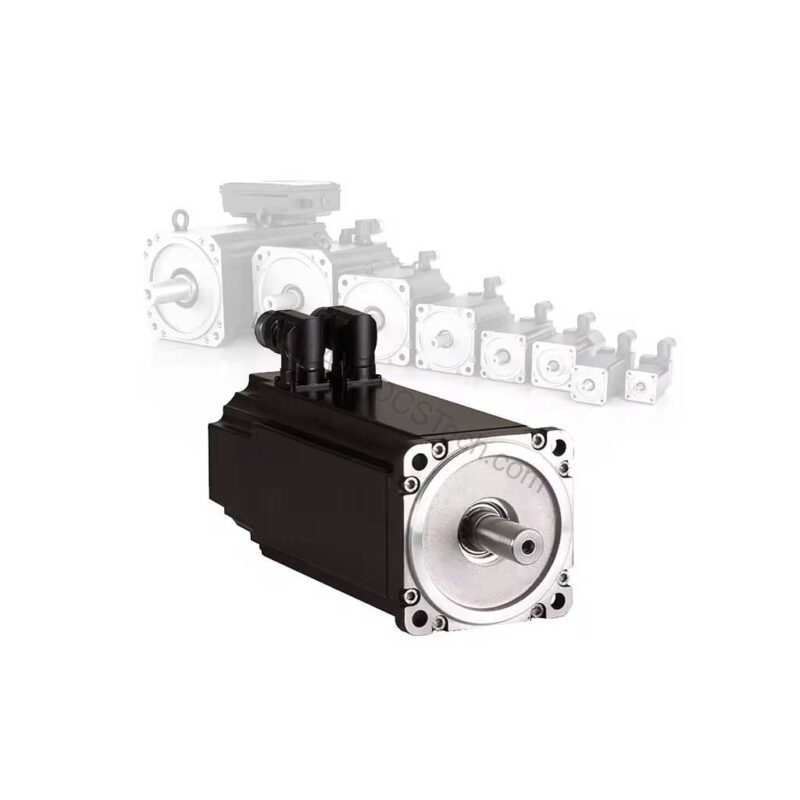

8LSC53.ee022ffgg-4: 2200 RPM B&R Servo Motor
The 8LSC53.ee022ffgg-4 is the 2200 RPM B&R Servo Motor covered on this page. The attribute that decides whether it fits the existing installation without modification is 3055 W.
What separates this variant from its siblings is 2200 rpm b&r servo motor. Selecting this unit comes down to confirming the configuration against the installation it is being fitted to. 2200 rpm b&r servo motor is the attribute that decides fit and function, and verifying 3055 W against the existing equipment is the check that prevents a part that installs but does not perform.
| Feature | Specification |
|---|---|
| Manufacturer | B&R |
| Brand | B&R |
| Part Number | 8LSC53.ee022ffgg-4 |
| Nominal speed | 2200 rpm |
| Nominal torque | 13.3 Nm |
| Nominal power | 3055 W |
| Nominal current | 6.0 A |
| Maximum torque | 30.0 Nm |
| Maximum speed | 5000 rpm |
| Torque constant | 2.22 Nm/A |
| Moment of inertia | 6.8 kg·cm² |
| Mass (without brake) | 10.60 kg |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | 8LSC53.ee022ffgg-4 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
