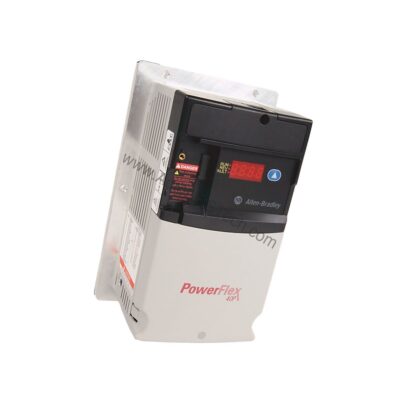

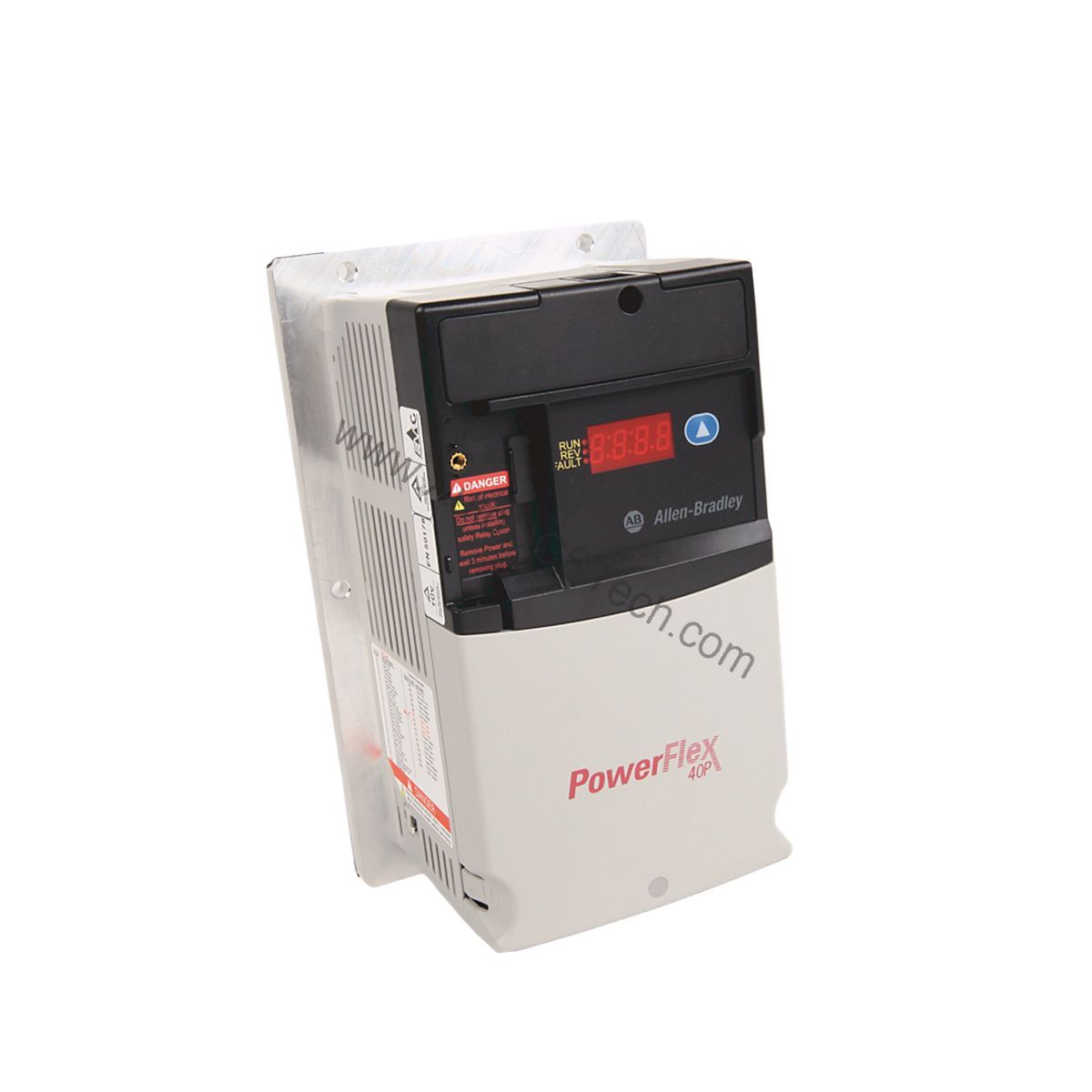

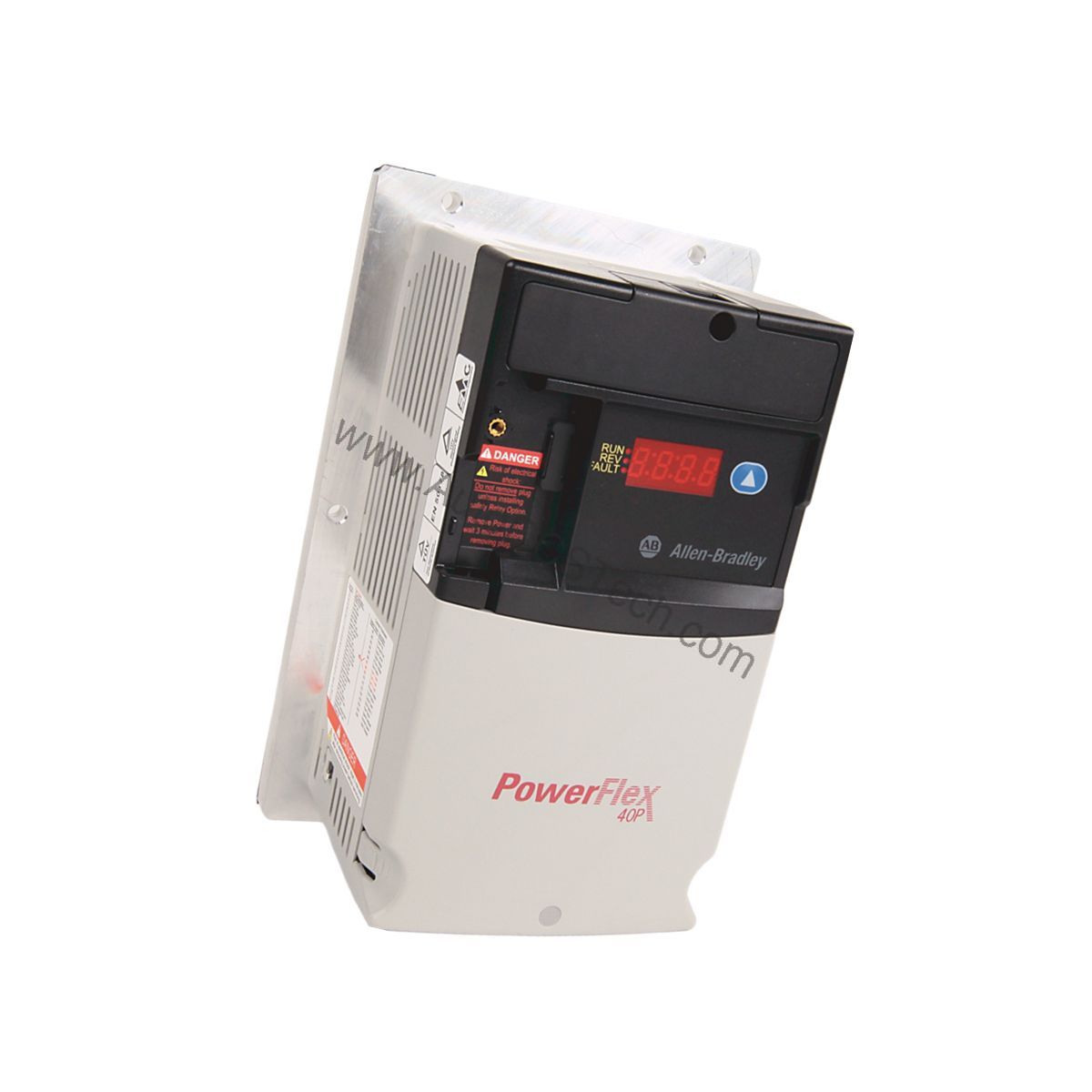

Allen-Bradley 22D-B5P0H204 PowerFlex 40P AC Drive, 5A, 1HP

PowerFlex 40P Adjustable Frequency Drive Overview

The Allen-Bradley 22D-B5P0H204 is a compact adjustable frequency drive from the PowerFlex 40P series. It operates on a 3-phase AC input voltage of 240 Volts AC at 50 to 60 Hertz. This drive delivers a maximum output current of 5 Amps and supports a maximum output power of 1 Horsepower (0.75 kilowatts). Designed as a plate drive with no filter and no enclosure, it suits panel-mount installations where space is at a premium. The 22D-B5P0H204 offers closed-loop control capability and an option for Category 3 Safe Torque-off, making it a versatile choice for basic motor control applications.

Technical Specifications Breakdown

Key parameters for the 22D-B5P0H204 are listed below for quick reference:

Industry Applications

This drive is engineered for basic control of general applications. Common uses include diverters, smart conveyors, packaging machines, and fiber spinning machines. Its compact, open-plate design allows easy integration into existing control panels. The 22D-B5P0H204 supports integral RS-485 communication, enabling connectivity with controllers using DF1 messaging. This makes it suitable for retrofit projects where space is limited but reliable motor control is essential.

Installation & Setup Guidance

When installing the 22D-B5P0H204, ensure the input voltage matches the 240 Volts AC rating and that the supply is three-phase. The open NEMA Type - Plate Mount (IP20) enclosure requires mounting inside a suitable cabinet to protect against dust and moisture. Verify that the motor's full-load current does not exceed the 5.0 A maximum output current. For programming, the drive supports a remote Human Machine Interface (HMI) or PC interface, simplifying parameter setup.

Maintenance & Reliability

Regular inspection of the drive's cooling fins and mounting area is recommended to prevent overheating. Since the unit has no filter, keep the surrounding environment clean to avoid dust accumulation. Periodically check all electrical connections for tightness and signs of wear. The drive includes overload protection, ramp regulation, and flying start features, which enhance operational reliability. Always power down and lock out before performing any maintenance.

Compatibility & Integration

The 22D-B5P0H204 features an integral RS-485 communication port. It also supports an optional serial converter module for use with any controller that supports DF1 messaging. This allows seamless integration with existing automation systems. The drive employs CIP (RS-485) communication, making it compatible with Rockwell Automation's Logix platform. This integration reduces development time and simplifies parameter and tag programming.

Selection Guide & Purchasing Advice

When selecting a replacement or new drive, verify the input voltage, phase, and output current requirements of your application. The 22D-B5P0H204 is a standard type drive with a frame size B, suitable for 1 HP motors. Ensure the enclosure type (open plate mount) fits your installation environment. For availability and lifecycle status, contact AutoDCSTech. They can provide current information and ensure the part meets your needs.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
