Allen-Bradley 22D-D017F104 PowerFlex 40P AC Drive, 480V, 17A

Product Overview

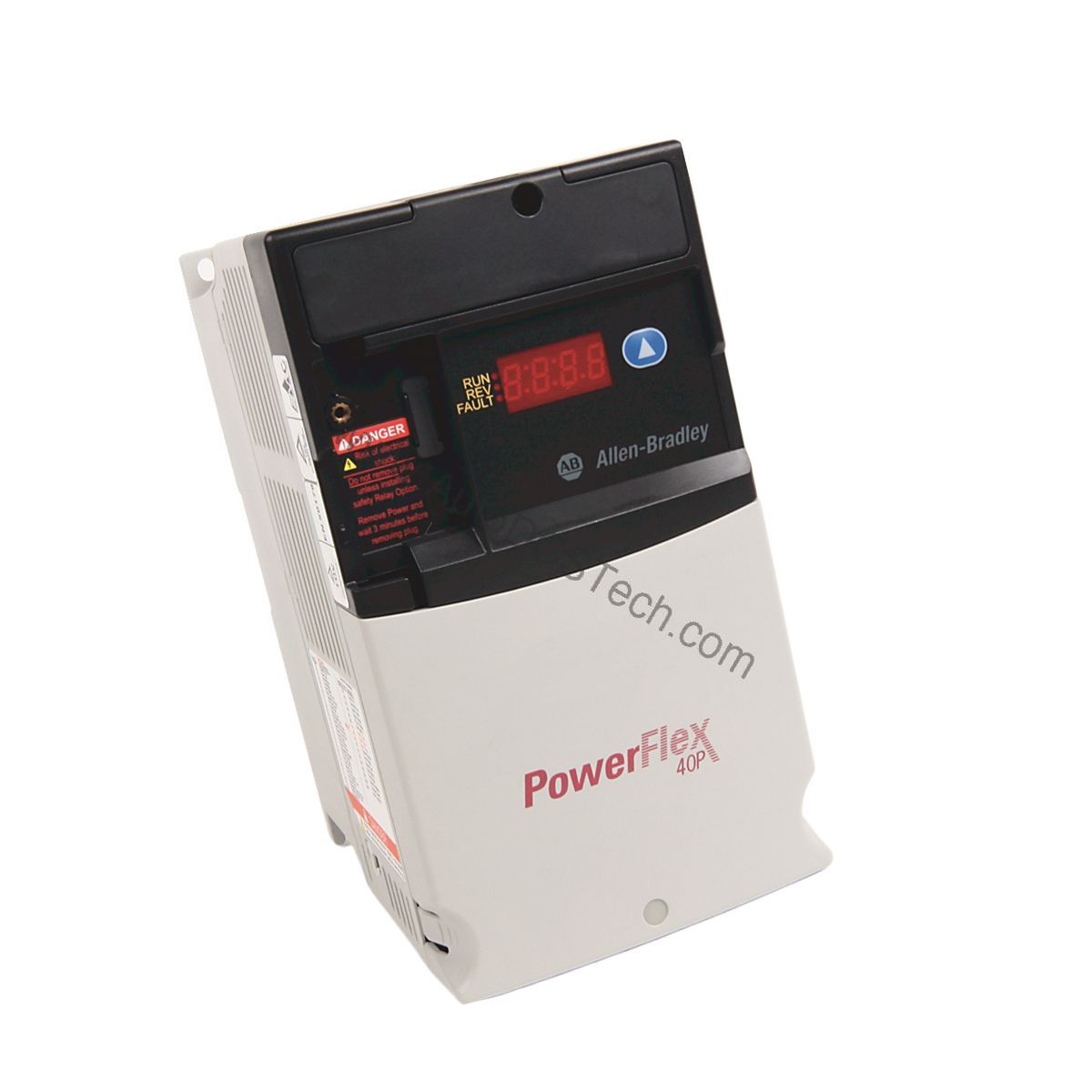

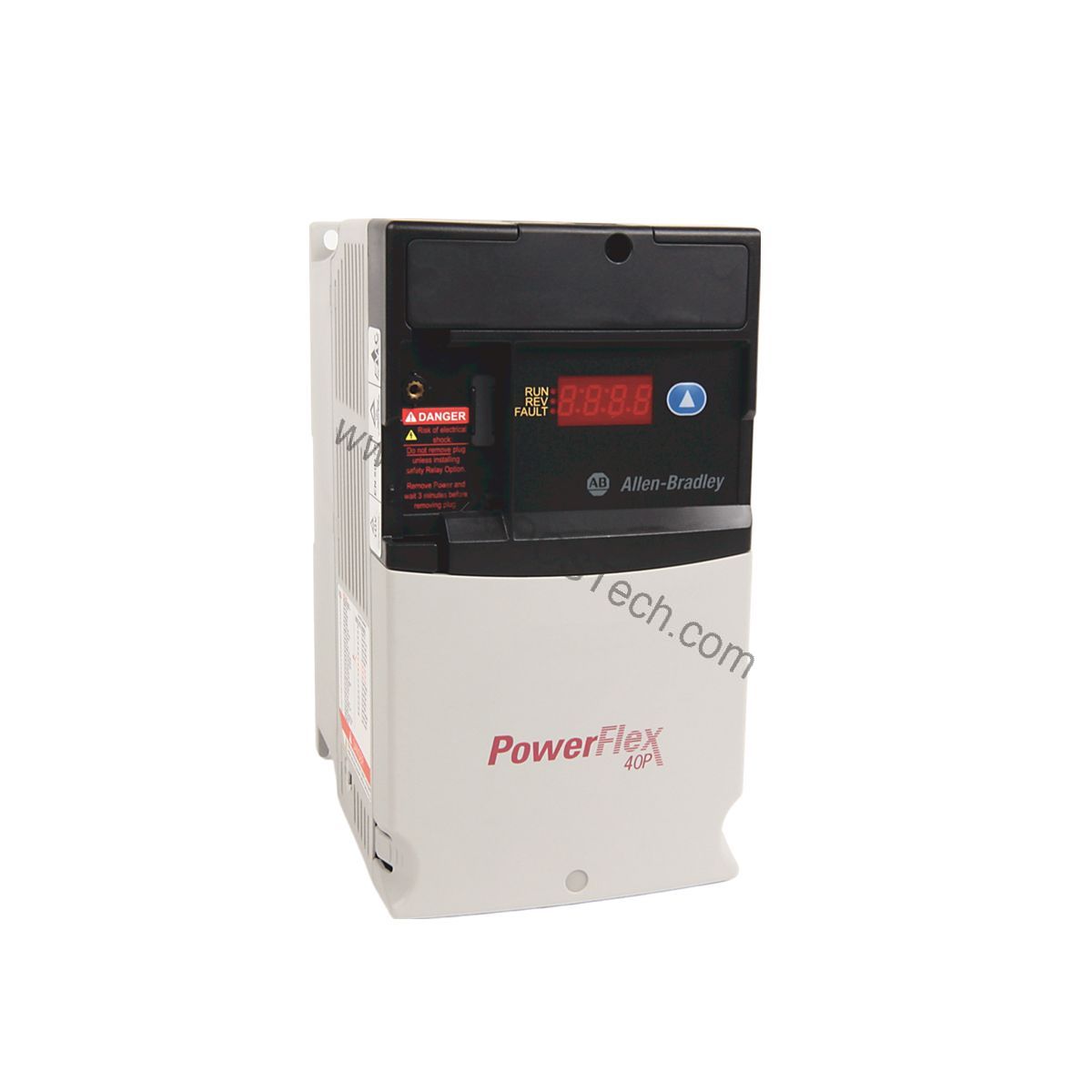

The 22D-D017F104 is a motor control drive manufactured by Allen-Bradley as part of the PowerFlex 40P series. It operates with 480 Volts AC 3-phase input voltage at 50 to 60 Hertz. With a maximum output current rating of 17 Amps and a horsepower rating of 10 HP, this drive is suitable for moderate-power applications. The drive features a Size C frame and an Open NEMA Type -Flange Mount (IP20) enclosure, providing a compact design that fits into tight spaces.

The PowerFlex 40P series is known for its closed-loop control capability and optional Category 3 Safe Torque-Off, ensuring safe operation in critical applications. The 22D-D017F104 is designed to meet the demands of users who prioritize simplicity and flexibility. Its integral keypad includes a 4-digit display and 10 LED indicators, making setup and operation straightforward.

Technical Specifications Breakdown

Key parameters for the 22D-D017F104 are listed below for quick reference:

Industry Applications

The 22D-D017F104 drive is well-suited for applications that require precise speed or position control. Typical uses include:

• Smart Conveyors: Maintain consistent belt speed for accurate product flow and sorting.
• Diverters: Control the timing and speed of diverting mechanisms to ensure correct routing.
• Fiber Spinning Machines: Regulate spindle speed to maintain fiber quality and tension.
• Packaging Machines: Synchronize multiple axes for efficient and reliable packaging operations.

Installation & Setup Guidance

When installing the 22D-D017F104, follow these practical steps to ensure reliable operation:

1. Mounting: The drive has an IP20 flange mount enclosure. Mount it on a flat, non-flammable surface with adequate clearance for airflow.
2. Wiring: Connect the 480V AC 3-phase input to the designated terminals. Ensure proper grounding and follow local electrical codes.
3. Programming: Use the integral keypad to access the 4-digit display and 10 LED indicators. The drive stores the ten most common parameters for quick access.
4. Communication: The drive uses CIP (RS-485) communication. Connect to a PLC or PC via the serial converter module for DF1 messaging.
5. Commissioning: After wiring and programming, perform a test run with the motor disconnected to verify settings.

Always refer to the user manual for detailed wiring diagrams and parameter settings.

Maintenance & Reliability

Regular maintenance extends the life of the drive and prevents unexpected failures. Consider the following:

• Inspect Periodically: Check for dust accumulation on the heatsink and clean with a soft brush or low-pressure air.
• Check Connections: Tighten terminal screws to prevent loose connections caused by vibration.
• Monitor Environment: Ensure the operating environment is within the drive's specified temperature and humidity limits.
• Firmware Updates: Keep the drive's firmware up to date to benefit from bug fixes and enhancements.

Because the drive has no CE-compliant filter, ensure that electromagnetic interference is managed through proper shielding and grounding.

Is your production line struggling with precise speed control and frequent downtime?

In modern manufacturing, maintaining consistent motor speed is critical for product quality and operational efficiency. The Allen-Bradley 22D-D017F104 PowerFlex 40P adjustable frequency drive offers a robust solution for applications that demand flexibility and ease of use. This drive is engineered to control the speed and torque of a motor within a PLC system, making it a versatile component for various industrial processes.

Compatibility & Integration

It supports CIP (RS-485) communication, allowing connection to remote Human-Machine Interface (HMI) modules or a PC for programming. The serial converter module enables multi-drop network configuration with integral RS485 communications. This makes it easy to incorporate the drive into a larger control network.

Selection Guide & Purchasing Advice

When selecting a replacement or new drive, verify that the 22D-D017F104 meets your voltage, current, and horsepower requirements. The 480V AC input and 17A output are suitable for 10 HP motors. Ensure the enclosure type (IP20) is acceptable for your environment. If your application requires a CE-compliant filter, consider other models in the PowerFlex 40P series.

AutoDCSTech is your trusted source for industrial automation parts. We offer genuine Allen-Bradley products with competitive pricing and fast shipping. Contact our team to confirm availability and lifecycle status before ordering.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
