9200-06-05-10-00 Bently Nevada 20 mV/mm/s Seismoprobe Transducer

Introduction to the 9200-06-05-10-00

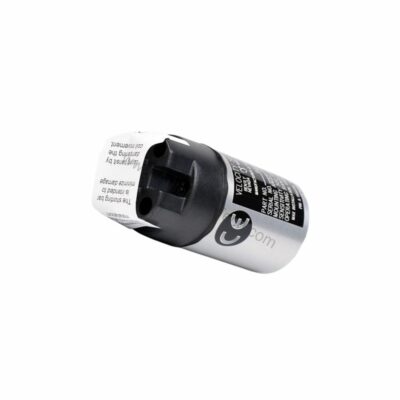

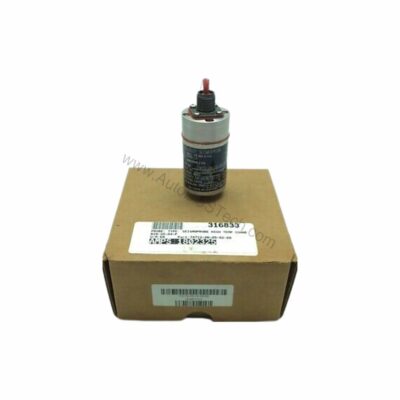

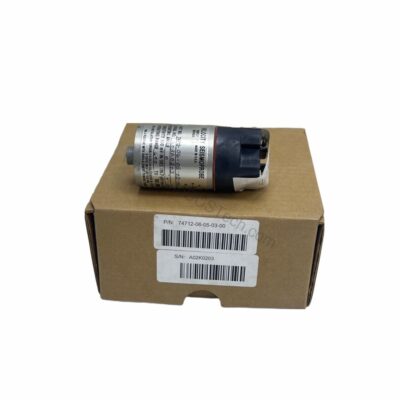

When machinery vibration threatens uptime, the 9200-06-05-10-00 from Bently Nevada provides a precise measurement solution. This two-wire velocity seismoprobe transducer is engineered to detect casing vibration and deliver accurate data for condition monitoring.

With a sensitivity of 20 mV/mm/s (±5% when properly terminated and oriented at the angle of calibration), this transducer ensures dependable performance in industrial environments.

Key Features and Technical Specifications

The 9200-06-05-10-00 offers a robust set of specifications designed for continuous operation:

• Model: Two-Wire Velocity Seismoprobe Transducer
• Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5%
• Dynamic Operating Range: 2.54 mm (0.100 in) peak-to-peak maximum displacement
• Velocity Range: 25 mm/s (1 in/s) at +22°C casing vibration at 100 Hz with a 10 kΩ load
• Coil Resistance: 1.25 kΩ ±5%
• Locked Coil Inductance: 125 mH, typical
• Operating and Storage Temperature: -29°C to +121°C (-20°F to +250°F)
• Relative Humidity: Up to 95%, noncondensing; 100% non-submerged when ordered with integral cable
• Case and Adapter Material: Anodized aluminum A204
• Gasket Material: Neoprene
• Height: 102 mm (4 in) typical (depending on connector option)
• Diameter: 41 mm (1.6 in) typical
• Weight: 300 grams (10.5 ounces) typical

This transducer is designed for dust and moisture resistance, ensuring reliable operation in harsh industrial settings.

Applications and Use Cases

The 9200-06-05-10-00Its two-wire configuration simplifies wiring and reduces installation complexity. Consequently, it is well-suited for continuous vibration monitoring in process plants, power generation facilities, and manufacturing lines.

Furthermore, the transducer's wide temperature range allows deployment in both indoor and outdoor environments, even where temperature fluctuations are significant.

Installation and Mounting

Proper installation is critical for accurate measurements. The 9200-06-05-10-00 features a circular mounting base with an M10X1 stud, enabling secure attachment to machinery casings. The mounting angle option 06 specifies 0° ±100, with a minimum operating frequency of 10 Hz (600 cpm).

The connector option 05 is a terminal block top mount with no cable, allowing direct wiring to the monitoring system. Ensure the transducer is oriented at the angle of calibration to maintain the specified sensitivity.

Maintenance and Reliability

Routine inspection of the transducer and its mounting is recommended to ensure long-term accuracy. Check for any loosening of the mounting stud or damage to the connector. The anodized aluminum case and neoprene gasket provide protection against dust and moisture, reducing maintenance frequency.

Given its robust construction, the 9200-06-05-10-00 offers extended service life, minimizing downtime and replacement costs.

Compatibility and Integration

This transducer outputs a velocity signal that can be interfaced with Bently Nevada monitoring systems or any compatible vibration monitoring equipment. The two-wire design simplifies integration into existing control loops.

For specific compatibility details, refer to the official Bently Nevada documentation or contact AutoDCSTech for assistance.

Troubleshooting Common Issues

If the transducer fails to provide a signal, check the wiring connections at the terminal block and ensure the load resistance is 10 kΩ. Verify that the transducer is mounted securely and not subjected to excessive vibration beyond its dynamic range.

Should sensitivity drift occur, confirm the orientation matches the calibration angle. If problems persist, consult the manufacturer's manual or contact AutoDCSTech.

Product Support and Availability

The 9200-06-05-10-00 is available at AutoDCSTech as a new, original product in factory packing. It comes with a 12-month factory warranty. Contact AutoDCSTech for current stock status and ordering information.
