84661-17 17 ft Bently Nevada Interconnect Cable

Key Features and Technical Specifications

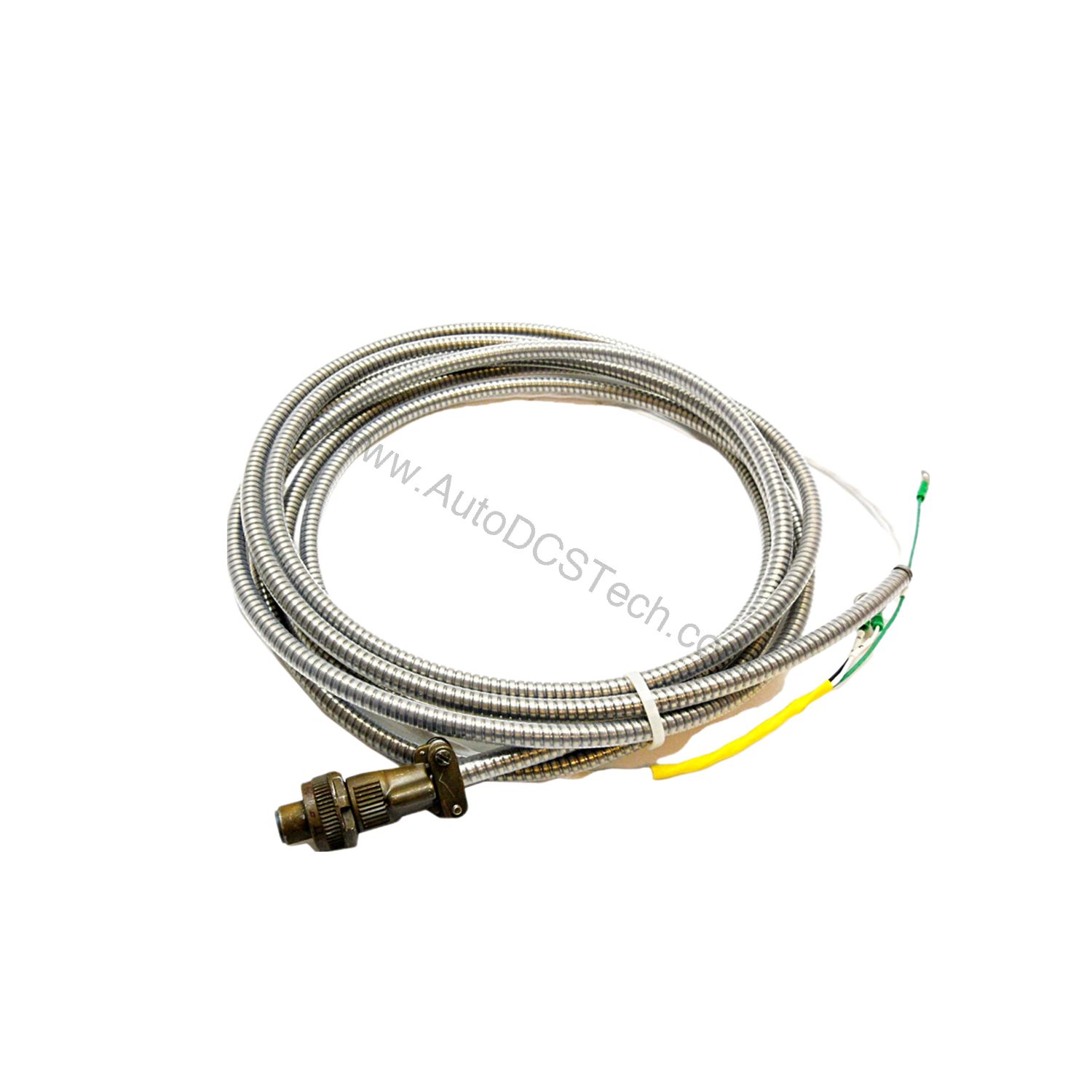

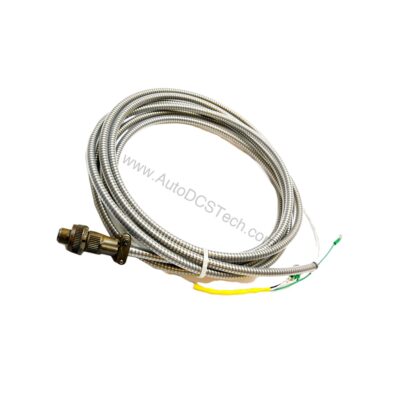

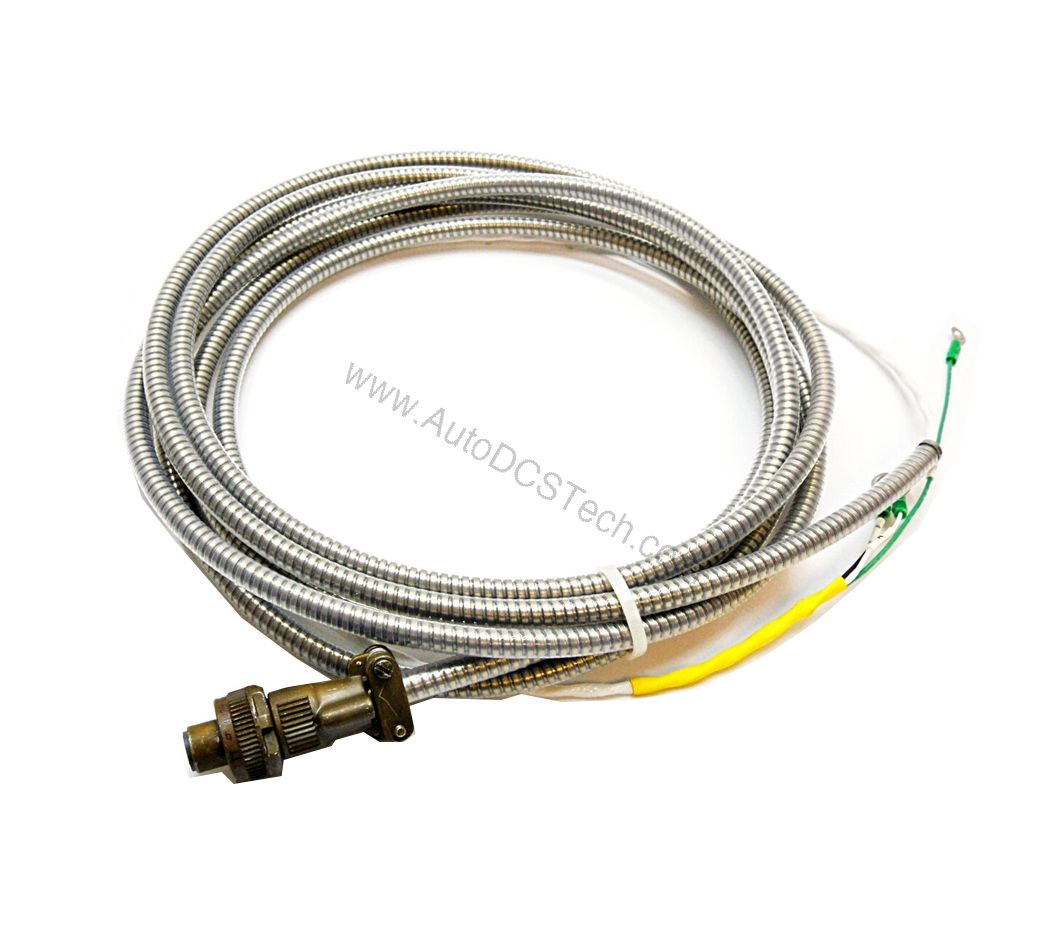

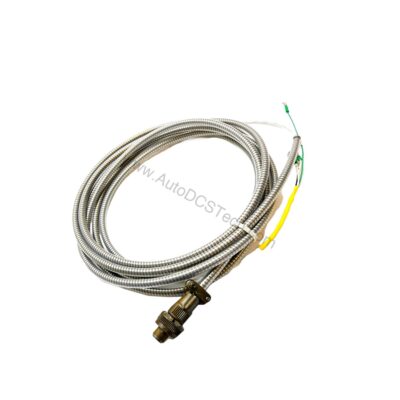

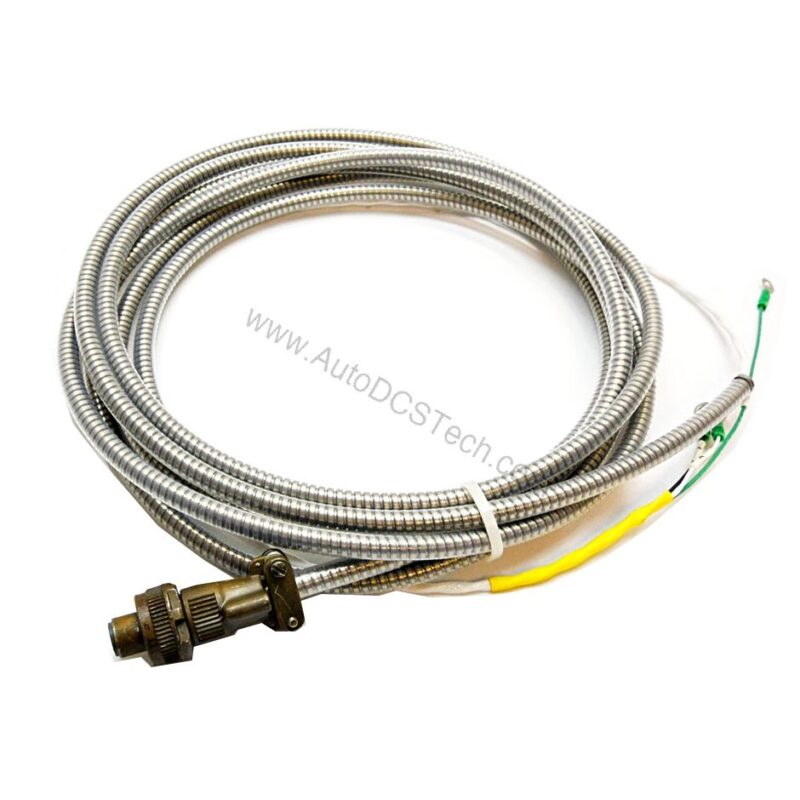

The 84661-17 is a two-conductor twisted, shielded 22 AWG armored cable. This construction minimizes electromagnetic interference and ensures stable signal transmission. The cable includes a two-socket moisture-resistant female connector at one end and terminal lugs at the other, facilitating secure connections in harsh environments.

• Manufacturer: Bently Nevada
• Product Type: Interconnect Cables
• Length: 17 feet (5.2 meters)
• Minimum available length: 3.0 ft (0.9 m)
• Maximum available length: 96 ft (29 m)
• Conductor: 22 AWG twisted, shielded
• Connector: Two-socket moisture-resistant female
• Termination: Terminal lugs

The armored jacket provides mechanical protection, making the 84661-17 suitable for industrial environments where cables may be exposed to abrasion or impact. The moisture-resistant connector ensures reliable operation in humid or wet conditions, reducing the risk of corrosion and signal loss.

Real-World Applications

The 84661-17 is commonly used in vibration monitoring systems, where it connects proximity probes or accelerometers to monitoring racks. For example, in a steam turbine train, this cable can be used to carry signals from bearing vibration sensors to the protection system. The shielded twisted-pair design helps reject common-mode noise, which is critical in environments with variable frequency drives or high-voltage equipment.

Installation and Setup

When installing the 84661-17, ensure that the moisture-resistant connector is properly seated and tightened to maintain its seal. Route the cable away from high-heat sources and sharp edges, using the armored jacket as a first line of defense. Terminal lugs should be crimped or soldered according to the manufacturer's guidelines to ensure a secure electrical connection. Always follow Bently Nevada's recommended installation practices to avoid ground loops and signal interference.

Maintenance and Reliability

Regular inspection of the 84661-17 is recommended to check for signs of wear, such as cuts in the armor or corrosion on the connector. In harsh environments, periodic cleaning of the connector contacts with a dry cloth can prevent oxidation. Because the cable is armored, it offers a longer service life than standard cables, reducing replacement frequency and maintenance costs. For critical applications, consider spare cables to minimize downtime during unexpected failures.

Solving Signal Integrity Challenges with the 84661-17

In rotating machinery monitoring, signal degradation over long cable runs can lead to false readings and costly downtime. The 84661-17 from Bently Nevada addresses this by providing a shielded, twisted-pair interconnect cable that maintains signal fidelity. With a length of 17 feet, this cable is designed for installations where sensor signals must travel reliably from the machine to the monitoring system.

Compatibility and Integration

The 84661-17 is designed to work with Bently Nevada monitoring systems, but it can also be used with other equipment that accepts two-wire shielded connections. The terminal lugs allow for flexible termination to screw terminals or barrier strips. For systems that require longer runs, Bently Nevada offers cables up to 96 feet, ensuring compatibility with a wide range of installation layouts.

Troubleshooting Common Issues

If signal loss or noise is observed, first check the connector for moisture ingress or loose mating. Inspect the cable for any cuts or abrasions that could compromise the shield. Verify that the terminal lugs are securely fastened and that the shield is grounded at one end only to avoid ground loops. If problems persist, consult the Bently Nevada documentation or contact AutoDCSTech for technical support.

Product Support and Availability

The 84661-17 is available from AutoDCSTech, an industrial automation parts supplier. Contact AutoDCSTech for current availability and lead times. They can also provide guidance on selecting the correct cable length for your application.
