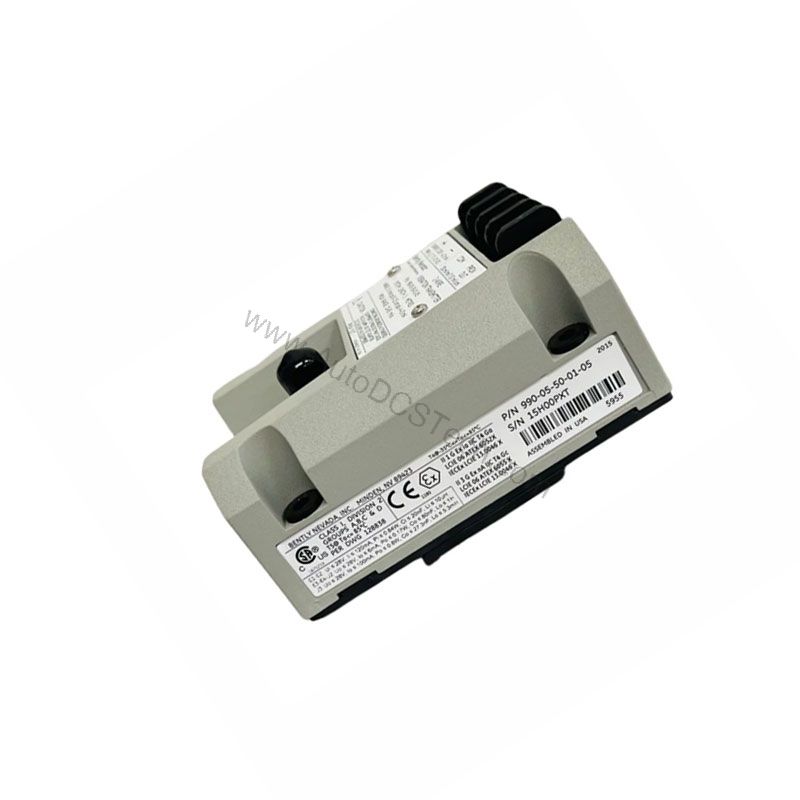

Overview of the 990-10-50-03-01 Vibration Transmitter
When machine vibration threatens uptime, the 990-10-50-03-01 from Bently Nevada delivers a precise, loop-powered solution. This 990 series transmitter accepts one non-contacting 3300 NSv proximity probe and extension cable, converting dynamic shaft vibration into a standard 4-20 mA signal. Because it operates in a two-wire configuration, it simplifies wiring and reduces panel space, making it a practical choice for continuous monitoring in industrial environments.
The unit is manufactured in the U.S.A. and carries CSA Division 2 agency approval, suitable for non-hazardous, Zone 2, or Division 2 hazardous area locations. With a full-scale range of 0-10 mils pp (0-250 μm pp), it covers common vibration measurement needs for rotating machinery.
Key Features and Technical Specifications
- Input: Accepts one non-contacting 3300 NSv proximity probe and extension cable.
- Power: Requires +12 to +35 Vdc input at the transmitter terminal.
- Output: 4-20 mAdc over the specified full-scale range in a two-wire configuration.
- Accuracy: Within ±1.5% over the full-scale range, measured from the TEST signal input to the voltage across a 250 Ω loop resistance.
- Maximum Loop Resistance: 1,000 Ω including cable at 35 Vdc.
- Current Limiting: 23 mA typical.
- Frequency Response: 5 Hz to 6,000 Hz +0, 3 dB.
- Minimum Target Size: 9.5 mm (0.375 in) diameter.
- Probe Gap: Must be gapped between 0.5 and 1.75 mm (20 and 55 mils) from target.
- Not OK/Signal Defeat: Output drops below 3.6 mA within 100 µs after a Not OK condition; restores within 2-3 seconds after removal.
These specifications ensure reliable performance in demanding industrial settings. The transmitter's ability to signal a fault quickly helps operators respond to abnormal conditions before they escalate.
Applications and Use Cases
The 990-10-50-03-01 is ideal for monitoring shaft vibration in pumps, motors, fans, and other rotating equipment. Its 4-20 mA output integrates easily with PLCs, DCS, and SCADA systems, enabling continuous trend analysis and alarm management. For example, in a petrochemical plant, the transmitter can feed vibration data to a central control room, allowing early detection of bearing wear or imbalance. Consequently, maintenance teams can schedule repairs during planned outages, reducing unplanned downtime and extending machine life.
Furthermore, the transmitter's compact design and DIN clip mounting option simplify retrofits into existing panels, making it a versatile upgrade for older monitoring systems.
Installation and Setup
Mounting the 990-10-50-03-01 is straightforward with the DIN clips and screws option (Option 03). Before installation, verify that the power supply provides +12 to +35 Vdc at the transmitter terminal. The probe must be gapped correctly—between 0.5 and 1.75 mm (20 and 55 mils) from the target—to ensure full-scale range. Use the non-interacting external zero and span adjustments to calibrate the output for your specific application. Ensure the maximum loop resistance does not exceed 1,000 Ω at 35 Vdc, including cable resistance, to maintain accurate signal transmission.
For hazardous area installations, confirm that the area classification matches the CSA Division 2 approval. Follow all local electrical codes and the manufacturer's installation manual for safe wiring practices.
Maintenance and Reliability
Routine inspection of the transmitter and probe is essential for long-term reliability. Periodically verify that the probe gap remains within the specified range, as thermal expansion or mechanical shift can affect readings. Check the loop power supply and wiring for signs of corrosion or loose connections. Because the transmitter is loop-powered, it has minimal heat generation, reducing component stress. Regular calibration checks against a known vibration source can confirm accuracy within ±1.5%. By incorporating these checks into your preventive maintenance schedule, you can avoid unexpected failures and maintain consistent monitoring performance.
Compatibility and Integration
The 990-10-50-03-01 is designed to work with Bently Nevada 3300 NSv proximity probes and extension cables. Its 4-20 mA output is universally compatible with most industrial control systems, including PLCs, DCS, and standalone data loggers. The two-wire configuration simplifies integration into existing analog input modules. For systems requiring higher-level diagnostics, the transmitter's Not OK signal feature provides a clear indication of probe or wiring faults, enhancing overall system reliability.
Troubleshooting Common Issues
If the output signal is missing or erratic, first check the power supply voltage at the transmitter terminal—it must be within +12 to +35 Vdc. Verify that the probe is properly connected and gapped. If the output goes below 3.6 mA, a Not OK condition exists; inspect the probe cable for damage or loose connections. Ensure the loop resistance is within the 1,000 Ω limit; excessive resistance can cause voltage drop and signal degradation. If problems persist, consult the Bently Nevada documentation or contact AutoDCSTech for technical support.
Availability and Support
The 990-10-50-03-01 is available through AutoDCSTech, a trusted supplier of industrial automation parts. Contact our team for current pricing and lead times. We are ready to assist with product selection and technical inquiries.
