Introduction to the Bently Nevada 991-06-50-01-05
When axial thrust monitoring is critical, the 991-06-50-01-05 from Bently Nevada provides a reliable solution. This Probe Vibration Transmitter is engineered for continuous machinery protection. It converts proximity probe signals into a standard 4-20 mA output. This makes it ideal for integration with PLCs, DCS, and SCADA systems.

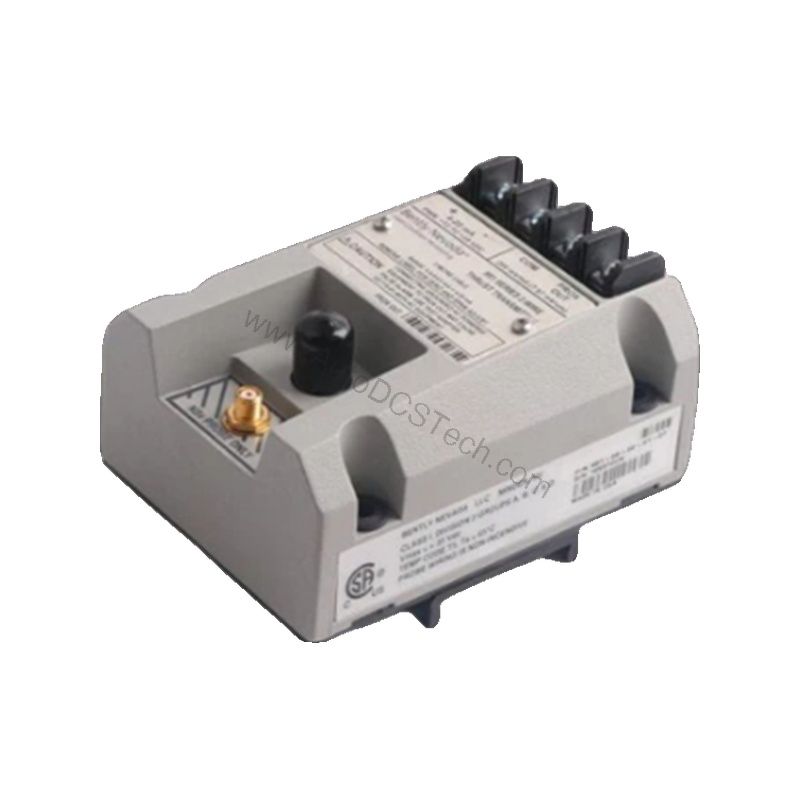

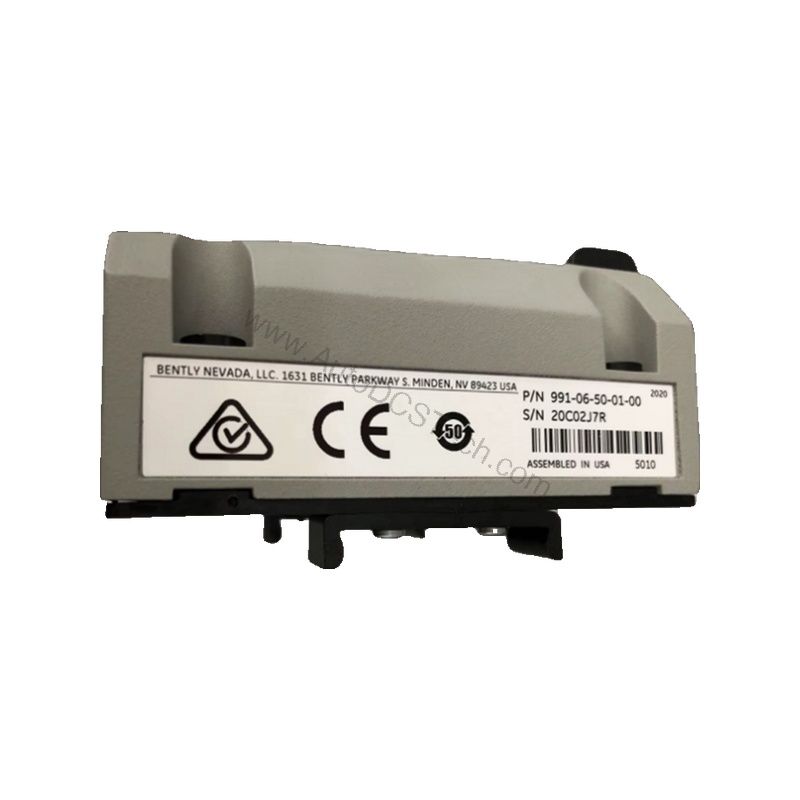

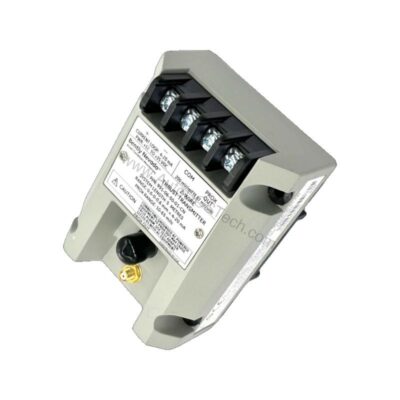

The 991-06-50-01-05 is a Thrust Transmitter model. It is designed for axial (thrust) position measurements. With a full-scale option of 0.6-0-0.6 mm, it offers precise monitoring of shaft position. The system length of 5.0 meters (16.4 feet) provides flexibility in installation. This transmitter is a robust choice for turbomachinery and other rotating equipment.
Key Features and Technical Specifications
The 991-06-50-01-05 offers a range of features that ensure accurate and reliable operation. Its 4-20 mA output is a standard industrial signal, simplifying integration. The transmitter accepts one non-contacting 3300 NSv proximity probe and extension cable. This design ensures compatibility with proven Bently Nevada sensing technology.
- Output Signal: 4-20 mA DC over specified full-scale range in a 2-wire configuration.
- Power Requirement: +12 to +35 Vdc input at the transmitter terminal.
- Linear Range: 0.25 to 1.65 mm for Prox Out; suitable for 0.6-0-0.6 mm or 25-0-25 mils current loop linear ranges.
- Mounting: 35 mm DIN-rail clips, with DIN rail mount.
- Agency Approvals: CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval.
- Operating Temperature: -35°C to +85°C (-31°F to +185°F).
- Storage Temperature: -51°C to +100°C (-60°F to +212°F).
- Weight: 0.43 kg (0.9 lbm).
- Current Limiting: 23 mA typical.
The transmitter features non-interacting external zero and span adjustments. This simplifies calibration and reduces maintenance time. The Not OK/Signal Defeat function ensures fail-safe operation. Signal output goes to less than 3.6 mA within 100 µs after a Not OK condition. It is restored within 0.1 seconds after the condition is removed.
Applications and Use Cases
The 991-06-50-01-05 is primarily used for axial thrust monitoring in rotating machinery. This includes steam turbines, gas turbines, compressors, and large pumps. By providing a continuous 4-20 mA signal, it enables real-time condition monitoring. This helps in detecting thrust bearing wear or misalignment early. Consequently, operators can take corrective action before catastrophic failure occurs.
In addition, the transmitter's compatibility with DIN-rail mounting makes it suitable for retrofit projects. Its compact design allows for installation in existing control panels. The ATEX and CSA approvals permit use in hazardous areas. This makes it a versatile choice for various industrial environments.
Installation and Setup
Proper installation is critical for accurate thrust measurement. The 991-06-50-01-05 is designed for DIN-rail mounting. Use the provided 35 mm DIN-rail clips for secure attachment. Ensure the transmitter is mounted in a location that allows easy access for adjustments.
Connect the 3300 NSv proximity probe and extension cable to the transmitter input. The system length of 5.0 meters (16.4 feet) must be respected. Power the transmitter with +12 to +35 Vdc at the terminal. The 4-20 mA output should be wired in a 2-wire configuration. For optimal performance, verify that the loop resistance does not exceed 1,000 Ω at 35 Vdc.
After installation, perform a zero and span calibration using the external adjustments. Follow the manufacturer's manual for detailed procedures. Always verify the Not OK/Signal Defeat function during commissioning.
Maintenance and Reliability
Regular maintenance ensures long-term reliability of the 991-06-50-01-05. Inspect the transmitter periodically for physical damage or contamination. Check all electrical connections for tightness and corrosion. Verify the output signal accuracy against a known reference.
The transmitter's solid-state design minimizes wear. However, environmental factors like temperature and vibration can affect performance. Operating within the specified temperature range (-35°C to +85°C) is essential. Storage temperature should remain between -51°C and +100°C. By following these guidelines, you can extend the service life of the transmitter.
Compatibility and Integration
The 991-06-50-01-05 integrates seamlessly with existing monitoring systems. Its 4-20 mA output is universally accepted by PLCs, DCS, and SCADA. The transmitter is compatible with Bently Nevada 3300 NSv proximity probes. This ensures accurate and reliable measurements.
For hazardous area installations, the agency approvals (CSA Division 2, ATEX Zone 0, ATEX Zone 2, ABS) provide confidence. The transmitter can be used in a wide range of industrial applications. It is an excellent choice for upgrading older monitoring systems.
Product Support and Availability
The 991-06-50-01-05 is available from AutoDCSTech. We are a leading supplier of industrial automation parts. Contact us for current availability and lifecycle status. Our team can assist with technical questions and ordering information.
Please verify the current lifecycle status and availability with AutoDCSTech before ordering. This ensures you receive the most up-to-date product information.
