Product Overview

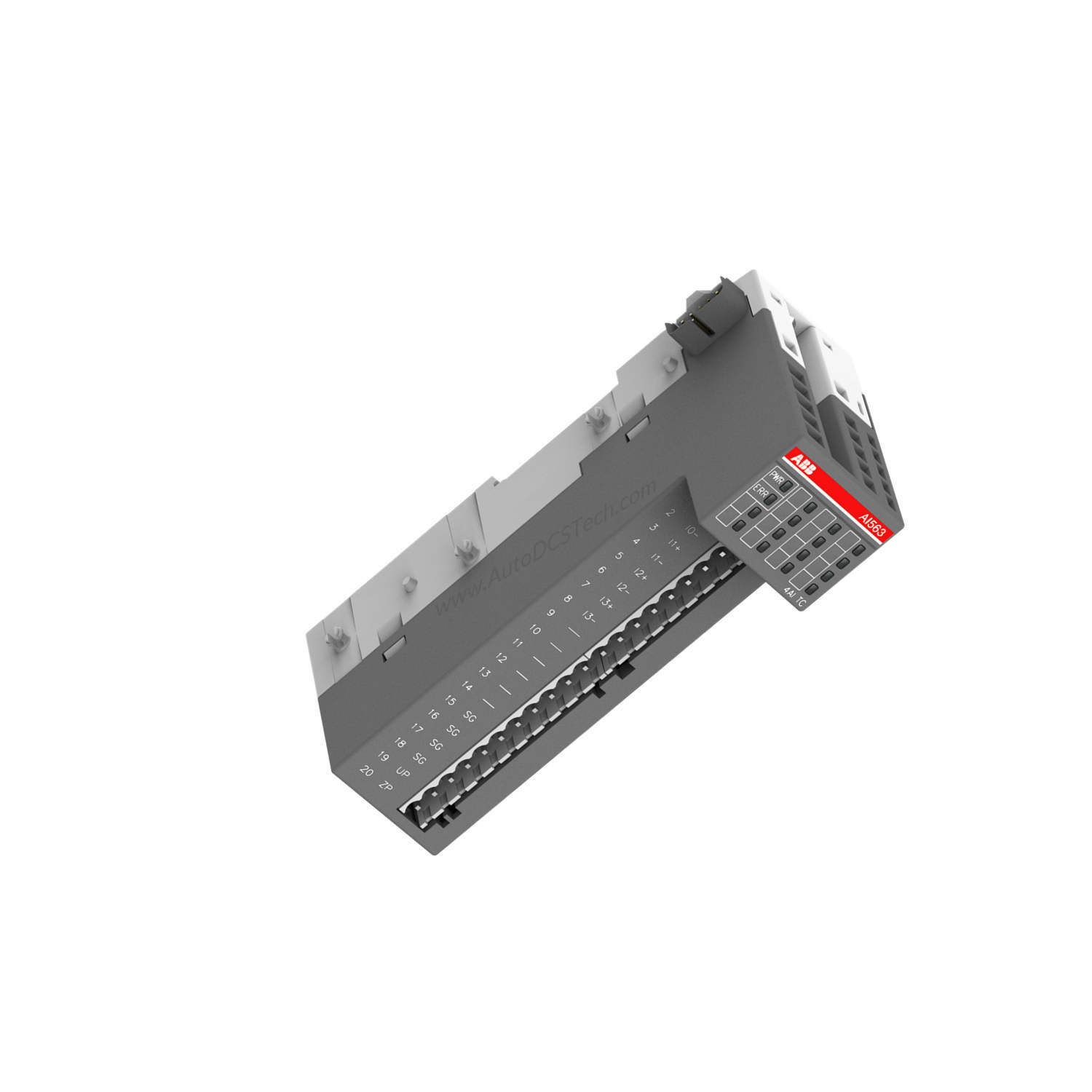

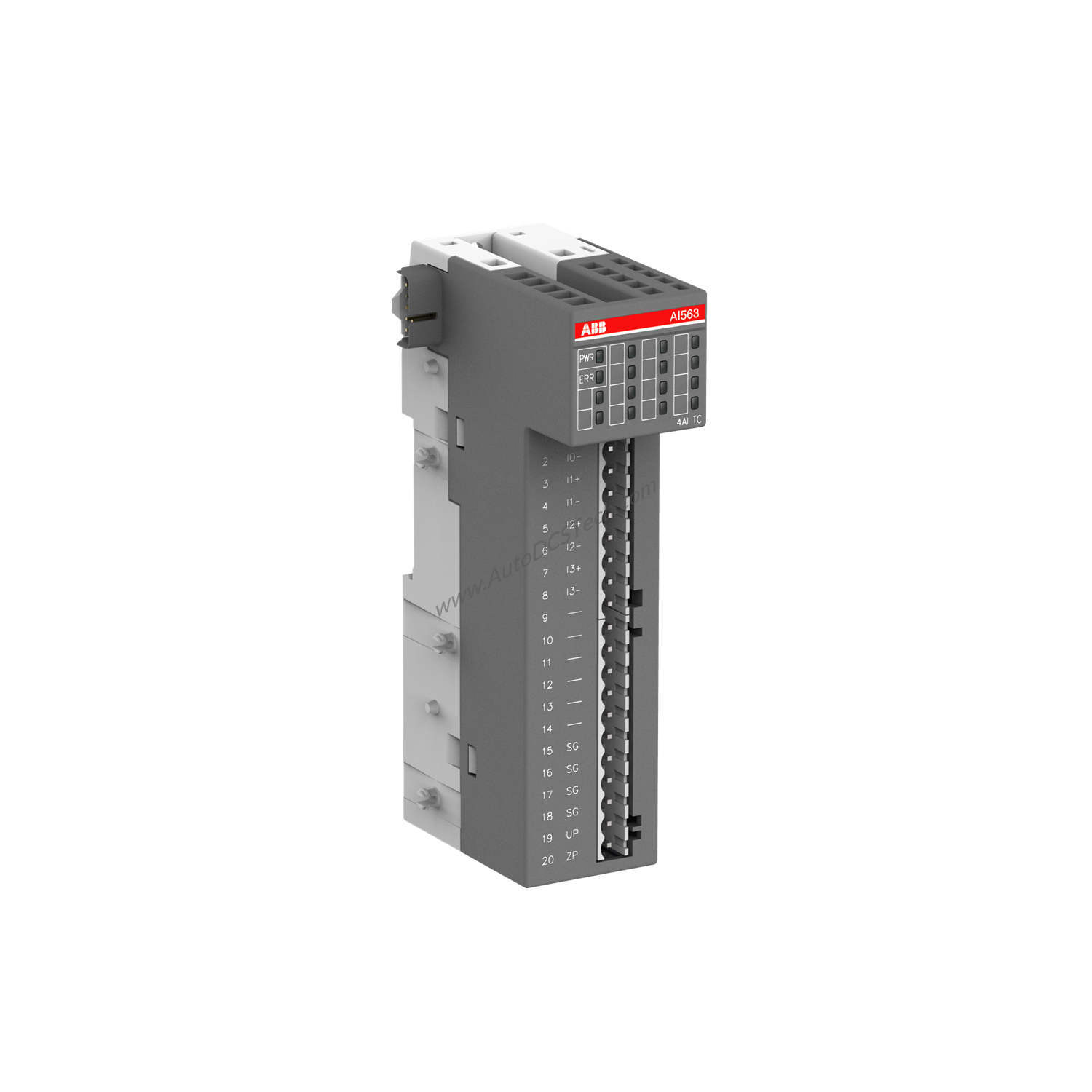

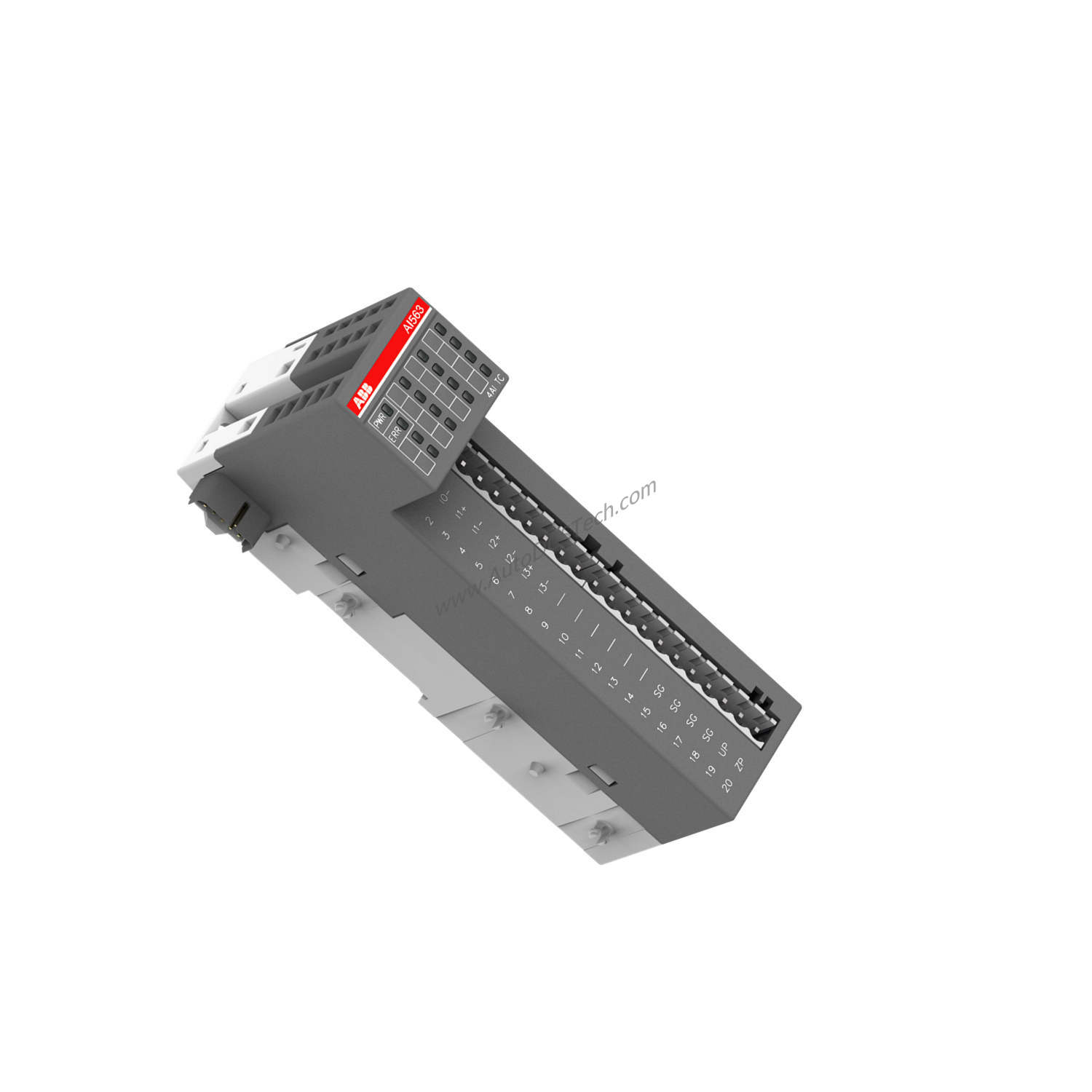

When precise temperature measurement is critical for process control, the ABB AI563 Floating thermocouple analog input module delivers reliable performance. This 4-channel module converts thermocouple signals into digital data with 0.1°C resolution and 16-bit voltage resolution. Designed for industrial environments, it features galvanic isolation between channels and the rest of the system, ensuring signal integrity and protection against electrical noise.
Technical Specifications Breakdown
The AI563 operates on a 24 V DC process supply voltage (UP) with a rated current consumption of 0.10 A. It includes protection against reversed voltage and requires no rated protection fuse for UP. The module dissipates a maximum of 2.6 W and weighs approximately 120 g. With a common mode rejection greater than 120 dB at 120 V AC, it effectively rejects interference. The analog-to-digital conversion time is 400 ms per channel, and the module update time for all channels is less than 1.6 s.
Industry Applications
- Chemical Processing: Monitor reactor temperatures using Type K or J thermocouples. The AI563's galvanic isolation prevents ground loops that could corrupt readings.
- HVAC Systems: Control boiler or chiller temperatures with 0.1°C resolution for energy efficiency.
- Food & Beverage: Ensure consistent pasteurization temperatures with reliable thermocouple input.
Installation & Setup Guidance
Mount the AI563 on a top hat rail (35 mm, depth 7.5 mm or 15 mm) per IEC 60715, or use M4 screws with a fastening torque of 1.2 Nm. Connect thermocouple signals to terminals I0+ to I3+ (terminals 1, 3, 5, 7) and I0- to I3- (terminals 2, 4, 6, 8). Connect UP (+24 V DC) to terminal 19 and ZP (0 V) to terminal 20. For unused inputs, leave them open and configure them as "unused" in the software. Ensure natural convection cooling is not obstructed by cable ducts or other parts.
Maintenance & Reliability
Regularly inspect wiring connections for tightness and verify that the module's ambient temperature stays within safe limits. The AI563 includes overvoltage protection up to 30 V DC, safeguarding against transient spikes. With no moving parts and a robust design, it requires minimal maintenance. Periodic calibration of connected thermocouples ensures ongoing accuracy.
Compatibility & Integration
The AI563 integrates with ABB AC500 PLC systems and other compatible controllers. It communicates via the module bus, providing 8 bytes of input data. The module supports floating thermocouple inputs and offers galvanic isolation against internal power supply and other modules. For system integration, verify compatibility with your specific CPU or communication interface module.
Selection Guide & Purchasing Advice
Before ordering the AI563, confirm your system's power supply (24 V DC) and mounting requirements. Ensure your thermocouple types are compatible with the module's configuration. For availability and lifecycle status, contact SpareTechPLC. We stock genuine ABB modules and can advise on replacements or upgrades.
Frequently Asked Questions
Q1: What is the resolution of the AI563 for temperature measurement?
The AI563 provides 0.1 °C temperature resolution and 16-bit voltage resolution including sign.
Q2: How many thermocouple channels does the AI563 support?
It supports 4 configurable thermocouple (TC) inputs, grouped into one isolated group of 4 channels.
Q3: Does the AI563 require a separate power supply?
Yes, it requires a 24 V DC process supply voltage connected to terminals UP (19) and ZP (20).
Q4: Can I leave unused inputs open?
Yes, unused inputs can be left open and should be configured as "unused" in the software.
Q5: What is the common mode rejection of the AI563?
Greater than 120 dB at 120 V AC, ensuring excellent noise rejection.
