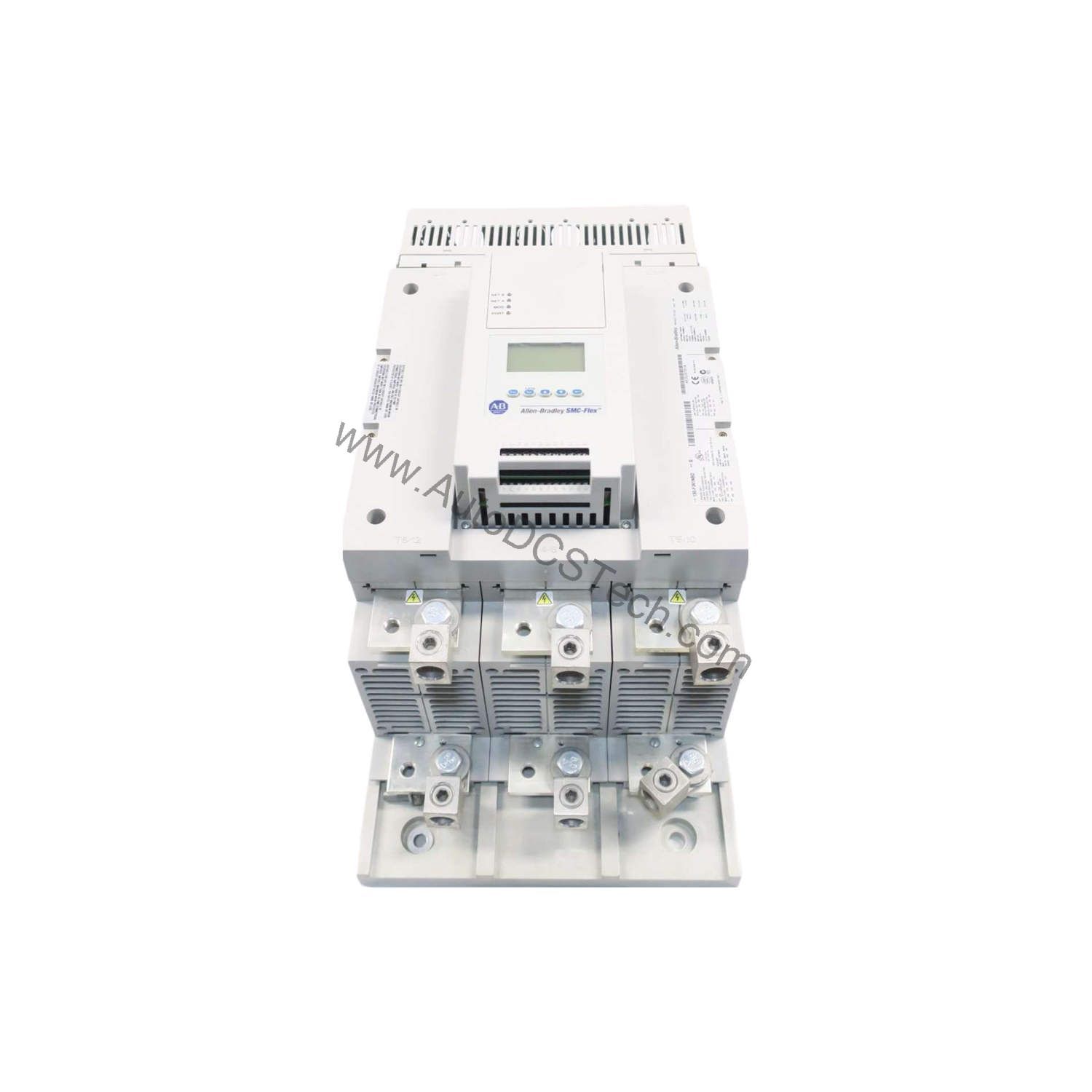

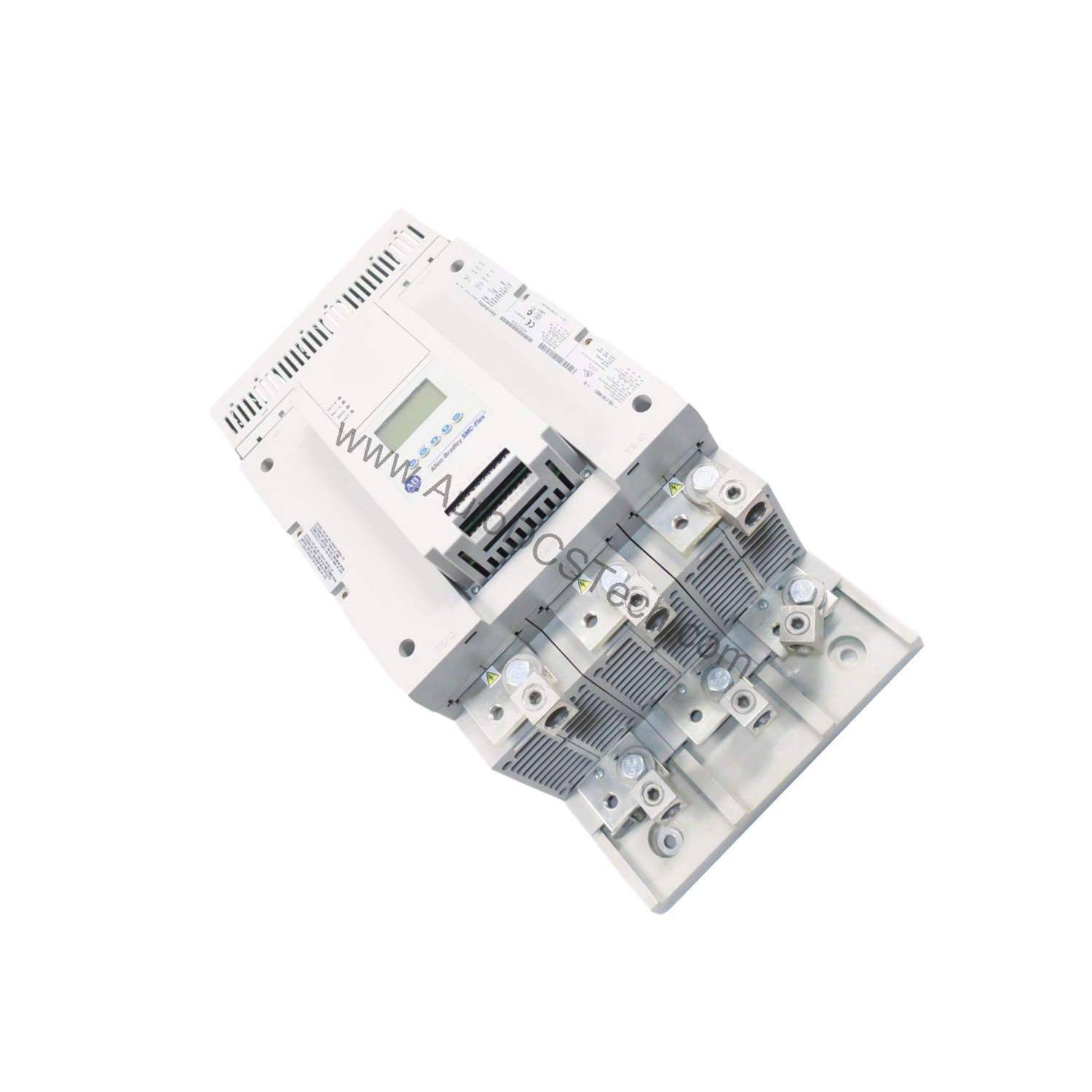

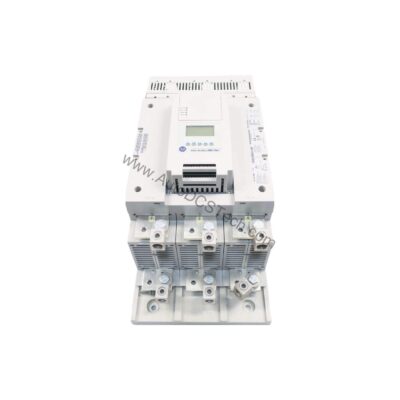

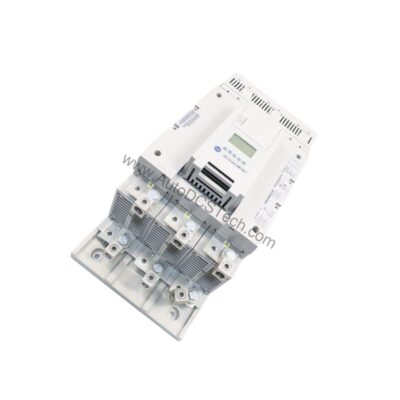

Allen-Bradley 150-F361NBD SMC-Flex Smart Motor Controller 361A

Technical Specifications Breakdown

Key parameters for the 150-F361NBD are listed below for quick reference:

Real-World Applications for Heavy Loads

This controller is suited for applications requiring controlled starting of high-inertia loads. With a rated power of 300 HP at 460VAC for line connection and 500 HP at 460VAC for delta connection, it handles conveyors, pumps, compressors, and fans. The 361 A current capacity supports large motors in industries such as mining, water treatment, and manufacturing. By reducing inrush current, the 150-F361NBD minimizes voltage dips on shared power lines, improving overall plant power quality.

Installation and Setup Guidance

Mount this open-style controller inside a suitable enclosure to ensure safety and proper airflow. Maintain a clearance of 6 inches above and below the unit for ventilation. For power wiring, use the recommended lug kit 199-LG1 with a wire strip length of 18-25 mm. Conductor size should range from 25 to 240 sq. mm (#6 to 250 MCM). Apply a torque of 42 Nm (275 lb/in) for wire-to-lug connections and 28 Nm (250 lb/in) for lug-to-busbar terminations. Control wiring should use 0.75 to 2.5 mm² (18-14 AWG) conductors with a torque of 0.6 Nm (5 lb/in). The control terminals accept a 1-phase supply of 100 to 240VAC.

Maintenance and Reliability

Periodically inspect the controller for signs of overheating or loose connections. The unit operates reliably in ambient temperatures from -5 to 50 degrees Celsius and can be stored between -25 to 75 degrees Celsius. Humidity should remain between 5% and 95% non-condensing. The built-in electronic overload protector offers automatic or manual trip reset. LED indicators on the front panel provide immediate status on overload, over temperature, and phase imbalance conditions.

Eliminate Motor Stress with the Allen-Bradley 150-F361NBD SMC-Flex

Industrial motor startups often cause mechanical shock, voltage sags, and premature wear. This component belongs to the SMC-Flex family and is designed to maximize motor operational hours while reducing energy waste from electrical transients.

Compatibility and Integration

The 150-F361NBD supports multiple wiring configurations: line connection with isolation contactor (default), delta connection with isolation contactor, and delta connection with shorted SCR protection. This flexibility allows integration into existing motor control centers or standalone installations. The controller includes programmable auxiliary contacts (1NO 1NC) for feedback to PLCs or DCS systems.

Selection Guide and Purchasing Advice

When selecting a smart motor controller, verify that your motor full-load current does not exceed 361 A and that your supply voltage falls within 200-460VAC, 3-phase. For delta-connected motors, the controller can handle up to 500 HP at 460VAC. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with cross-referencing and ensuring you receive the correct unit for your application.
