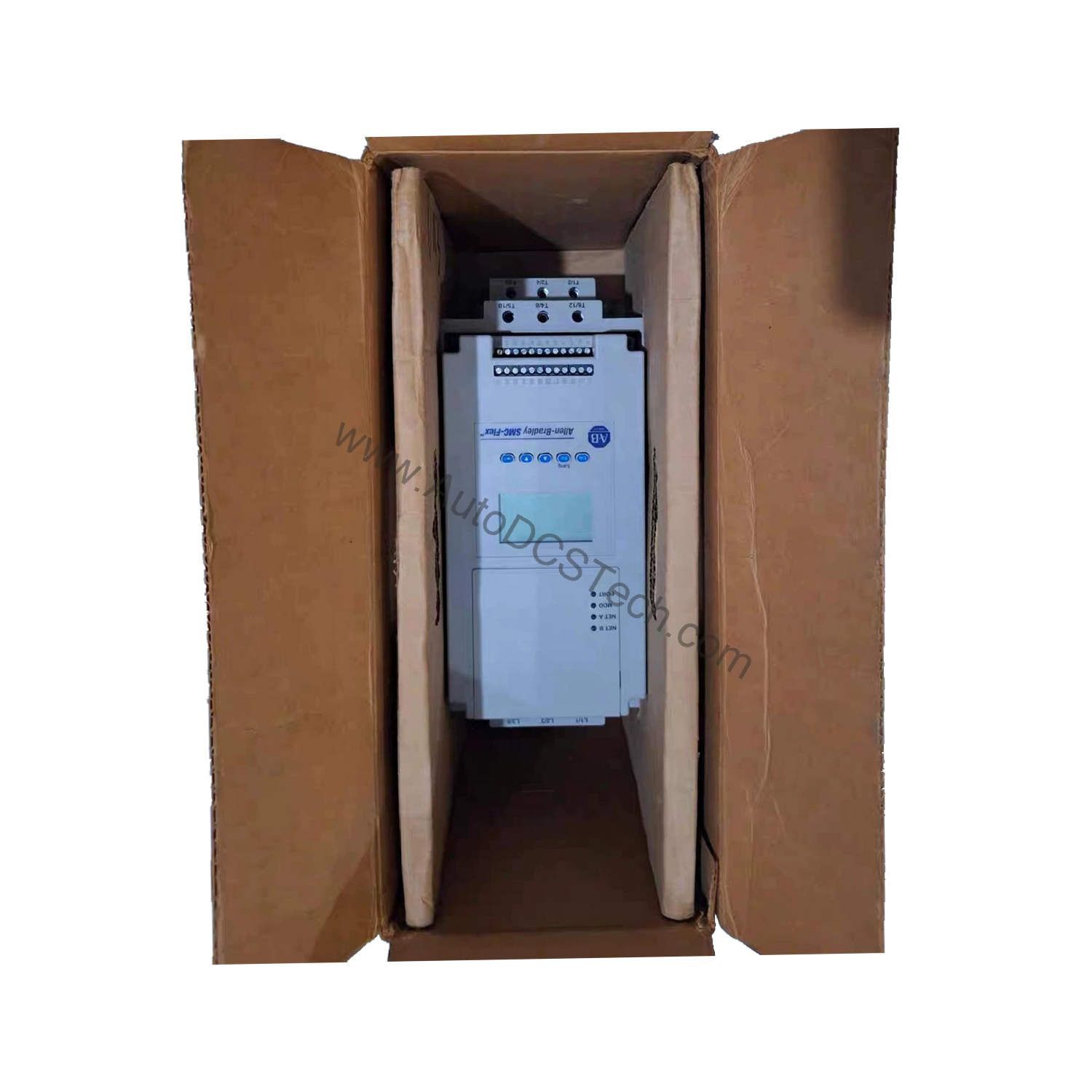

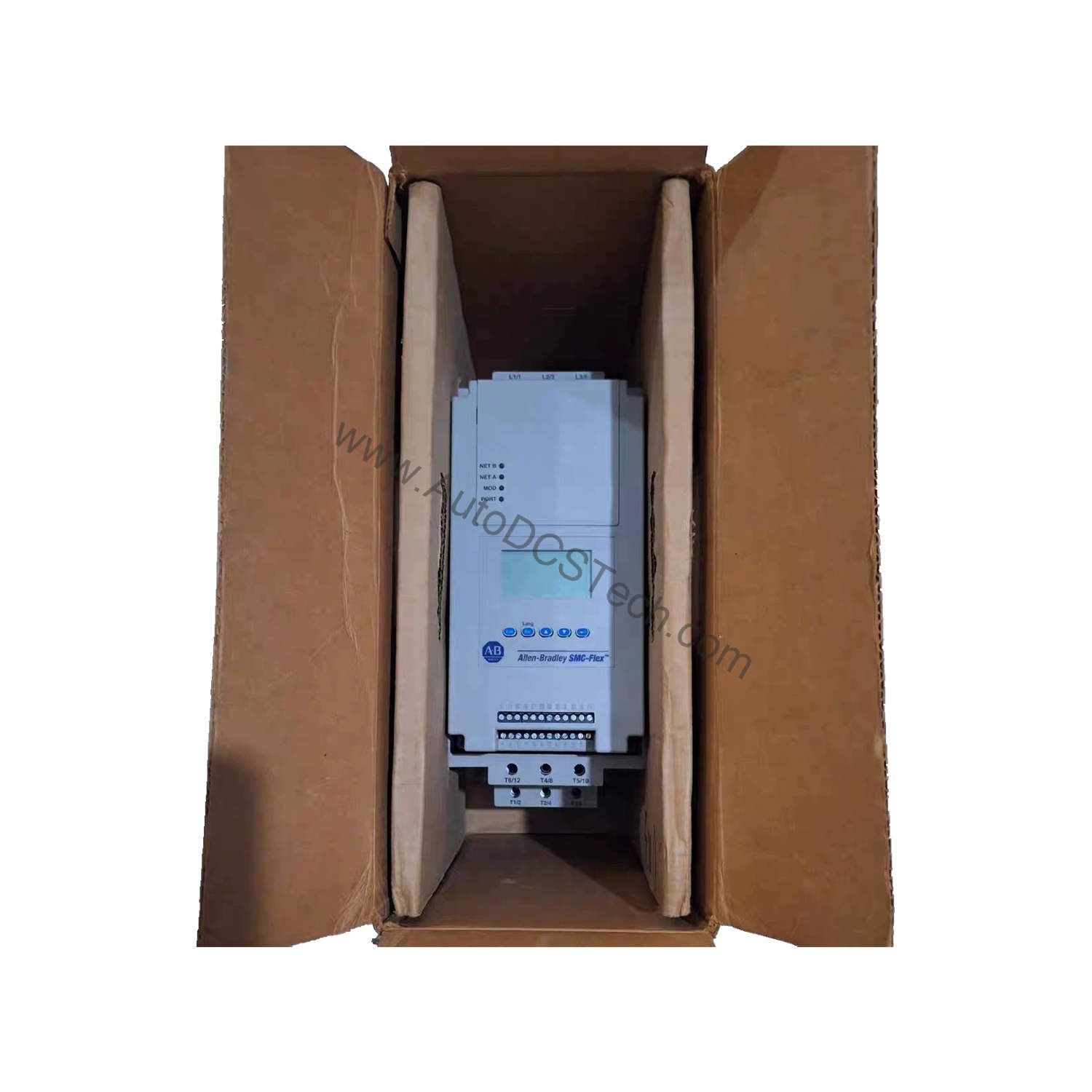

Allen-Bradley 150-F43NBDB SMC Flex Smart Motor Controller

Product Overview

The 150-F43NBDB is a solid-state smart motor controller from the Allen-Bradley SMC Flex product family. It functions as a motor soft starter, controlling the acceleration and deceleration of standard squirrel-cage induction motors or Wye-Delta six-lead motors. This panel-mounted device integrates multiple starting and stopping modes, electronic overload protection, and built-in metering to optimize motor performance and energy consumption.

Technical Specifications Breakdown

Key parameters for the 150-F43NBDB are listed below for quick reference:

Industry Applications

Pump Control for Water/Wastewater

With its built-in Pump Control feature and anti-backspin timer, the 150-F43NBDB prevents fluid surges and water hammer in pumping systems. The Soft Stop and Smart Motor Braking functions allow gentle deceleration, protecting pipes and valves.

Conveyor Systems in Manufacturing

Using Dual Ramp Start and Current Limit modes, the controller reduces mechanical stress on conveyor belts and gearboxes during start-up. The Kickstart adjustment (0, 0.5, 1.0, or 1.5 s @ 450% FLA) provides extra torque when needed.

HVAC Fan and Compressor Control

Full Voltage Start and Soft Start options accommodate varying load requirements. The integrated metering (amps, volts, kW, power factor) enables energy monitoring for efficiency optimization.

Installation & Setup Guidance

The 150-F43NBDB is designed for panel mounting within an enclosure that protects against corrosive gases, water, and airborne contaminants. Mount the controller vertically on a flat surface using the provided mounting holes. Ensure adequate clearance for heat dissipation and cable routing. Connect the 3-phase input line voltage (200-460VAC) to the line terminals and the motor to the load terminals. Apply control voltage (100-240VAC) to the control circuit. Configure operating modes via the integrated LCD and keypad or optional HIM connected to the DPI port.

Maintenance & Reliability

Periodically inspect the controller for dust accumulation, loose connections, and signs of overheating. Verify that the enclosure remains sealed against contaminants. The built-in electronic overload protection (I2t algorithm) and diagnostic features (power loss, line fault, voltage unbalance, ground fault) help identify issues early. No internal user-serviceable parts; contact qualified personnel for repairs.

Real-World Engineering Challenge: Managing Motor Start-Up Stress

Industrial facilities often face mechanical shock, electrical stress, and fluid surges during direct-on-line motor starting. These issues lead to premature equipment wear, increased maintenance costs, and unplanned downtime. The Allen-Bradley 150-F43NBDB SMC Flex smart motor controller provides a programmable solution to mitigate these risks, extending motor and driven equipment life.

Compatibility & Integration

The 150-F43NBDB is compatible with standard squirrel-cage induction motors or Wye-Delta six-lead motors. It features one DPI port for optional HMI and one DPI port for expansion modules. The controller provides four fully programmable auxiliary contacts and output contacts (one N.O., one N.C.). Alarm contact assignments include overload, underload, undervoltage, overvoltage, unbalance, jam, stall, and ground fault.

Selection Guide & Purchasing Advice

When selecting the 150-F43NBDB, verify that your motor’s full load current (FLA) falls within the output current range for your connection type (line-connected: 8.6-43 A; delta-connected: 14.9-74 A). The controller is rated for 480A, 400 HP at 460V AC. For applications requiring pump control, ensure the Pump Control option is selected. AutoDCSTech stocks this unit and can provide lifecycle status and availability confirmation before ordering.
