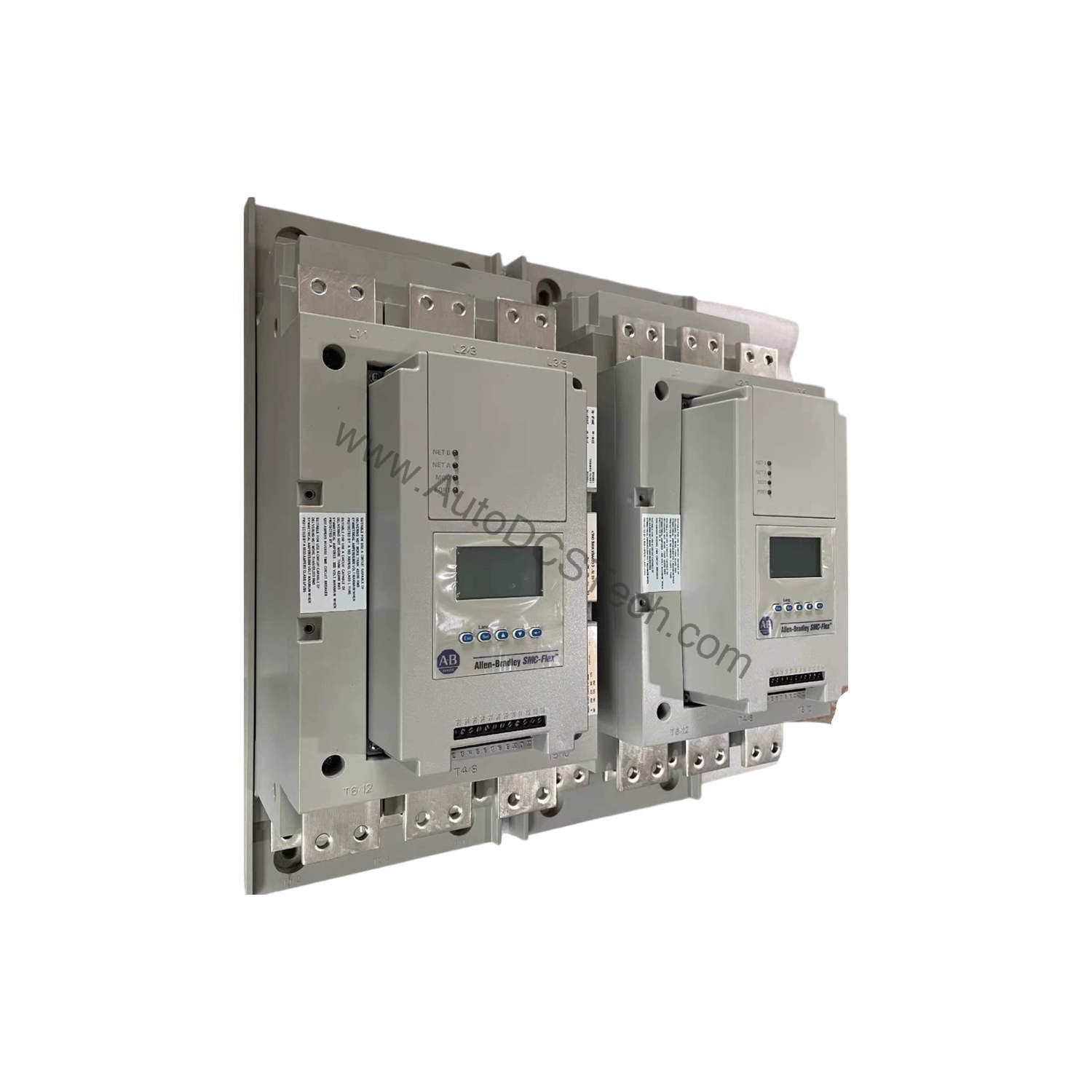

Allen-Bradley 150-F25FBD SMC-Flex Solid State Controller 25A IP65

Product Overview

The 150-F25FBD is a solid state controller from the Allen-Bradley SMC-Flex series, designed for reliable motor starting in industrial environments. It features an IP65 (Type 4/12) enclosure, making it suitable for washdown and dusty locations. This unit provides a controller rating of 25 A and 15 Hp at 460V AC, with an input line voltage range of 400-460V AC, 3-phase, 50 and 60 Hz. The control voltage is 100-240V AC, compatible with 5-480 A units. It holds UL 508, EN/IEC 60947-4-2, cULus Listed, CE, and CCC approvals.

Technical Specifications Breakdown

Key parameters for the 150-F25FBD are listed below for quick reference:

Industry Applications

For example, in pumping stations, the 150-F25FBD reduces inrush current and minimizes water hammer. In conveyor systems, it provides controlled acceleration to protect product integrity. The IP65 enclosure allows installation in food processing or chemical plants where washdown is routine.

Installation & Setup Guidance

Mount the unit in a location that maintains an ambient operating temperature of -5 to 40 degrees Celsius. Ensure the enclosure is not exposed to condensation or corrosive gases. Use cooling fans or heat exchangers if needed to stay within the temperature range. Connect the input line voltage (400-460V AC, 3-phase) and control voltage (100-240V AC) per the wiring diagram. The device is designed for Pollution degree 2 environments.

Maintenance & Reliability

Periodically inspect the enclosure seals and cooling fans to ensure the IP65 rating is maintained. Verify that the ambient temperature stays within -5 to 40 degrees Celsius during operation. For storage and transportation, the temperature range is -20 to 75 degrees Celsius. Regular inspection of connections and cleaning of the enclosure exterior will help prolong service life.

Compatibility & Integration

The 150-F25FBD is part of the SMC-Flex series and is compatible with standard three-phase induction motors and wye-delta motors. It integrates with existing control systems via the control voltage inputs. The built-in overvoltage and undervoltage protection, as well as motor underload and overload protection, enhance system reliability.

Selection Guide & Purchasing Advice

When selecting a solid state controller, match the controller rating to your motor's full-load current and horsepower. The 150-F25FBD is rated for 25 A and 15 Hp at 460V AC, making it suitable for many medium-duty applications. AutoDCSTech offers this unit with detailed specifications to help you make an informed decision. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
