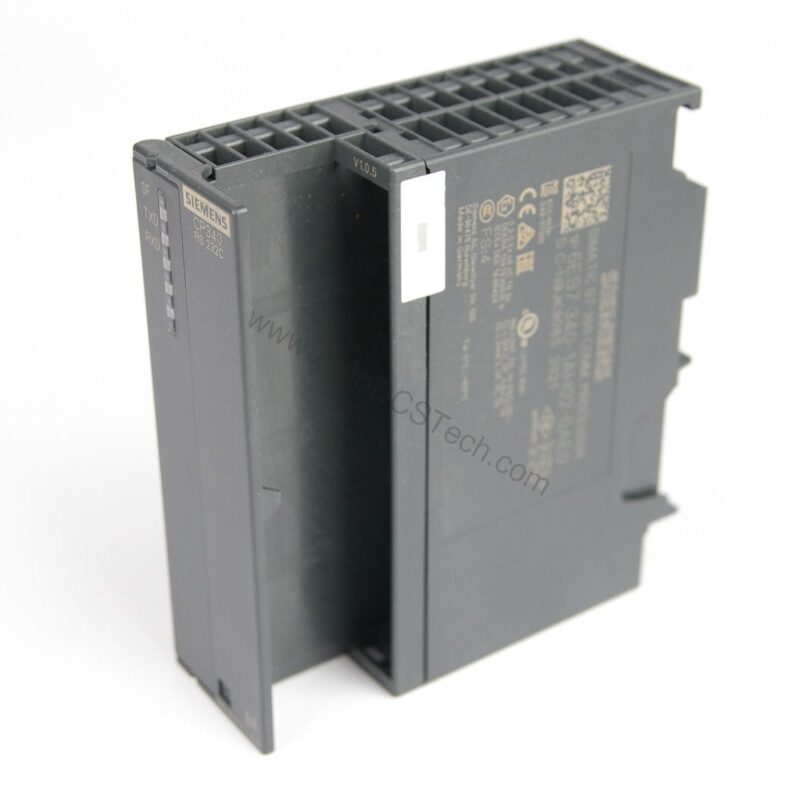

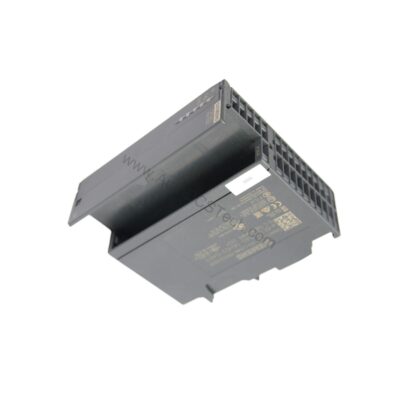

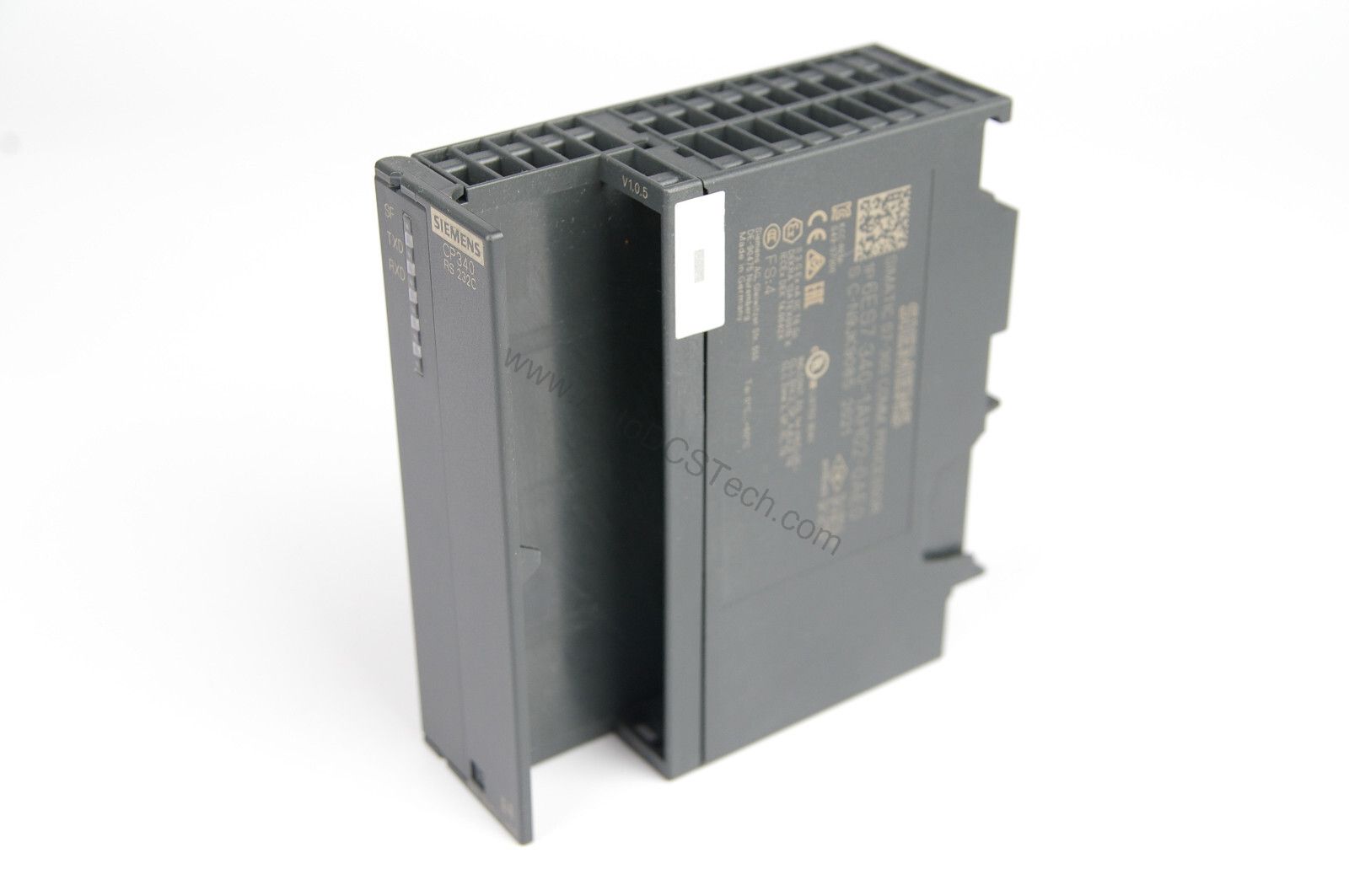

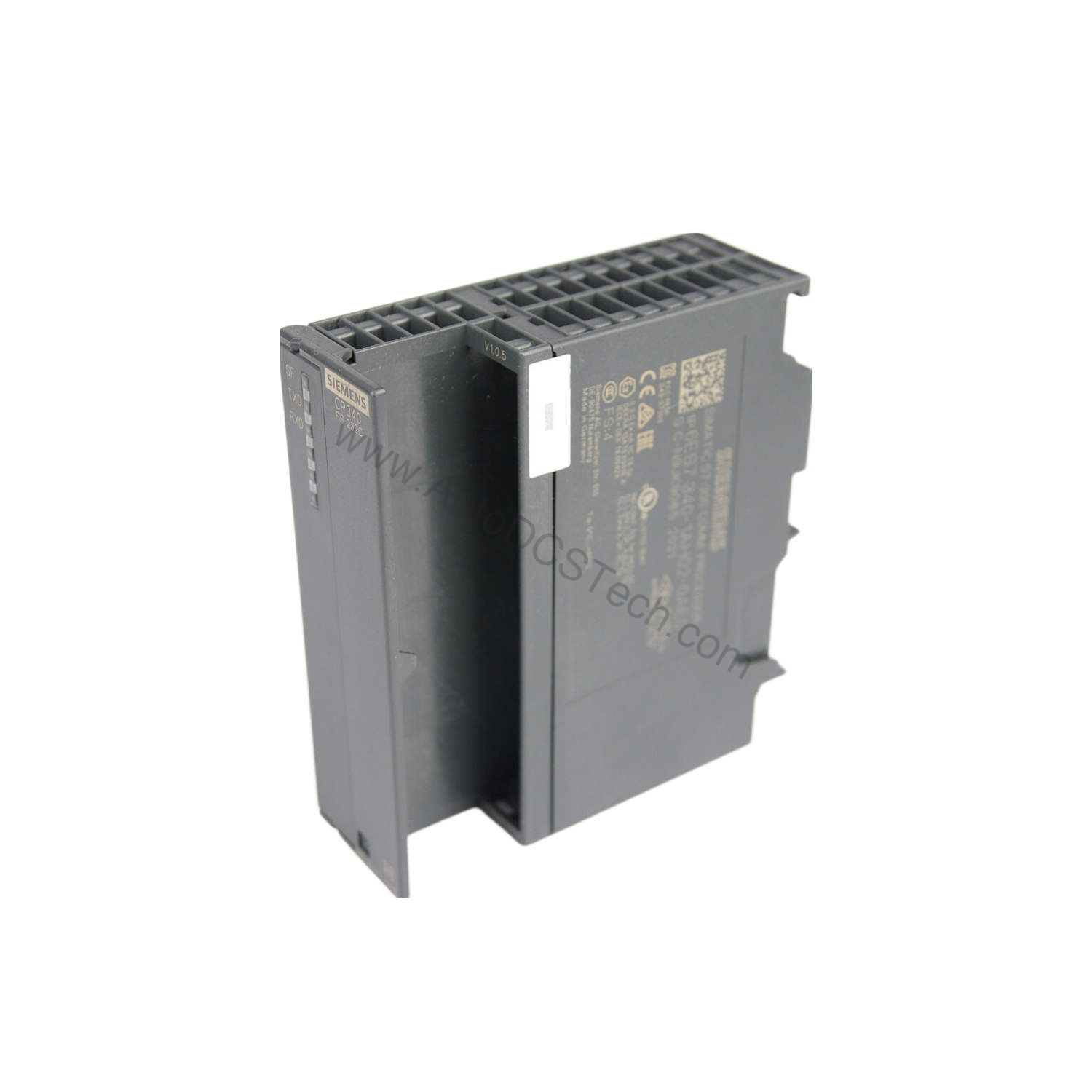

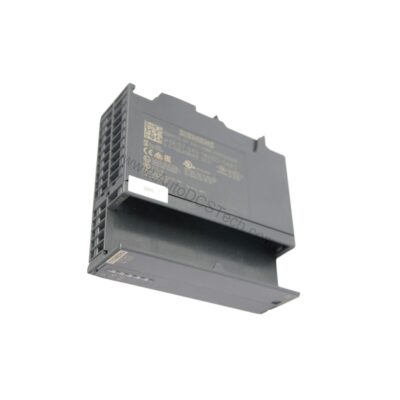

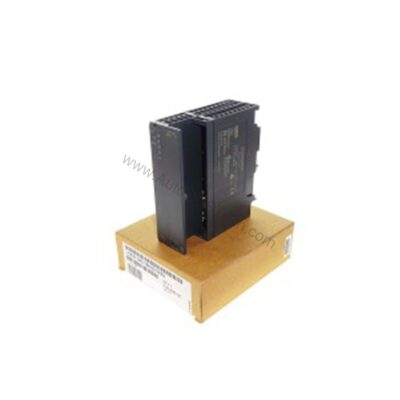

6ES7340-1CH02-0AE0 RS 422/485 CP 340 Communications Processor

Key Technical Specifications of the Siemens CP 340

The 6ES7340-1CH02-0AE0 is engineered for performance and reliability. Below are the critical parameters that define its operation:

• Supply voltage: Powered via backplane bus 5 V DC (no external 24 V DC required)
• Current consumption: 165 mA max from backplane bus
• Power loss: 0.6 W typical, 0.85 W max
• Interface: 1 isolated RS 422/485 (X.27) port
• Transmission rate: 2.4 to 19.2 kbit/s
• Cable length: Up to 1200 m
• Connector: 15-pin sub D socket
• Protocols: 3964(R) and ASCII
• Max telegram length: 1024 bytes
• Ambient temperature: 0°C to 60°C operation

These specs ensure the module meets the demands of typical industrial serial links, offering long-distance communication without signal degradation.

For example, in a packaging line, the module can reliably transmit production data to a label printer using the ASCII protocol, ensuring accurate batch records.

Moreover, the 3964(R) protocol provides a robust, checksum-protected data transfer, making it suitable for critical control links between PLCs or drives. Its isolated RS 485 interface also supports multi-drop configurations, allowing multiple devices on a single bus.

Installation and Setup: Getting the CP 340 Online

Installing the 6ES7340-1CH02-0AE0 is straightforward. The module mounts directly on the S7-300 DIN rail and connects to the backplane bus, which supplies 5 V DC power. No external power wiring is needed, simplifying installation and reducing potential wiring errors.

After mounting, connect your serial device to the 15-pin sub D socket using a suitable cable. The included configuration package on CD allows you to set the protocol, transmission rate, and telegram parameters. Ensure the transmission rate matches your connected device to avoid communication failures.

Maintenance and Reliability: Keeping Communication Uptime High

Regular inspection of the module and its connections is recommended to maintain reliable operation. Check that the sub D connector is securely fastened and that cables are not stressed or damaged. The module's low power loss (0.6 W typical) contributes to a cooler control cabinet, enhancing overall system reliability.

Given its wide operating temperature range (0°C to 60°C), the CP 340 is suitable for most industrial environments. However, avoid exposing the module to excessive dust or moisture, as these can affect connector integrity over time.

Solving Serial Communication Challenges with the 6ES7340-1CH02-0AE0

This CP 340 communications processor supports RS 422/485 interfaces, enabling stable data exchange with printers, drives, and other serial devices. Its isolated interface helps prevent ground loops and electrical noise, ensuring signal integrity in industrial environments.

With a maximum transmission rate of 19.2 kbit/s and support for both 3964(R) and ASCII protocols, this module adapts to diverse application needs. The included configuration package on CD simplifies setup, reducing engineering time and potential errors.

Troubleshooting Common Serial Communication Issues

If communication fails, first verify that the transmission rate and protocol settings match the connected device. Check the cable length; the maximum is 1200 m, but longer runs may require lower baud rates. Also, confirm that the RS 422/485 wiring is correct, especially for multi-drop configurations.

If using a printer, ensure it is one of the supported models (HP-DeskJet, HP-LaserJet, IBM-Proprinter, or user-defined). For persistent issues, consult the Siemens documentation or contact AutoDCSTech for technical support.

Product Support and Availability

The 6ES7340-1CH02-0AE0 is available from AutoDCSTech, a trusted supplier of industrial automation parts. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with technical questions and ensure you receive the right module for your application.
