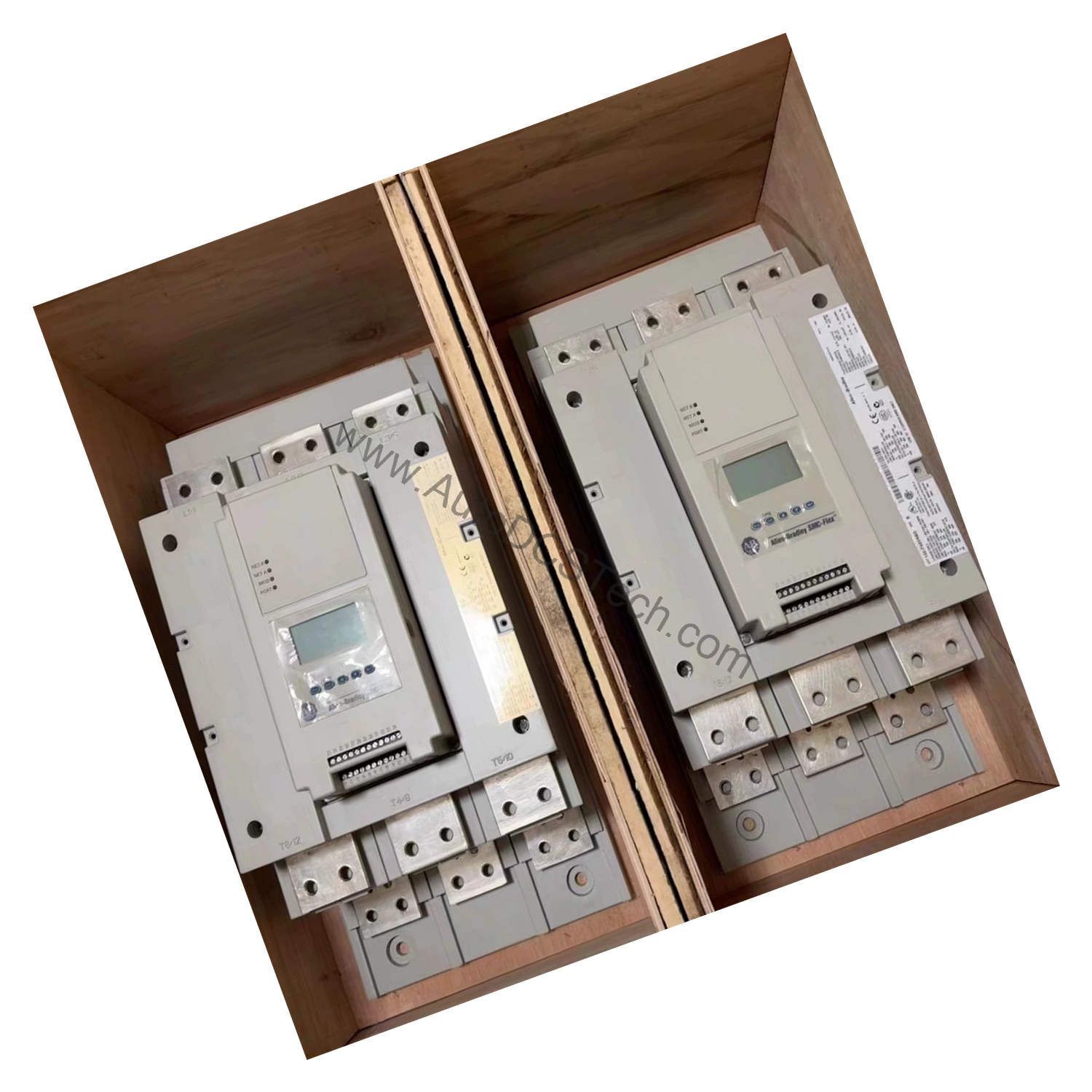

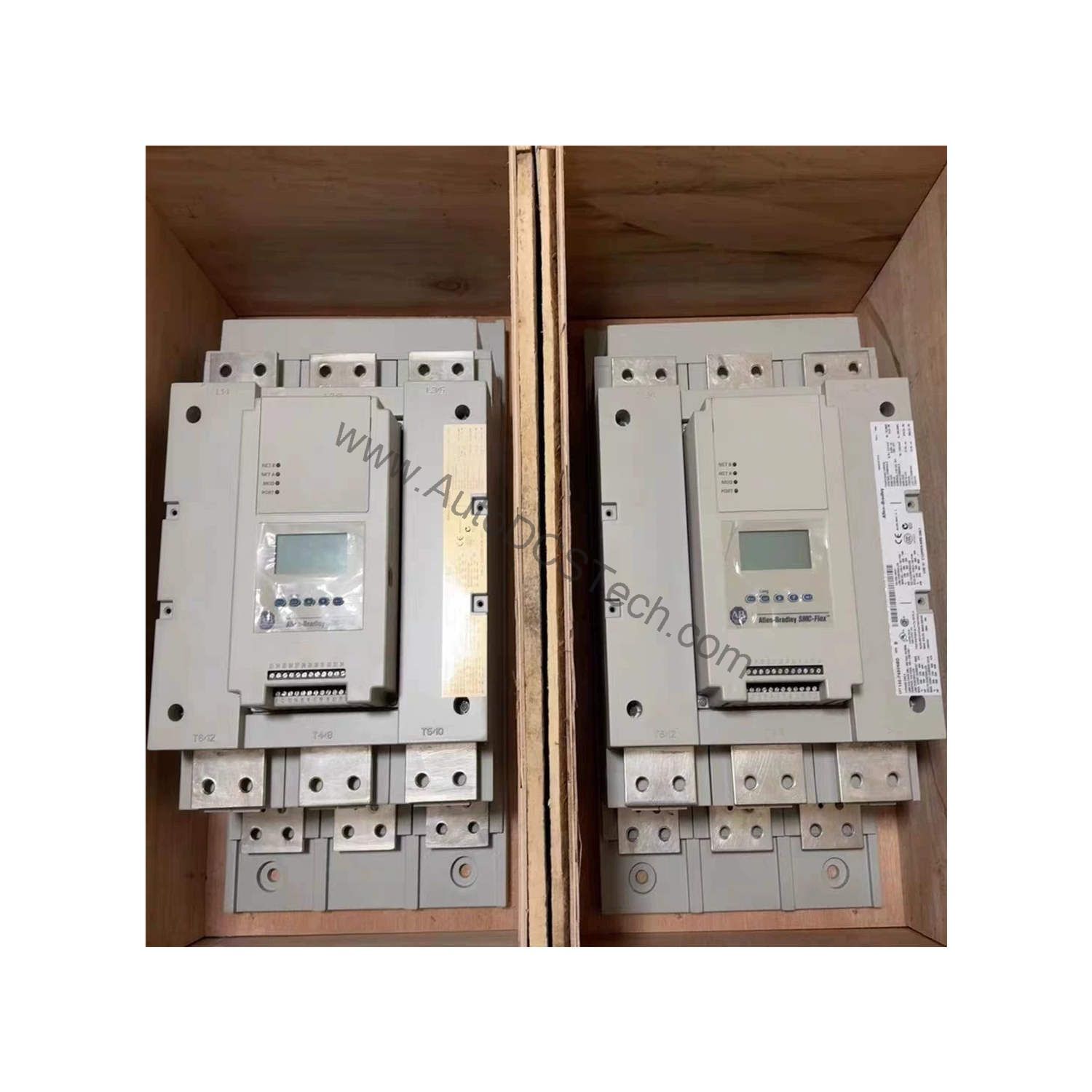

Allen-Bradley 150-F361NCR SMC-Flex Smart Motor Controller 361A

Technical Specifications Breakdown

Key parameters for the 150-F361NCR are listed below for quick reference:

Industry Applications

Common uses include conveyors, pumps, compressors, and fans where soft starting minimizes torque transients. The 150-F361NCR supports seven operational modes—Soft start, Current limit start, Dual ramp, Full voltage, Linear speed acceleration, Preset slow speed, and Soft stop—making it versatile for different load profiles. In a pumping station, for example, soft starting prevents water hammer and reduces pipeline fatigue, directly improving system reliability and lowering maintenance costs.

Installation and Setup Guidance

When installing this unit, ensure the open enclosure is mounted in a clean, dry location free from moisture and conductive dust. The controller requires a three-phase input voltage of 200-575V AC at 50 or 60 Hz. Connect the control voltage of 24V AC/DC to the integral control module. Use the front keypad with a 3-line by 16-character backlit LCD for parameter programming. The DPI communication interface allows connection to DeviceNet, ControlNet, Ethernet, or Remote I/O networks for remote monitoring and configuration. Always verify that the short circuit rating of 30kA is compatible with the upstream protective devices.

Maintenance and Reliability

The open enclosure design facilitates heat dissipation but offers no protection against environmental contaminants. Regularly inspect the unit for dust buildup and ensure adequate airflow. The controller operates within a functional temperature range of 23 to 122°F at 5 to 95% humidity. Storage temperature range is -4 to 167°F. Diagnostic LED lights indicate controller status, and protective features such as power loss, line faults, voltage unbalance, phase reversal, under voltage, overvoltage, controller temperature, stall, jam, overload, and under load protection help prevent damage. Periodic inspection of the snubber network for DV/DT protection is recommended.

The Evolution of Motor Control

Industrial motor control has evolved from simple electromechanical starters to intelligent solid-state systems that optimize performance and protect assets. The Allen-Bradley 150-F361NCR SMC-Flex Smart Motor Controller represents this advancement, delivering microprocessor-based control for standard three-phase squirrel cage induction motors and Wye-Delta motors. This unit is designed for environments where precise starting and stopping are critical to process efficiency and equipment longevity.

Compatibility and Integration

It supports multiple network protocols including DeviceNet, ControlNet, Ethernet, and Remote I/O, allowing connection to PLCs and SCADA systems. The modular design simplifies installation and maintenance. With CE, UL, and C-Tick certifications, this controller meets international standards for safety and performance. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Selection Guide and Purchasing Advice

When selecting a motor controller, match the controller rating to the motor full-load current and application duty cycle. The 150-F361NCR is rated 361A and 300 HP at 460V AC, suitable for medium to large motors. For Delta-connected motors, it supports a maximum current range from 208 to 625 Amps; for line-connected motors, the range is 120 to 360 Amps. AutoDCSTech offers this unit with expert support to ensure proper selection and integration. Contact our team for assistance with your specific application requirements.
