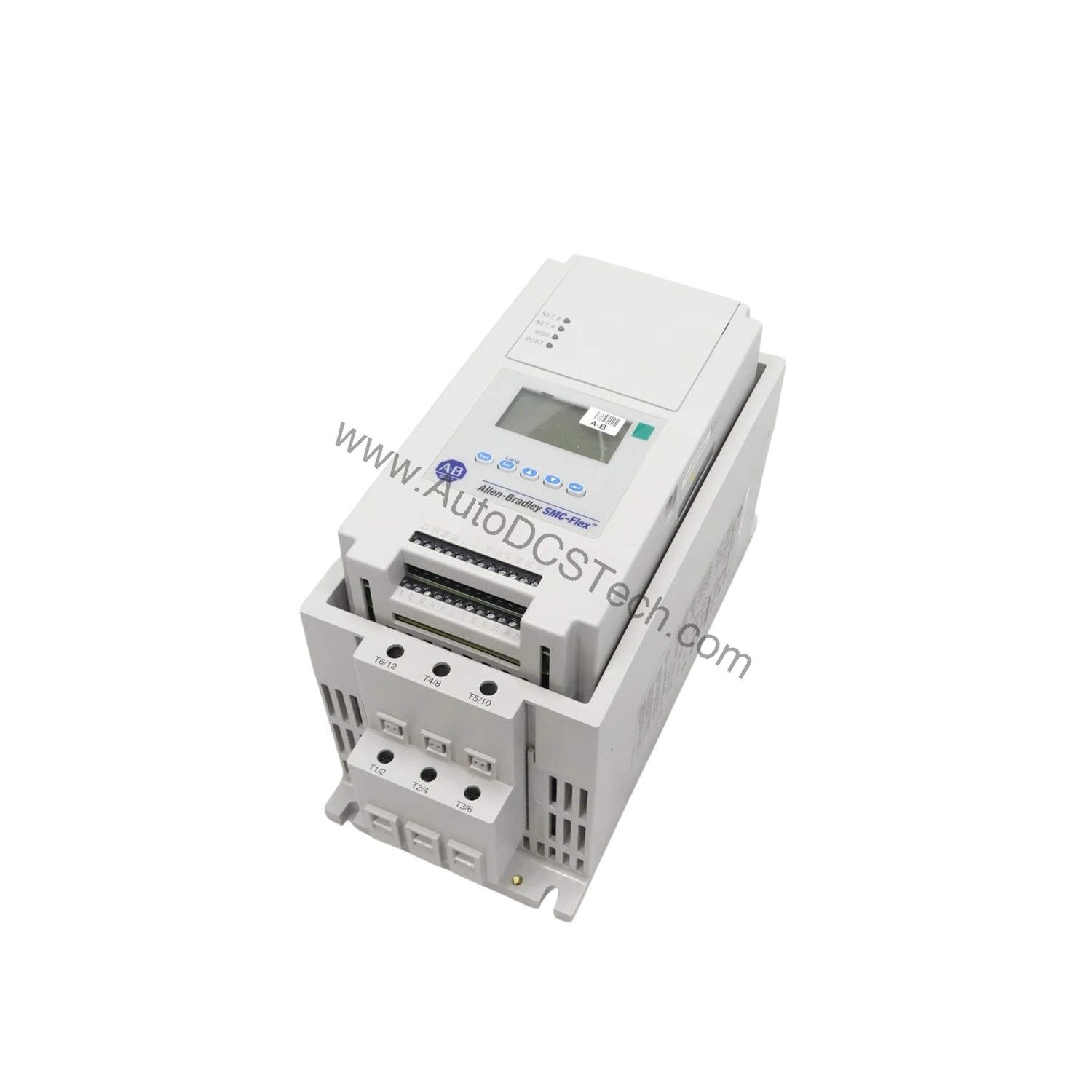

Allen-Bradley 150-F5FBD SMC-Flex Solid State Controller, 5A, IP65

Technical Specifications Breakdown

Key parameters for the 150-F5FBD are listed below for quick reference:

Application Versatility

The 150-F5FBD is engineered for applications requiring precise motor acceleration and deceleration. Its seven standard operating modes—soft start, soft stop, linear speed acceleration, current limit start, full voltage, preset slow speed, and dual ramp—allow engineers to tailor motor performance to specific loads. For example, soft start reduces mechanical stress on conveyor systems and pumps, while current limit start minimizes inrush current for generators or weak power grids. The IP65 enclosure protects the controller in food processing, chemical plants, and outdoor material handling installations.

Installation Guidance

Mount the controller in a location that does not exceed 6560 feet (2000 meters) altitude and maintains an ambient temperature of -5 to 40 degrees Celsius during operation. Ensure adequate clearance for ventilation and cable routing. The control voltage input accepts 100-240V AC, simplifying integration with standard control transformers. Verify that the motor full-load current does not exceed 5 A to avoid overload conditions.

Built-in Protection for Reliability

This SMC-Flex controller includes comprehensive protective features: overvoltage, undervoltage, overload, underload, controller temperature, excessive starts per hour, phase reversal, power loss, jam, open gate, communication fault, line fault, stall, and voltage unbalance protection. These diagnostics reduce unplanned downtime and simplify troubleshooting. The backlit LCD and keypad provide local status and configuration access.

Built for Demanding Environments

Industrial motor control applications often require robust protection against dust, water, and harsh conditions. The Allen-Bradley 150-F5FBD SMC-Flex solid state controller addresses this need with an IP65 (Type 4/12) enclosure, making it suitable for washdown and outdoor installations. This non-combination smart motor controller delivers reliable starting and stopping for three-phase induction motors up to 3 Hp at 460V AC.

Compatibility and Integration

The 150-F5FBD is part of the Allen-Bradley SMC-Flex family, designed for seamless integration with motor control centers and distributed control systems. Its standard operating modes and protective functions make it a versatile choice for new installations or retrofits. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Purchasing Advice

When selecting a solid state controller, confirm that the motor rating and enclosure requirements match your application. The 150-F5FBD is available through AutoDCSTech, a trusted supplier of industrial automation parts. Contact their team for lifecycle status and lead times.
